Ultrafast Recovery Rectifier
DUR3060CT, 2x 15A, 600V, TO-220AB, Common Cathode
DUR3060CT
Description
RoHS
Pb
e3
Features
• Ultra-fast switching
• Low reverse leakage
current
• High surge current
capability
• Low forward voltage drop
• Common Cathode

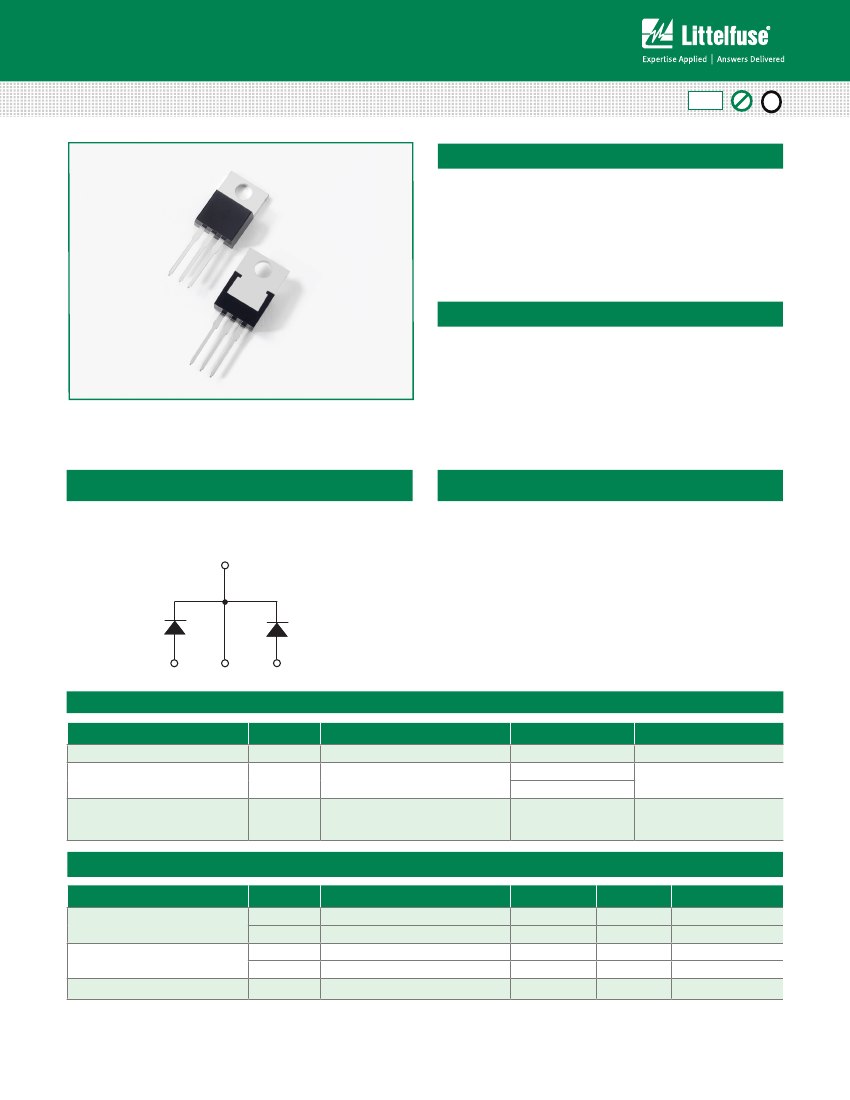

Circuit Diagram
Applications
configuration in TO-220AB
package
• Pb-free E3 means 2nd
level interconnect is Pb-
free and the terminal finish
material is tin(Sn) (IPC/
JEDEC J-STD-609A.01)
Base Common
Cathode
2
• Output rectifiers in switch
mode power supplies
(SMPS) and DC to DC
converters
• Free-wheeling diode or
boost diode in converters
and motor control circuits
• Anti-parallel diode for
high frequency switching
devices such as IGBT
• Uninterruptible Power
Supplies (UPS)
• Inductive heating and
melting
• Ultrasonic cleaners and
welders
1
Anode
2
3
Anode
Maximum Ratings
Characteristics
Peak Inverse Voltage
Average Forward Current
Peak One Cycle Non-
Repetitive Surge Current ( Per Leg)
Symbol
V
RWM
I
F(AV)
I
FSM
Conditions
-
Rated Vr, @T
C
=105 °C,
rectangular wave form
8.3 ms, half sine pulse
Max.
600
15 (Per Leg)
30 (Total Device)
110
Unit
V
A
A
Electrical Characteristics
Characteristics
Forward Voltage Drop (Per Leg)
1
Reverse Current (Per Leg)
1
Reverse Recovery Time
Symbol
V
F1
V
F2
I
R1
I
R2
t
rr1
Conditions
@15A, Pulse, T
J
= 25 °C
@15A, Pulse, T
J
= 125 °C
@V
R
= Rated V
R
, T
J
= 25 °C
@V
R
= Rated V
R
, T
J
= 125 °C
I
F
=500mA, I
R
=1A,and I
rm
=250mA
Typ.
1.71
1.59
0.54
277
-
Max.
2.03
-
100
1500
50
Unit
V
V
μA
μA
ns
Footnote
1
: Pulse Width < 300μs, Duty Cycle <2%
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/19/16
SP3051
Littelfuse DUR series Ultrafast Recovery Rectifier is
designed to meet the general requirements of commercial
applications by providing low Trr, high-temperature, low-
leakage and low forward voltage drop products. It is suit-
able for output rectifier, free-wheeling or boost diode in
high-frequency power switching application such as switch
mode power supply and DC-DC converters.
Ultrafast Recovery Rectifier
DUR3060CT, 2x 15A, 600V, TO-220AB, Common Cathode
Thermal-Mechanical Specifications
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal
Resistance Junction to Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
wt
-
Conditions
-
-
DC operation
-
TO-220AB
Specification
-55 to +150
-55 to +150
1.6
2
-
Unit
°C
°C
°C/W
g
-

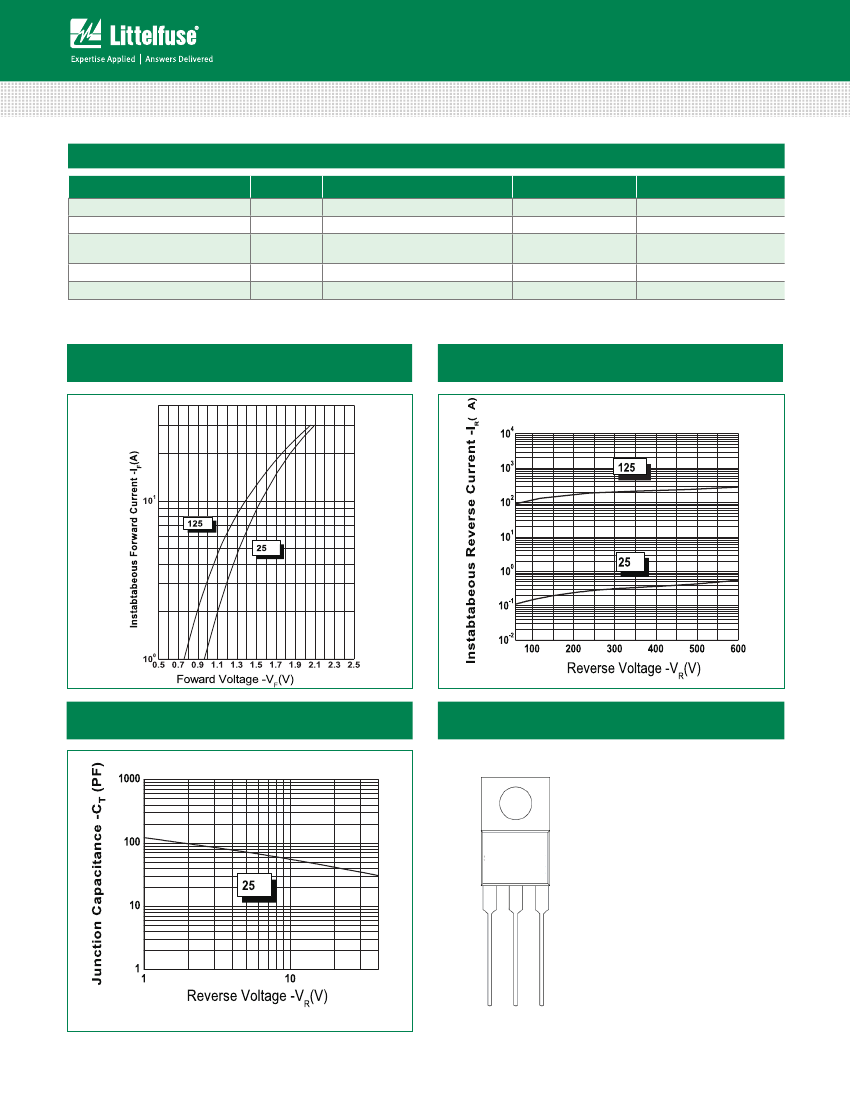

Figure 1: Typical Forward Characteristics
Figure 2: Typical Reverse Characteristics
°C
°C
°C
°C
Figure 3: Typical Junction Capacitance
Part Numbering and Marking System
*xxxxx is YYWWL
DUR
30
60
CT
LF
YY
WW
L
= Device Type
= Forward Current (30A)
= Reverse Voltage (600V)
= Configuration
= Littelfuse
= Year
= Week
= Lot Number
DUR3060CT
LF
xxxxx
°C
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/19/16
Ultrafast Recovery Rectifier
DUR3060CT, 2x 15A, 600V, TO-220AB, Common Cathode
Packing Options
Part Number
DUR3060CT
Marking
DUR3060CT
Packing Mode
50pcs / Tube
M.O.Q
1000
Symbol
A
A1
A2
b
b1
c
D
D1
E
e
e1
H1
L
L1
Millimeters
Min
3.56
0.51
2.03
0.38
1.14
0.31*
14.22
8.38
9.65
2.54
4.98*
5.84
12.70
-
3.53
2.54
Max
4.83
1.40
2.92
1.02
1.78
0.61
16.51
9.15*
10.67
-
-
6.86
14.73
6.35
4.09
3.43
ø
P
Q
Footnote
*
: The spec. does not comply with JEDEC spec.
Tube Specification TO-220AB
7mm
530mm
32mm
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/19/16
SP3051
Dimensions-Package TO-220AB
