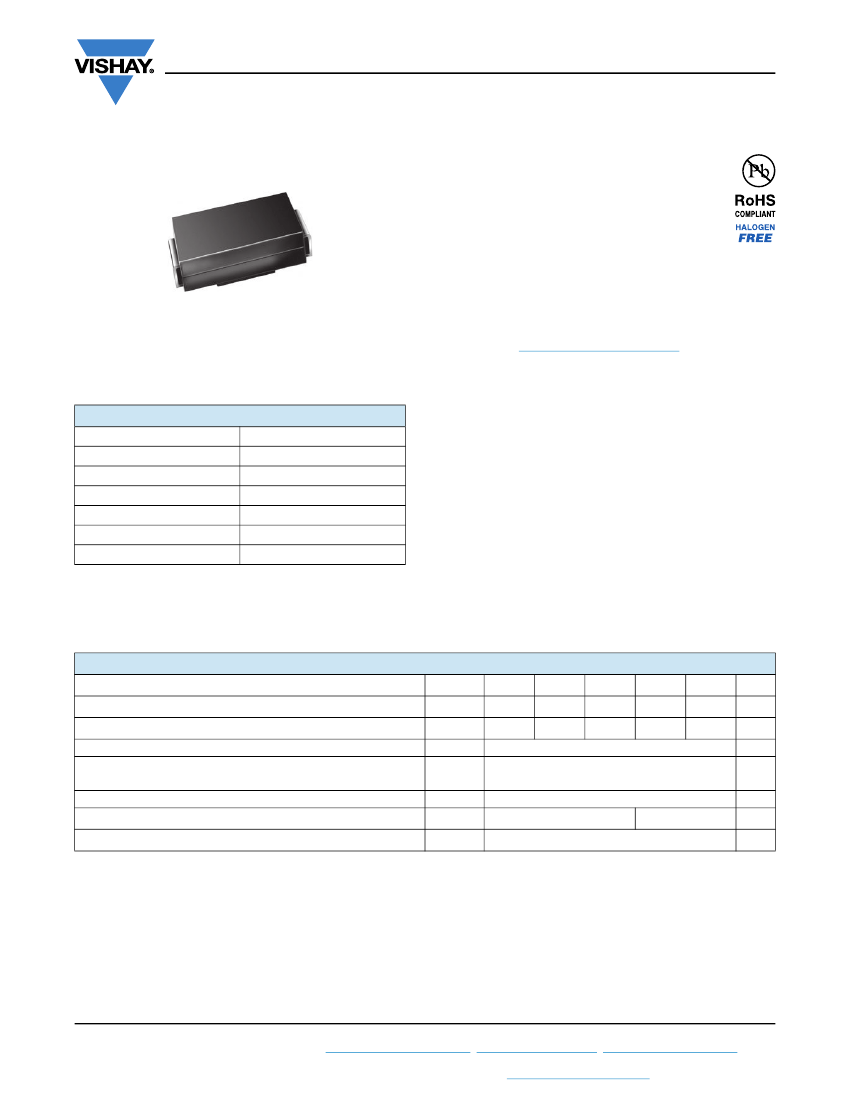

B120-M3, B130-M3, B140-M3, B150-M3, B160-M3
www.vishay.com
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
DO-214AC (SMA)
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Diode variation
1.0 A
20 V, 30 V, 40 V, 50 V, 60 V
30 A
0.52 V, 0.75 V
125 °C, 150 °C
DO-214AC (SMA)
Single die
For use in low voltage, high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
Note
• These devices are not AEC-Q101 qualified
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test
Polarity:
Color band denotes the cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
-65 to +125
-65 to +150
SYMBOL
B120
B12
20
B130
B13
30
B140
B14
40
1.0
30
10 000
-65 to +150
B150
B15
50
B160
B16
60
V
A
A
V/μs
°C
°C
UNIT
Revision: 09-Dec-13
Document Number: 89926
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
B120-M3, B130-M3, B140-M3, B150-M3, B160-M3
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward voltage
Maximum reverse current at rated V
R
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
TEST CONDITIONS
1.0 A
T
A
= 25 °C
T
A
= 100 °C
SYMBOL
V
F (1)
I
R (2)
B120
B130
0.52
0.2
6.0
5.0
B140
B150
0.75
B160
UNIT
V
mA
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JL
(1)
B120
B130
B140
95
30
B150
B160
UNIT
°C/W
Note
(1)
P.C.B. mounted with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
ORDERING INFORMATION
(Example)
PREFERRED P/N
B140-M3/61T
B140-M3/5AT
UNIT WEIGHT (g)
0.064
0.064
PREFERRED PACKAGE CODE
61T
5AT
BASE QUANTITY
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel

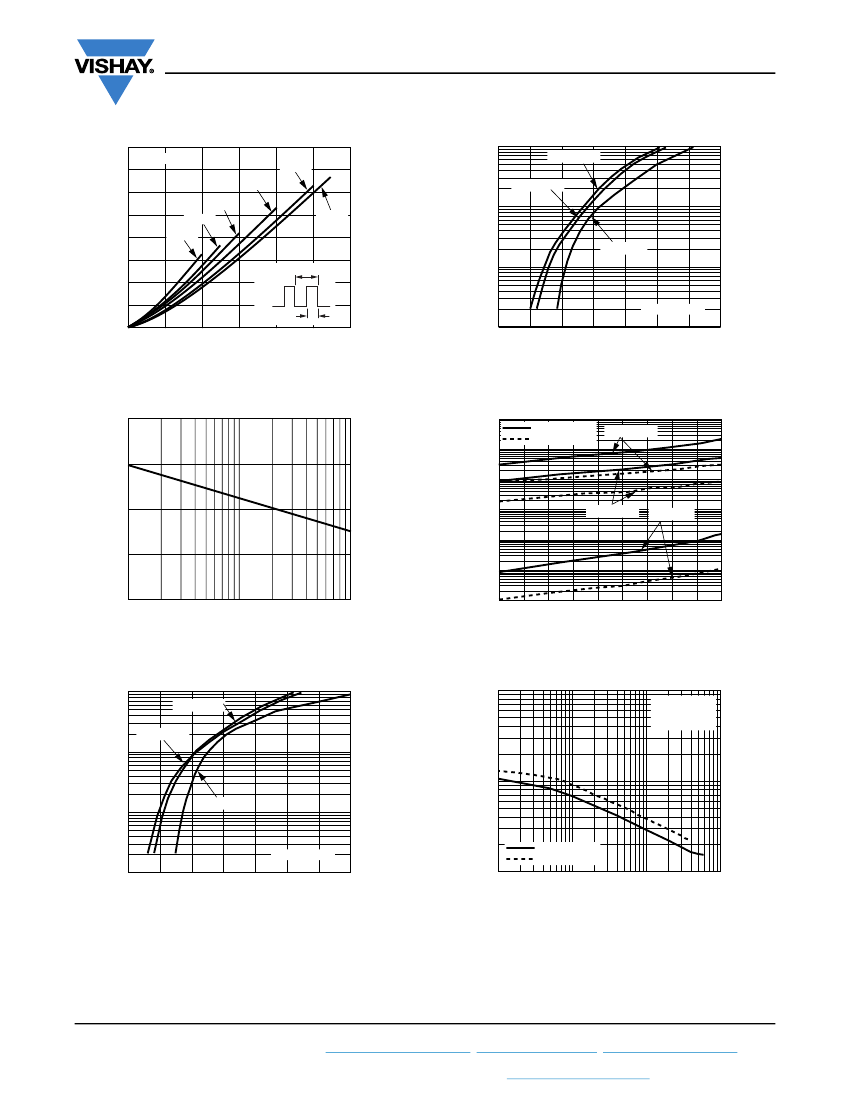

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.2
0.8
Resistive or Inductive Load
1.0
B150 and B160
B120 thru B140
0.7
D = 0.8
D = 0.5
0.6
D = 0.3
0.5
0.4
0.3
T
0.2
0.1
D = t
p
/T
0
0
25
50
75
100
125
150
0
0.2
0.4
0.6
0.8
1.0
1.2
t
p
D = 0.2
D = 0.1
D = 1.0
Average Forward Rectified Current (A)
0.8
B120 thru B140
0.6
0.4
P.C.B. Mounted on
0.2" x 0.2" (5.0 mm x 5.0 mm)
Copper Pad Areas
0.2
0
Lead Temperature (°C)
Average Power Loss (W)
Average Forward Current
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 2 - Forward Power Loss Characteristics
Revision: 09-Dec-13
Document Number: 89926
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
B120-M3, B130-M3, B140-M3, B150-M3, B160-M3
www.vishay.com
Vishay General Semiconductor
10
D = 0.8
0.8
0.7
Instantaneous Forward Current (A)
B150 and B160
T
J
= 150 °C
T
J
= 125 °C
1
Average Power Loss (W)
0.6
D = 0.3
0.5
0.4
0.3
D = 0.2
D = 0.1
D = 0.5
D = 1.0
T
J
= 25 °C
0.1
T
0.2
0.1
D = t
p
/T
0
0
0.2
0.4
0.6
0.8
1.0
1.2
t
p
B150 and B160
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Average Forward Current (A)
Instantaneous Forward Voltage (V)
Fig. 3 - Forward Power Loss Characteristics
Fig. 6 - Typical Instantaneous Forward Characteristics
40
100 000
Instantaneous Reverse Current (μA)
Peak Forward
Surge
Current (A)
B120 thru B140
B150 and B160
10 000
T
J
= 150 °C
30
1000
20
100
T
J
= 125 °C
T
J
= 25 °C
10
10
1
0
1
10
100
0.1
10
20
30
40
50
60
70
80
90
100
Number of Cycles at 50 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 4 - Typical Instantaneous Forward Characteristics
Fig. 7 - Typical Reverse Leakage Characteristics
10
1000
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Forward Current (A)
1
Junction Capacitance (pF)
100
T
J
= 25 °C
0.1
B120 thru B140
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
10
0.1
B120 thru B140
B150 and B160
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 5 - Typical Instantaneous Forward Characteristics
Fig. 8 - Typical Junction Capacitance
Revision: 09-Dec-13
Document Number: 89926
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
B120-M3, B130-M3, B140-M3, B150-M3, B160-M3
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-214AC (SMA)
Cathode Band
Vishay General Semiconductor
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 09-Dec-13
Document Number: 89926
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
