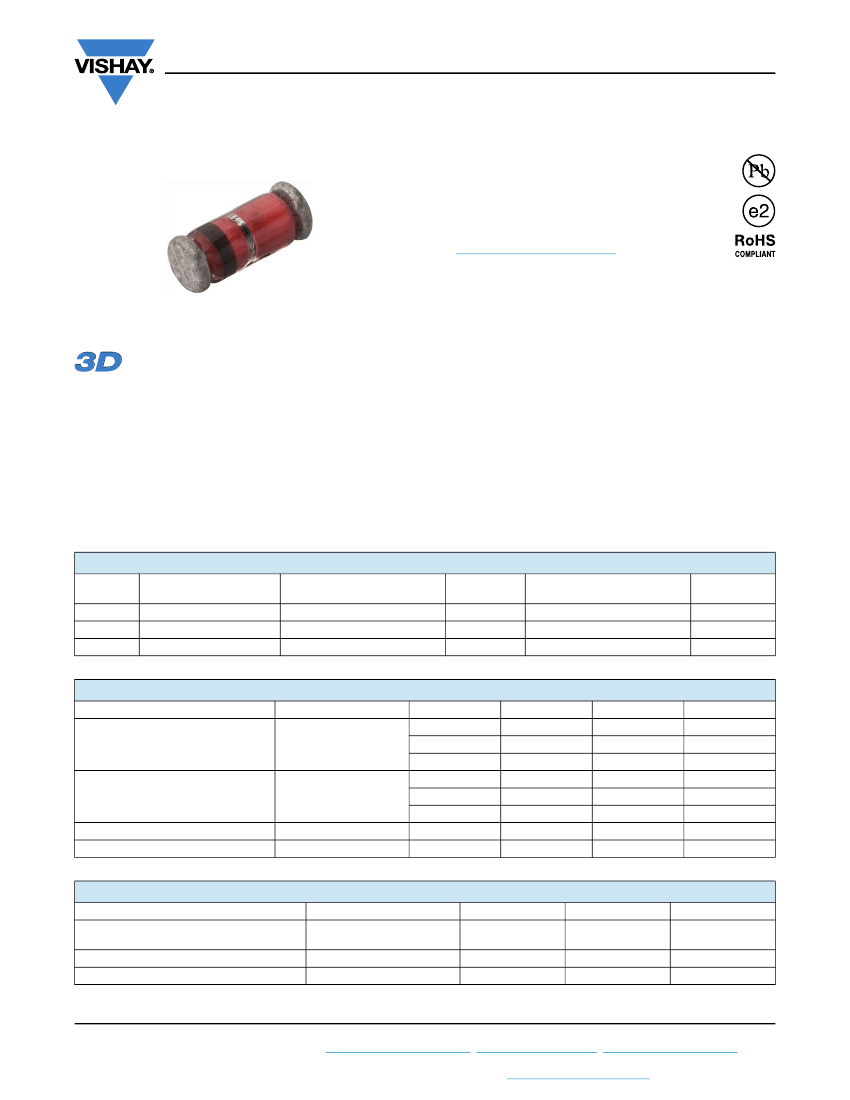

BAQ33, BAQ34, BAQ35
www.vishay.com
Vishay Semiconductors
Small Signal Switching Diodes, Low Leakage Current
FEATURES
• Silicon planar diodes
• Very low reverse current
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Protection circuits, time delay circuits, peak follower
circuits, logarithmic amplifiers
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
MECHANICAL DATA
Case:
MiniMELF (SOD-80)
Weight:
approx. 31 mg
Cathode band color:
black
Packaging codes / options:
GS18/10K per 13" reel (8 mm tape), 10K/box
GS18/10K per 13" reel (8 mm tape), 10K/box
PARTS TABLE
PART
BAQ33
BAQ34
BAQ35
TYPE DIFFERENTIATION
V
RRM
= 40 V
V
RRM
= 70 V
V
RRM
= 140 V
ORDERING CODE
BAQ33-GS18 or BAQ33-GS08
BAQ34-GS18 or BAQ34-GS08
BAQ35-GS18 or BAQ35-GS08
TYPE
MARKING
-
-
-
CIRCUIT CONFIGURATION
Single
Single
Single
REMARKS
Tape and reel
Tape and reel
Tape and reel
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
TEST CONDITION
PART
BAQ33
BAQ34
BAQ35
BAQ33
Reverse voltage
Peak forward surge current
Forward continuous current
t
p
= 1 μs
BAQ34
BAQ35
SYMBOL
V
RRM
V
RRM
V
RRM
V
R
V
R
V
R
I
FSM
I
F
VALUE
40
70
140
30
60
125
2
200
UNIT
V
V
V
V
V
V
A
mA
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
Junction temperature
Storage temperature range
TEST CONDITION
On PC board
50 mm x 50 mm x 1.6 mm
SYMBOL
R
thJA
T
j
T
stg
VALUE
500
175
-65 to +175
UNIT
K/W
°C
°C
Rev. 1.9, 11-Jul-17
Document Number: 85537
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BAQ33, BAQ34, BAQ35
www.vishay.com
Vishay Semiconductors
PART
SYMBOL
V
F
I
R
I
R
BAQ33
BAQ34
BAQ35
BAQ33
BAQ34
BAQ35
I
R
I
R
I
R
V
(BR)
V
(BR)
V
(BR)
C
D
40
70
140
3
0.5
0.5
0.5
1
MIN.
TYP.
MAX.
1
3
0.5
1
1
1
UNIT
V
nA
μA
nA
nA
nA
V
V
V
pF
ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Forward voltage
TEST CONDITION
I
F
= 100 mA
E
≤
300 Ix, rated V
R
E
≤
300 Ix, rated V
R
, Tj = 125 °C
Reverse current
E
≤
300 Ix, V
R
= 15 V
E
≤
300 Ix, V
R
= 30 V
E
≤
300 Ix, V
R
= 60 V
I
R
= 5 μA, t
p
/T = 0.01,
t
p
= 0.3 ms
I
R
= 5 μA, t
p
/T = 0.01,
t
p
= 0.3 ms
V
R
= 0 V, f = 1 MHz
Breakdown voltage
Diode capacitance
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
10 000
V
R
= V
RRM
I
R
- Reverse Current (nA)
1000
T
j
= 25 °C
100
Scattering Limit
10
1000
Scattering Limit
100
I
F
- Forward Current (mA)
10
1
1
0
94 9079
0.1
40
80
120
160
200
94 9078
0
0.4
0.8
1.2
1.6
2.0
T
j
- Junction Temperature (°C)
V
F
- Forward Voltage (V)
Fig. 1 - Reverse Current vs. Junction Temperature
Fig. 2 - Forward Current vs. Forward Voltage
Rev. 1.9, 11-Jul-17
Document Number: 85537
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BAQ33, BAQ34, BAQ35
www.vishay.com
PACKAGE DIMENSIONS
in millimeters (inches):
MiniMELF (SOD-80)
Cathode indentification
Vishay Semiconductors
*
0.47 (0.019) max.
3.7 (0.146)
3.3 (0.130)
* The gap between plug and glass can
be either on cathode or anode side
Foot print recommendation:
2.5 (0.098) max.
1.6 (0.063)
1.4 (0.055)
1.25 (0.49) min.
Document no.:6.560-5005.01-4
Rev. 8 - Date: 07.June.2006
96 12070
5 (0.197) ref.
Rev. 1.9, 11-Jul-17
Document Number: 85537
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
2 (0.079) min.
