SKD25

Description
3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE
Categorysemiconductor    Discrete semiconductor
File Size73KB，4 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Download Datasheet Parametric Compare View All

SKD25 Overview

3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE

SKD25 Parametric

Parameter NameAttribute value
Number of terminals5
Number of components6
Maximum average input current3.5 A
Processing package descriptionPLASTIC, CASE G 11B , 5 PIN
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
packaging shapeSQUARE
Package SizeFLANGE MOUNT
Terminal formSOLDER LUG
terminal coatingTIN/SILVER
Terminal locationUPPER
Packaging MaterialsPLASTIC/EPOXY
structureBRIDGE, 6 ELEMENTS
Shell connectionISOLATED
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
Phase3
Maximum repetitive peak reverse voltage1400 V
Maximum non-repetitive peak forward current320 A

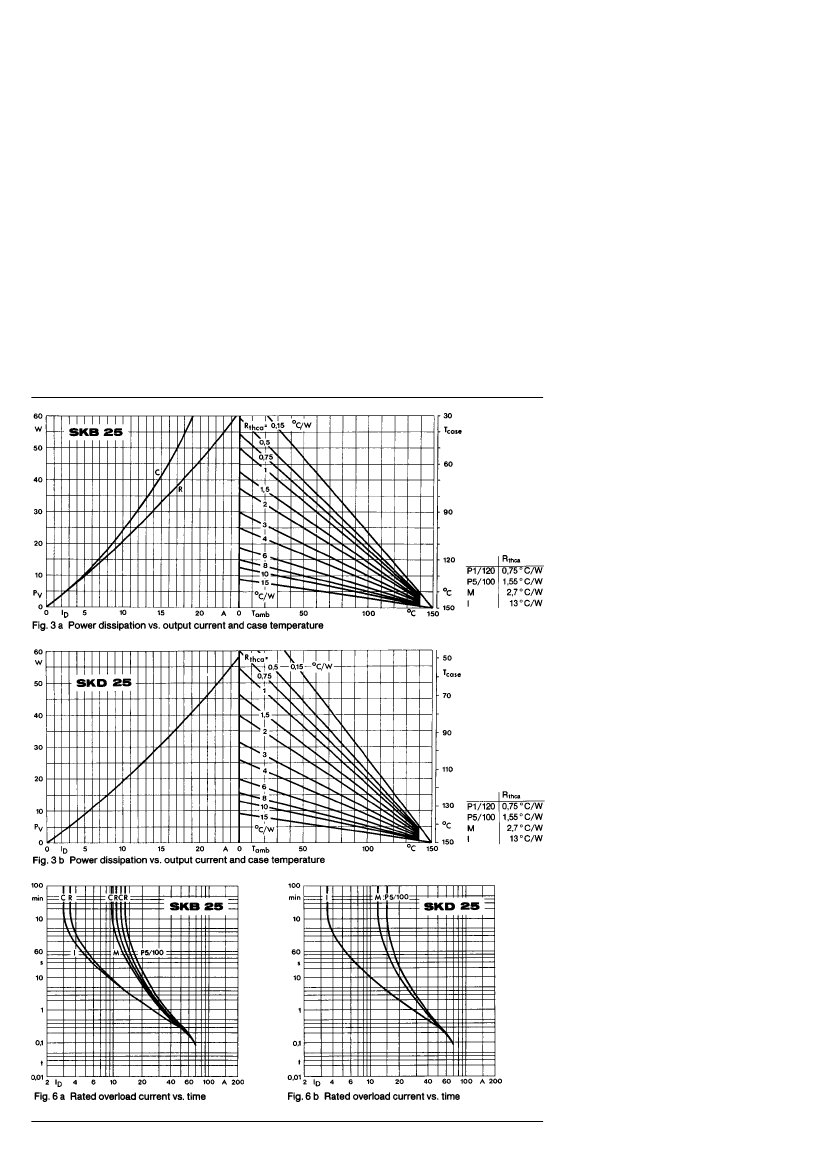

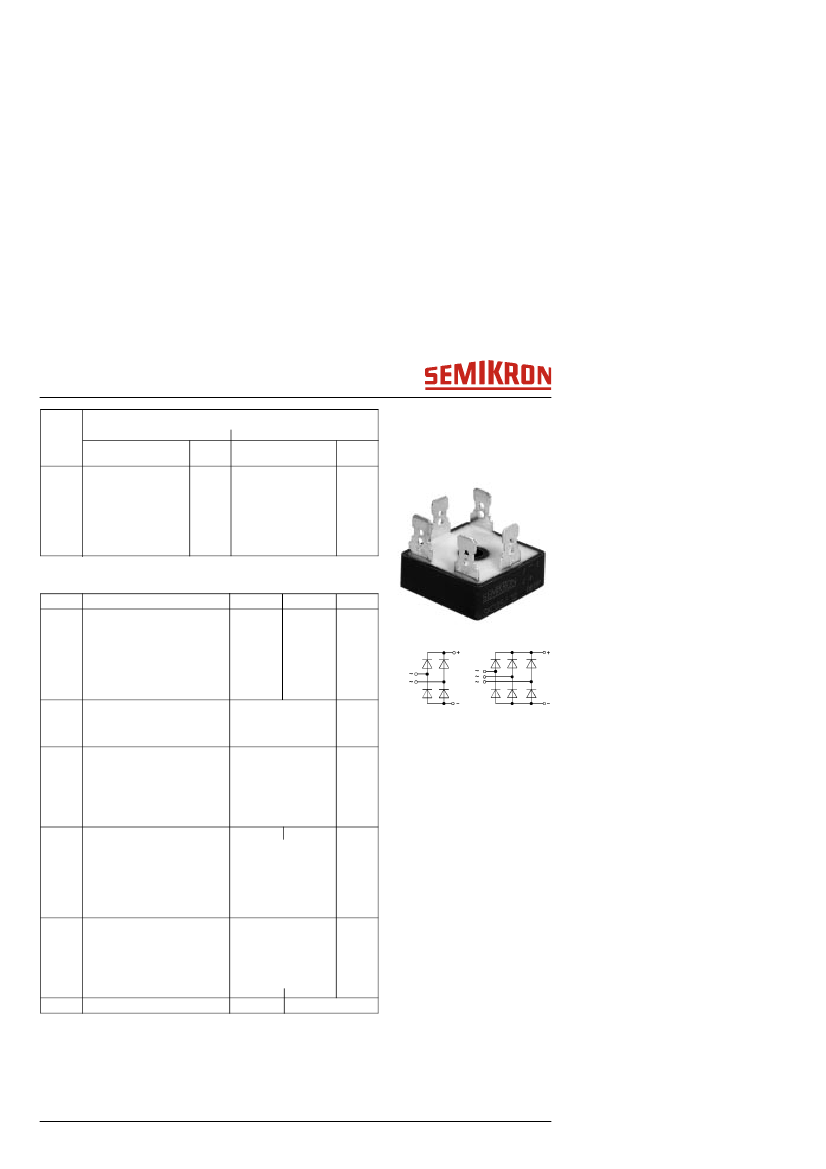

Preview

Download Datasheet
V
RSM
V
RRM
V
100
200
400
600
800
1200
1400
1600
17 A = (75
°C)
Types
SKB 25/01
SKB 25/02
SKB 25/04
SKB 25/06
SKB 25/08
SKB 25/12
SKB 25/14
SKB 25/16
I
D
(T
case
= ...)
R
min
Ω
0,1
0,15
0,3
0,5
0,7
1
1,2
1,5
Power Bridge Rectifiers
20 A (73
°C)
Types
–
SKD 25/02
SKD 25/04
–
SKD 25/08
SKD 25/12
SKD 25/14
SKD 25/16
R
min
Ω
–
0,15
0,3
–
0,7
1
1,2
1,5
SKB 25
SKD 25
Symbol Conditions
I
D
T
amb
= 45
°C;
isolated
1)
chassis
2)
R4A/120
P1A/120
I
DCL
T
amb
= 45
°C;
isolated
1)
chassis
2)
R4A/120
P1A/120
I
FSM
T
vj
= 25
°C,
10 ms
T
vj
= 150
°C,
10 ms
i
2
t
T
vj
= 25
°C,
8,3...10 ms
T
vj
= 150
°C,
8,3...10 ms
V
F
T
vj
= 25
°C;
I
F
= 150 A
V
(TO)
T
vj
= 150
°C
r
T
T
vj
= 150
°C
I
RD
T
vj
= 25
°C;
V
RD
= V
RRM
T
vj
= 150
°C;
V
RD
= V
RRM
t
rr
T
vj
= 25
°C
f
G
R
thjc
total
R
thch
total
R
thja
isolated
1)
chassis
2)
R4A/120
P1A/120
T
vj
T
stg
V
isol
a.c. 50...60 Hz; r.m.s.; 1 s/ 1 min
RC
P
R
= 1 W
Fu
M
1
w
Case
to heatsink
SI units
US units
SKB 25
SKD 25
3,5
3,5
10
12
14
15
17
20
3
3,5
9,5
12
12
15
14
20
370
320
680
500
2,2
0,85
12
0,3
5
typ. 10
2000
2
1,75
0,15
15
4,7
3,6
2,75
– 40...+ 150
– 55...+ 150
3000 / 2500
50
0,1
20
2
±
15 %
18
±
15 %
24
26
G 10
G 11
Units
A
A
A
A
A
A
A
A
A
A
A
2
s
A
2
s
V
V
mΩ
mA
mA
µs
Hz
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C
°C
V∼
Ω
µF
A
Nm
lb. in.
g
SKB
SKD
Features
•
Square plastic case with
isolated metal base plate and
fast-on connectors
•
Blocking voltage to 1600 V
•
High surge currents
•
SKB
= single phase bridge
rectifier
SKD
= three phase bridge
rectifier
•
Easy chassis mounting
•
UL recognized, file no. E 63 532
Typical Applications
•
Single and three phase
rectifiers for power supplies
•
Input rectifiers for variable
frequency drives
•
Rectifiers for DC motor field
supplies
•
Battery charger rectifiers
1)
2)
Freely suspended or mounted on an insulator
Mounted on a painted metal sheet of min. 250 x 250 x 1 mm
0896
B 11 – 19
© by SEMIKRON

SKD25 Related Products

SKD25 SKB25 SKD25/02 SKD25/08 SKD25/14 SKD25/04 SKD25/16 SKD25/12
Description 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE 3 PHASE, 3.5 A, 1200 V, SILICON, BRIDGE RECTIFIER DIODE
Number of terminals 5 5 5 5 5 5 5 5
Number of components 6 6 6 6 6 6 6 6
Terminal form SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER UPPER UPPER UPPER UPPER UPPER UPPER
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Phase 3 3 3 3 3 3 3 3
Maximum repetitive peak reverse voltage 1400 V 1400 V 200 V 800 V 1400 V 400 V 1600 V 1200 V
Maximum non-repetitive peak forward current 320 A 320 A 320 A 320 A 320 A 320 A 320 A 320 A
Is it lead-free? - - Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? - - conform to conform to conform to conform to conform to conform to
Maker - - SEMIKRON SEMIKRON SEMIKRON SEMIKRON SEMIKRON SEMIKRON
package instruction - - S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5
Contacts - - 5 5 5 5 5 5
Manufacturer packaging code - - CASE G 11B CASE G 11B CASE G 11B CASE G 11B CASE G 11B CASE G 11B
Reach Compliance Code - - _compli _compli _compli _compli _compli _compli
Other features - - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Configuration - - BRIDGE, 6 ELEMENTS BRIDGE, 6 ELEMENTS BRIDGE, 6 ELEMENTS BRIDGE, 6 ELEMENTS BRIDGE, 6 ELEMENTS BRIDGE, 6 ELEMENTS
Maximum forward voltage (VF) - - 2.2 V 2.2 V 2.2 V 2.2 V 2.2 V 2.2 V
JESD-30 code - - S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5 S-PUFM-D5
JESD-609 code - - e4 e4 e4 e4 e4 e4
Maximum operating temperature - - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature - - -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output current - - 3.5 A 3.5 A 3.5 A 3.5 A 3.5 A 3.5 A
Package body material - - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape - - SQUARE SQUARE SQUARE SQUARE SQUARE SQUARE
Package form - - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status - - Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum reverse current - - 0.0003 µA 0.0003 µA 0.0003 µA 0.0003 µA 0.0003 µA 0.0003 µA
Maximum reverse recovery time - - 10 µs 10 µs 10 µs 10 µs 10 µs 10 µs
surface mount - - NO NO NO NO NO NO
Terminal surface - - Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag) Silver (Ag)
Maximum time at peak reflow temperature - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
