BR25L020FVT-WE2 datasheet, PDF

Datasheet> All Categories > storage> storage> BR25L020FVT-WE2

BR25L020FVT-WE2: DescriptionEEPROM SPI 256X8 BIT; Categorystorage storage; File Size732KB，20 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR25L020FVT-WE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR25L020FVT-WE2	-	-	View	Buy Now

BR25L020FVT-WE2 Overview

EEPROM SPI 256X8 BIT

BR25L020FVT-WE2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	LSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	5 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e2
length	4.4 mm
memory density	2048 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X8
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.25 mm
Serial bus type	SPI
Maximum standby current	0.000002 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	3 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE

Preview

Download Datasheet

View All

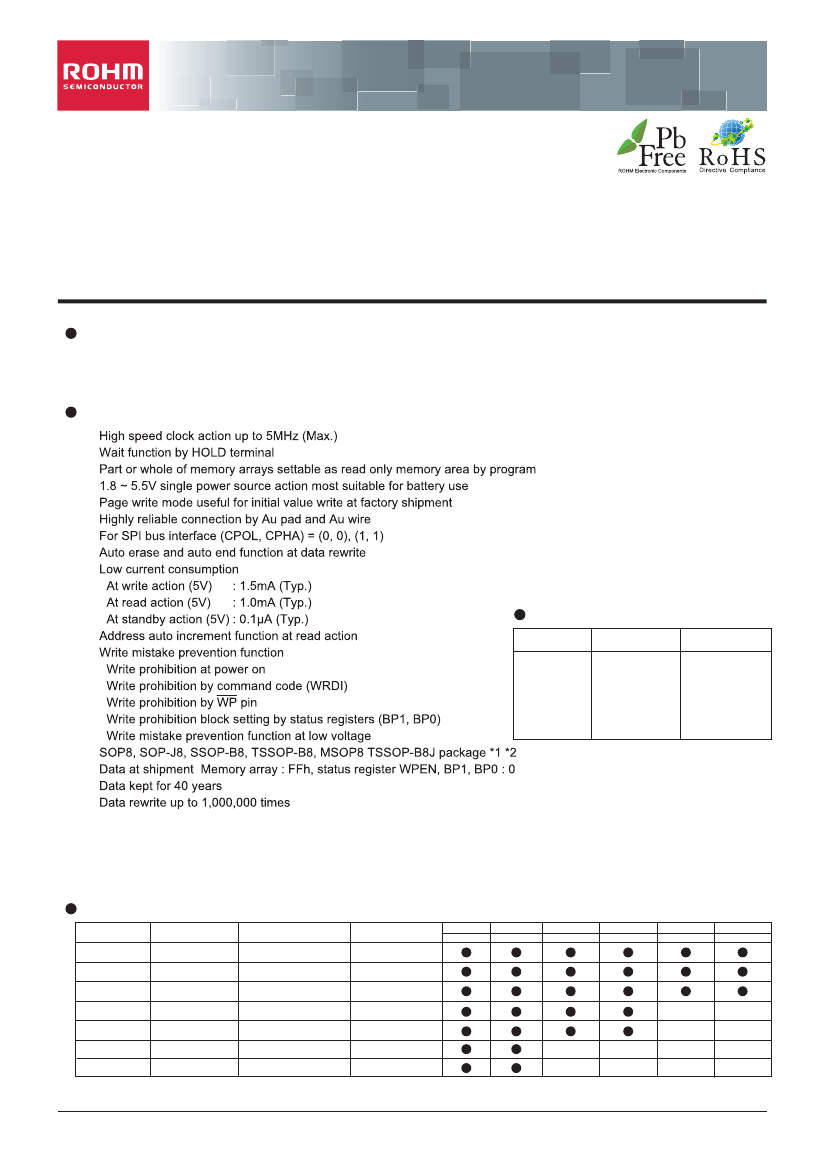

High Reliability Serial EEPROMs

SPI BUS Serial EEPROMs

BR25□□□□family

BR25L010-W series, BR25L020-W series, BR25L040-W series, BR25L080-W series,

BR25L160-W series, BR25L320-W series, BR25L640-W series

Description

BR25L

-W series is a serial EEPROM of SPI BUS interface method.

Features

Page write

Number of

pages

16 Byte

BR25L010-W

32 Byte

BR25L080-W

BR25L160-W

BR25L320-W

BR25L640-W

Product

number

BR25L020-W

BR25L040-W

*1 BR25L080/160-W : SOP8, SOP-J8, SSOP-B8, TSSOP-B8

*2 BR25L320/640-W : SOP8, SOP-J8

BR25L series

Capacity

1Kbit

2Kbit

4Kbit

8Kbit

16Kbit

32Kbit

64Kbit

Bit format

128 X 8

256 X 8

512 X 8

1K X 8

2K X 8

4K X 8

8K X 8

Type

BR25L010-W

BR25L020-W

BR25L040-W

BR25L080-W

BR25L160-W

BR25L320-W

BR25L640-W

Power source

voltage

SOP8

SOP-J8

SSOP-B8

TSSOP-B8

FVT

MSOP8

FVM

TSSOP-B8J

FVJ

1.8 ~ 5.5V

www.rohm.com

1/16

2010.07 -

Rev. B
