LQW15AN20NJ00D datasheet, PDF - EEWORLD Datasheet

LQW15AN20NJ00D: DescriptionFixed Inductors 20nH 5% 100MHz; CategoryPassive components inductor; File Size13MB，433 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQW15AN20NJ00D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LQW15AN20NJ00D	-	-	View	Buy Now

Fixed Inductors 20nH 5% 100MHz

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Samacsys Description	LQW15AN_00 Series Inductor 20nH ±5% 0402 (1005)
uppercase and lowercase codes	0402
structure	Wirewound Chip
core material	ALUMINA
DC Resistance	0.27 Ω
Nominal inductance(L)	0.02 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.6 mm
method of packing	TR, Paper, 7 Inch
Minimum quality factor (at nominal inductance)	25
Maximum rated current	0.37 A
self resonant frequency	4000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250 MHZ
surface mount	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	100 MHz
Tolerance	5%

O05E.pdf

Apr.28,2017

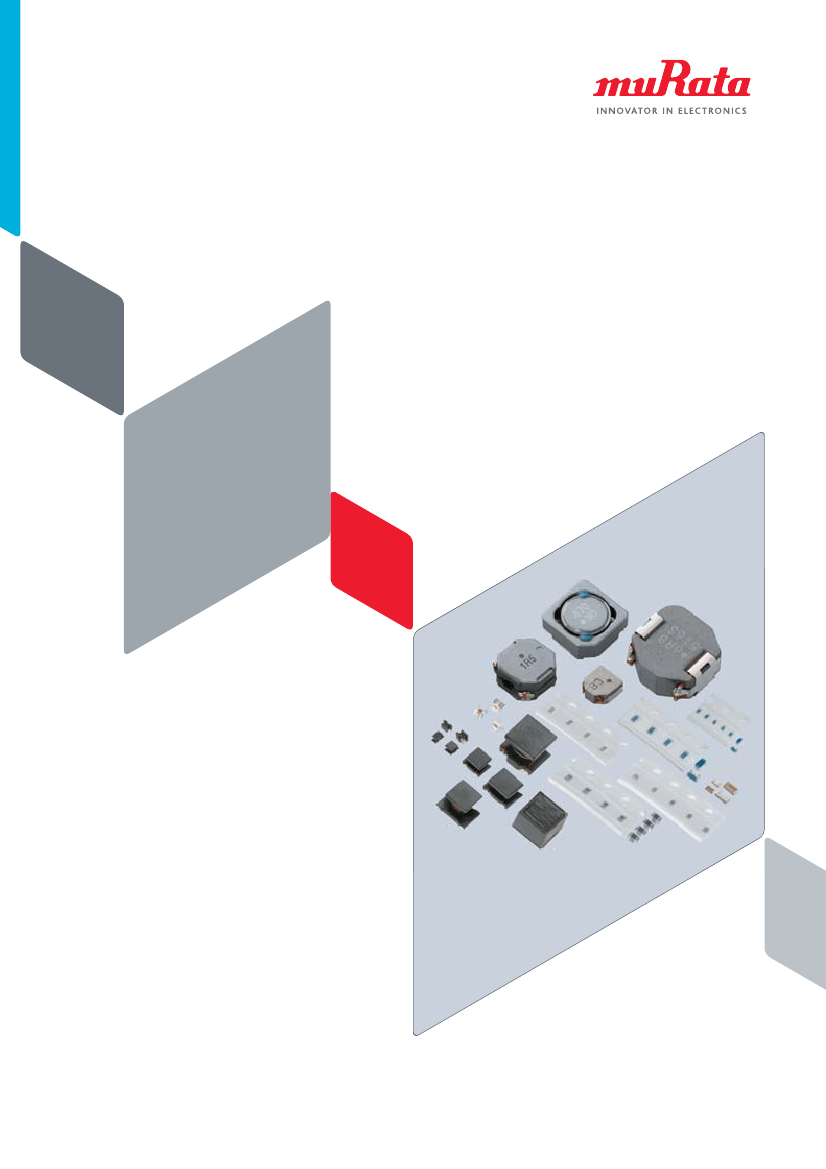

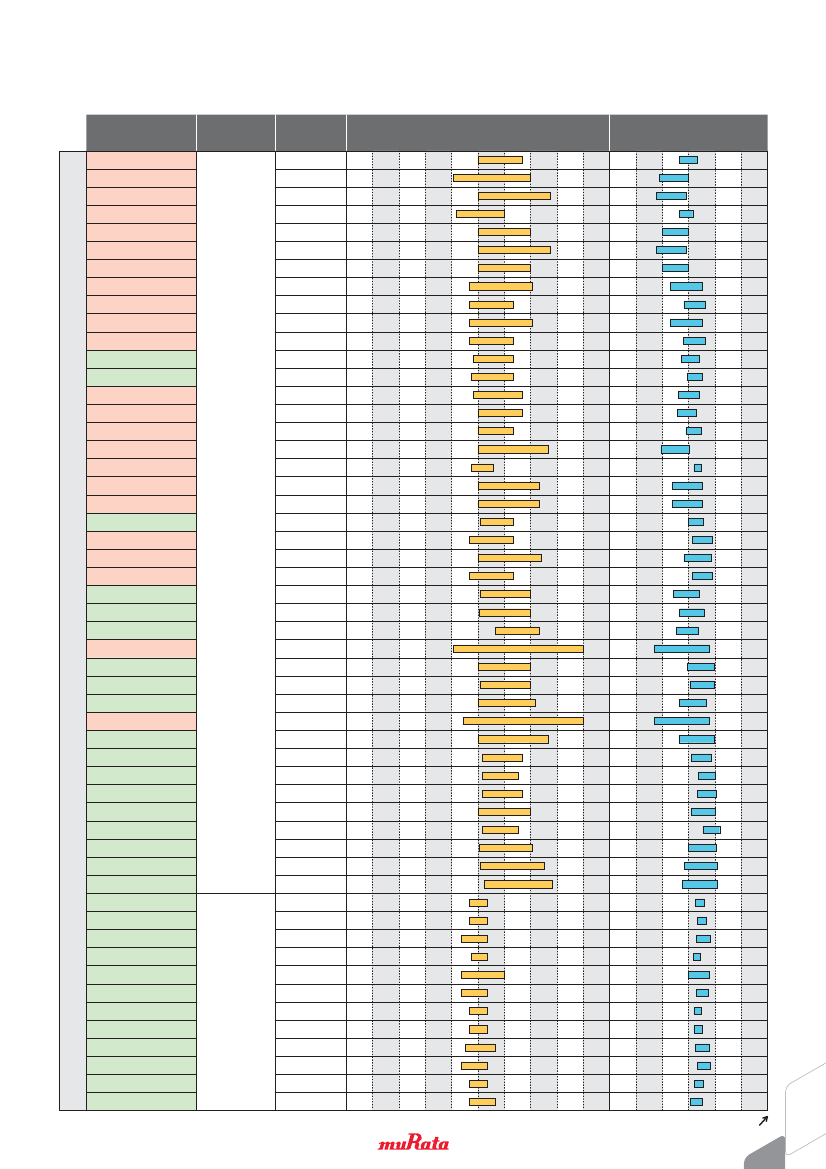

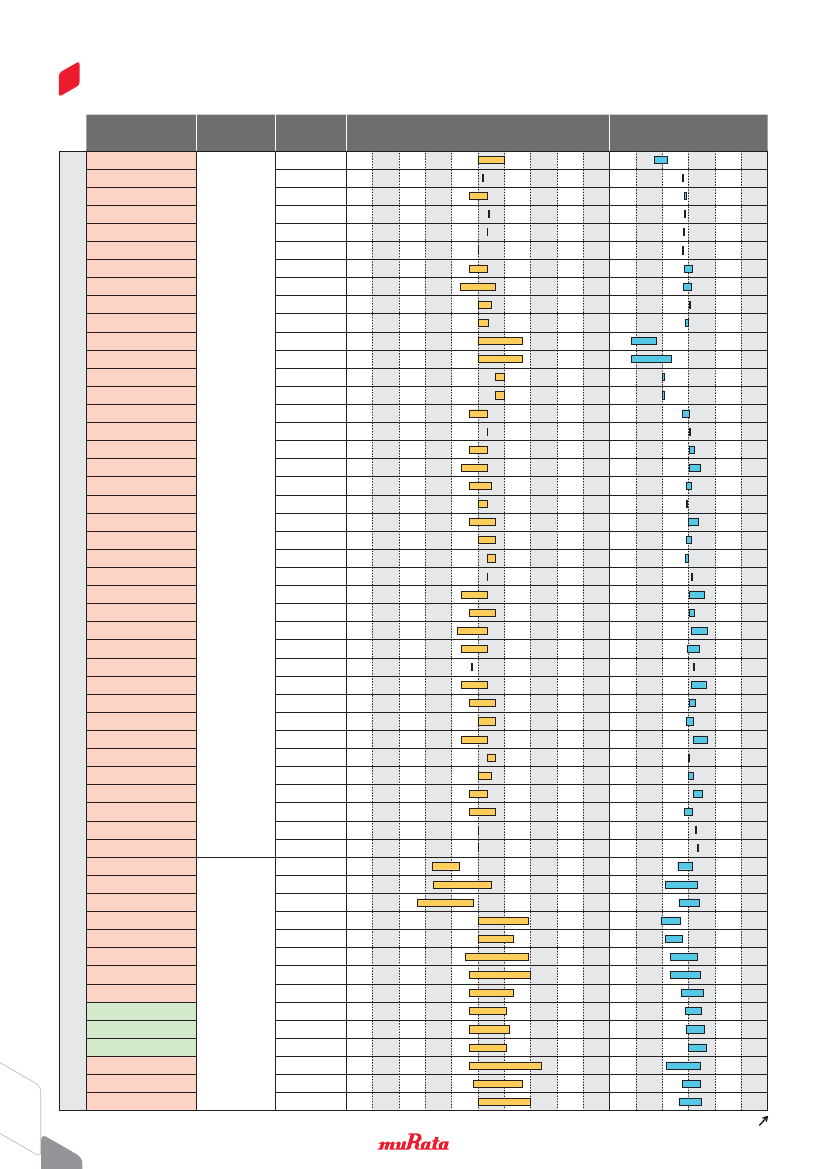

Chip Inductors (Chip Coils)
