UPB2D470MHD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UPB2D470MHD

UPB2D470MHD: DescriptionAluminum Electrolytic Capacitors - Leaded 200volts 47uF 12.5x20 20% 5LS; CategoryPassive components; File Size48KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPB2D470MHD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPB2D470MHD	-	-	View	Buy Now

UPB2D470MHD Overview

Aluminum Electrolytic Capacitors - Leaded 200volts 47uF 12.5x20 20% 5LS

UPB2D470MHD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Electrolytic Capacitors - Leaded
RoHS	Details
Termination Style	Radial
Capacitance	47 uF
Voltage Rating DC	200 VDC
Tolerance	20 %
Ripple Current	300 mA
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 105 C
Diameter	12.5 mm
Length	20 mm
Lead Spacing	5 mm
Packaging	Bulk
Product	General Purpose Electrolytic Capacitors
Leakage Current	574 uA
Factory Pack Quantity	100

Preview

Download Datasheet

View All

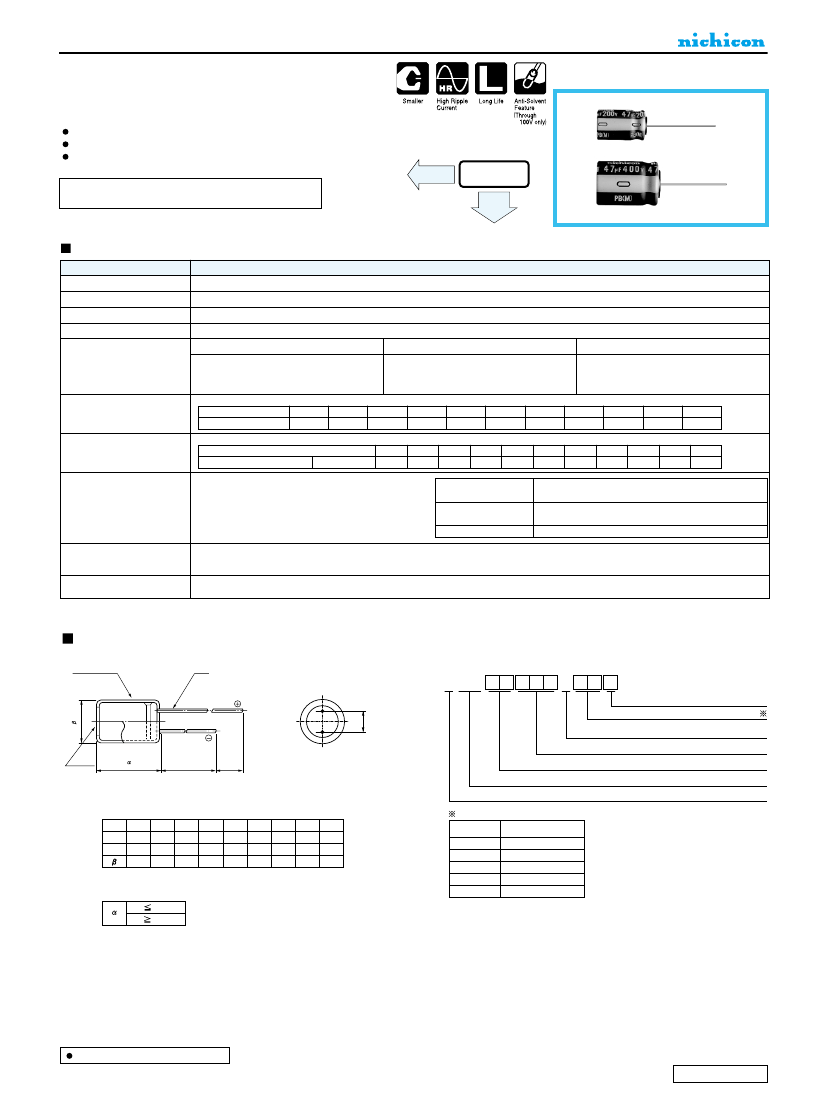

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, High Ripple Current High Reliability

series

High ripple current load life of 5000 / 7000 hours at +105°C.

Suited for ballast application.

Compliant to the RoHS directive (2002/95/EC).

Long Life

Products which are scheduled to be discontinued.

Not recommended for new designs

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 40 to +105°C (10 to 50V), – 25 to +105°C (160 to 450V)

10 to 450V

0.47 to 3300µF

± 20% at 120Hz, 20°C

Rated Voltage (V)

10 to 50V

After 2 minutes' application of rated

voltage, leakage current is not more than

0.01CV or 3 (µA) , whichever is greater.

160 to 450V

After 2 minutes' application of rated

voltage, leakage current is not more than

0.06CV+10 (µA) .

Leakage Current

— —

—

Measurement frequency : 120Hz at 20°C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(MAX.)

0.30

0.25

0.22

0.18

0.15

160

0.15

200

0.15

160

250

0.15

200

350

0.20

250

350

400

0.24

400

450

0.24

450

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio ZT / Z20 (MAX.) Z–25°C / Z+20°C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus

rated ripple current is applied for 5000 hours (7000

hours for

φD=10

and 12.5 (10 to 50V)) at 105°C, the

peak voltage shall not exceed the rated voltage.

Capacitance change

tan

Leakage current

Within ± 30% of the initial capacitance value (10 to 50V)

Within ± 20% of the initial capacitance value (160 to 450V)

300% or less than the initial specified value (10 to 50V)

200% or less than the initial specified value (160 to 450V)

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

φd

Type numbering system (Example : 160V 22µF)

9 10

11 12

UP B 2 C 2 2 0 M PD

Size code

MAX

0.5

Configuration

Capacitance tolerance

(±20%)

Rated capacitance (22µF)

φD

Pressure

relief vent

(φ6.3up)

L+

MAX

MIN

Rated voltage (160V)

Series name

Type

(mm)

Configuration

6.3

8 · 10

12.5 to 18

22 · 25

Pb-free leadwire

Pb-free PET sleeve

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

12.5

1.0

(φD

18) 1.5

22) 2.0

•

Please refer to page 20 about the end seal configulation.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100B
