0230500LE3 datasheet, PDF - EEWORLD Datasheet

0230500LE3: DescriptionSilicon Controlled Rectifier, 36.11A I(T)RMS, 500V V(DRM), 500V V(RRM), 1 Element; CategoryAnalog mixed-signal IC Trigger device; File Size144KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Related ProductsFound1parts with similar functions to 0230500LE3

Download Datasheet Parametric Compare View All

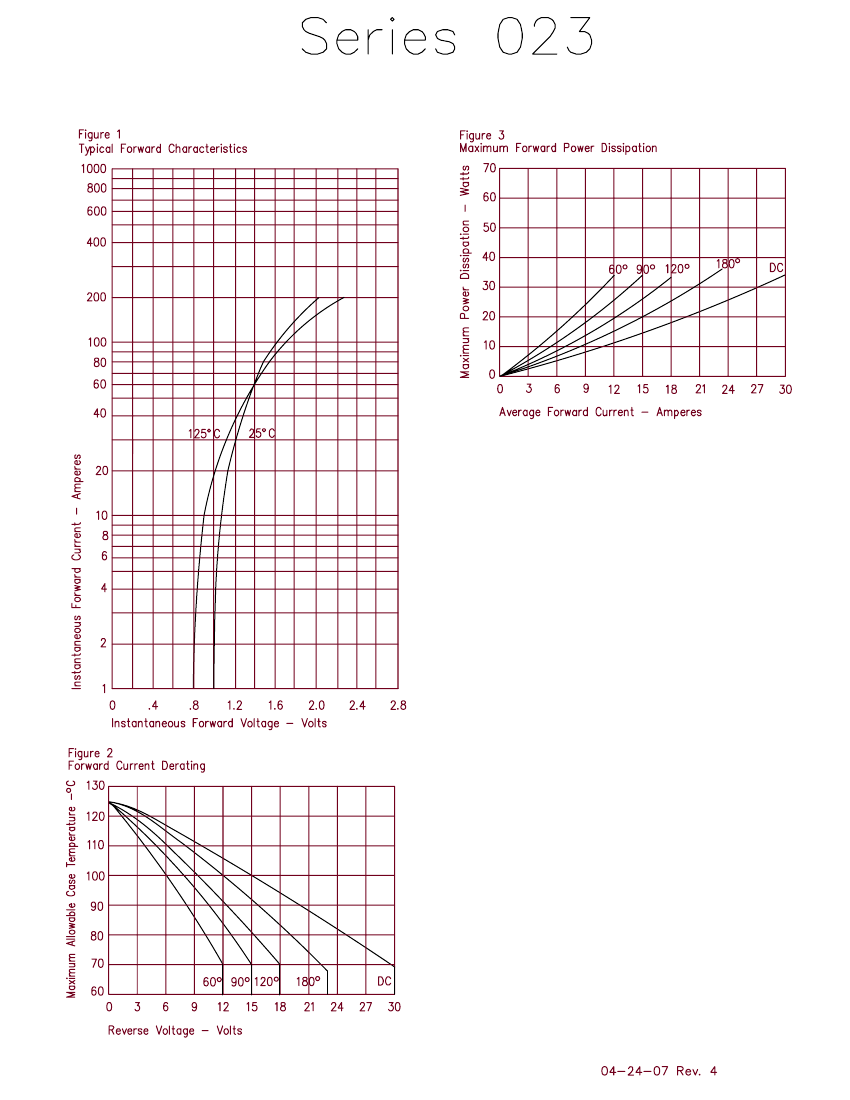

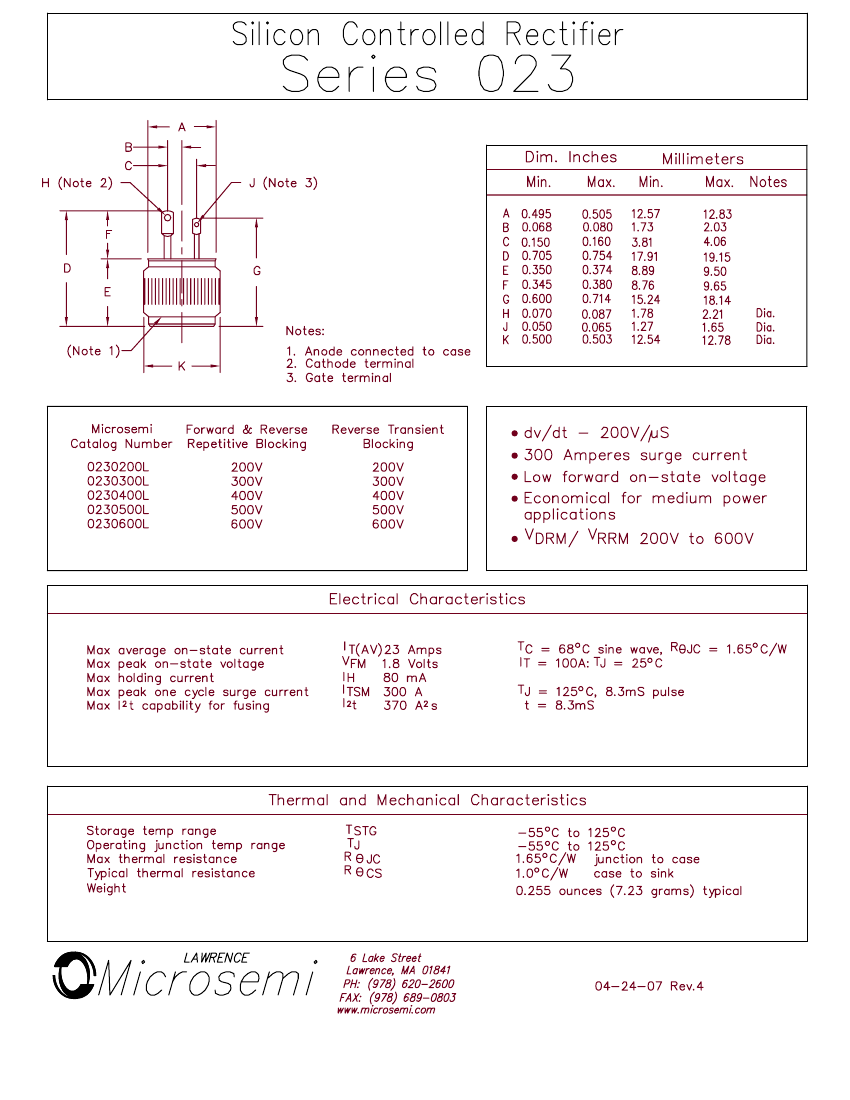

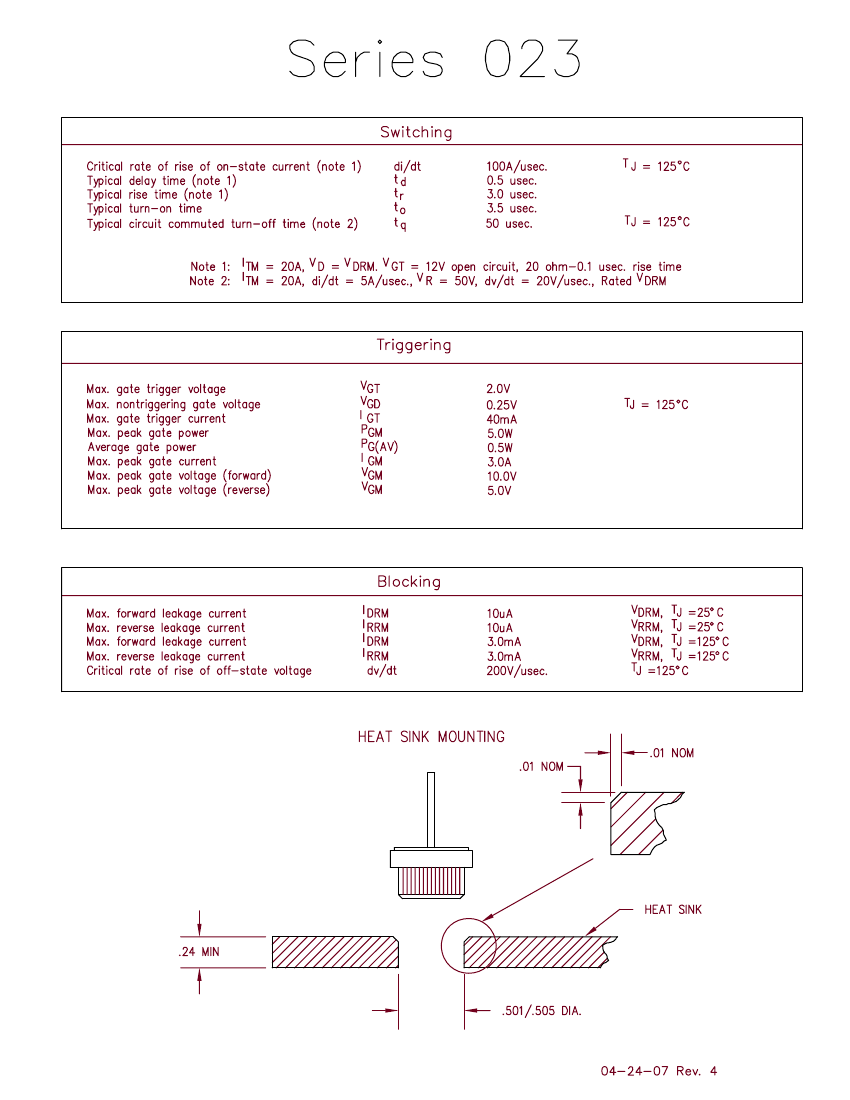

0230500LE3 Overview

Silicon Controlled Rectifier, 36.11A I(T)RMS, 500V V(DRM), 500V V(RRM), 1 Element

Parameter Name	Attribute value
Objectid	8059218913
package instruction	PRESS FIT, O-MUPF-D2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	40 mA
JESD-30 code	O-MUPF-D2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Maximum rms on-state current	36.11 A
Off-state repetitive peak voltage	500 V
Repeated peak reverse voltage	500 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR

	0230500LE3	UMA02040G1062HA300	UMA02040G1062HAU00	0230600LE3
Description	Silicon Controlled Rectifier, 36.11A I(T)RMS, 500V V(DRM), 500V V(RRM), 1 Element	RESISTOR, THIN FILM, 0.25 W, 0.02 %, 5 ppm, 10600 ohm, SURFACE MOUNT, 1406, MELF, ROHS COMPLIANT	RESISTOR, THIN FILM, 0.25 W, 0.02 %, 5 ppm, 10600 ohm, SURFACE MOUNT, 1406, MELF, ROHS COMPLIANT	Silicon Controlled Rectifier, 36.11A I(T)RMS, 600V V(DRM), 600V V(RRM), 1 Element
Objectid	8059218913	1195846250	1195846251	8059218914
package instruction	PRESS FIT, O-MUPF-D2	MELF, 1406	MELF, 1406	PRESS FIT, O-MUPF-D2
Reach Compliance Code	compliant	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	ROUND	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	ROUND
Package form	PRESS FIT	MELF	MELF	PRESS FIT
surface mount	NO	YES	YES	NO

Part Number	Manufacturer	Description
0230500L	Microsemi	Silicon Controlled Rectifier, 36.11A I(T)RMS, 23000mA I(T), 500V V(DRM), 500V V(RRM), 1 Element
