EKMW451VSN471MA35S

Description
Aluminum Electrolytic Capacitors - Snap In 450Volts 470uF 35X35
CategoryPassive components
File Size275KB,3 Pages
ManufacturerUnited Chemi-Con
Websitehttp://www.chemi-con.com/
Download Datasheet Parametric View All

EKMW451VSN471MA35S Online Shopping

Suppliers Part Number Price MOQ In stock
EKMW451VSN471MA35S - - View Buy Now

EKMW451VSN471MA35S Overview

Aluminum Electrolytic Capacitors - Snap In 450Volts 470uF 35X35

EKMW451VSN471MA35S Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerUnited Chemi-Con
Product CategoryAluminum Electrolytic Capacitors - Snap In
RoHSDetails
Capacitance470 uF
Voltage Rating DC450 VDC
Tolerance20 %
Minimum Operating Temperature- 25 C
Maximum Operating Temperature+ 105 C
Number of Pins2 Pin
Diameter35 mm
Length35 mm
Lead Spacing10 mm
Life2000 Hour
PackagingBulk
ProductAluminum Electrolytic Capacitors
Termination StyleSnap In
TypeLarge Capacitance Aluminum Electrolytic Capacitors
Factory Pack Quantity200

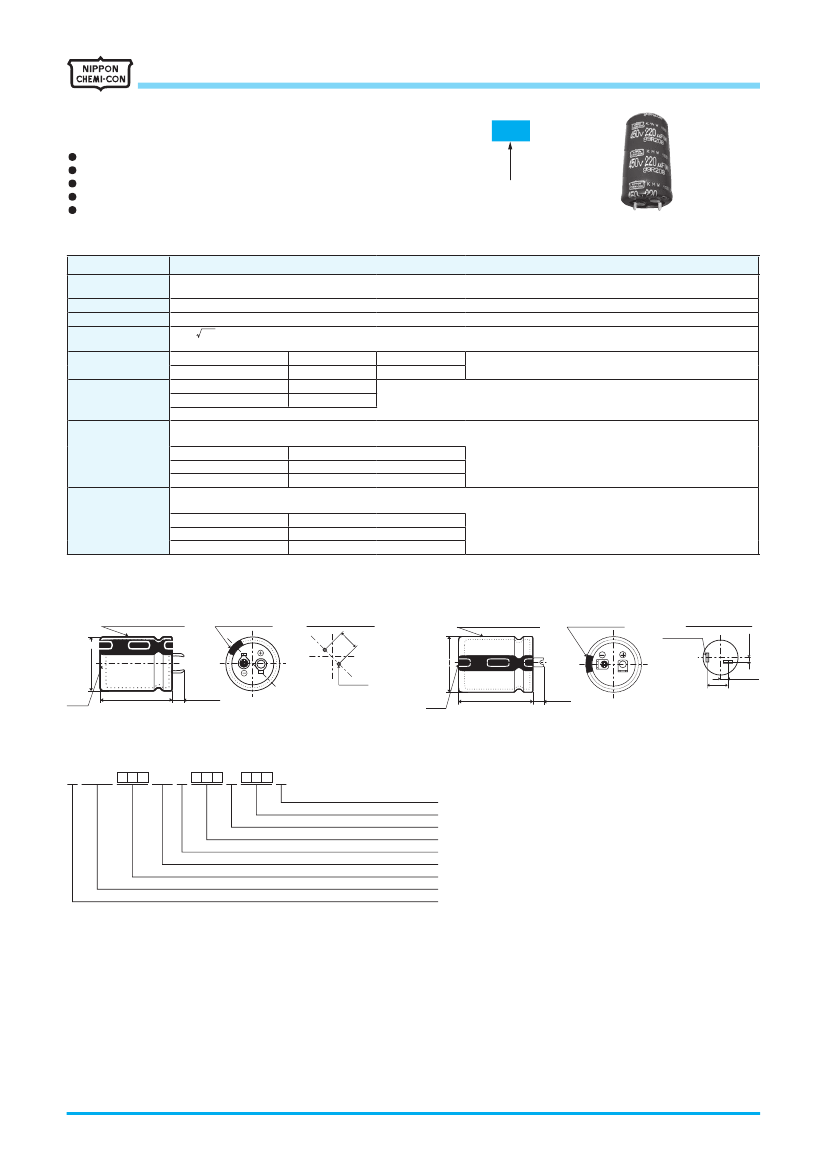

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Downsized snap-ins, 105℃
KMW
Series
KMW
Downsized
KMR P232
・Downsized
from KMR series
・Endurance
with ripple current : 2,000 hours at 105℃
・Rated
voltage range : 400 to 450V
dc
, Capacitance range : 120 to 1,000µF
・Non
solvent resistant type
・RoHS
Compliant
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-25 to +105℃
160 to 450V
dc
±20%
(M)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
400V
420 & 450V
tanδ(Max.)
0.15
0.20
Rated voltage (V
dc
)
400 to 450V
Z(-25℃)/Z(+20℃)
8
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Characteristics
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 105℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±15%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
Terminal
Code : VS (φ22 to
φ35)
: Standard
Negative mark
PC board pin-out
10
Terminal
Code : LI (
φ35)
Negative mark
4.2
±
0.5
PC board pin-out
2-1.2
×
6
Sleeve (PET : Brown)
φD+1max.
Sleeve (PET : Brown)
φD+1max.
2-
φ2
L
±
2.5
4.0
±
0.5
5
±
0.5
L
±
2.5
4.5
±
1
14.2
±
1
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E K MW
1
2
3
4
5
6
7
VS N
8
9
10
11
12
13
M
14
15
16
17
S
18
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 180µF:181, 1,000µF:102)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 400V:401, 450V:451)
Series code
Category
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
230
CAT. No. E1001O
