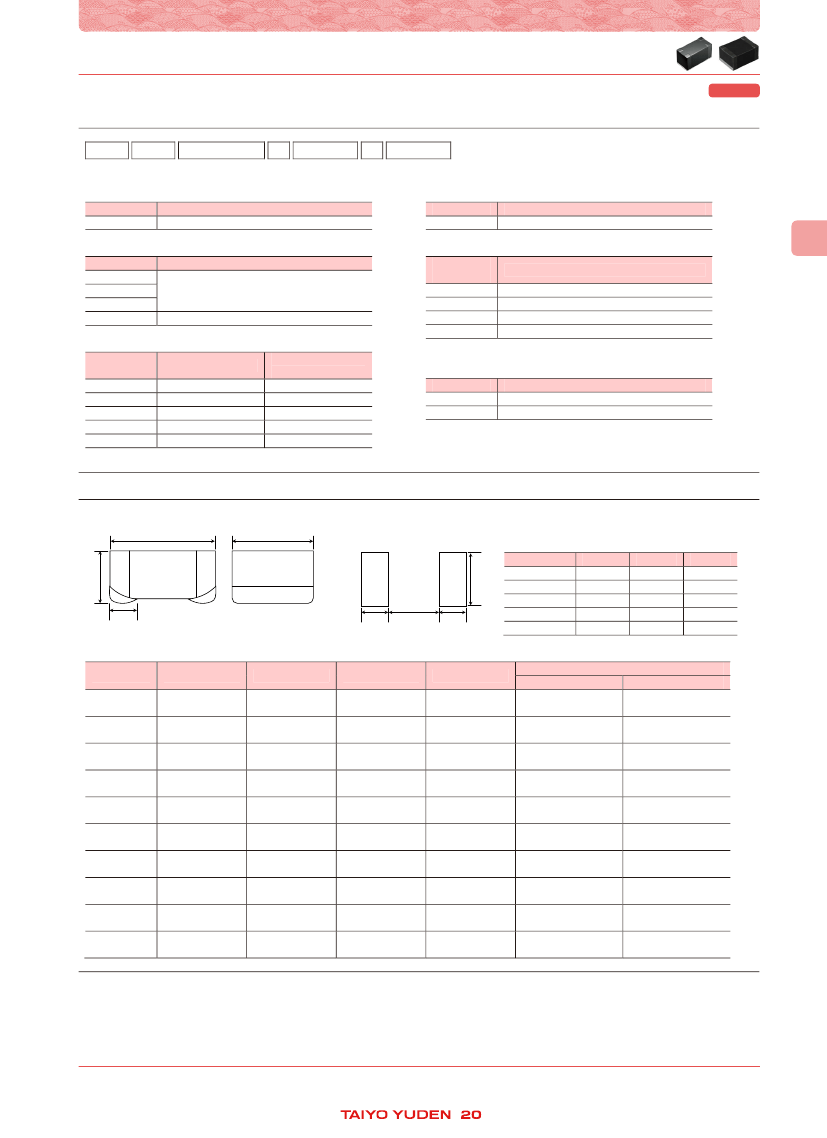

WIRE-WOUND CHIP POWER INDUCTORS(BR SERIES)
WIRE-WOUND CHIP POWER INDUCTORS（BR SERIES）
■PARTS
NUMBER
* Operating Temp.：-40½+105℃（Including self-generated heat）
REFLOW
REFLOW
B
①
R
△ L
②
2
5
③
1
8
T
④
2
R 2
⑤
M
⑥
△ △ △
⑦
④Packaging
Code
T
△＝Blank space
①Series name
Code
BR
②Characteristics
Code
FL
△L
HL
△C
③Dimensions（L×W）
Code
1608
2012
2016
2518
3225
Series name
Wire-Wound chip power inductor
Packaging
Taping
Characteristics
Low profile
High current
⑤Nominal inductance
Code
（example）
R20
1R0
100
101
※R＝Decimal point
⑥Inductance tolerance
Code
K
M
⑦Internal code
Nominal inductance［μH½
0.2
1.0
10
100
INDUCTORS POWER INDUCTORS
／
Type（inch）
1608（0603）
2012（0805）
2016（0806）
2518（1007）
3225（1210）
Dimensions
（L×W）［mm½
1.6×0.8
2.0×1.25
2.0×1.6
2.5×1.8
3.2×2.5
Inductance tolerance
±10％
±20％
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
Recommended Land Patterns
Surface Mounting
・Mounting and soldering conditions should be checked beforehand.
L
W
・Applicable soldering process to these products is reflow soldering
Type
A
1608
0.55
T
C
2012
0.60
2016
0.60
e
2518
0.60
B
A
A
3225
0.85
only.
B
0.70
1.00
1.00
1.50
1.70
C
1.00
1.45
1.80
2.00
2.70
Unit：mm
Type
BR L1608
BR C1608
BR L2012
BR C2012
BR C2016
BRFL2518
BR L2518
BRHL2518
BR C2518
BR L3225
L
1.6±0.2
（0.063±0.008）
1.6±0.2
（0.063±0.008）
2.0±0.2
（0.079±0.008）
2.0±0.2
（0.079±0.008）
2.0±0.2
（0.079±0.008）
2.5±0.2
（0.098±0.008）
2.5±0.2
（0.098±0.008）
2.5±0.2
（0.098±0.008）
2.5±0.2
（0.098±0.008）
3.2±0.2
（0.126±0.008）
W
0.8±0.2
（0.031±0.008）
0.8±0.2
（0.031±0.008）
1.25±0.2
（0.049±0.008）
1.25±0.2
（0.049±0.008）
1.6±0.2
（0.063±0.008）
1.8±0.2
（0.071±0.008）
1.8±0.2
（0.071±0.008）
1.8±0.2
（0.071±0.008）
1.8±0.2
（0.071±0.008）
2.5±0.2
（0.098±0.008）
T
0.7 max
（0.028 max）
0.8±0.2
（0.031±0.008）
1.0 max
（0.040 max）
1.4 max
（0.056 max）
1.6±0.2
（0.063±0.008）
1.0 max
（0.040 max）
1.2 max
（0.048 max）
1.5 max
（0.060 max）
1.8±0.2
（0.071±0.008）
1.7 max
（0.068 max）
e
0.45±0.15
（0.016±0.006）
0.45±0.15
（0.016±0.006）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）
0.75±0.2
（0.03±0.008）
Standard quantity［pcs½
Paper tape
Embossed tape
－
－
－
－
－
－
－
－
－
－
3000
3000
3000
2000
2000
3000
3000
2000
2000
2000
Unit：mm（inch）
i_wound_BR_e-E05R01
