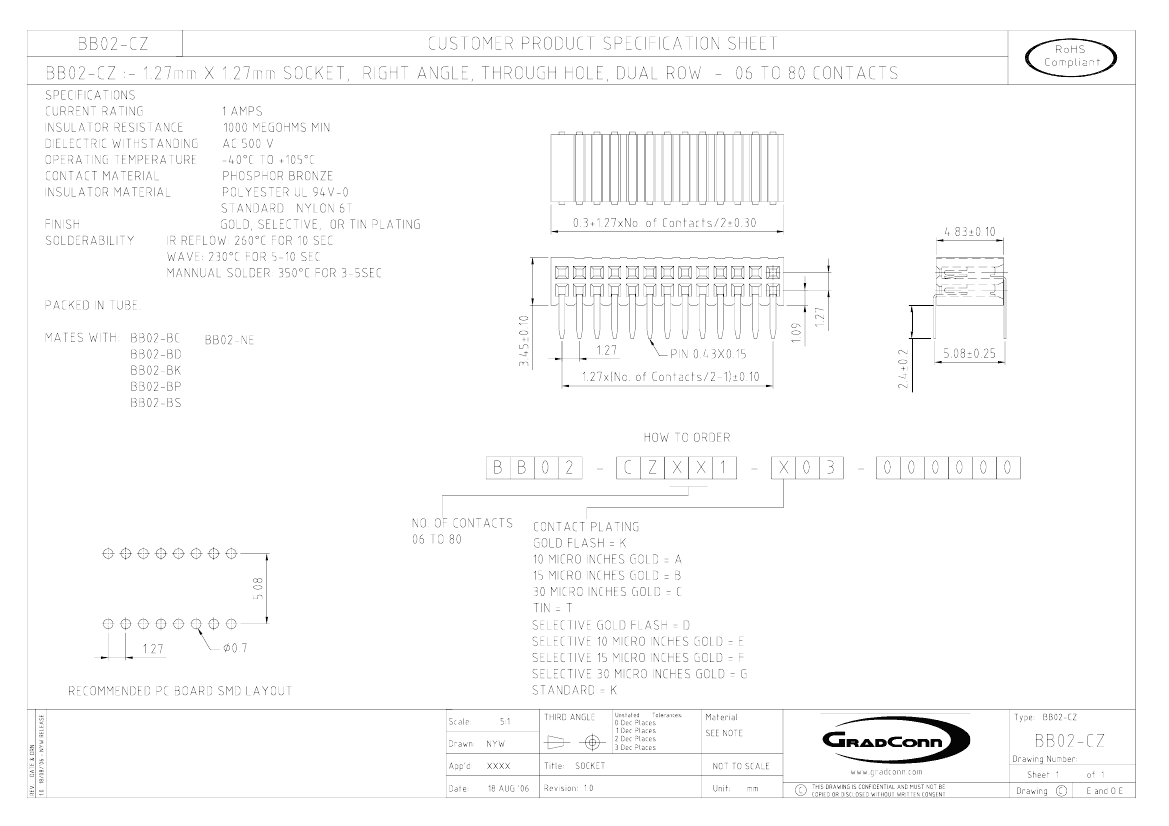

Preview

BB02-CZ101-K03-000000: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-CZ101-K03-000000 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug

BB02-CZ101-K03-000000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS AND TUBE PACKAGING
body width	0.136 inch
subject depth	0.19 inch
body length	0.262 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-CZ
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

BB02-CZ101-K03-000000 Related Products

	BB02-CZ101-K03-000000	BB02-CZ201-K03-000000	BB02-CZ221-K03-000000	TNPW1206352RBHTA	BB02-CZ161-K03-000000	BB02-CZ241-K03-000000
Description	Board Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 22 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug	Fixed Resistor, Thin Film, 0.25W, 352ohm, 200V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP	Board Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug	Board Connector, 24 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	unknow	unknow	unknow	not_compliant	unknown	unknown
Other features	ROHS AND TUBE PACKAGING	ROHS AND TUBE PACKAGING	ROHS AND TUBE PACKAGING	LASER TRIMMABLE; PRECISION	ROHS AND TUBE PACKAGING	ROHS AND TUBE PACKAGING
Manufacturer's serial number	BB02-CZ	BB02-CZ	BB02-CZ	TNPW	BB02-CZ	BB02-CZ
Maximum operating temperature	105 °C	105 °C	105 °C	125 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C
body width	0.136 inch	0.136 inch	0.136 inch	-	0.136 inch	0.136 inch
subject depth	0.19 inch	0.19 inch	0.19 inch	-	0.19 inch	0.19 inch
body length	0.262 inch	0.512 inch	0.562 inch	-	0.412 inch	0.612 inch
Body/casing type	PLUG	PLUG	PLUG	-	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	-	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	-	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	-	NYLON	NYLON
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	-	ONE	ONE
PCB row number	2	2	2	-	2	2
Number of rows loaded	2	2	2	-	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm	5.08 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	-	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	-	1 A	1 A
Guideline	UL	UL	UL	-	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	0.094 inch	0.094 inch	0.094 inch	-	0.094 inch	0.094 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	10	20	22	-	16	24
