SMCJ22A-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMCJ22A-TR

SMCJ22A-TR: DescriptionESD Suppressors / TVS Diodes 1500W 22V Unidirect; CategoryDiscrete semiconductor diode; File Size109KB，10 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

SMCJ22A-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMCJ22A-TR	-	-	View	Buy Now

SMCJ22A-TR Overview

ESD Suppressors / TVS Diodes 1500W 22V Unidirect

SMCJ22A-TR Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Maker	STMicroelectronics
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	43 weeks 2 days
Minimum breakdown voltage	24.4 V
Maximum clamping voltage	48.3 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	6.5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	22 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

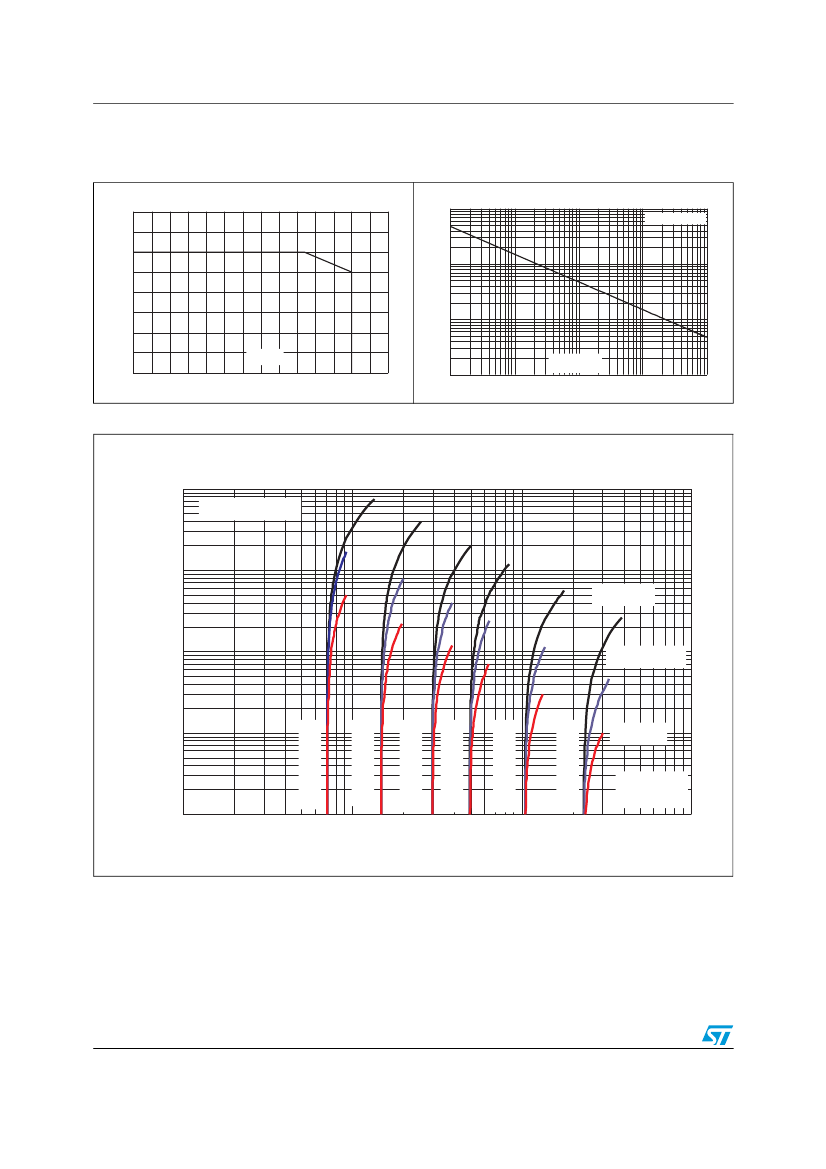

Preview

Download Datasheet

View All

SMCJ

Transil™

Features

■

Peak pulse power:

– 1500 W (10/1000

μs)

– 10 kW (8/20

μs)

Stand off voltage range: from 5 V to 188 V

Unidirectional and bidirectional types

Low leakage current:

– 0.2

μA

at 25 °C

– 1

μA

at 85 °C

Operating T

j max

: 150 °C

High power capability at T

j max

– 1250 W (10/1000 µs)

JEDEC registered package outline

■

Unidirectional

Bidirectional

SMC

(JEDEC DO-214AB)

■

Description

The SMCJ Transil series has been designed to

protect sensitive equipment against electrostatic

discharges according to IEC 61000-4-2, and

MIL STD 883, method 3015, and electrical over

stress according to IEC 61000-4-4 and 5. These

devices are more generally used against surges

below 1500 W (10/1000

μs).

The Planar technology makes it compatible with

high-end equipment and SMPS where low

leakage current and high junction temperature are

required to provide reliability and stability over

time.

SMCJ are packaged in SMC (SMC footprint in

accordance with IPC 7531 standard).

Complies with the following standards

■

IEC 61000-4-2 level 4

– 15 kV (air discharge)

– 8 kV (contact discharge)

IEC 61000-4-5

MIL STD 883G, method 3015-7 Class 3B

– 25 kV HBM (human body model)

Resin meets UL 94, V0

MIL-STD-750, method 2026 solderability

EIA STD RS-481 and IEC 60286-3 packing

IPC 7531 footprint

■

TM:

Transil is a trademark of STMicroelectroniocs

July 2010

Doc ID 5617 Rev 8

1/10

www.st.com
