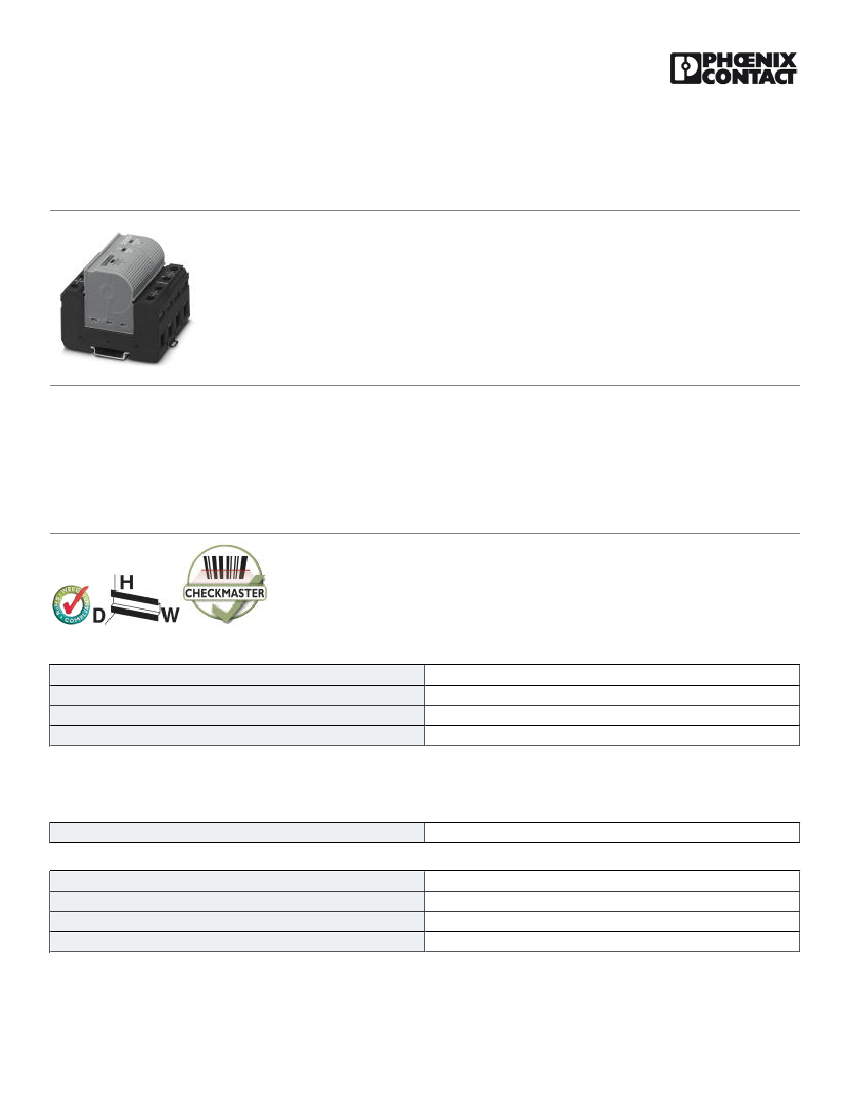

Lightning/surge arrester combination type 1+2 - FLT-CP-1S-350 - 2859738
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Pluggable lightning current and surge arrester combination, in acc. with typ 1+2 / Class I+II / B+C arresters.
Arresters coordinated following the AEC principle, for 1-phase power supply networks with separately installed
PE and N (L1, PE, N).
Product Features
■
■
■
■
■
Plugs can be checked with CHECKMASTER
High continuous voltage of 350 V AC for 230/400 V AC networks with high voltage fluctuations
With floating remote indication contact
Thermal disconnect device for each individual plug
Optical, mechanical status indication for the individual arresters
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
720.0 g
85363030
Germany
Technical data
Environmental Product Compliance
REACh SVHC
UV -328 25973-55-1
Dimensions
Height
Width
Depth
Horizontal pitch
95 mm
71.2 mm
71.5 mm
4 Div.
Ambient conditions
04/27/2016 Page 1 / 9
https://www.phoenixcontact.com/us/products/2859738
Lightning/surge arrester combination type 1+2 - FLT-CP-1S-350 - 2859738
Technical data
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Altitude
Permissible humidity (operation)
Shock (operation)
Vibration (operation)
IP20 (only when all terminal points are used)
-40 °C ... 80 °C
-40 °C ... 80 °C
≤ 2000 m (amsl (above mean sea level))
5 % ... 95 %
25g (half sinus / 11 ms / 3x ±X, ±Y, ±Z)
5g (5 - 500 Hz/2.5 h/X, Y, Z)
General
Standards/specifications
IEC test classification
EN type
IEC power supply system
Number of ports
SPD design
Mode of protection
IEC 61643-11 2011
EN 61643-11 2012
I + II
T1 + T2
T1 + T2
TN-S
TT
One
Combination type
L-N
L-PE
N-PE
Mounting type
Color
Housing material
Degree of pollution
Flammability rating according to UL 94
Type
Number of positions
Arrester can be tested with CHECKMASTER from software version:
Surge protection fault message
DIN rail: 35 mm
gray/blue
black
PBT
2
V-0
DIN rail module, two-section, divisible
2
From SW rev. 3.00
Optical, remote indicator contact
Protective circuit
Nominal voltage U
N
Nominal frequency f
N
Maximum continuous operating voltage U
C
(L-N)
Maximum continuous voltage U
C
(N-PE)
240 V AC (TN-S)
240 V AC (TT)
50 Hz (60 Hz)
350 V AC
350 V AC
04/27/2016 Page 2 / 9
https://www.phoenixcontact.com/us/products/2859738
Lightning/surge arrester combination type 1+2 - FLT-CP-1S-350 - 2859738
Technical data
Protective circuit
Rated load current I
L
Residual current I
PE
Standby power consumption P
C
Nominal discharge current I
n
(8/20) µs (L-N)
Nominal discharge current I
n
(8/20) µs (L-PE)
Nominal discharge current I
n
(8/20) µs (N-PE)
Impulse discharge current (10/350) µs (L-N), charge
Impulse discharge current (10/350) µs (L-N), specific energy
Impulse discharge current (10/350) µs (L-N), peak current value I
imp
Impulse discharge current (10/350) µs (L-PE), charge
Impulse discharge current (10/350) µs (L-PE), specific energy
Impulse discharge current (10/350) µs (L-PE), peak current value I
imp
Impulse discharge current (10/350) µs (N-PE), charge
Impulse discharge current (10/350) µs (N-PE), specific energy
Impulse discharge current (10/350) µs (N-PE), peak current value I
imp
Follow current interrupt rating I
fi
(L-N)
Follow current interrupt rating I
fi
(N-PE)
Short-circuit current rating I
SCCR
Voltage protection level U
p
(L-N)
Voltage protection level U
p
(L-PE)
Voltage protection level U
p
(N-PE)
Residual voltage U
res
(L-N)
125 A (< 55 °C)
≤ 0.01 mA
≤ 100 mVA
25 kA
25 kA
100 kA
12.5 As
160 kJ/Ω
25 kA
12.5 As
160 kJ/Ω
25 kA
50 As
2500 kJ/Ω
100 kA
25 kA (264 V AC)
3 kA (350 V AC)
100 A (350 V AC)
25 kA (264 V AC)
3 kA (350 V AC)
≤ 1.5 kV
≤ 2.2 kV
≤ 1.5 kV
≤ 1.5 kV (at I
n
)
≤ 1.2 kV (at 10 kA)
≤ 1 kV (at 5 kA)
≤ 0.9 kV (at 3 kA)
Residual voltage U
res
(L-PE)
≤ 2.2 kV (at I
n
)
≤ 2 kV (at 10 kA)
≤ 1.8 kV (at 5 kA)
≤ 1.6 kV (at 3 kA)
Residual voltage U
res
(N-PE)
≤ 1.5 kV (at I
n
)
≤ 1 kV (at 10 kA)
≤ 0.9 kV (at 5 kA)
≤ 0.8 kV (at 3 kA)
Front of wave sparkover voltage at 6 kV (1.2/50) µs (L-N)
≤ 1.5 kV
04/27/2016 Page 3 / 9
https://www.phoenixcontact.com/us/products/2859738
Lightning/surge arrester combination type 1+2 - FLT-CP-1S-350 - 2859738
Technical data
Protective circuit
Front of wave sparkover voltage at 6 kV (1.2/50) µs (L-PE)
Front of wave sparkover voltage at 6 kV (1.2/50) µs (N-PE)
TOV behavior at U
T
(L-N)
TOV behavior at U
T
(N-PE)
Response time t
A
(L-N)
Response time t
A
(N-PE)
Max. backup fuse with branch wiring
Max. backup fuse with V-type through wiring
≤ 2.2 kV
≤ 1.5 kV
415 V AC (5 s / withstand mode)
457 V AC (120 min / safe failure mode)
1200 V AC (200 ms / withstand mode)
≤ 25 ns
≤ 100 ns
315 A (gG)
125 A (gG)
Indicator/remote signaling
Connection name
Switching function
Operating voltage
Operating current
Connection method
Screw thread
Tightening torque
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG
Remote fault indicator contact
PDT contact
12 V AC ... 250 V AC
125 V DC (200 mA DC)
10 mA AC ... 1 A
1 A (30 V DC)
Plug-in/screw connection via COMBICON
M2
0.25 Nm
7 mm
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
28 ... 16
Connection data
Connection method
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG
Screw thread
Tightening torque
Stripping length
Screw terminal blocks
2.5 mm²
25 mm²
2.5 mm²
35 mm²
13 ... 2
M5
4.5 Nm
18 mm
UL specifications
04/27/2016 Page 4 / 9
https://www.phoenixcontact.com/us/products/2859738
Lightning/surge arrester combination type 1+2 - FLT-CP-1S-350 - 2859738
Technical data
UL specifications
SPD Type
Maximum continuous operating voltage MCOV (L-N)
Maximum continuous operating voltage MCOV (L-G)
Maximum continuous operating voltage MCOV (N-G)
Nom. voltage
Mode of protection
4CA
264 V AC
528 V AC
264 V AC
240 V AC
L-N
L-G
N-G
Power distribution system
Nominal frequency
Measured limiting voltage MLV (L-N)
Measured limiting voltage MLV (L-G)
Measured limiting voltage MLV (N-G)
Nominal discharge current I
n
(L-N)
Nominal discharge current I
n
(L-G)
Nominal discharge current I
n
(N-G)
Follow current (L-N)
Follow current (N-G)
1S
50/60 Hz
1340 V
1550 V
1080 V
20 kA
20 kA
20 kA
10 kA (264 V AC)
200 A (264 V AC)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140201
27130801
27130801
27130801
27130808
27130808
27130808
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001457
EC001457
EC001457
EC001457
04/27/2016 Page 5 / 9
