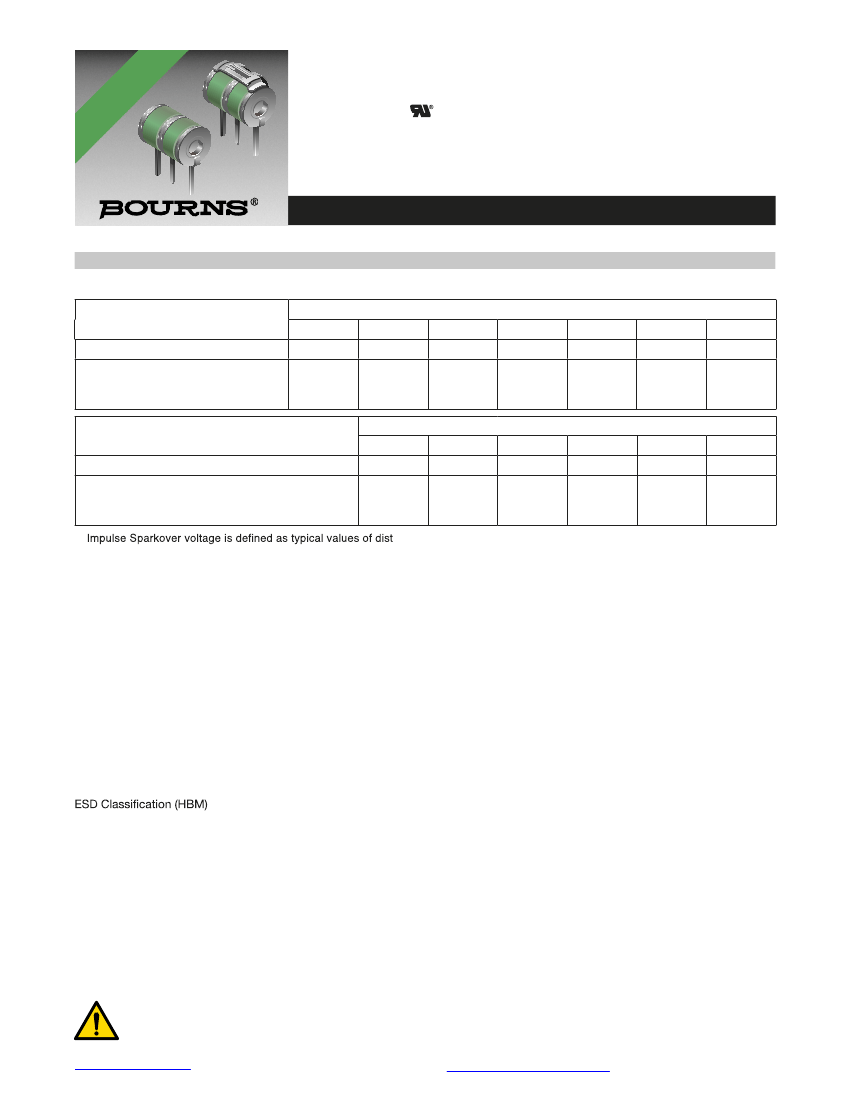

Features
■
Balanced TRIGARD
®
■
Approximately 8 mm diameter, 11 mm long
■
UL Recognized
■
Custom configurations available
■
High surge current rating
■
Stable breakdown throughout life
■
RoHS compliant* version available
Applications
■
Telecommunications
■
Industrial electronics
■
Commercial electronics
■
Consumer electronics
■
Aircraft and military electronics
2026 Series - 3-Pole Gas Discharge Tube
Characteristics
Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
(1)
Model No.
2026-07
75 V
275 V
700 V
2026-09
90 V
275 V
600 V
2026-15
150 V
350 V
575 V
2026-20
200 V
425 V
625 V
2026-23
230 V
450 V
650 V
2026-25
250 V
475 V
700 V
2026-26
260 V
475 V
700 V
Model No.
2026-30
300 V
550 V
775 V
ribution.
2026-35
350 V
625 V
875 V
2026-40
400 V
675 V
925 V
2026-42
420 V
725 V
1000 V
2026-47
470 V
800 V
1100 V
2026-60
600 V
925 V
1250 V
Impulse Transverse Delay.............................................1000 V/μs ................................................................. < 75 ns
Insulation Resistance ...................................................100 V (50 V for Model 2026–07 & 2026-09) ............. > 10
10
Ω
Glow Voltage ................................................................10 mA ....................................................................... ~ 70 V
Arc Voltage ...................................................................1A ............................................................................. ~ 10 V
Glow-Arc Transition Current ........................................................................................................................... < 0.5 A
Capacitance .................................................................1 MHz ....................................................................... < 2 pF
DC Holdover Voltage
(2)
...............................................>135 V, (52 V for Model 2026-07 & 2026-09, ........... < 150 ms
80 V for Model 2026-15)
Impulse Discharge Current ...........................................40000 A, 8/20
μs
(3)
.................................................. 1 operation minimum
20000 A, 8/20
μs
...................................................... > 10 operations
5000 A, 10/350
μs
................................................... 1 operation
1000 A, 10/1000
μs
................................................. > 400 operations
Alternating Discharge Current ......................................130 Arms, 11 cycles
(3)
............................................. 1 operation minimum
20 Arms, 1 s ............................................................. > 10 operations
Operation and Storage Temperature .............................................................................................................. -40 to +90 °C
Climatic Category (IEC 60068-1) .................................................................................................................... 40/ 90/ 21
Moisture Sensitivity Level ............................................................................................................................... 1
............................................................................................................................... 6
An optional Switch-Grade Fail-Short device is available. The optional Fail-Short assembly will activate at a temperature of 215 °C – 217 °C
to provide a high conductive path to ground in case of a thermal overload. GDTs equipped with the optional Fail-Short device should be
soldered either manually at a temperature that is below the activation temperature of the Fail-Short mechanism, or using a selective soldering
process that does not exceed 210 °C.
Notes:
• Model number marking on tube: 26-xxx V.
• The rated discharge current for TRIGARD
®
Gas Discharge Tubes is the total current equally divided between each line to ground.
• Sparkover limits after life ±25 %, IR >108
Ω
(-25 %,+30 % for Model 2026-07, 2026-09 and 2026-60).
• Line to Line voltage is approximately 1.8 to 2 times the stated Line to Ground breakdown voltage.
• At delivery AQL 0.65 Level II, DIN ISO 2859
(2)
(3)
Network applied.
DC Sparkover may exceed ±25 % after discharge, but will continue to protect without venting.
WARNING Cancer and Reproductive Harm
www.P65Warnings.ca.gov
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the
last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.

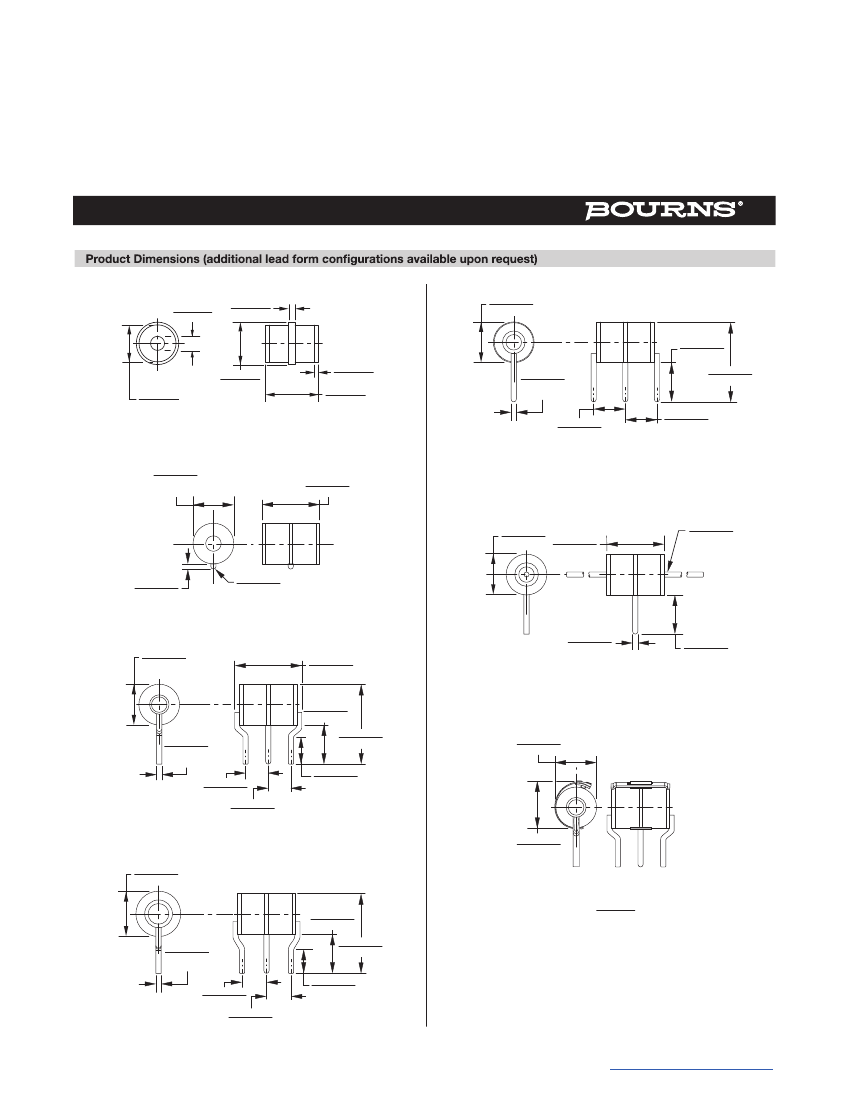

2026 Series - 3-Pole Gas Discharge Tube
2026-XX-A
DIA.
2.5 ± 0.25
(.098 ± .010)
2026-XX-C4
7.9 ± 0.3
DIA.
(.311 ± .012)
1.53 ± 0.1
(.060 ± .004)
7.5 ± 0.4
(.295 ± .016)
DIA.
7.8 ± 0.3
DIA.
(.307 ± .012)
9.0 ± 0.2
(.354 ± .008)
0.8 ± 0.3
(.032 ± .012)
11.83 ± 0.6
(.466 ± .024)
1.0 ± 0.04
(.039 ± .002)
DIA.
5.85 ± 0.6
(.230 ± .024)
5.85 ± 0.6
(.230 ± .024)
13.5 ± 0.4
(.531 ± .016)
2026-XX-A1
7.9 ± 0.3
(.311 ± .012)
DIA.
11.3 ± 0.4
(.445 ± .016)
2026-XX-C
1.0 ± 0.08 mm (.039 ± .002 in.) dia. lead wire
DIA.
7.9 ± 0.2
(.311 ± .008)
30.5 ± 0.4
(1.201 ± .016)
LONG
2 PLCS.
11.3 ± 0.4
(.449 ± .016)
0.85 ± 0.2
(.033 ± .008)
1.0 ± 0.04
(.039 ± .002)
DIA.
2026-XX-C2
7.9 ± 0.3
(.311 ± .012)
DIA.
13.0 ± 0.8
(.511 ± .031)
DIA.
1.0 ± 0.04
(.039 ± .002)
7.5 ± 0.3
(.295 ± .012)
7.5 ± 0.4
(.295 ± .016)
1.0 ± 0.04
(.039 ± .002)
DIA.
4.4 ± 0.3
(.173 ± .012)
4.4 ± 0.3
(.173 ± .012)
15.4 ± 0.8
(.606 ± .032)
4.5 ± 0.3
(.177 ± .012)
FAIL-SHORT CONFIGURATION
2026-XX-C2F SHOWN
8.1 ± 0.3
(.319 ± .012)
2026-XX-C3
7.9 ± 0.3
DIA.
(.311 ± .012)
9.6 ± 0.4
(.378 ± .016)
7.5 ± 0.4
(.295 ± .016)
1.0 ± 0.04
(.039 ± .002)
DIA.
4.7 ± 0.3
(.185 ± .012)
4.7 ± 0.3
(.185 ± .012)
13.5 ± 0.4
(.531 ± .016)
4.5 ± 0.3
(.177 ± .012)
DIMENSIONS:
MM
(INCHES)
UNITS WITH LEADS ARE BASED ON THE
2026-XX-A1 BODY.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
2026 Series - 3-Pole Gas Discharge Tube
How to Order
2026 - nn - x n F LF
Model Number
Designator
Voltage (Divided by 10)
07 = 75 V
30 = 300 V
09 = 90 V
35 = 350 V
15 = 150 V
40 = 400 V
20 = 200 V
42 = 420 V
23 = 230 V
47 = 470 V
25 = 250 V
60 = 600 V
26 = 260 V
Leads
A = None
C = 1 mm
Lead Shape
(See Product Dimension Drawings)
Fail-Short Option
Blank = Standard Product
F=
With Fail-Short Mechanism
RoHS Compliant Option
Blank = Standard Product
LF = RoHS Compliant Product
Standard Packaging Quantity
Model
2026-XX-A
2026-XX-A1
2026-XX-C
2026-XX-C2
2026-XX-C3
2026-XX-C4
Bulk (Bag)
250
250
50
100
100
100
Tray
Box
1000
1000
300
1000
1000
1000
Agency Recognition / Industry Standards
Agency
References
UL 497B Recognized Component, Category QVGQ2, File E153537
UL 497 Recognized Component, Category QVGV2, File E53117
Telcordia
GR-974-CORE/
GR-1361-CORE
2026 Series devices, as applicable, are tested to GR requirements for primary protectors
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
3312 -
-
mm SMD Trimming Potentiometer
2026 Series
2
3-Pole Gas Discharge Tube
Switch-Grade Fail-short Device Shorting Curve 2026-XX-XF
30.0
20.0
Current (A) (ELTGS)
10.0
5.0
1.0
0.5
0.1
1
10
100
1000
Seconds
ELTGS = Each Line to Ground Simultaneously
NOTE: When using a GDT fail-short device, it is imperative that all components associated and
connected to the GDT with failsafe be tested in their respective completely integrated environment
(finished product) to assure desired operation.
REV. 11/18
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
