82100000005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 82100000005

82100000005: DescriptionFuse Holder 5x20MM PANEL MNT QC BODY ONLY; CategoryCircuit protection; File Size1MB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

82100000005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82100000005	-	-	View	Buy Now

82100000005 Overview

Fuse Holder 5x20MM PANEL MNT QC BODY ONLY

82100000005 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Fuse Holder
RoHS	Details
Product	Fuse Holders
Fuse Size / Group	5 x 20 mm
Type	Panel Mount
Mounting Style	Panel
Number of Poles	2 Pole
Current Rating	6.3 A
Voltage Rating	250 V
Termination Style	Solder
Minimum Operating Temperature	- 25 C
Maximum Operating Temperature	+ 70 C
Packaging	Bulk
Color	Color
IP Rating	IP40
Factory Pack Quantity	100

Preview

Download Datasheet

View All

Cartridge Fuse Holders

Enclosed Fuseholders > Panel Mounted

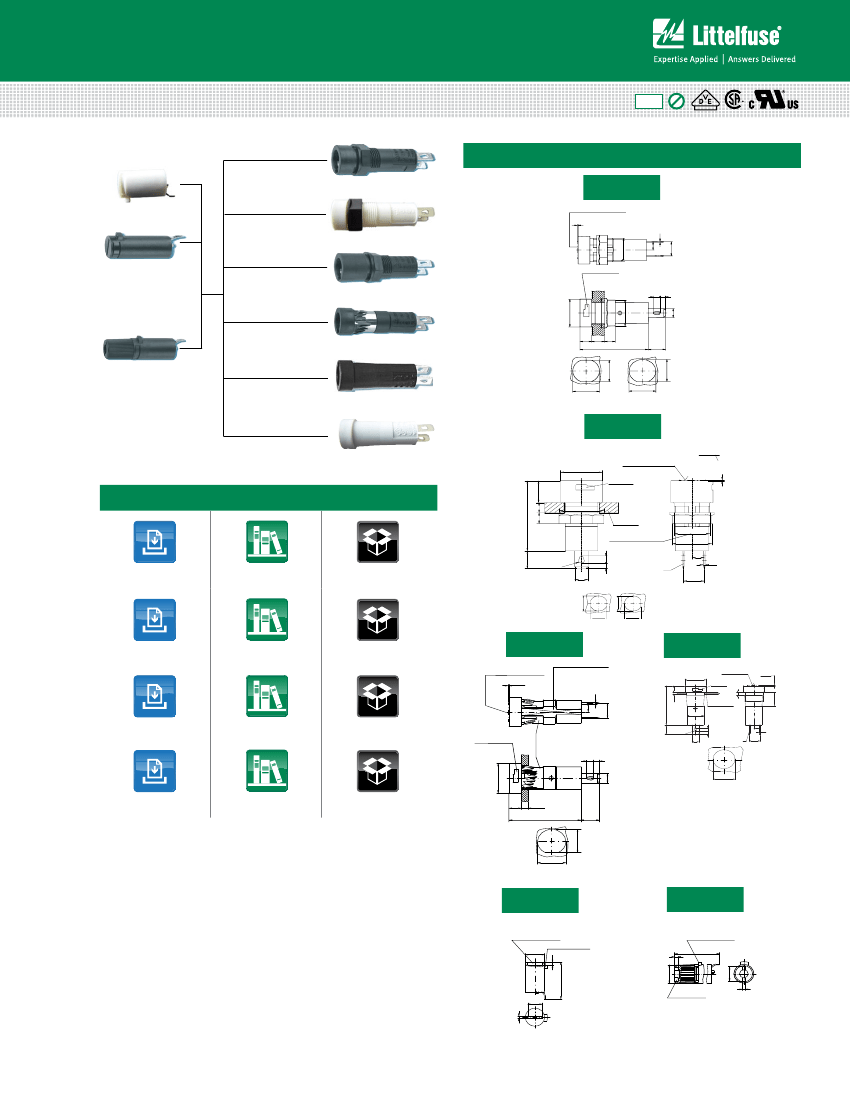

820/821/823/824 Series Panel Mount Enclosed Fuse Holders

Dimensions 820

820 Series Holder

FLUSH MOUNT TYPE

RoHS

820 Series

0,5

Fuse carrier inserted

max. 0,2

835 20 Cap

M12,7x1,5

835 Cap

FLUSH MOUNT TYPE

821 Series Holder

ø15

Bayonet-joint

3,2 2,5

SW14

ø16

823 Series Holder

FINGER GRIP TYPE

5,5 1...6 5

12,7 -0,1

824 Series Holder

821 Series

fuse-carrierinserted

ø15

bayonet-joint

12 -0,1

837 Cap

11,7 -0,15

4,8

7,62

820 20 Series Holder

4,45

Additional Information

1...4,5 10

ø16

panelmounting

M12,7x1,5(P0,75)

SW14

4,45

7,62±0,

0,5

Datasheet

820 Series

Resources

820 Series

Samples

820 Series

4,8±0,1

ø12,7-0,1

2,5 3,2

ø12,7-0,1

11, -0,15

12-0,1

Datasheet

821 Series

Resources

821 Series

Samples

821 Series

823 Series

Distortion Protection

Fuse carrier inserted

max. 0,2

824 Series

4,45

0,5

bayonet-joint

max.0,2

fuse-carrier

824 20 Series Holder

distance

5,5

2,5

7,62

1,2...2,5

ø12,72+0,1

panel

ø11,7 mounting

Datasheet

823 Series

Resources

823 Series

Samples

823 Series

4,8±0,1

Bayonet-joint

Clamp spring

3,2 2,5

4,45

0,5

P. 7,62±0,1

ø15

4,8

Datasheet

824 Series

Resources

824 Series

Samples

824 Series

5,5

0,75 ... 3

12,7 -0,1

12 -0,1

835 Cap

Slot for screwdriver

837 Cap

Bayonet-connector-nose

1,5

max. 29,6

1,5

Bayonet-connector-nose

ø9,2

max. 20,6

ø9,2

2,5 3,2

ø12,7±0,05

1,2

Slot for screwdriver

Specifications are subject to change without notice.

Specifications are subject to change without notice. Application testing is strongly recommended.

Revised: 01/26/18

1,2

max.0,2

ø15

distance
