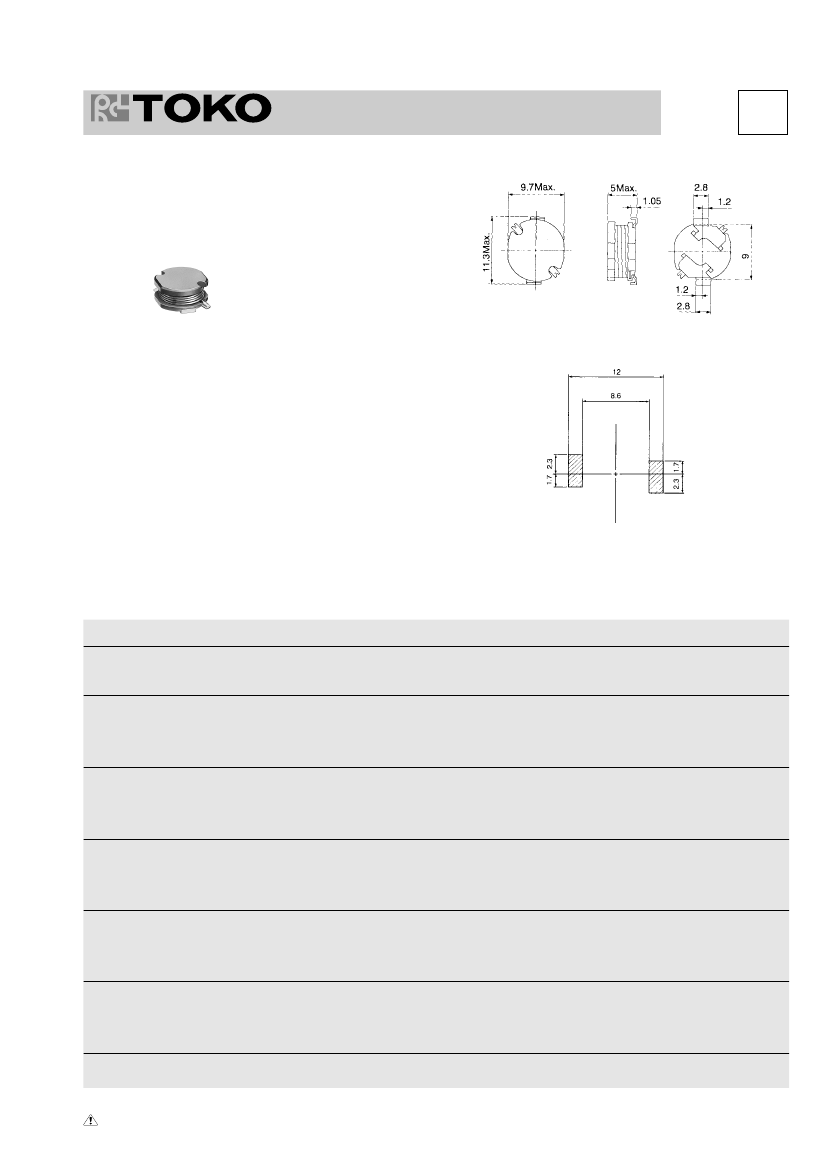

Fixed Inductors for Surface Mounting
Meeting Your Needs
TYPE
D10F
27
TYPE D10F
For Reflow Soldering
Frequency Range:
1kHz ~ 1MHz
Inductance Range:
10 ~ 1500µH
Unit: mm
Features
•
•
•
•
Low profile SMD Type (5mm high)
Suitable for large current
Suitable for reflow soldering
Available on tape and reel for automatic insertion
Recommended patterns:
Unit: mm
STANDARD PARTS SELECTION GUIDE
(1) Inductance is measured by LCR-meter 4284A (HP) or equivalent.
(2) DC resistance is measured by Digital Multimeter TR6871
(Advantest) or equivalent.
(3) Maximum allowable DC current is that which causes a 10% inductance
reduction from the initial value, or coil temperature to rise by 40°C,
whichever is smaller. (Reference ambient temperature 20°C).
TYPE D10F
TOKO
Part
Number
A814AY-100M=P3
A814AY-120M=P3
A814AY-150M=P3
A814AY-180M=P3
A814AY-220M=P3
A814AY-270M=P3
A814AY-330M=P3
A814AY-390M=P3
A814AY-470K=P3
A814AY-560K=P3
A814AY-680K=P3
A814AY-820K=P3
A814AY-101K=P3
A814AY-121K=P3
A814AY-151K=P3
A814AY-181K=P3
A814AY-221K=P3
A814AY-271K=P3
A814AY-331K=P3
A814AY-391K=P3
A814AY-471K=P3
A814AY-561K=P3
A814AY-681K=P3
A814AY-821K=P3
A814AY-102K=P3
A814AY-122K=P3
A814AY-152K=P3
Inductance
( 1 )
L (µH)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
±10%
Test
Frequency
(kHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
( 2 )
(Ω)
max.
0.047
0.050
0.058
0.067
0.075
0.087
0.095
0.12
0.15
0.18
0.20
0.23
0.27
0.33
0.40
0.53
0.60
0.84
1.00
1.09
1.25
1.63
1.90
2.44
2.80
3.67
4.37
Rated
DC Current
( 3 )
(A) max.
2.60
2.48
2.27
2.15
2.00
1.84
1.72
1.58
1.44
1.28
1.20
1.09
1.05
0.92
0.80
0.73
0.69
0.60
0.53
0.49
0.46
0.41
0.38
0.34
0.31
0.27
0.25
Note:
=P3
is added to each part number to indicate tape and reel packaging.
Please read PRECAUTIONS and NOTES sections of this catalog for safe operation. This catalog contains consumer grade specifications only. Detailed technical specifications are available upon request.
