Axial Lead & Cartridge Fuses
PICO
®
> Very Fast Acting > 265/266/267 Series
265/266/267 Series,
PICO , Very Fast-Acting Fuse (High-Reliability)
®
QPL

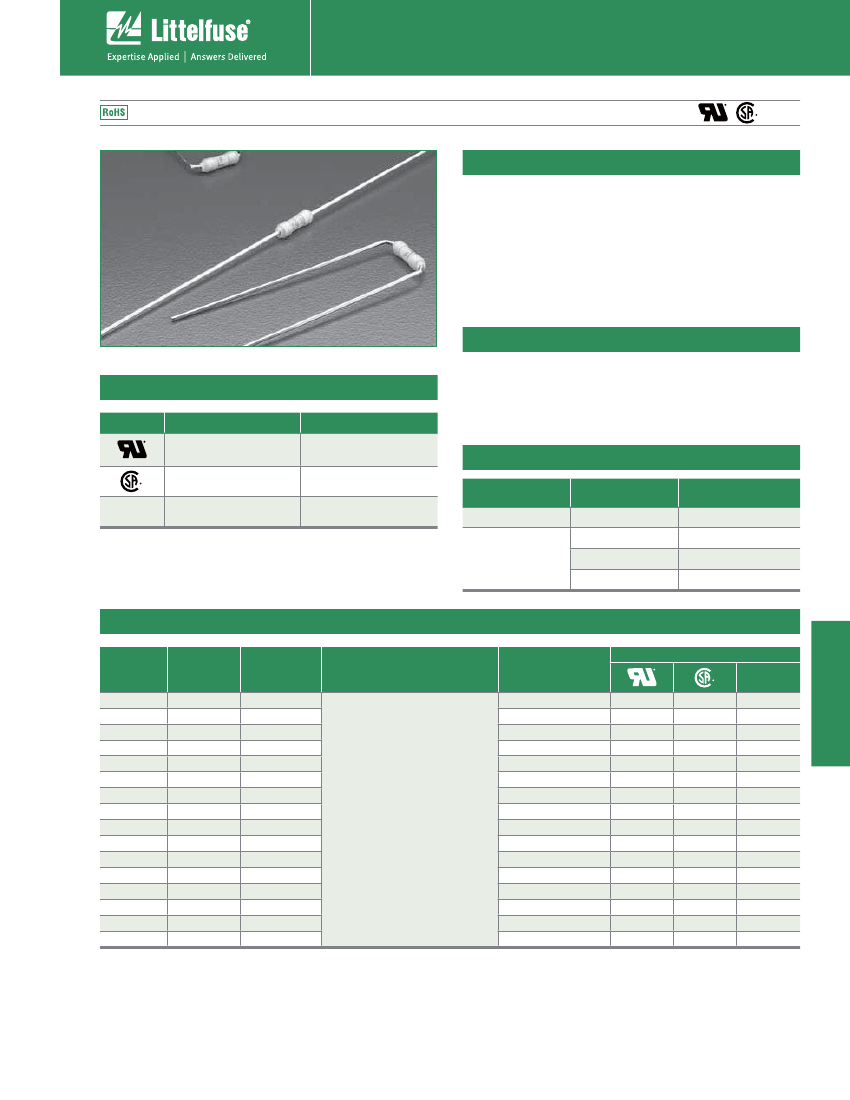

Description
The 265/266/267 Series are high–reliability PICO
®
Fuses,
that are very fast-acting, with an insulating sleeve.
These fuses provide supplemental protection in end-
use equipment to provide protection for components
or internal circuits. They are not suitable for branch or
feeder circuit use. The Military version of the 265 Series
(except 1/16 ampere rating) is available in FM08A on
QPL for MIL-PRF-23419/8. To order, change 265 to 267
.
Features
radial leaded
Ampere Range
Agency Approvals
Agency
Agency File Number
to 15A
Electrical Characteristics
% of Ampere
Rating
100%
Ampere Rating
1/16–15
1/16–7
200%
10
15
and subminiature
formats
E10480
LR 29862
062mA - 15A
062mA - 10A
062mA - 10A
Opening Time
4 Hours,
Min.
1 Second,
Max.
3 Second,
Max.
10 Second,
Max.
QPL
FM08A
Electrical Characteristics
Ampere
Rating
(A)
0.062
0.125
0.250
0.375
0.500
0.750
1.00
1.50
2.00
2.50
3.00
4.00
5.00
7
.00
10.0
15.0
Max
Voltage Rating
(V)
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
32
Interrupting
Rating
Nominal Cold
Resistance (Ohms)
7.0000
2.1000
0.7100
0.4200
0.2800
0.1700
0.1250
0.0800
0.0550
0.0420
0.03515
0.0230
0.0140
0.0100
0.00645
0.0040
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Agency Approvals
Amp Code
.062
.125
.250
.375
.500
.750
001.
01.5
002.
02.5
003.
004.
005.
007
.
010.
015.
QPL
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
300 amperes at rated voltage V
DC
50 amperes at rated voltage V
AC
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/265.html /
266.html/or /267.html for current information.
223
Revised: February 6, 2010
265/266/267 Series
265/266/267
Transientology
PICO
®
> Very Fast Acting > 265/266/267 Series
Introduction to & Cartridge Fuses
Axial Lead Circuit Protection

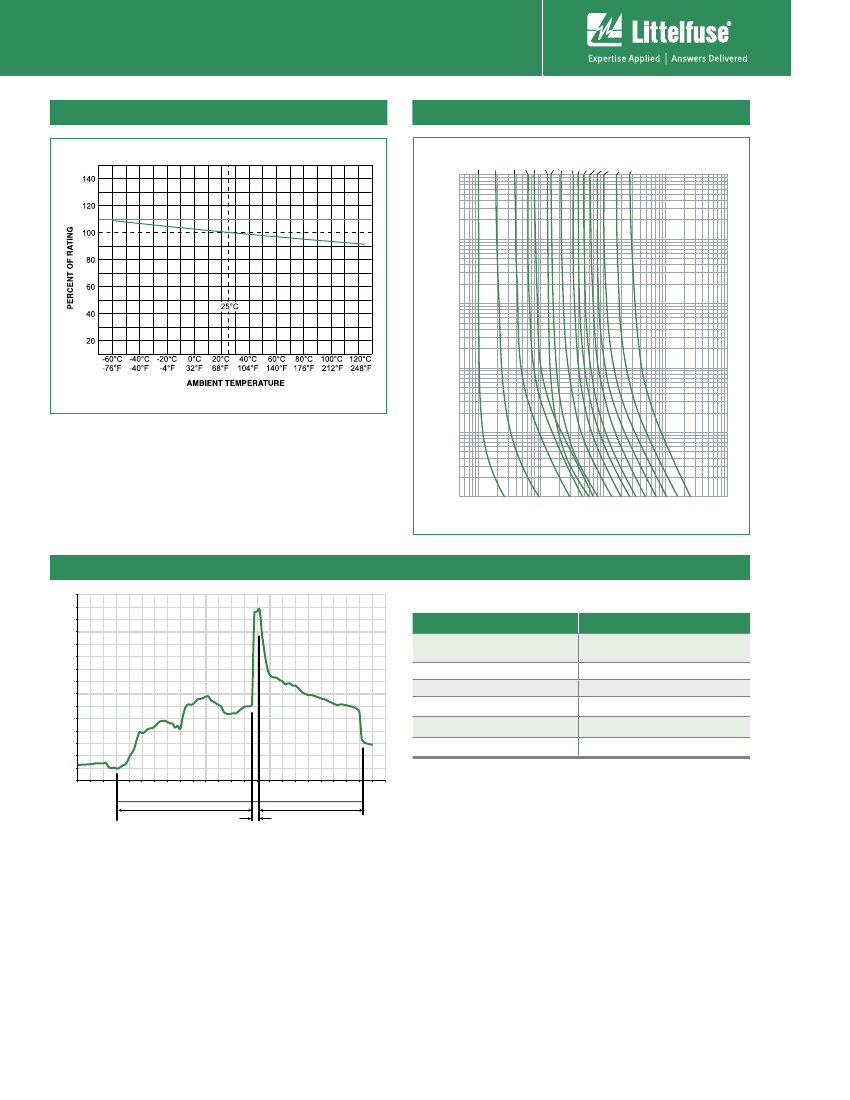

Temperature Rerating Curve
Average Time Current Curves
1/4A
3/8A
1/2A
3/4A
1A
1 1/2A
2A
2 1/2A
3A
4A
5A
7A
10A
15A
1/16A
100
10
TIME IN SECONDS
1
0.1
Note:
1. Derating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
0.01
0.001
0.1
1/8A
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters\
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature
(°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
280
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time
(Seconds)
Preheat
Time
Dwell
Time
Cooling
Time
265/266/267 Series
224
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/265.html /
266.html/or /267.html for current information.
Axial Lead & Cartridge Fuses
PICO
®
> Very Fast Acting > 265/266/267 Series
Product Characteristics
Materials
Weight
Solderability
Body: White Thermoplastic
Gold-Plated Copper Leads, Type II
.32 Grams
MIL-STD-202, Method 208
MIL-STD-202, Method 211, Test
Condition A (will withstand a 5 lbs. axial
pull test)
AQL (Electrical Characteristics): Certified
to 1% AQL
Per MIL
-STD-105, Inspection Level II.
Traceability and Identification Records:
Controlled by lot number and retained on
file for a minimum of three years. Copies
of Lot Certification Test data available
when requested with order
Special screening tests, burn-in, etc. can
be supplied on special order to meet
specific requirements. For information on
higher current ratings, contact Littelfuse.
Options
267 series fuses are offered with
optional solder coated leads. To order,
enter XT as the end suffix (see Part
Numbering System section)
Fuses To MIL SPEC
Vibration
Operating Temperature
Shock
–55ºC to +125ºC
MIL
-STD-202, Method 213, Test
Condition I (100 G’s peak for 6
milliseconds).
MIL
-STD-202, Method 201 (10–55
Hz); MIL
-STD-202, Method 204, Test
Condition C (55–2000 Hz at 10 G’s
Peak)
MIL
-STD-202, Method 101, Test
Condition B
MIL
-STD-202, Method 112, Test
Condition A
MIL
-STD-202, Method 302, Test
Condition A (1/2 Megohm minimum)
MIL
-STD-202, Method 107 Test
,
Condition B (–65°C to 125
°
C).
MIL
-STD-202, Method 106
265 Series (except 1/16 ampere
rating) is available in FM08A on
QPL for MIL
-PRF-23419/8. To order,
change 265 to 267
Lead Pull Force
Salt Spray
Seal Test
Insulation Resistance
(After Opening)
Thermal Shock
Moisture Resistance
Sampling
Dimensions
265
000
Series
38.1
(1.50")
7.11
(.28")
3/4 A
Part Numbering System
38.1
(1.50")
0267 xxxx V XT
Series
2.36 (.093")
DIA.
Amp Code
Quantity & Packaging Code
V
= (All series)
5
quantity bulk pack
266
000
Series
8.38 (.33) (Note 1)
7.11 (.28")
2.36 (.093")
DIA.
90
3/4 A
Lead Option Code
Blank = (All series) standard lead
XT = (267 series only) solder coated lead option
37.33
(1.47")
Transparent
Insulating Sleeve
(Note 1: 9.14 (.36") for 15 amp rating)
Packaging
Packaging Option
Bulk Pack
Quantity
5
Quantity &
Packaging Code
V
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/265.html /
266.html/or /267.html for current information.
225
265/266/267 Series
265/266/267
Transparent
Insulating Sleeve
Refer to Amp Code column of
Electrical Characteristics
Table
