Features
n
Size: 12.7 mm diameter, 12.7 mm length
n
Long service life
n
High surge current rated
n
Low capacitance and insertion loss
n
Tube with contact terminals available
n
RoHS compliant* versions available
M
PL
IA
Applications
n
Telecommunications equipment
n
Industrial equipment/electronics
n
UL Recognized
NT
Characteristics
LE
AD
F
RE
E
Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.
Characteristic
DC Sparkover ±20 % @ 100 V/s
(1)
Impulse Sparkover
(2)
100 V/µs Typical / For 99 % of Values
1000 V/µs Typical / For 99 % of Values
Model No.
2047-09
90 V
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
*R
oH
S

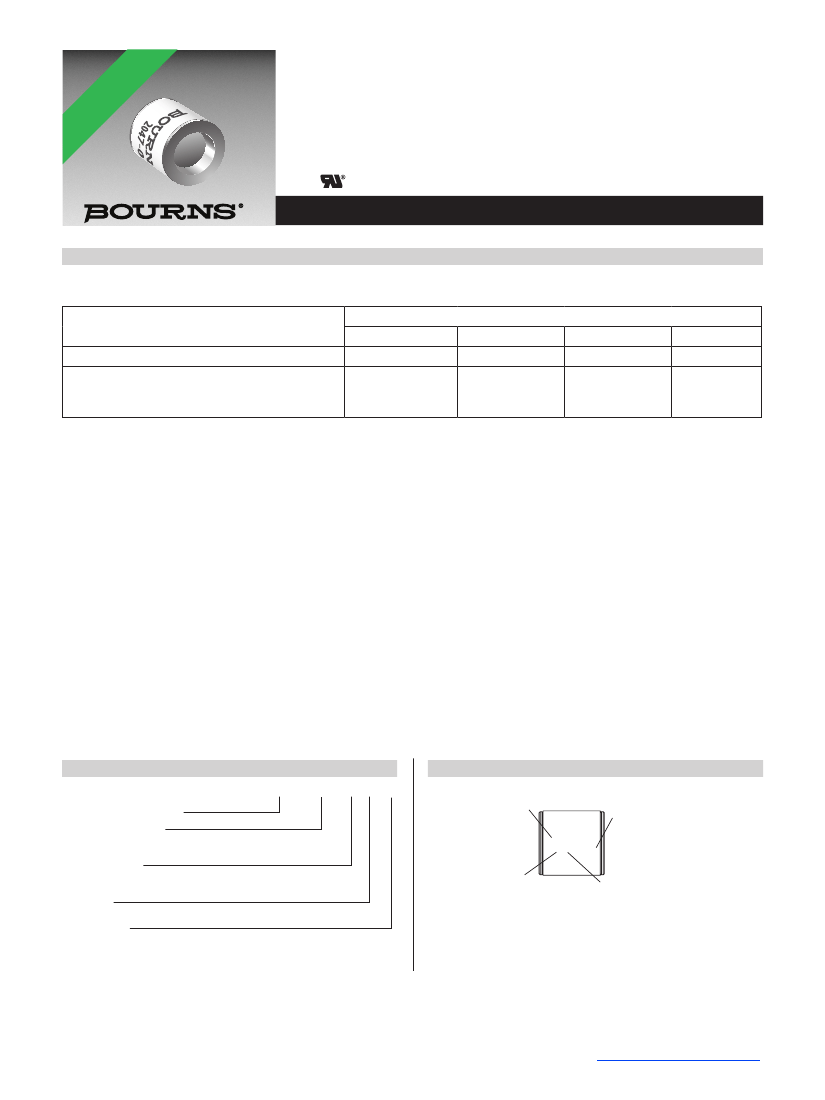

2047 Series High Current 2-Electrode Gas Discharge Tube
CO
2047-15
150 V
350 / 450 V
550 / 600 V
2047-23
230 V
450 / 500 V
600 / 650 V
2047-35
350 V
475 / 550 V
725 / 800 V
350 / 450 V
600 / 650 V
Insulation Resistance (IR) .......................................50 V / 100 V .......................................................... > 10
9
W
Glow Voltage ...........................................................10 mA ..................................................................... ~ 80 V
Arc Voltage ..............................................................@ 2 A...................................................................... ~ 12 V
Glow-Arc Transition Current .................................................................................................................... < 1 A
Capacitance.............................................................1 MHz ..................................................................... < 5 pF
Impulse Discharge Current ......................................40,000 A, 8/20 µs
(1)
............................................... 10 operations
> 4,000 A, 10/350 µs
(1)
......................................... > 10 operations
> 8,000 A, 10/350 µs .............................................. > 1 operation
> 1,000 A 10/1000 µs ............................................ > 1000 operations
Alternating Discharge Current .................................> 20 A, 1 sec. ........................................................ > 20 operations
> 40 A, 1 sec. ........................................................ 1 operation min.
> 200 A, 11 cycles ................................................. 1 operation min.
Operating and Storage Temperature, ...................................................................................................... -40 to +90 ºC
Climatic Category (IEC 60068-1)............................................................................................................. 40/90/21
Moisture Sensitivity Level ........................................................................................................................ 1
ESD Classification (Passive Component HBM) ...................................................................................... 6
Notes:
• At delivery AQL 0.65, level II DIN ISO 2859.
• UL Recognized component, UL File E153537.
(1)
DC Sparkover may exceed ±25 % after discharge, but will continue to protect without venting.
(2)
Impulse Sparkover voltage is defined as typical values of distribution.
How to Order
Typical Part Marking
2047 - xx - X __ LF
Model Number Designator
Voltage (Divided by 10)
09 = 90 V
23 = 230 V
15 = 150 V
35 = 350 V
Contact Terminals
A = None
B = Optional
MANUFACTURER'S
TRADEMARK
DATE CODE
(FIRST TWO DIGITS = MONTH;
NEXT TWO DIGITS = YEAR)
BOURNS
2047-XX XXXX
PART
IDENTIFICATION
VOLTAGE
Packaging
Blank = Bulk Packaging (Standard) - 50 pcs. per box
Plating Option
Blank = Standard Product - Tin/Lead Plating
LF = RoHS Compliant Product - Sn Plating
Ni = RoHS Compliant Product - Nickel Plating
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
