TMP87PH00F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > TMP87PH00F

Preview

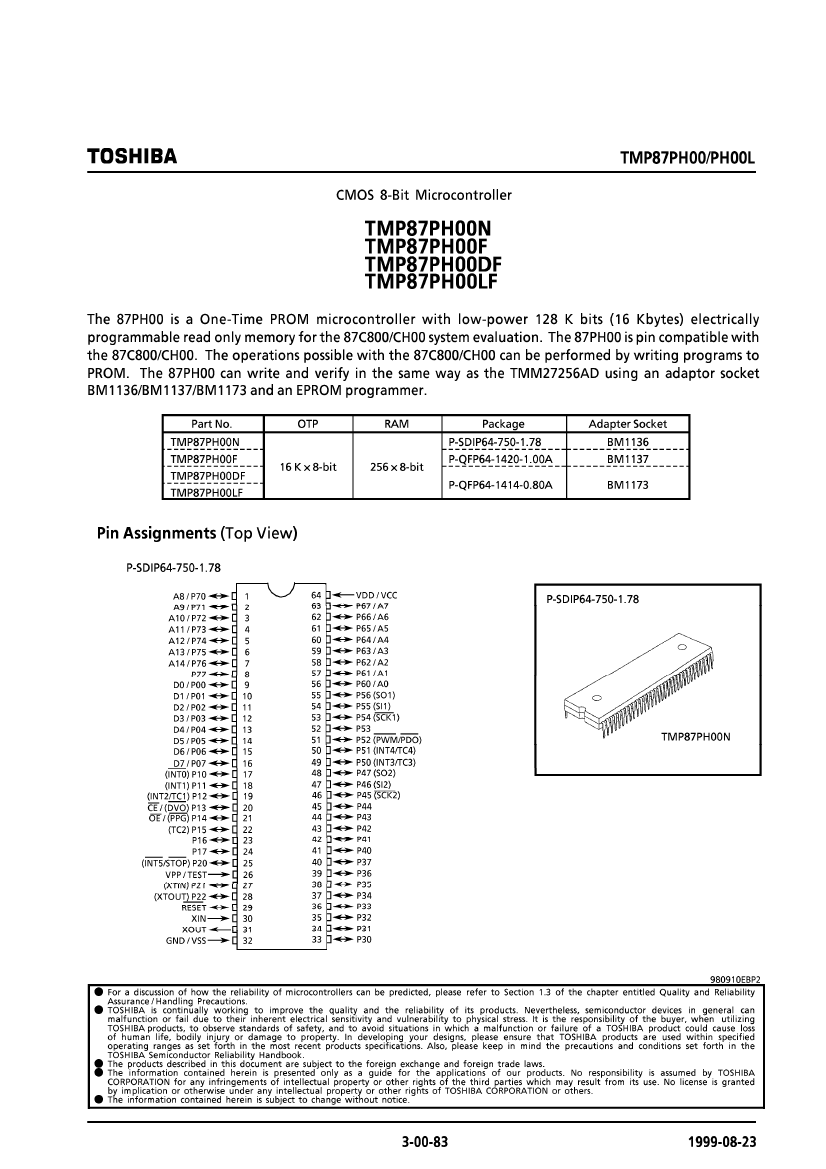

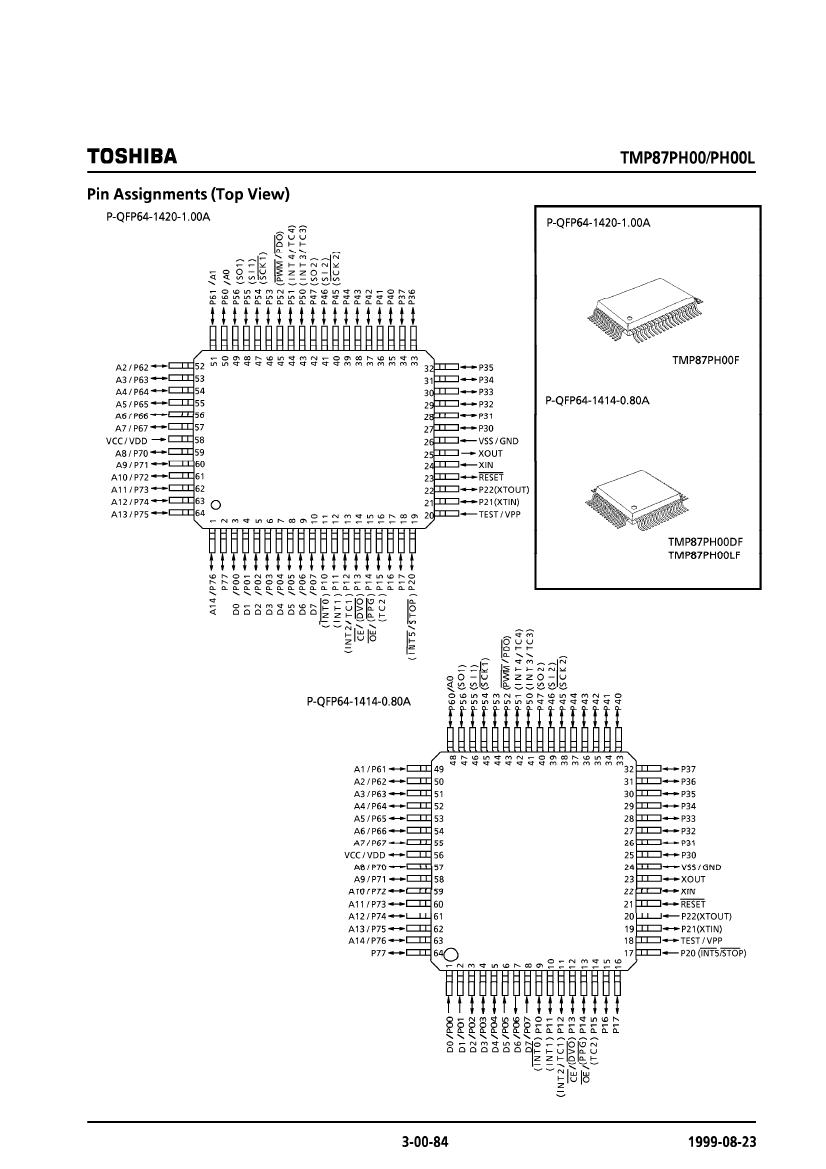

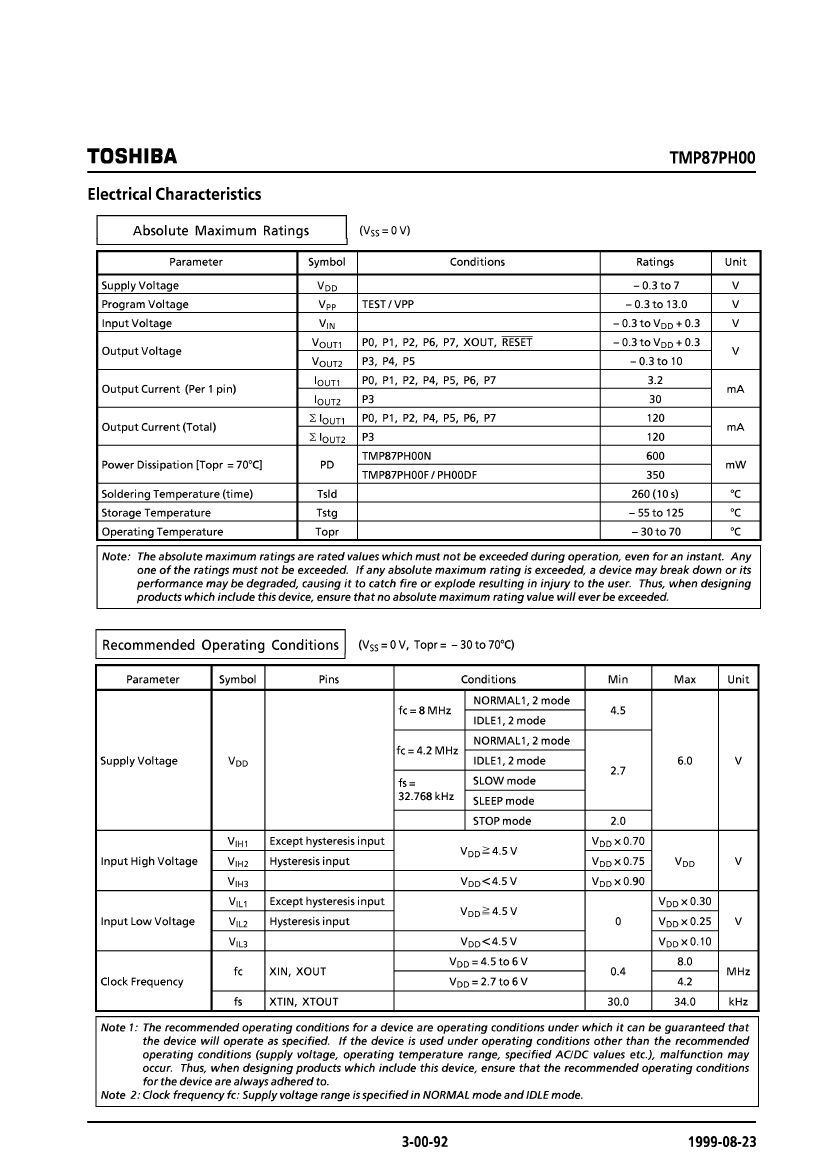

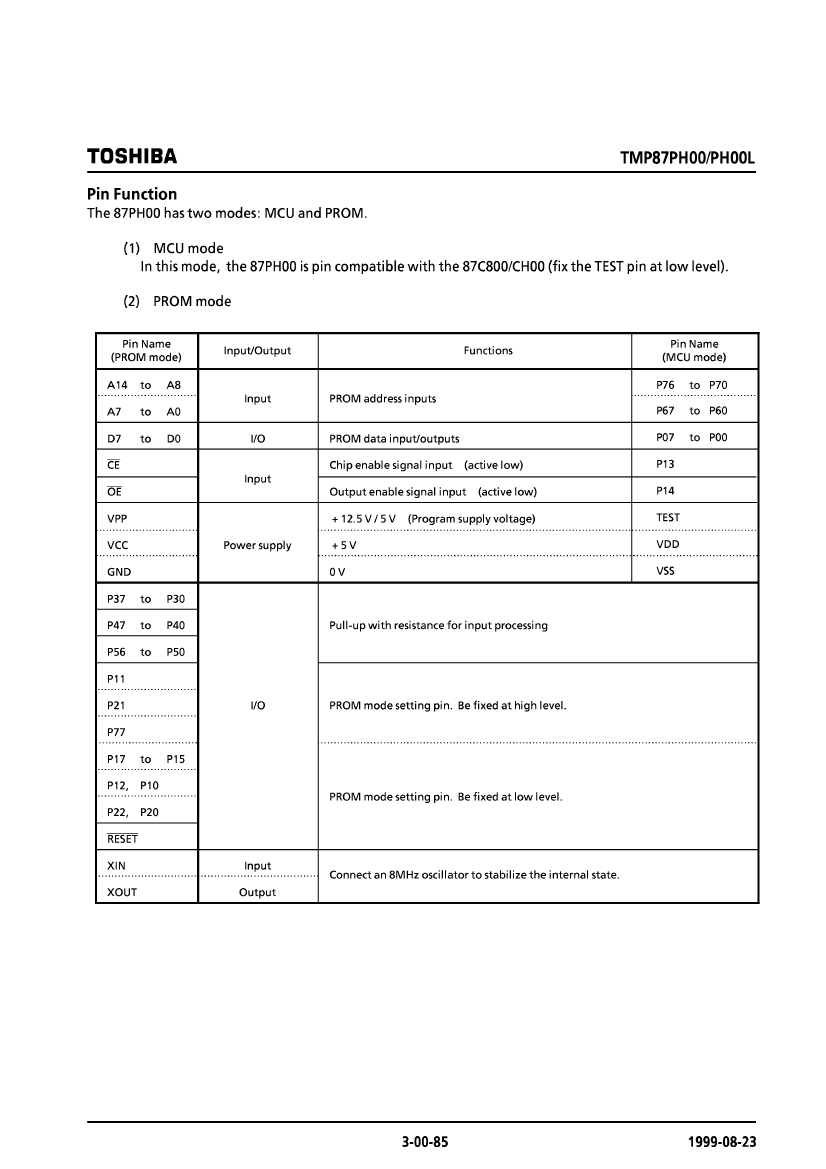

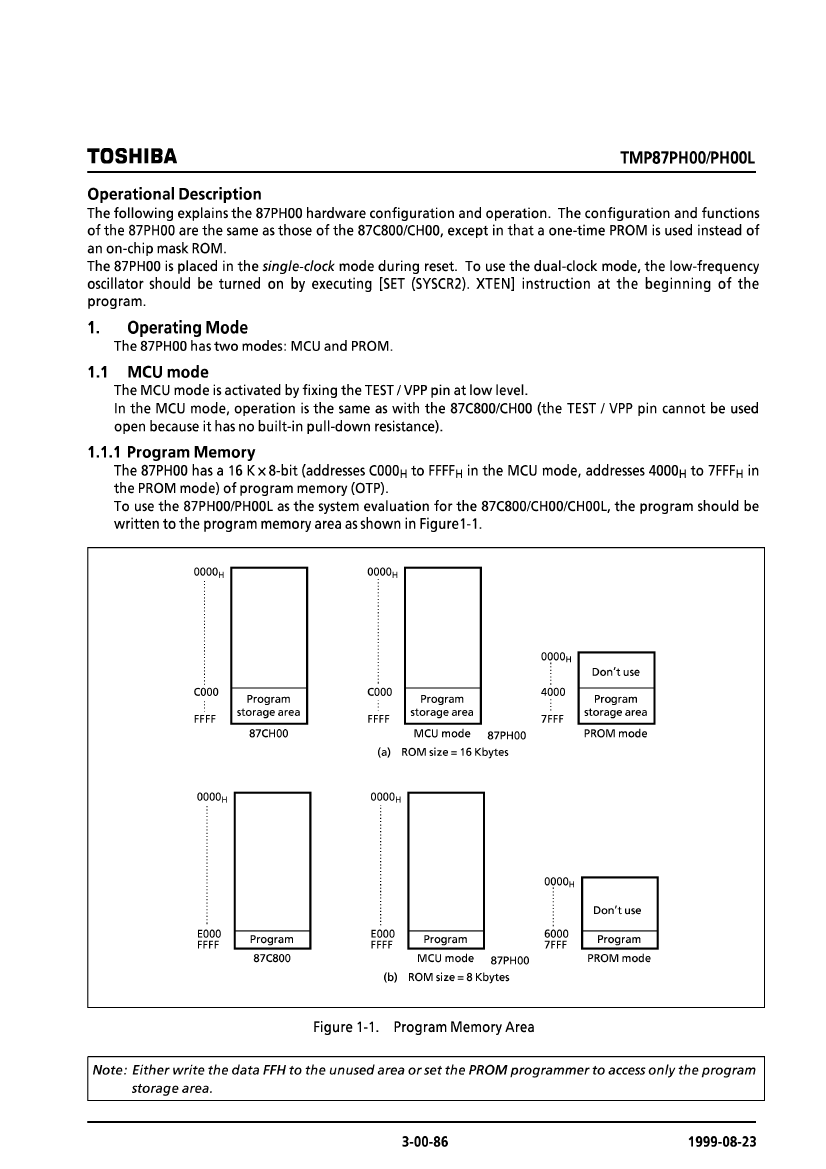

TMP87PH00F: DescriptionCMOS 8-Bit Microcontroller; File Size638KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TMP87PH00F Overview

CMOS 8-Bit Microcontroller

Preview

Download Datasheet

View All

TMP87PH00F Related Products

	TMP87PH00F	TMP87PH00LF	TMP87PH00DF	TMP87PH00N
Description	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Parts packaging code	-	QFP	QFP	DIP
package instruction	-	QFP, QFP64,.66SQ,32	QFP, QFP64,.66SQ,32	SDIP, SDIP64,.75
Contacts	-	64	64	64
Reach Compliance Code	-	unknow	unknow	unknow
Has ADC	-	NO	NO	NO
Other features	-	ALSO OPERATES AT 2.7V MIN SUPPLY @ 4.2MHZ	ALSO OPERATES AT 2.7V MIN SUPPLY @ 4.2MHZ	ALSO OPERATES AT 2.7V MIN SUPPLY @ 4.2MHZ
bit size	-	8	8	8
CPU series	-	TLCS-870	TLCS-870	TLCS-870
maximum clock frequency	-	8 MHz	8 MHz	8 MHz
DAC channel	-	NO	NO	NO
DMA channel	-	NO	NO	NO
JESD-30 code	-	S-PQFP-G64	S-PQFP-G64	R-PDIP-T64
length	-	14 mm	14 mm	57.5 mm
Number of I/O lines	-	58	58	58
Number of terminals	-	64	64	64
Maximum operating temperature	-	70 °C	70 °C	70 °C
Minimum operating temperature	-	-30 °C	-30 °C	-30 °C
PWM channel	-	YES	YES	YES
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	QFP	QFP	SDIP
Encapsulate equivalent code	-	QFP64,.66SQ,32	QFP64,.66SQ,32	SDIP64,.75
Package shape	-	SQUARE	SQUARE	RECTANGULAR
Package form	-	FLATPACK	FLATPACK	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-	2/5 V	3/5 V	3/5 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	-	256	256	256
rom(word)	-	16384	16384	16384
ROM programmability	-	OTPROM	OTPROM	OTPROM
Maximum seat height	-	3.15 mm	3.15 mm	5 mm
speed	-	8 MHz	8 MHz	8 MHz
Maximum slew rate	-	12 mA	12 mA	12 mA
Maximum supply voltage	-	6 V	6 V	6 V
Minimum supply voltage	-	4.5 V	4.5 V	4.5 V
Nominal supply voltage	-	5 V	5 V	5 V
surface mount	-	YES	YES	NO
technology	-	CMOS	CMOS	CMOS
Temperature level	-	OTHER	OTHER	OTHER
Terminal form	-	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	-	0.8 mm	0.8 mm	1.778 mm
Terminal location	-	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	14 mm	14 mm	19.05 mm
uPs/uCs/peripheral integrated circuit type	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
