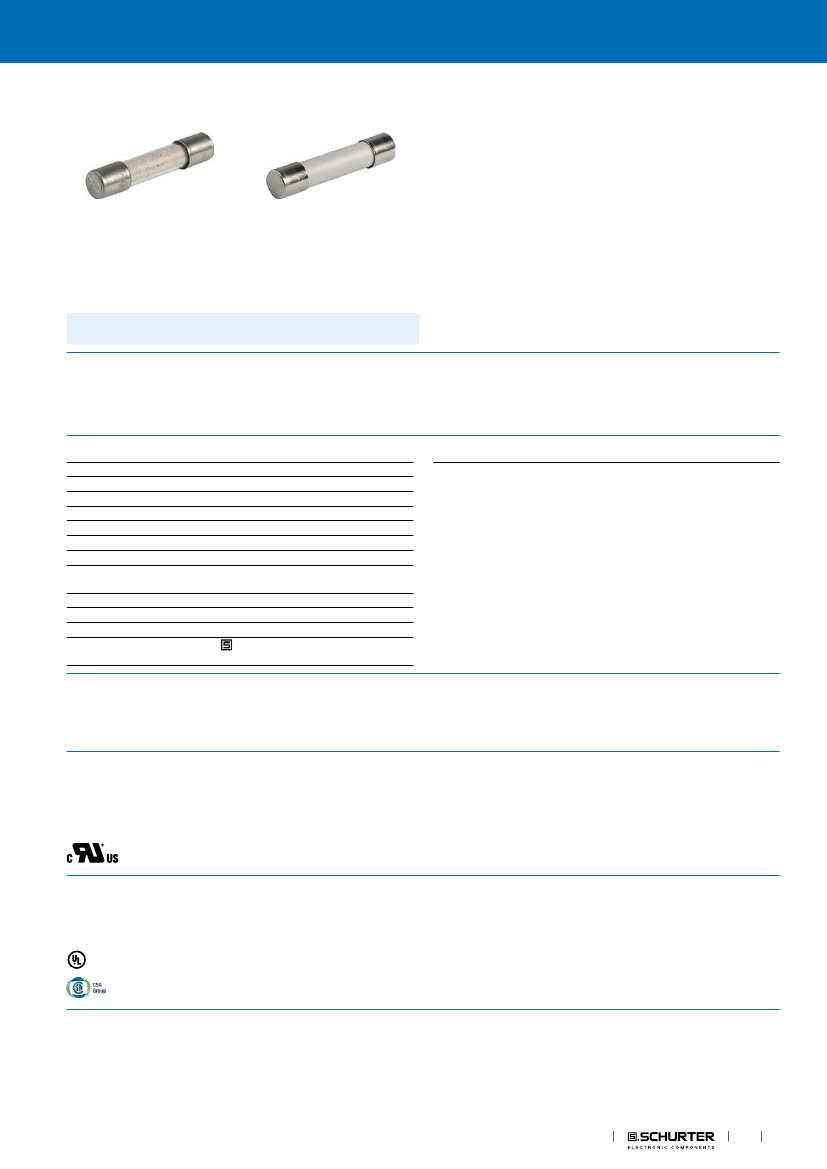

SPT 6.3x32
Miniature Fuse, 6.3 x 32 mm, Time-Lag T, Sand, 250 VAC
1-8A
10 - 32 A
250 VAC · Time-Lag T
Description
Approvals and Compliances
- Available on request
- H = High Breaking Capacity
- UL Standard Fuse
References
Weblinks
We recommend for new applications the type
SHT 6.3x32
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Tube
Material: Endcaps
Unit Weight
Storage Conditions
Product Marking
150 - 250 VAC, 48 - 63 VDC
0.5 - 32 A
1 kA - 20 kA
Time-Lag T
Fuseholder / Clip
-40 °C to 85 °C
40/085/21 acc. to IEC 60068-1
Glass with sand filling (1-8 A), ceramic
with sand filling (10-32 A)
Nickel-Plated Copper Alloy
2.45 g
0 °C to 60 °C, max. 70% r.h.
, Rated current, Rated Voltage, Cha-
racteristic, Approvals
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: SPT 6.3x32
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number: E42088
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 248-14
CSA22.2 No. 248.14
Description
Low voltage fuses - Part 14: Additional fuses
Low-Voltage Fuses - Part 14: Supplemental Fuses
Fuses
1
SPT 6.3x32
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
https://www.schurter.com /PG01_2
Fuses
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimension [mm]
32 mm
ø 6.35
±0.1
31.8
±0.8
Pre-Arcing Time
Rated Current In
0.5 A - 4 A
5 A - 16 A
20 A - 25 A
32 A
1.1 x In min.
>4 h
>4 h
60 min
60 min
60 min
1.9 x In max.
2.1 x In max.
60 min
2.75 x In min. 2.75 x In max.
2s
3s
3s
40 s
50 s
50 s
4.0 x In min.
150 ms
400 ms
400 ms
4.0 x In max.
2.5 s
4s
4s
10.0 x In min. 10.0 x In max.
5 ms
15 ms
15 ms
40 ms
100 ms
100 ms
2
Fuses
Fuses
https://www.schurter.com /PG01_2
SPT 6.3x32
Time-Current-Curves
100000
≤
4A
>
_
5A
10000
1000
100
Time in Seconds
10
1
0.1
0.01
0.001
1
10
Multiple of Rated Current In
All Variants
Rated Cur-
rent [A]
Rated Vol-
tage [VAC]
Breaking
Capacity
Voltage Drop
1.0 In max.
[mV]
2500
2000
1200
900
700
500
400
350
300
250
250
250
200
200
200
150
150
150
150
Voltage Drop
1.0 In typ.
[mV]
2400
560
490
350
170
240
200
150
160
130
110
110
70
70
70
70
70
70
70
Power Dissi-
pation 1.5 I
n
typ. [mW]
3100
900
1000
900
500
1000
1100
1000
1500
1500
1500
1900
1600
2000
2300
3800
4300
5100
8600
Melting I²t 10.0
Intyp. [A²s]
Order Number
0.5
0.63
0.8
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8
10
12.5
16
20
25
32
█
Most Popular.
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
150
150
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
2)
2)
2)
3)
4)
0.3
0.3
0.5
2.4
2.5
4.2
13
18
33
53
127
224
360
805
1024
1690
2670
1390
2600
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
0001.2521
0001.2522
0001.2523
0001.2524
0001.2525
0001.2526
0001.2527
0001.2528
0001.2529
0001.2530
0001.2531
0001.2532
0001.2533
0001.2534
0001.2535
0001.2536
0001.2537
0001.2538
0001.2539
█
█
█
█
█
█
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
1) IEC: 1500 A @ 250 VAC, p.f. = 0.7 - 0.8
1) UL: 1500 A @ 250 VAC, p.f. = 0.7 - 0.8 / 10 kA @ 125 VAC, p.f. = 0.7 - 0.8 / 20 kA @ 63 VDC
2) UL: 1000 A @ 250 VAC, p.f. = 0.95 - 1,0 / 20 kA @ 63 VDC
3) UL: 1000 A @ 150 VAC, p.f. = 0.95 - 1,0 / 20 kA @ 63 VDC
4) UL: 1000 A @ 150 VAC, p.f. = 0.95 - 1,0 / 20 kA @ 48 VDC
01.12.2017
Packaging Unit
Small Box Pack (10 pcs.)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
