Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
T11-611

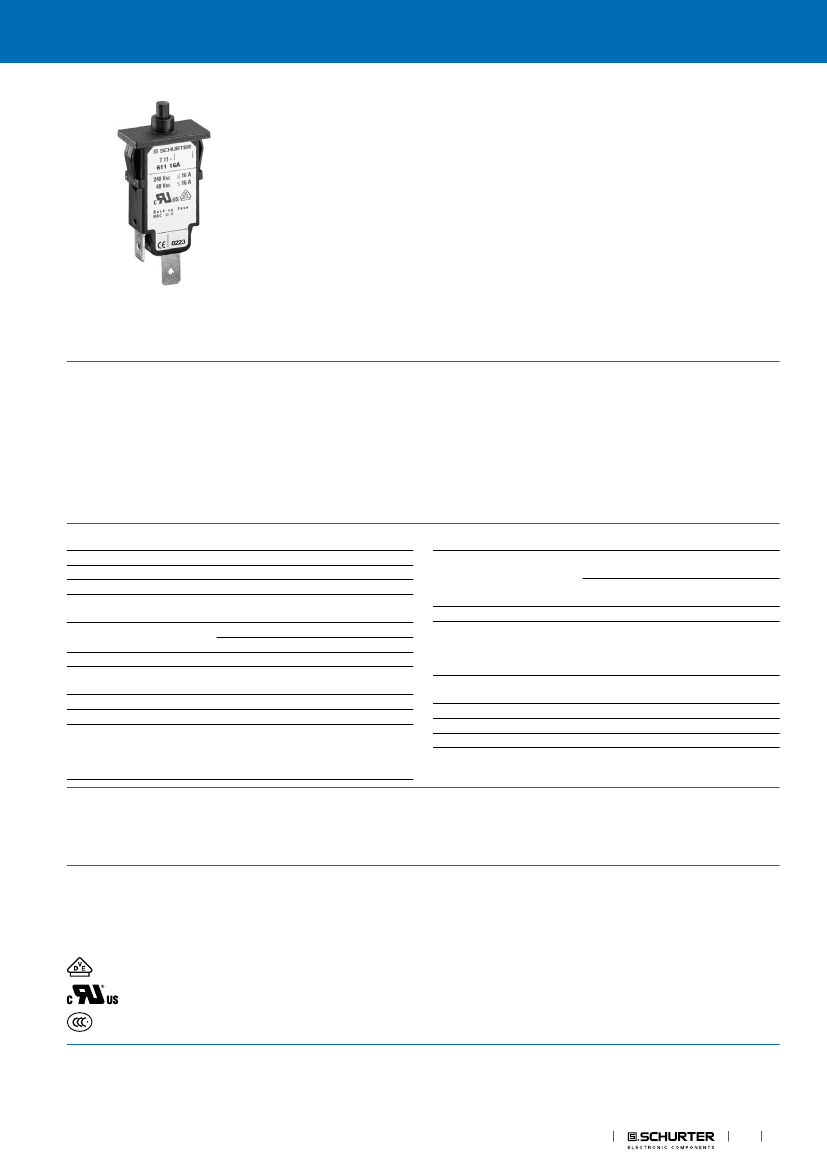

Circuit Breaker for Equipment thermal, Snap-in type, Reset type, Quick connect terminals
See below:
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
-
Snap-in version
Thermal circuit breaker
1-pole
Reset type
Quick connect terminals 6.3 x 0.8 mm
Compact design
Positively trip-free release
Available with cover
Different mounting possibilities
Applications
-
-
-
-
Power tools
Household Equipment
Power supplies and chargers
Industrial appliances
Unique Selling Proposition
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Product News
Technical Data
Rated Voltage AC
Rated Voltage DC
Rated current range AC
Conditional short circuit ca-
pacity
Short circuit capacity Icn
␣
Degree of Protection
Dielectric Strength
Insulation Resistance
Endurance typical
Endurance minimum
240 V; 50/60 Hz
48 V
0.05 - 16 A
IEC: Inc, PC1, AC 240 V: 2 kA
at In < 6.5 A/240 VAC : 8 x In
at In
≥
6.5 A/240 VAC : 96 A
from front side IP 40 acc. to IEC 60529
50 Hz: > 1.5 kV
Impulse 1.2/50
μs:
> 2.5 kV
500 VDC > 100 MΩ
2 x Ir: 500 switching cycles
Reset type
AC : 2 x Ir , cos
φ
0.6 :
DC : 2 x Ir , L/R = 2 - 3 ms :
50 switching cycles
Overload
␣
Ambient temperature
Vibration Resistance
IEC: min. 40 trips
@ 6 x Ir, cos
φ
0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos
φ
0.75
-5 °C to 60 °C
± 1.5 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Fc
5 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Fc
100 G / 6 ms
acc. to IEC 60068-2-27, test Ea
Thermal
Reset type
ca. 10 g
Shock Resistance
Tripping Type
Actuation Type
Weight
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: T11
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 99759
UL File Number: E71572
CCC Certificate Number: 2012010307564692
Circuit Breakers
1
T11-611
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60934
UL 1077
CSA C22.2 No. 235
GB 17701
Description
https://www.schurter.com /PG17_20
Thermal (T- and TA-Line)
Circuit-breakers for equipment (CBE)
Standard for Supplementary Protectors for Use in Electrical Equipment
Supplementary Protectors
Circuit-breaker for equipment
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

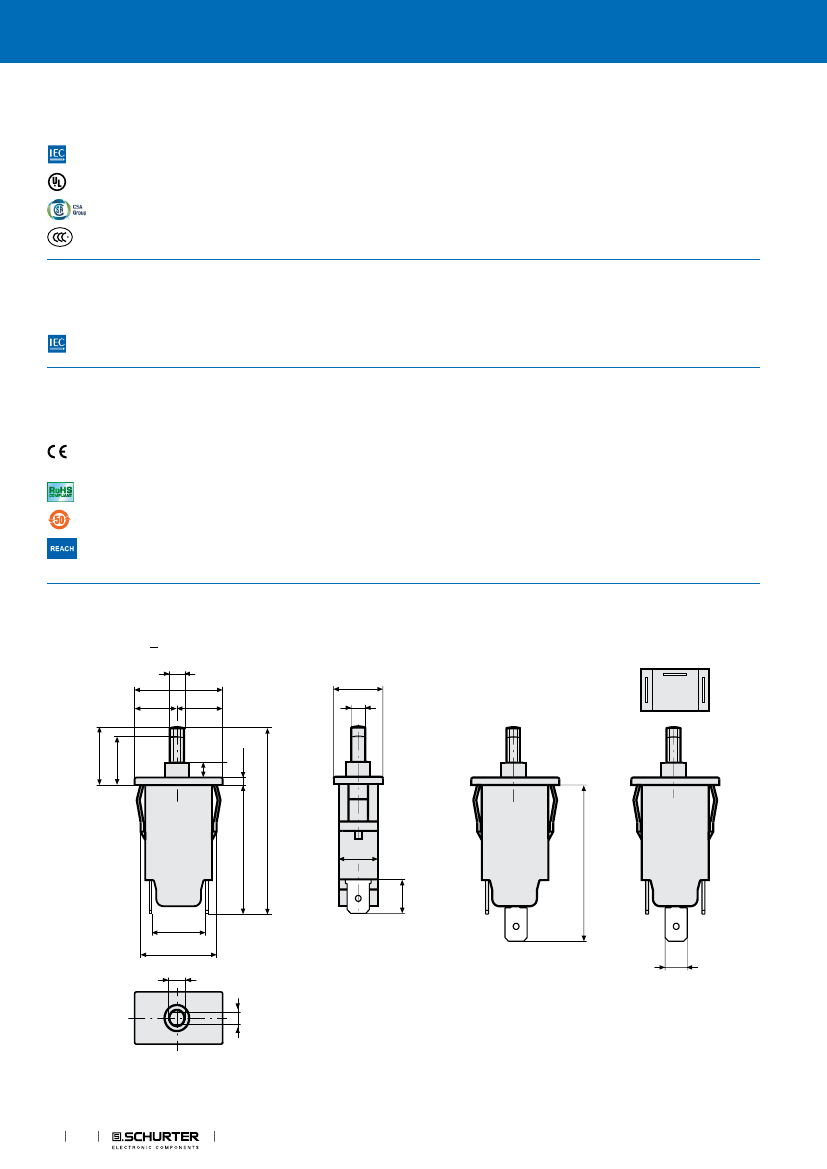

Dimension [mm]
T11-611 <7,5A
Ø
4
T11-611 >7,5A
14
T11-611N
3
25
12
13.5
13
3.6
1
2
11.0
4
2
34.7
48.2
15.2
21.6
Ø
4
9.2
42
11
6.3
2
Circuit Breakers
3.6
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
T11-611
a
0,8
1,0
1,5
2,0
3,0
11.3
b
21,9
22,0
22,1
22,3
22,6
b
Diagrams
Rated current
≤7,5
A
Rated current >7,5 A
a (0,8–3,0 mm)
1
1
2
Shunt terminal T11-...N
≤6,5
A
3
1
2
3
Circuit Breakers
3
T11-611
Typical internal resistance
Rated Current [A]
0.05
0.50
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
Internal Resistance [Ω]
380.000
5.200
1.350
0.300
0.130
0.080
0.040
0.040
0.020
0.012
0.012
0.011
0.0095
0.0095
0.0085
0.0085
0.0075
0.0075
https://www.schurter.com /PG17_20
Thermal (T- and TA-Line)
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient temperature [°C]
-5
0
+10
+23
+30
+40
+50
+60
Correction factor
0.87
0.90
0.95
1.00
1.04
1.10
1.15
1.20
Example: Rated current = 5 A; Environmental temperature = 40 °C; --> Correction factor =
1.1; Resulting current = 5.5 A --> Fount to next higher rated current: 6 A
4
Circuit Breakers
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
T11-611
Time-Current-Curves
[ min ] [ sec
]
10`000
< 6,5 A
> 6,5 A
60
30
20
10
5
200
2`000
1`000
500
Time in Seconds
100
1
50
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,35
2
3
4
5
8
10
Multiple of Rated Current In
Reference Temperature +23°
Config. Code
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Mounting
Mounting
Snap-in mounting from front side
Configuration
key
6
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Rated current
Rated current
0.05 A
Configuration
key
0.05
0.1
0.15
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Actuation Type
Actuation Type
Reset type
Configuration
key
1
0.1 A
0.15 A
0.2 A
0.3 A
0.4 A
0.5 A
0.6 A
Configuration
key
1
0.7 A
0.8 A
0.9 A
1.0
1.1 A
1.2 A
Configuration
key
N
1.3 A
1.4 A
1.5 A
1.6 A
1.7 A
1.8 A
Configuration
key
R
1.9 A
2.0 A
Other rated currents on request
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Terminal
Terminal
Quick connect terminal 6.3x0.8mm
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Shunt terminal
Shunt terminal
Shunt terminal
T11
|
-
|
1
|
2
|
3
|
A
|
B
|
-
|
1.23
|
= Setting indication
Setting indication
Setting indication
Circuit Breakers
5
