325020P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 325020P

325020P: DescriptionCartridge Fuses 20 AMP 250V SLO BLO AXIAL; CategoryCircuit protection Circuit protection; File Size96KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

325020P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	325020P	-	-	View	Buy Now

325020P Overview

Cartridge Fuses 20 AMP 250V SLO BLO AXIAL

325020P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	SLOW
body height	32.72 mm
Body length or diameter	6.99 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	575 J
Manufacturer's serial number	325P
Installation features	THROUGH HOLE
physical size	6.99mm x 32.72mm
Rated breaking capacity	400 A
Rated current	20 A
Rated voltage (AC)	250 V
Guideline	CE; CSA; PSE; UL
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

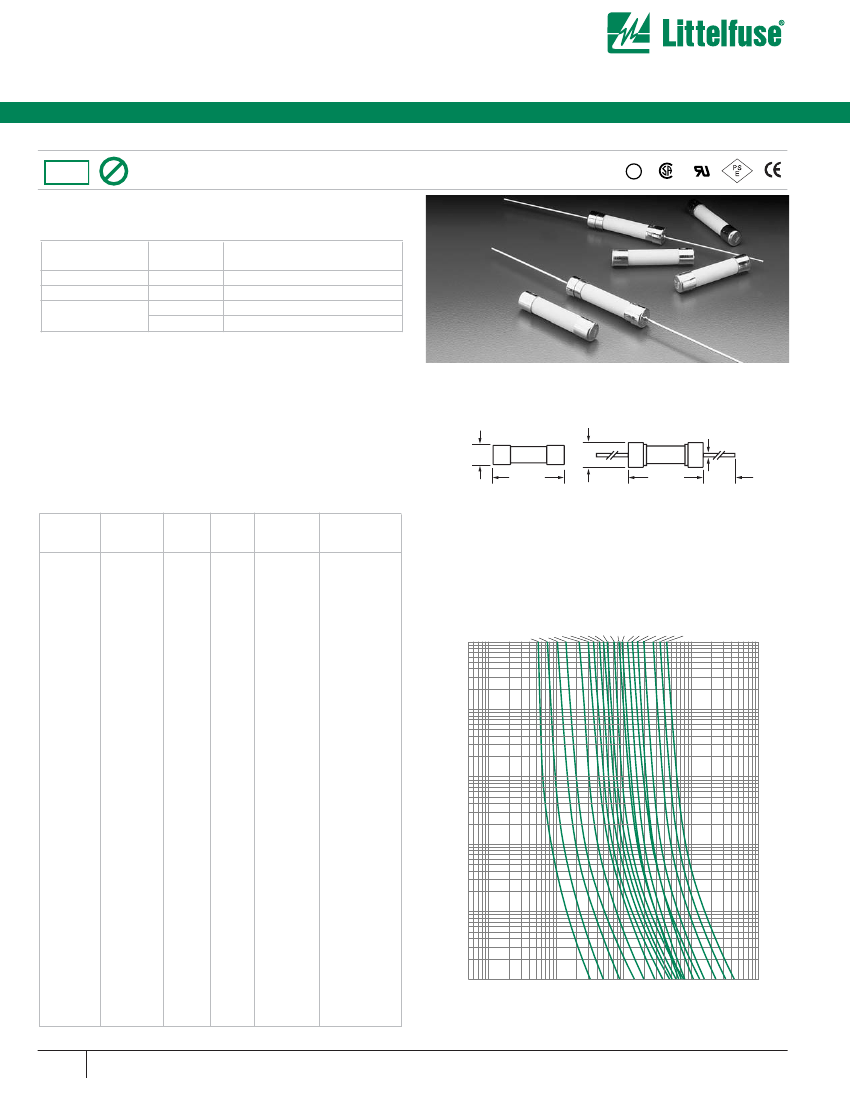

Axial Lead and Cartridge Fuses

Ceramic Body

RoHS

3AB

Slo-Blo

Ampere

Rating

1/100–30

1/100–3.2

4 – 30

Fuse 325P/326P Series

Ceramic body construction permits higher interrupting ratings and volt-

age ratings. Ideal for applications where high current loads are expected.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Opening

Time

hours,

Minimum

hour,

Maximum

sec.,

Min.;

30 sec.

Max.

sec.,

Min.;

60 sec.

Max.

AGENCY APPROVALS:

Listed by Underwriters Laboratories from 1/4

through 10 amperes. Certified by CSA from 1/4 through 30 amperes.

Recognized under the component program of Underwriters Laboratories

for 12-30A.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

326

000P

Series

6.985 (.275")

6.35 (.25")

31.75

(1.25")

325

000P

Series

0.813 (.032") (

1/100

-15A)

1.016 (.040") (20 -30A)

INTERRUPTING RATING:

0.010 - 20A

25 - 30A

0.010 - 3.2A

4 - 20A

20A*

Cartridge

Catalog

Number

326.010P

326.031P

326.062P

326.100P

326.125P

326.150P

326.175P

326.187P

326.200P

326.250P

326.300P

326.375P

326.400P

326.500P

326.600P

326.700P

326.750P

326.800P

326

001P

326

01.2P

326

1.25P

326

01.5P

326

01.6P

326

002P

326

02.5P

326

02.8P

326

003P

326

03.2P

326

004P

326

005P

326

6.25P

326

007P

326

008P

326

010P

326

012P

326

015P

326

020P

326

025P

326

030P

10,000A @ 125 VAC

400A @ 125 VAC

100A @ 250 VAC

400A @ 250 VAC

1,500A @ 250 VAC

Axial Lead

Catalog

Number

325.010P

325.031P

325.062P

325.100P

325.125P

325.150P

325.175P

325.187P

325.200P

325.250P

325.300P

325.375P

325.400P

325.500P

325.600P

325.700P

325.750P

325.800P

325

001P

325

01.2P

325

1.25P

325

01.5P

325

01.6P

325

002P

325

02.5P

325

02.8P

325

003P

325

03.2P

325

004P

325

005P

325

6.25P

325

007P

325

008P

325

010P

325

012P

325

015P

325

020P

325

025P

325

030P

Nominal

Resistance

Cold Ohms

3300.0000

330.

91.0

33.3

22.3

15.3

8.84

7.67

6.72

4.40

3.20

2.14

1.92

1.29

0.940

0.716

0.636

0.568

0.386

0.284

0.266

0.196

0.175

0.120

0.0830

0.0690

0.0600

0.0535

0.0755

0.0518

0.0343

0.0225

0.0191

0.0131

0.0066

0.0049

0.0033

0.0024

0.0019

Nominal

Melting I

Sec.

0.00148

0.0110

0.0276

0.0870

0.100

0.143

0.220

0.230

0.213

0.432

0.690

1.20

1.33

2.50

3.90

6.42

7.00

8.20

16.3

22.0

24.0

40.1

45.0

80.0

136.0

170.0

200.0

214.0

9.71

25.0

60.4

47.3

67.1

137.0

129.0

245.0

575.0

1030.0

1690.0

32.72

(1.288")

38.1

(1.50") TYP.

ORDERING INFORMATION:

Ampere

Rating

1/100

1/32

1/16

1/10

1/8

15/100

.175

3/16

2/10

1/4

3/10

3/8

4/10

1/2

6/10

7/10

3/4

8/10

Voltage

Rating

250

125

(-65˚C to 125˚C)

Axial Lead Material: Tin coated copper.

THERMAL SHOCK:

MIL-STD-202, Method 107, Test Condition B

Average Time Current Curves

.375A

.500A

.750A

1.0A

1.5A

2.0A

2.5A

3.0A

3.5A

4.0A

5.0A

6.25A

7.0A

8.0A

10.0A

12.0A

15.0A

20.0A

25.0A

30.0A

1000

100

TIME IN SECONDS

0.1

0.01

0.05 0.1

CURRENT IN AMPERES

100

1000

*Higher I

t version available. 0325020.MXDP nominal I

t is 2507 A

Sec

408

w w w. l i t t e l f u s e . c o m
