MDA-V-10-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> MDA-V-10-R

MDA-V-10-R: DescriptionCartridge Fuses SMALL DIMENSION FUSE; CategoryCircuit protection Circuit protection; File Size116KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

MDA-V-10-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MDA-V-10-R	-	-	View	Buy Now

MDA-V-10-R Overview

Cartridge Fuses SMALL DIMENSION FUSE

MDA-V-10-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Fusing characteristics	TIME LAG
body height	32.82 mm
Body length or diameter	6.76 mm
Circuit protection type	Electric Fuse
JESD-609 code	e3
physical size	6.76mm x 32.82mm
Rated breaking capacity	200 A
Rated current	10 A
Rated voltage	250 V
Guideline	CSA, UL
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

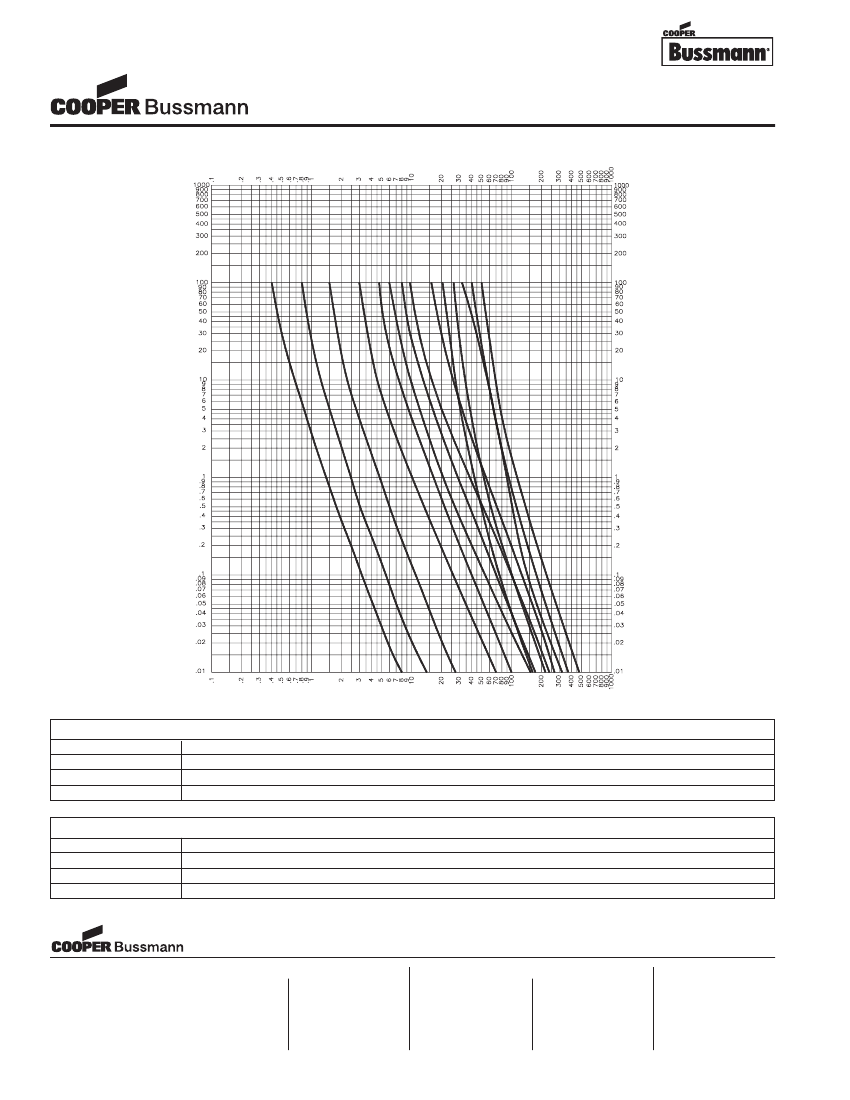

1/4" x 1-1/4" Fuses

MDA Series, Time Delay, Ceramic Tube

Description

• Time Delay, ceramic tube

• Optional axial leads available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Ceramic tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

ELECTRICAL CHARACTERISTICS

Amp Rating

Opening Time

Rated Current

None

100%

1/4 - 30A

135%

60 Minutes Max.

200%

120 Seconds Max.

RoHS

2002/95/EC

Agency Information

• UL Listed Card: MDA 2/10 - 20A (Guide JDYX,

File E19180)

• UL Recognized Card: MDA 25 - 30A (Guide JDYX2,

File E19180)

• CSA Certification Card: MDA 2/10 - 20

(Class No. 1422-01)

• CSA Component Acceptance: MDA 25-30A

(Class No. 1422-30)

Environmental Data

• Shock: 1/100A and 8/10A – MIL-STD-202,

Method 213, Test Condition I;

1A thru 30A – MIL-STD-202, Method 207,

(HI Shock)

• Vibration: 1/100A and 8/10A – MIL-STD-202,

Method 201; 1/4A thru 30A – MIL-STD-202,

Method 204, Test Condition C (Except 5g, 500HZ)

Ordering

• Specify packaging, product, and option code

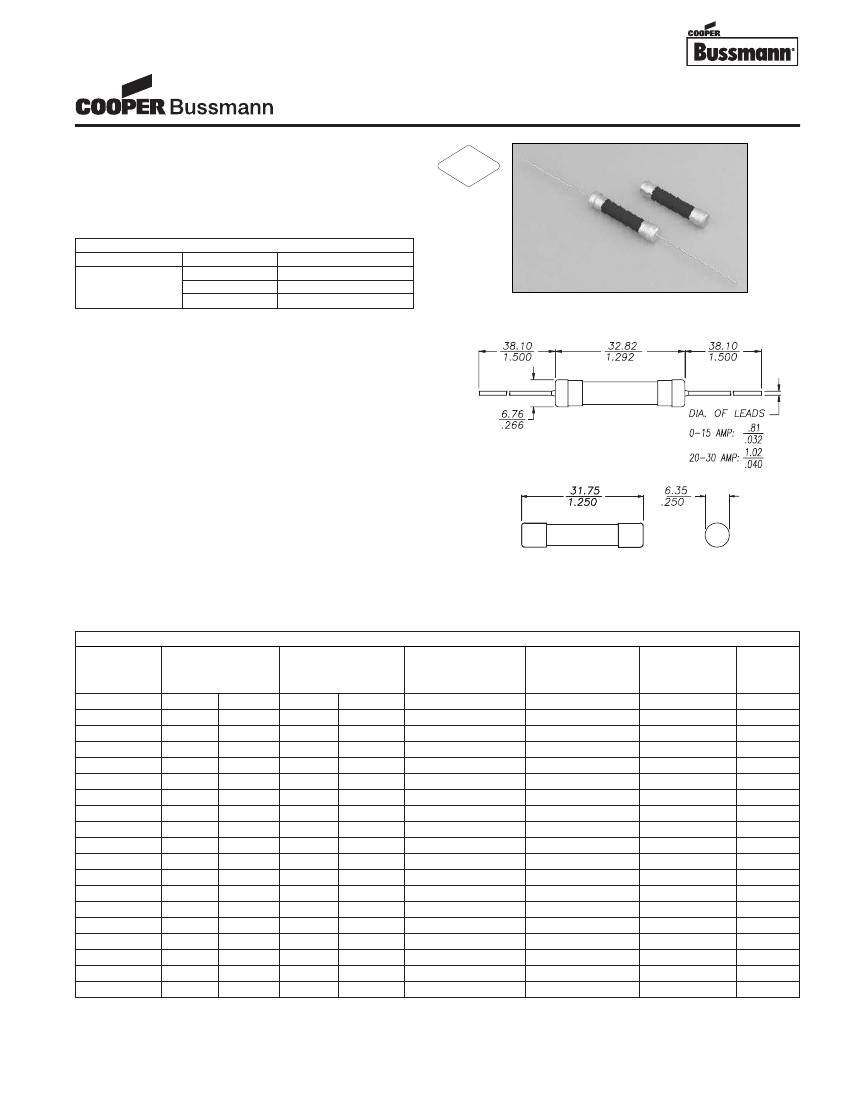

Dimensions

(

⁄

)

Drawing Not to Scale

SPECIFICATIONS

Product

Code

MDA-1/4

MDA-1/2

MDA-3/4

MDA-1

MDA-1-1/2

MDA-2

MDA-2-1/2

MDA-3

MDA-4

MDA-5

MDA-6

MDA-7

MDA-8

MDA-10

MDA-12

MDA-15

MDA-20

MDA-25A

MDA-30A

†

‡

Voltage

Rating

250V

125V

250V

125V

250V

125V

AC Interrupting

Rating*

250V

125V

35A

10000A

35A

10000A

35A

10000A

35A

10000A

100A

10000A

100A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

750A

10000A

750A

1500A

10000A

1500A

10000A

1500A

10000A

DC Interrupting

Rating

125V

10000A

Typical DC Cold

Resistance**

(ohms)

9.325

1.925

0.8555

0.560

0.2585

0.1645

0.06685

0.0507

0.0346

0.02355

0.01850

0.01475

0.01230

0.00858

0.00725

0.00543

0.00358

0.00309

0.00243

Typical

Melting I

t†

0.68

2.3

7.8

11.1

25.0

64.0

28.9

40.9

134.0

345.9

534.3

580.3

944.0

1491.3

113.8

206.2

439.5

667.9

997.0

Typical

Voltage

Drop‡

4.00

1.42

1.31

1.03

0.691

0.623

0.213

0.182

0.162

0.145

0.141

0.137

0.134

N/A

0.114

0.107

0.095

0.105

0.110

Interrupting Ratings (Measured at 70% - 80% power factor on AC. The interrupting ratings for 25Amp, 30Amp were measured at 90% - 100% power factor on AC)

DC Cold Resistance (Measured at

≤10%

of rated current)

Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage)

Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)
