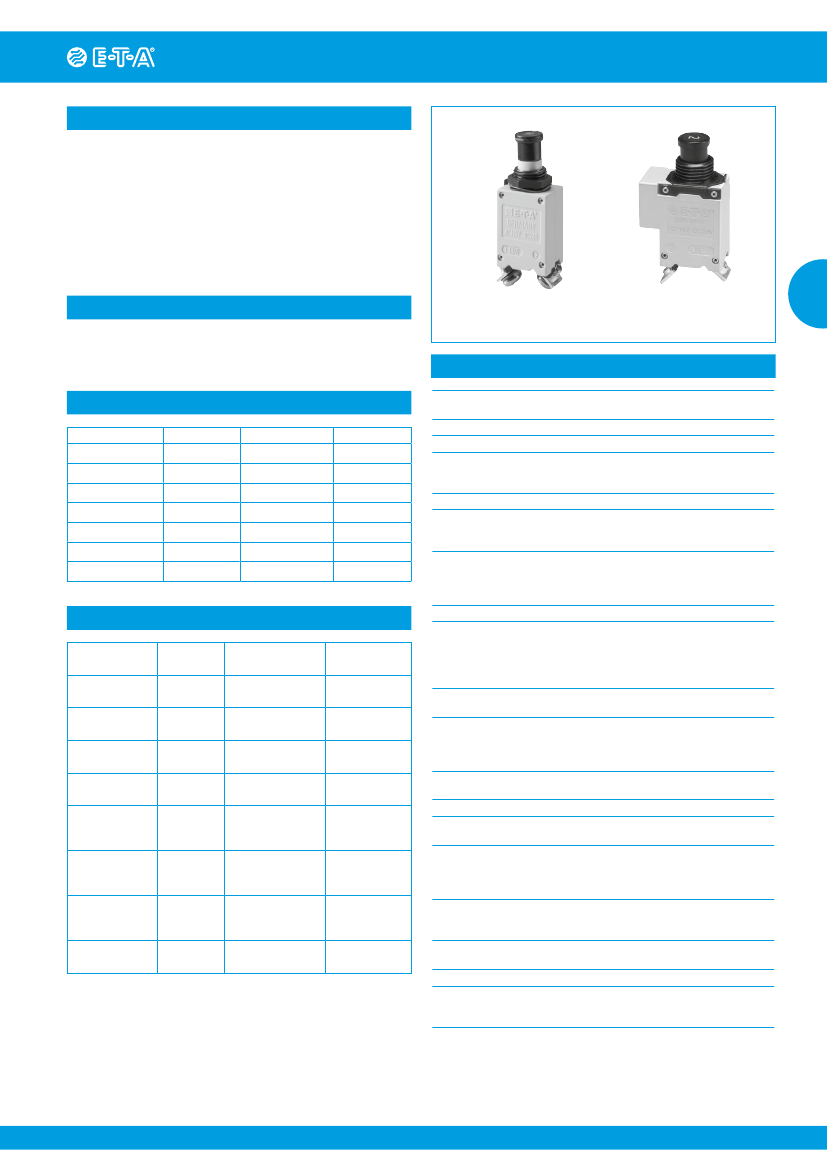

High Performance Thermal Circuit Breaker 483-...
Description
Single pole, miniaturised, aircraft style thermal circuit breaker with
tease-free, trip-free, snap action mechanism and push/pull on/off manual
actuation (M-type TO CBE to EN 60934). An indicator band on the
push button clearly shows the tripped/off position. Threadneck panel
mounted, available in metric and US (MS 3320) configurations. Advanced
two-chamber design contributes to fail-safe operation. Temperature
compensated from -55 °C to +125 °C, with optional auxiliary contacts,
and fully approved for use on a wide range of aircraft and equipment. Full
specification ensures suitability for the most demanding applications. For
three pole version see type 583.
Typical applications
Aircraft systems and equipment (fixed wing and helicopters);
other extra low voltage wiring applications; defence equipment;
communications systems.
without auxiliary contact
483-...
1
with auxiliary contact
Technical data
Voltage rating
Current rating range
Auxiliary circuit
Typical life
AC 115 V (300 Hz to 800 Hz); DC 28 V
(higher voltage ratings upon request)
1...35 A
0.5 A, DC 28 V
20,000 operations mechanical or
10,000 operations at I
N
(≤ 25 A)
5,000 operations at I
N
(30 + 35 A)
-55...+125 °C (-67...+257 °F)
rated impulse
pollution
withstand voltage
degree
1.5 kV
3
test voltage
AC 1,500 V
AC 1,500 V
> 100 MΩ (DC 500 V)
5A
2,000 A
7.5...35 A 2,500 A
1...25 A
6,000 A
30 + 35 A 4,000 A
operating area IP40
terminal area IP00
Standard current ratings and typical volt drop values
Current rating (A)
Volt drop (mV)
Current rating (A)
Volt drop (mV)
1
2
2.5
3
4
5
7.5
750
520
400
360
350
260
230
10
15
20
25
30
35
190
190
200
170
160
150
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664A)
Dielectric strength
(IEC 60664 and 60664A)
operating area
main to aux. circuit
Insulation resistance
Interrupting capacity I
cn
AC 115 V (400 Hz):
DC 28 V:
Degree of protection
(IEC 60529/DIN 40050)
Vibration
(sinusoidal)
Approvals
Authority
UL
CSA
Bw
Bw
QPL Canada
Dep. of National
Defence
QPL Sweden
Defence
Material Admin.
QPL UK
Ministery of
Defence
Dep. of the
Navy
Standard
UL 1077
C22.2 No
235
VG 95345,
part 6
LN 29886
VG 95345,
part 6
LN 29886
MS 3320
LN 29886
Rated voltage
AC 250 V
DC 75 V
AC 250 V
DC 75 V
AC 115 V, 400 Hz
DC 28 V
AC 115 V, 400 Hz
DC 28 V
AC 115 V, 400 Hz
DC 28 V
AC 115 V, 400 Hz
DC 28 V
AC 115 V, 400 Hz
DC 28 V
AC 115 V, 400 Hz
DC 28 V
Current
ratings
1 A…25 A
1 A…35 A
1 A…25 A
1 A…35 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…25 A
1 A…20 A
1 A…20 A
MS 3320
(V)
15 g (70-2000 Hz), ± 0.76 mm (5-70 Hz)
to VG 95210, sheet 19,
IEC 60068-2-6, test Fc/ISO 7137
Vibration (random)
16.4 g rms, 0.2 g
2
/Hz ± 1.5 dB
to VG 95210, sheet 29, ISO 7137
Acceleration
17 g, to ISO 2669
Shock
75 g (11 ms) to VG 95210, sheet 28,
IEC 60068-2-27, test Ea/ISO 7137
Corrosion
96 hours at 5 % salt mist, severity A
48 hours at 20 % salt mist, severity B
to VG 95210, sheet 2,
IEC 60068-2-11, test Ka/ISO 7137
Humidity
240 hours at 95 % RH,
to VG 95210, sheet 7,
IEC 60068-2-3, test C/ISO 7137
Explosion
to VG 95210, sheet 10,
MIL-STD-202, meth. 109
Altitude
≤ 25,000 m above sea level
Mass
max. 29 g with auxiliary contact
max. 25 g without auxiliary contact
Weight reduction through aluminium threadneck: approx. 3 g
1646
www.e-t-a.de
1
High Performance Thermal Circuit Breaker 483-...
Ordering information
Type No.
483
single pole, with temperature compensation
Mounting
G
threadneck panel mounting, standard
Threadneck design
1
M12x1x6.4x8.8 dia. with mounting plate (aux. contact version)
3
MJ12x6.4x8.8 dia. (without aux. contact)
4
M12x1x6.4x8.8 dia. (without aux. contact)
5
7/16-32UNx6.4x7.8 dia. (without aux. contact)
6
M12x1x9.4x8.8 dia. (without aux. contact)
Hardware for threadneck (washers)
0
without hardware
1
wave washer 12/15 - mounted
2
mounted washer 12.1/17.2 - mounted
3
mounted washer 11.3/14.9 - mounted
(threadneck design 5,7 only)
Hardware for threadneck (nuts)
0
without hardware
1
hex nut M12x1 (threadneck design 1, 4, 6 only)
3
hex nut 7/16-32UN (threadneck design 5, 7 only)
4
hex nut M12x1, aluminium, fitted
(threadneck design 8 only)
5
hex nut MJ12x1 (only with threadneck design 3)
Terminal design (main terminals)
K
screws terminals with metric thread
1
K14 (M4, MJ4)
J
screw terminals with inch thread
1
J14 (8-32UNC-2B)
2
J17 (8-32UNC-2B)
3
J25 (6-32UNC-2B)
Characteristic curve
M1
thermal, 1.15-1.38 I
N
Terminal screws
A
Phillips screw M4x6
B
Phillips screw 8-32UNC-2Ax6 (MS 51957-41)
C
Phillips screw 6-32UNC-2Ax6 (MS 51957-26)
D
slotted flat head screw M4x6
E
hex screw with Phillips head 8-32UNC-3A-9.5
L
Phillips screw MJ4x6
Z
without accessories
Terminal washers
0
without lock washer
1
lock washer B4
2
lock washer 4.3 (MS 35338-137)
4
lock washer 3.7 (MS 35338-136)
Auxiliary contact
S0
without auxiliary contact
S1
with auxiliary contact (N/C) connector
to EN3155-016M2018, size 20
S5
with polarized auxiliary contact (N/C)
Barrier
Z
without barrier (standard)
Colour of the push button
blank: black (standard) (e. g. 7.5)
N
black, marking to EN (e. g. 7 1/2)
Current ratings
1...35 A
483 - G 4 1 1 - K 1 M1 - A 1 S0 Z
. - 5A
ordering example
Ordering information for approved devices
483-G411-K1M1-A1S0ZN
Metric threadneck M12x1 and terminal design -K14 (M4x6), listed
by the German Materialamt der Bundeswehr to VG 95345 T06.
483-G533-J1M1-B2S0ZN (MS 3320)
Threadneck size 7/16-32UNSx6.4 and terminal design -J14
(inch thread 8-32), approved to MS 3320.
483-G533-J3M1-C4S0Z (483-TC-G11-J25)
Threadneck size 7/16-32UNSx6.4 and terminal design -J25
(inch thread 6-32), listed by the German Materialamt der
Bundeswehr to VG 95345, part 6.
1
Internal connection diagrams
line 2
1
with auxiliary contact
line 1
11
with polarized auxiliary contact
line 1
3
2
12
2
5
Preferred types
Preferred types
483-G411-K1M1-A1S0Z-
483-G411-K1M1-A1S0ZN- (VG 95345 T06)
Standard current ratings (A)
1
x
x
2
x
x
2.5
x
x
3
x
x
5
x
x
6
x
x
7.5
x
x
10
x
x
15
x
x
20
x
x
25
x
x
30
x
x
35
x
x
2
www.e-t-a.de
1646
High Performance Thermal Circuit Breaker 483-...

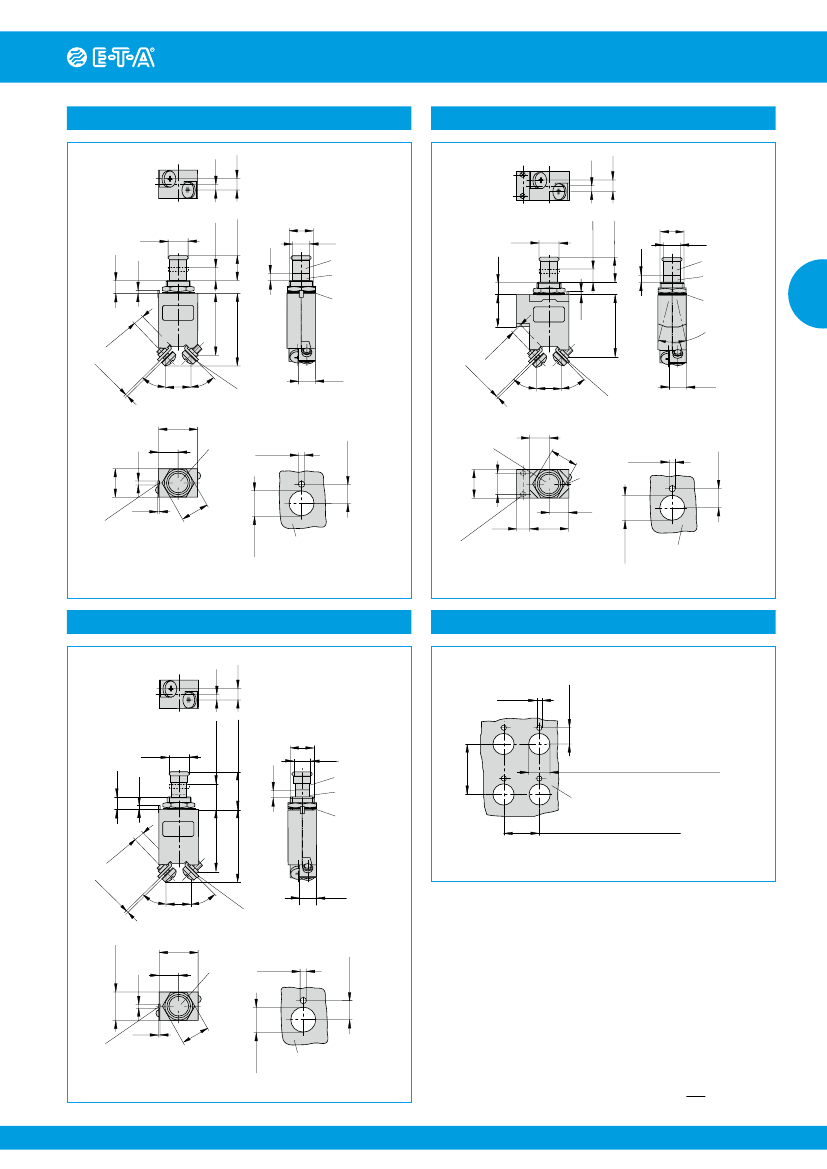

Dimensions 483-G411-K1M1-A1S0ZN (VG 95345 T06)
2.5
.098
5
.197
Dimensions 483-G111-K1M1-A1S1ZN
(VG 95345 T06)
2.5
.098
5
.197
6.5 ON
.256
12.5 OFF
.492
3.5
.138
6.35
.250
1.5
.059
white
lock washer
31
1.22
36.5
1.44
6.35
.250
3.5
.138
ø10
.394
ø8.4
.331
black
ø10
.394
6.5 ON
.256
12.5 OFF
.492
tightening torque max. 4 Nm
M12x1
tightening torque max. 4 Nm
M12x1
ø8.4
.331
black
white
lock washer
16.2
.638
1.5
.059
1
1
2
m
in
in . 4.
.1 6
81
6
4. 1
8
m n .1
i
m
in.
31
1.22
2
1
°
22
45°
12.8
.504
45°
teminal screw ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
8.5
.335
m
9.5
±0.2
.374
±.008
2
.079
14.2
.559
14.2
.559
10.5
.413
5
location pin
ø3.2
+0.15
.126
+.006
ø12.5
+0.2
.492
+.008
thickness 1.5 - 3 mm
.059 - .118 in.
ø12.5
+0.2
.492
+.008
0.8
.031
location pin
14
SW 1
.55
6.5
.256
19.5
.768
9.5
.374
aux. contact (connector to
EN 3155-016 M2018)
thickness 1.5 - 3 mm
.059 - .118 in.
Dimensions 483-G533-J1M1-B2S0ZN (MS 3320)
Mounting
2.5
.098
5
.197
ø3.2
+0.15
.126
+.006
min. 11.9 ON
min .469
max. 19 OFF
max .748
tightening torque max. 4 Nm
7/16-32-UN-2A THD
min. 30
min. 1.18
ø8.4
.331
black
white
lock washer
6.35
.250
1.5
.059
3.5
.138
ø10
.394
9.5
±0.2
.374
±.008
ø12.5
+0.2
(M12 and 15/32)
.492
+.008
ø11.5
+0.2
(7/16)
.453
+.008
thickness 1.5 - 3 mm
.059 - .118 in.
min. 20 min 25 when fitted with splash cover
min. 787 min .984
6
4. 1
8
m n .1
i
m
in.
1
2
45°
12.8
.504
45°
max. 15
max .591
2
.079
.126
+.006
ø11.5
+0.2
.453
+.008
0.8
.031
location pin
5
14
SW 1
.55
thickness 1.5 - 3 mm
.059 - .118 in.
This is a metric design and millimeter dimensions take precedence ( mm )
inch
9.5
±0.2
.374
±.008
max.19.8
max .780
9.5
.374
31
1.22
36.5
1.44
8.5
.335
teminal screw MS 51957-41 (8-32 UNC-2A)
with lock washer MS 35338-137
tightening torque max. 1.7 Nm
current rating
mounting holes
in A
ø3.2
+0.15
1646
www.e-t-a.de
9.5
±0.2
.374
±.008
.5
. 1 59
ax .0
m ax.
m
.5
. 1 59
ax .0
m ax
m
.5
. 1 59
ax .0
m ax.
m
45°
12.8
.504
45°
teminal screw ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
8.5
.335
19.5
.768
9.5
.374
mounting holes
current rating
in A
+0.15
ø3.2
.126
+.006
current rating
in A
9.5
.374
S
W1
.55 4
1
mounting holes
5
3
High Performance Thermal Circuit Breaker 483-...

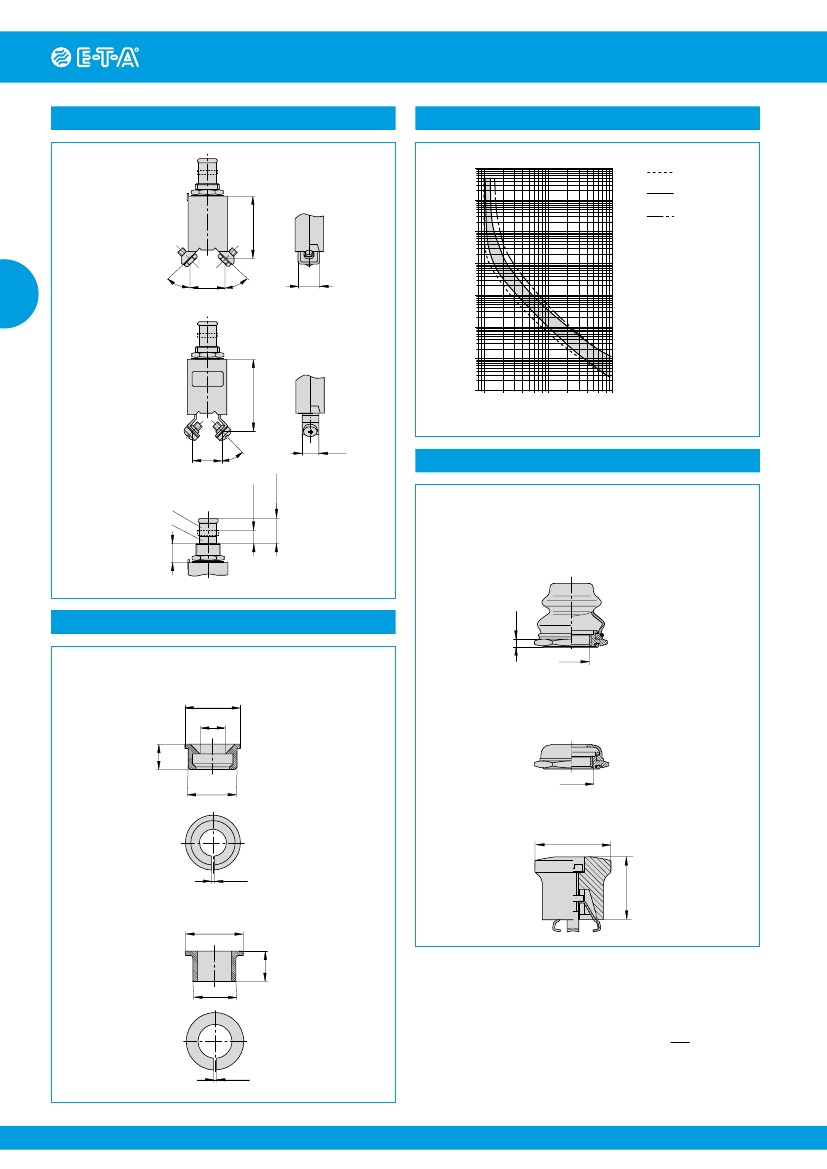

Other main terminal and threadneck designs
Terminal design -J2
Terminal distances to:
MS 14 105 (a, b)
MS 14 153 (a, b)
MS 22 073 (a)
MS 22 074 (a)
MS 25 244 (a)
MS 25 373 (a, b)
Typical time/current characteristics
10000
1000
Trip time in seconds
(31 mm/1.22 in.)
+125 °C
+ 257 °F
+ 23 °C
+ 73.4 °F
-55 °C
+67 °F
b
100
10
1
Terminal design -J3
Terminal distances to:
MS 26 574 (a, b)
45°
45°
a
(18 mm/.709 in.)
10.5
.413
1
0.1
0.01
(35.5 mm/1.40 in.)
0.001
1
2
4 6 810 20 40 6080100
… times rated current
b
45°
a
(15 mm/.591 in.)
8.5
.335
6.5 ON
.256
12.5 OFF
.492
Accessories
Splash cover/hex nut assembly with O ring
(IP66 and IP67)
(approved to VG 95345, T23)
X 200 801 08 nickel plated nut, transparent cover
X 200 801 03 matt black finish nut, black cover
X 200 801 09 matt black finish nut 7/16-32, black cover
X 200 801 12 with blackened nut and transparent cover
Mounting -G6
black
white
9.4
.370
.071
M12x1 or
7/16-32
Accessories
Identification collar
to be snapped on the push button
Y 307 004 01 black
Y 307 004 02 white
Y 307 004 03 red
ø14
Y 307 004 04 green
.551
Y 307 004 05 blue
ø6.85
.270
.252
6.4
Splash cover/hex nut assembly with O ring
(IP54)
(approved to VG 95345, T23)
X 200 802 01 nickel plated nut
X 200 802 02 matt black finish nut
1.8
M12x1
ø12.35
.486
Actuator extension
(black) to be fitted on the push button
(approved to VG 95345, T23)
X 200 803 01
ø20
ø.787
Lock out ring
to block the push button in OFF position
Y 307 005 01 red
ø14.6
Y 307 005 02 black
.575
7.7
.303
ø10.9
.429
This is a metric design and millimeter dimensions take precedence ( mm )
inch
0.8
.031
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
4
www.e-t-a.de
.669
17
0.65
.026
1646
京公网安备 11010802033920号
EEWORLD
