available with optional open fuse indication. Time-
delay – 10 seconds (minimum) at 500% of rated
current.
Dimensions - in
2.25"
(±0.03)
0.81"
0.5" (±0.03)
1 to 30A
35 to 60A
2.38"
(±0.03)
1.06"
0.63" (±0.03)
Specifications:
Ratings
•
Features:
•
Volts
•
600Vac
•
300Vdc
Industry’s only UL Listed and CSA Certified fuse
with a 300kA interrupting rating that allows for
simple, worry-free installation in virtually any
application.
Fast short-circuit protection and dual-element,
time-delay performance provide ultimate
protection.
Reduces existing fuse inventory by up to 33%
when upgrading to Low-Peak fuses.
Consistent 2:1 ampacity ratios for all Low-Peak
fuses make selective coordination easy.
Long time-delay minimizes needless fuse
openings due to temporary overloads and
transient surges.
Current-limitation protects downstream
components against damaging thermal and
magnetic effects of short-circuit currents.
Dual-element fuses have lower resistance than
ordinary fuses so they run cooler. They can
often be sized for back-up protection against
motor burnout from overload or single-phasing
if other overload protective devices fail.
Proper sizing can provide “no damage” Type
2 coordinated protection for NEMA
®
and IEC
®
motor controllers.
Space-saving package for equipment
downsizing.
•
•
•
Amps 1-60A
IR
•
•
300kA Vac RMS Sym.
100kA Vdc
•
•
•
Agency information
•
•
•
•
UL
®
Listed, Guide JDDZ, File E4273
CSA
®
Certified, Class 1422-02, File 53787,
Class J per CSA 22.2 No. 248.
CE
RoHS compliant
•
•
•
•
Technical Data 1006
Effective February 2016

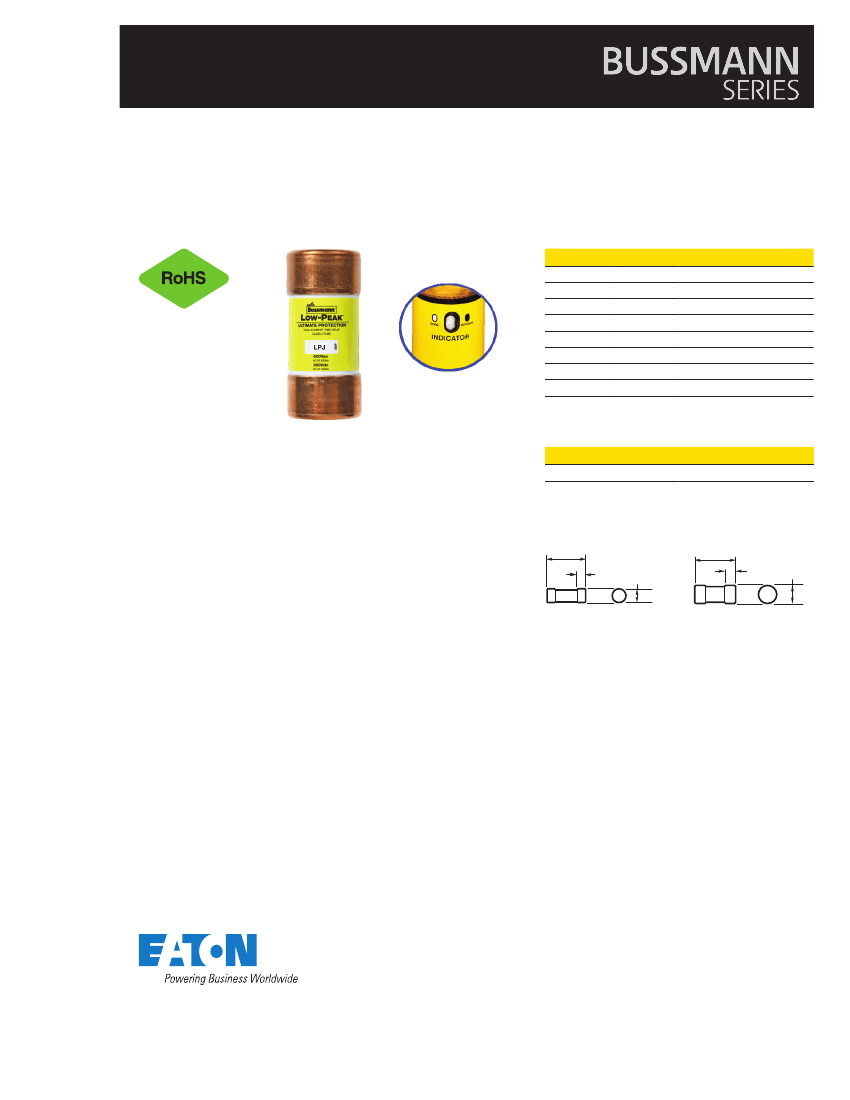

Low-Peak™ LPJ Class J 600Vac/300Vdc, 1-60A,
dual element, time-delay fuses
Recommended fuse blocks and holders:
Fuse amps
1-Pole
2-Pole
3-Pole
Modular open blocks with optional covers
0-30
35-60
“Pyramid” blocks
JM60030-1_
JM60060-1_
—
CH30J1_
CH60J1_
JT60030_
JT60060_
JM60030-2_
JM60060-2_
—
CH30J2_
CH60J2_
—
—
JM60030-3_
JM60060-3_
JP60030-3_
CH30J3_
CH60J3_
—
—
0-30
CH holders
0-30
35-60
Safety J™ holders
0-30
35-60
For additional information on the Class J fuse blocks and holders,
see data sheets no. 10289 (modular open blocks), no.1108 (pyramid
blocks), no. 2144 (CH) and no. 1152 (Safety J).
Fuse reducers for Class J fuses:
Equipment fuse clips
Desired fuse
(case) size
30A
60A
Catalog numbers
(pairs)
J-63
J-13
J-16
J-26†
60A 30A
100A
200A 60A
† Not for bolt-in applications.
2
Eaton.com/bussmannseries
Low-Peak™ LPJ Class J 600Vac/300Vdc, 1-60A,
dual element, time-delay fuses

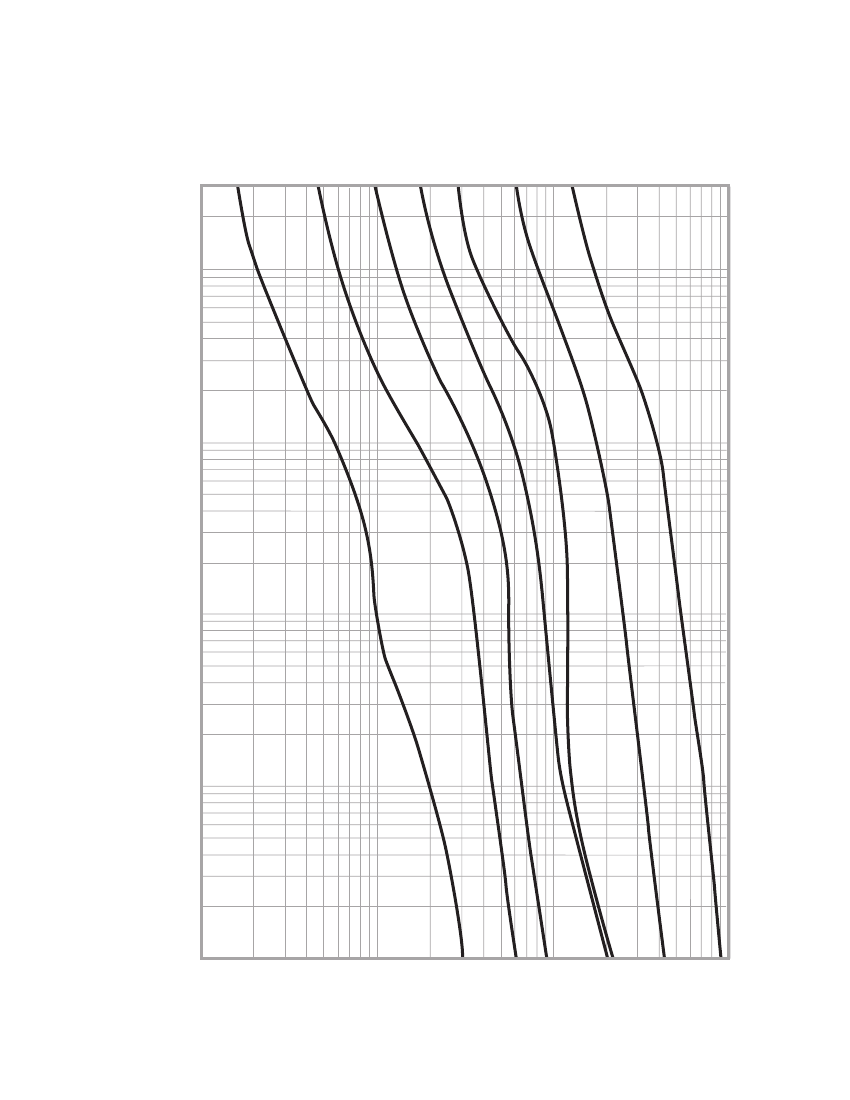

Time-current curves - average melt
Technical Data 1006
Effective February 2016
10A
1A
15A
3A
6A
30A
60A
100
300
200
100
AMP RATING
10
TIME IN SECONDS
1
0.1
10
CURRENT IN AMPS
1000
0.01
1
Eaton.com/bussmannseries
3
Technical Data 1006
Effective February 2016
Low-Peak™ LPJ Class J 600Vac/300Vdc, 1-60A,
dual element, time-delay fuses
Current-limiting effects:
B
AMP RATING
Current-limitation curves:
100000
90000
80000
70000
60000
50000
40000
30000
20000
INSTANTANEOUS PEAK-LET-THROUGH CURRENT IN AMPS
Let-through current
Prospective (apparent RMS symmetrical vs. fuse rating)
S.C.C. 15A
30A
60A
1000 1000
3000 1000
5000 1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
2000
2000
2000
2000
2000
2000
3000
3000
3000
1000
1000
1000
2000
2000
2000
2000
2000
2000
3000
3000
3000
3000
4000
4000
4000
5000
5000
10000
9000
8000
7000
6000
5000
4000
3000
2000
60A
30A
15A
10,000 1000
15,000 1000
20,000 1000
25,000 1000
30,000 1000
35,000 1000
40,000 1000
50,000 1000
60,000 1000
80,000 1000
100,000 1000
1000
900
800
700
600
500
400
300
200
A
100
100
200
300
400
500
600
700
800
900
1000
6000
7000
8000
9000
10000
3000
2000
4000
5000
60000
70000
80000
90000
100000
20000
30000
40000
50000
200000
300000
150,000 1000
200,000 2000
250,000 2000
300,000 2000
RMS SYMMETRICAL CURRENT IN AMPS
A-B = ASYMMETRICAL AVAILABLE PEAK (2.3 X SYM RMS AMPS)
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document
are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help
the end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or
limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin.
Once a product has been selected, it should be tested by the user in all possible applications.
