Part Number

Search

325541030-00

Description
MS5541-HM 30BA PRESS SENSOR WG HE TUBE
CategoryThe sensor    Sensor/transducer
File Size425KB,20 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

325541030-00 Online Shopping

Suppliers Part Number Price MOQ In stock
325541030-00 - - View Buy Now

325541030-00 Overview

MS5541-HM 30BA PRESS SENSOR WG HE TUBE

325541030-00 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Factory Lead Time10 weeks 1 day
body width6.2 mm
body height3.08 mm
Body length or diameter6.4 mm
Installation featuresSURFACE MOUNT
Number of digits16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output interface type3-WIRE INTERFACE
Output range0-3V
Output typeDIGITAL VOLTAGE
Package Shape/FormRECTANGULAR
Maximum pressure range435.11 Psi
Minimum pressure range
Pressure sensing modeABSOLUTE
Response time35000 µs
Sensor/Transducer TypePRESSURE SENSOR,PEIZORESISTIVE
Maximum supply voltage3.6 V
Minimum supply voltage2.2 V
surface mountYES
Termination typeSOLDER
Base Number Matches1

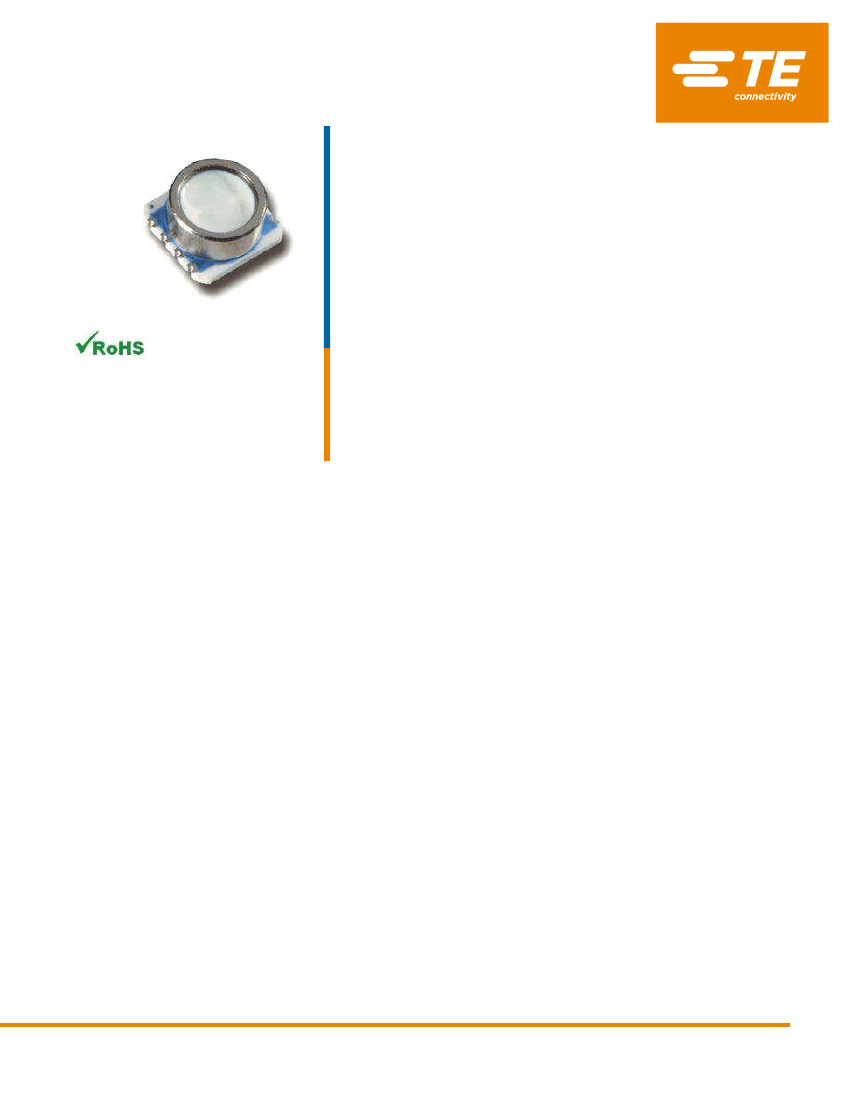

MS5541C
Miniature 14 bar Module
The MS5541C is the miniature version of MS5535C pressure
sensor module. The MS5541-HE is the high endurance pad
technology version of MS5541C pressure sensor module. It
contains a precision piezoresistive pressure sensor and an
improved version of the 16 Bit Micropower Sensor interface IC
known from the MS5535C. Compared to the previous version the
ESD sensitivity has been improved to 4kV on all pins. In addition
to this the MS5541C is from its outer dimensions compatible to the
MS54xx series of pressure sensors. It uses an antimagnetic
polished stainless steel ring for sealing with O-ring. The sensor
provides 16 Bit pressure and temperature data via a 3 wire serial
interface that can be easily interfaced with 4 Bit low power
microcontrollers. 64 Bit of factory programmed PROM provides
calibration data for a highly accurate pressure and temperature
calculation. The MS5541C is fully software compatible to the
MS5535C and previous versions of MS5541.
FEATURES
0
14 bar absolute pressure range
6 coefficients for software compensation stored on-
chip
Piezoresistive silicon micromachined sensor
Integrated miniature pressure sensor 6.2 x 6.4 mm
16 Bit ADC
3-wire serial interface
1 system clock line (32.768 kHz)
Low voltage and low power consumption
High Endurance (HE version)
APPLICATIONS
Diving computers and watches
Mobile water depth and measurement systems
High endurance pad technology (HE version)
SENSOR SOLUTIONS
///MS5541C
08/2017
Page 1

325541030-00 Related Products

325541030-00 325541009-00
Description MS5541-HM 30BA PRESS SENSOR WG HE TUBE MS5541-CM 14BA PRESSURE SENSOR WG TUBE
Is it Rohs certified? conform to conform to
Reach Compliance Code unknown unknown
body width 6.2 mm 6.2 mm
body height 3.08 mm 3.08 mm
Body length or diameter 6.4 mm 6.4 mm
Installation features SURFACE MOUNT SURFACE MOUNT
Number of digits 16 16
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output interface type 3-WIRE INTERFACE 3-WIRE INTERFACE
Output range 0-3V 0-3.6V
Output type DIGITAL VOLTAGE DIGITAL VOLTAGE
Package Shape/Form RECTANGULAR RECTANGULAR
Maximum pressure range 435.11 Psi 203.05 Psi
Pressure sensing mode ABSOLUTE ABSOLUTE
Response time 35000 µs 35000 µs
Sensor/Transducer Type PRESSURE SENSOR,PEIZORESISTIVE PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage 3.6 V 3 V
Minimum supply voltage 2.2 V 2.2 V
surface mount YES YES
Termination type SOLDER SOLDER
Base Number Matches 1 1
