5962-8853201ZX: DescriptionADC, Flash Method, 9-Bit, 1 Func, 1 Channel, Parallel, Word Access, CQCC68, LCC-68; CategoryAnalog mixed-signal IC converter; File Size290KB，10 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

5962-8853201ZX Overview

ADC, Flash Method, 9-Bit, 1 Func, 1 Channel, Parallel, Word Access, CQCC68, LCC-68

5962-8853201ZX Parametric

Parameter Name	Attribute value
Maker	Raytheon Company
package instruction	LCC-68
Reach Compliance Code	unknown
Maximum analog input voltage	0.1 V
Minimum analog input voltage	-1.9 V
Converter type	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N68
JESD-609 code	e0
length	24.13 mm
Maximum linear error (EL)	0.2%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	9
Number of functions	1
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT, COMPLEMENTARY OFFSET 2\'S COMPLEMENT
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Sampling rate	30 MHz
Maximum seat height	2.79 mm
surface mount	YES
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.13 mm
Base Number Matches	1

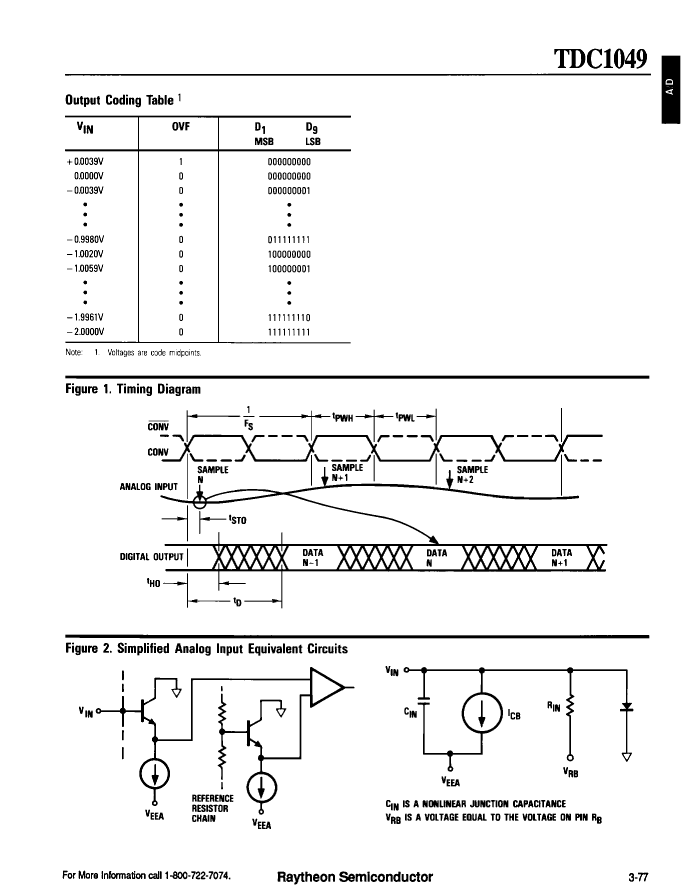

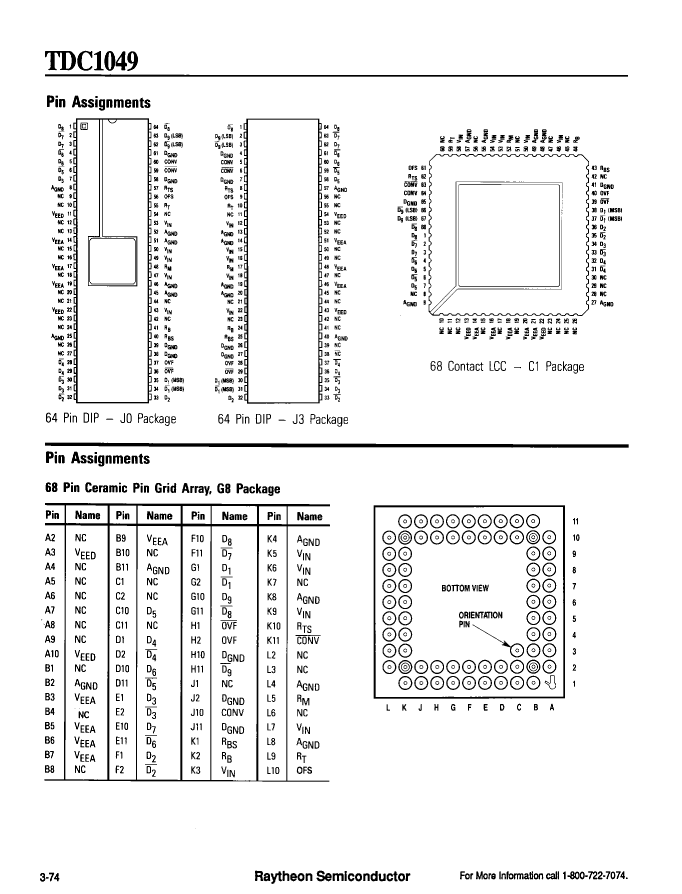

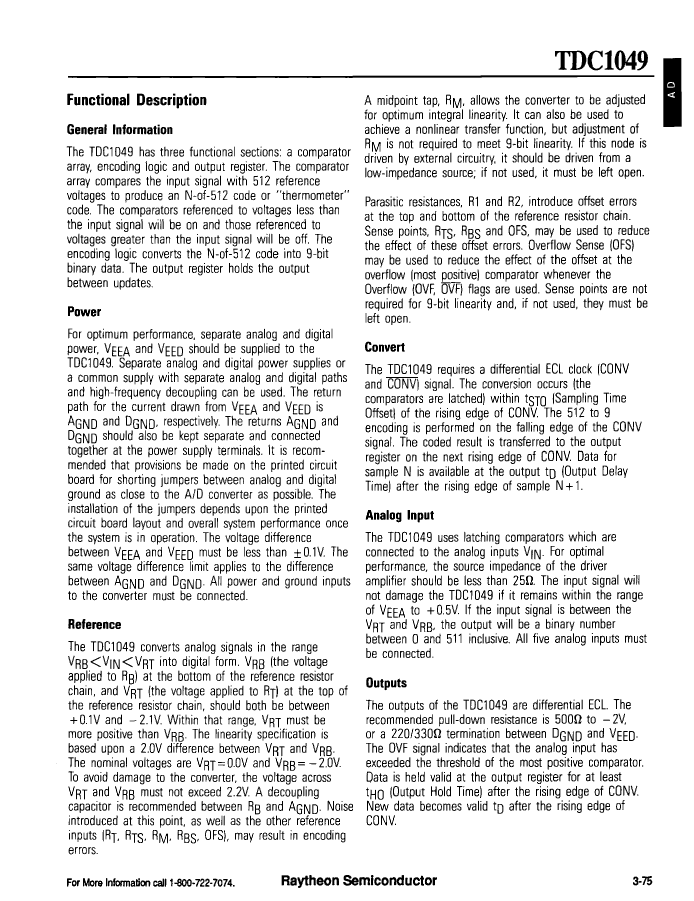

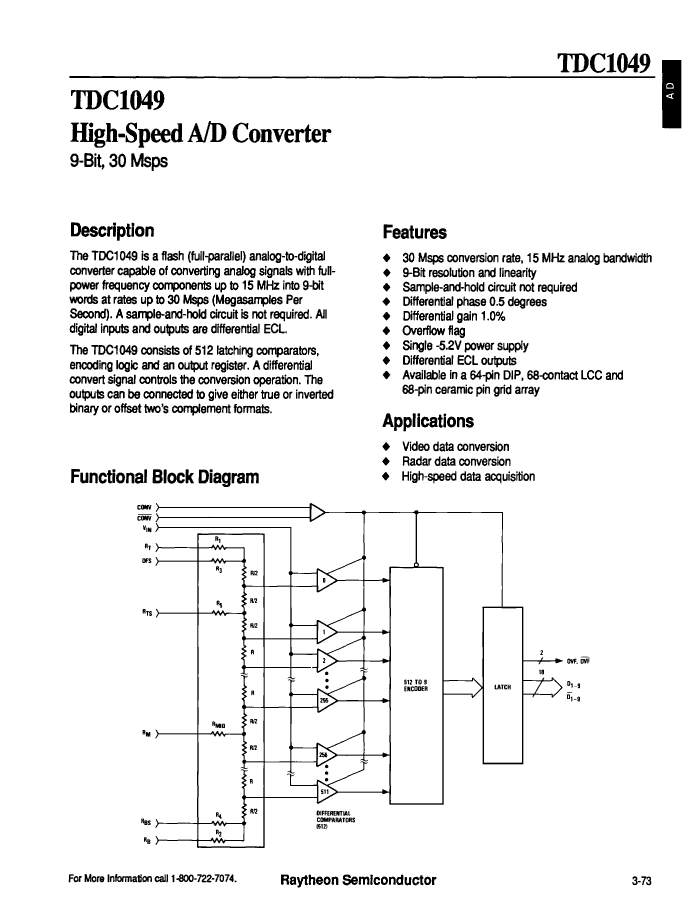

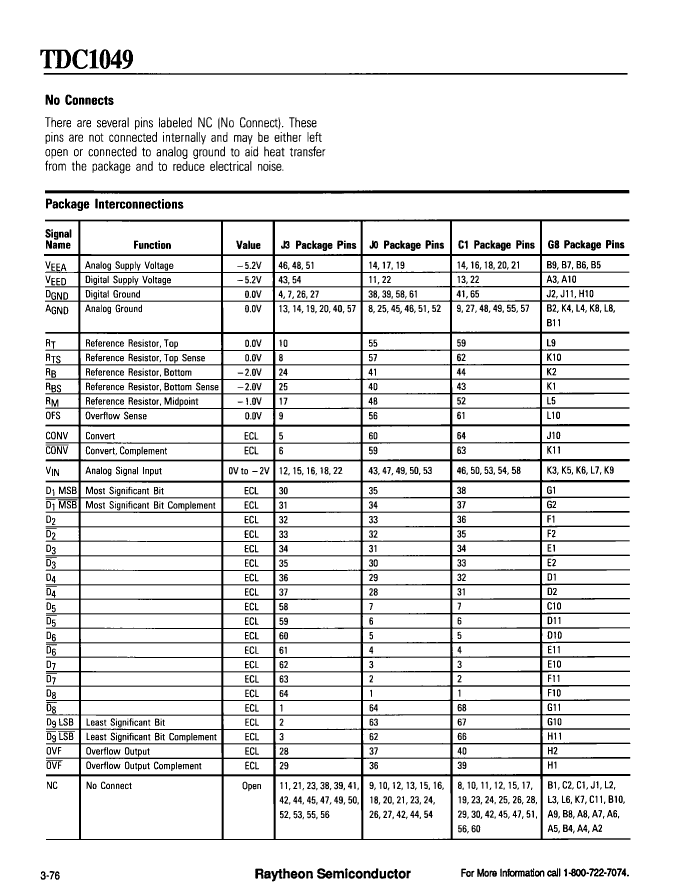

Preview

Download Datasheet

View All

5962-8853201ZX Related Products

	5962-8853201ZX	5962-8853201XX	5962-8853201ZA	5962-8853201XA
Description	ADC, Flash Method, 9-Bit, 1 Func, 1 Channel, Parallel, Word Access, CQCC68, LCC-68	ADC, Flash Method, 9-Bit, 1 Func, Parallel, Word Access, CDIP64,	ADC, Flash Method, 9-Bit, 1 Func, Parallel, Word Access, CQCC68,	ADC, Flash Method, 9-Bit, 1 Func, Parallel, Word Access, CDIP64,
Reach Compliance Code	unknown	unknown	unknown	unknown
Minimum analog input voltage	-1.9 V	-2 V	-2 V	-2 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N68	R-CDIP-T64	S-CQCC-N68	R-CDIP-T64
JESD-609 code	e0	e0	e0	e0
Maximum linear error (EL)	0.2%	0.1%	0.1%	0.1%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	9	9	9	9
Number of functions	1	1	1	1
Number of terminals	68	64	68	64
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT, COMPLEMENTARY OFFSET 2\'S COMPLEMENT	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, OFFSET 2\'S COMPLEMENT	BINARY, 2'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, OFFSET 2'S COMPLEMENT
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	30 MHz	30 MHz	30 MHz	30 MHz
surface mount	YES	NO	YES	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1
Maker	Raytheon Company	-	Raytheon Company	Raytheon Company
