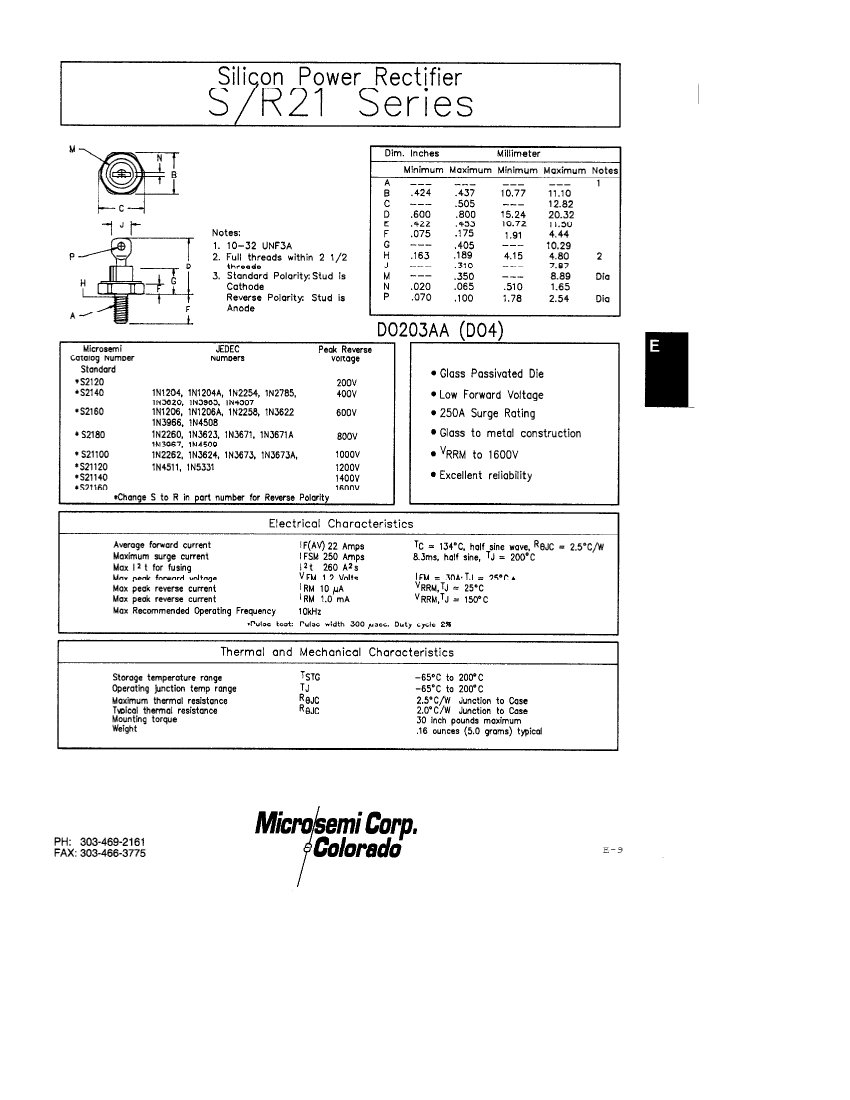

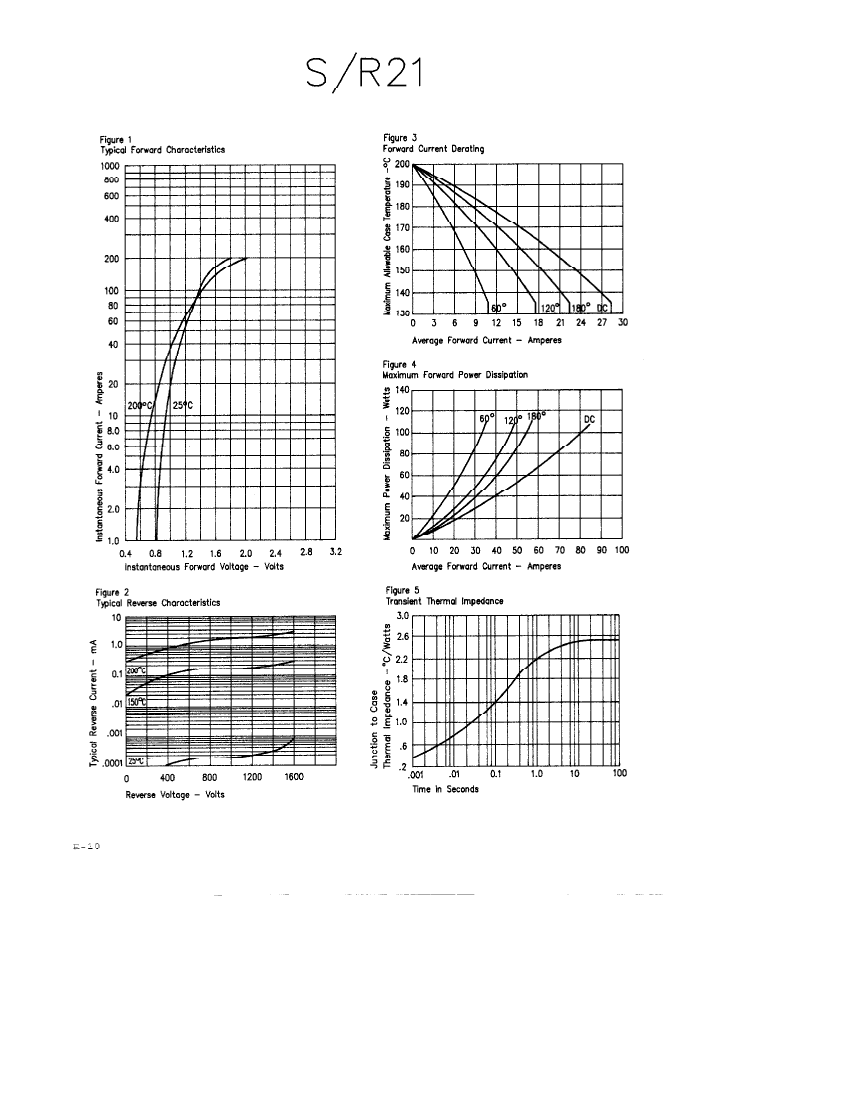

Rectifier Diode, 1 Phase, 1 Element, 22A, Silicon, DO-203AA, DO-4, 1 PIN
| Parameter Name | Attribute value |
| Parts packaging code | DO-4 |
| package instruction | O-MUPM-D1 |
| Contacts | 1 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | HIGH RELIABILITY |
| application | POWER |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-203AA |
| JESD-30 code | O-MUPM-D1 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 250 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 22 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| 1N3965 | 1N3967 | 1N3966 | |
|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 22A, Silicon, DO-203AA, DO-4, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 22A, 800V V(RRM), Silicon, DO-203AA, DO-4, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 22A, 600V V(RRM), Silicon, DO-203AA, DO-4, 1 PIN |
| Parts packaging code | DO-4 | DO-4 | DO-4 |
| package instruction | O-MUPM-D1 | DO-4, 1 PIN | DO-4, 1 PIN |
| Contacts | 1 | 1 | 1 |
| Reach Compliance Code | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY |
| application | POWER | POWER | POWER |
| Shell connection | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-203AA | DO-203AA | DO-203AA |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| JESD-609 code | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 250 A | 250 A | 250 A |
| Number of components | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 |
| Maximum operating temperature | 200 °C | 200 °C | 200 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C |
| Maximum output current | 22 A | 22 A | 22 A |
| Package body material | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER |
| Base Number Matches | 1 | 1 | 1 |
| Maximum forward voltage (VF) | - | 0.6 V | 0.6 V |
| Maximum repetitive peak reverse voltage | - | 800 V | 600 V |
