PI74STX1GT04
SOTiny
™
Gate STX
Inverter
Features
• High-speed: t
PD
= 2.4ns typical into 15pF @ 5V V
CC
• Power down high-impedance inputs/outputs
• TTL Input compatible: V
IL
= 0.8V (Max.)
V
IH
= 2.0V (Min.)
• Packaging: 5-pin space saving SOT23 (T) and SC70 (C)
Description
The PI74STX1GT04 is an inverter that operates over the 4.5V to
5.5V V
CC
operating range. The input threshhold levels are TTL
compatible. This device can be used for level shifting from 3V to
5V system.
Pericom’s PI74STX series of products are produced using the
Company’s advanced submicron technology.
Pinout
NC
1
A
IN 2
GND
3
Block Diagram
5-Pin
T, C
5
V
CC
4
Y
OUT
A
IN
YOUT
Pin Description
Pin Name s
A
IN
Y
OUT
De s cription
Input
Output
Recommended Operating Conditions
(1)
Parame te r
Supply Voltage (V
C C
)
Input Voltage (V
IN
)
Output Voltage (V
O UT
)
Operating Temperature
Input Rise and
Fall Time (t
r
,t
f
)
V
CC
=5.0V±0.5V
Condition
M in M ax Units
4.5
0
0
–40
0
5.5
5.5
V
C C
85
20
°C
ns/V
V
Function Table
Inputs
A
IN
L
H
Output
Y
OUT
H
L
Note:
H = HIGH Logic Level
L = LOW Logic Level
Note:
1. Unused inputs must be held HIGH or LOW. They may not float.
1
PS8655
02/12/03
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI74STX1GT04
SOTiny
™
Gate STX
Inverter
Absolute Maximum Ratings
Supply Voltage (V
CC
) .......................................... –0.5V to +7V
DC Input Voltage V
IN(1) ................................................
–0.5V to +7V
Voltage Range Applied to any Output in the Power-Off State,
V
OUT (1) .................................................................................
0.5V to +7V
Voltage Range Applied to any Output in the High or Low State,
V
OUT (1) ......................................................................
0.5V to V
CC
+0.5V
DC Input Diode Current (I
IK
) ........................ –50mA to 20mA
DC Output Diode Current (I
OK
) .................... –50mA to 20mA
DC Output Current (I
OUT
) ........................................... ±50mA
DC V
CC
/GND Current (I
CC
/I
GND
) ................................ ±50mA
Storage Temperature (T
STG
) .......................... –65°C to +150°C
Junction Lead Temperature (IOS) ................................... 200°C
Power Dissipation SOT23 ............................................ 200mW
SC70 ............................................... 150mW
Notes:
Absolute maximum ratings are DC values beyond which the device may be damaged or have its useful life impaired. The datasheet
specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and
output/input loading variables. Pericom does not recommend operation outside datasheet specifications.
1. The input negative voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
DC Electrical Characteristics
(Over supply voltage and operating temperature ranges, unless otherwise specified)
Symbol
Parame te rs
High Level
Input Voltage
Low Level Input
Voltage
High Level
Output Voltage
Low Level
Output Voltage
Input
Leakage Current
Power- Off
Leakage Current
Quiescent
Supply Current
I
C C
per Input
V
CC
(V)
Conditions
T
A
= +25°C
M in.
2.0
0.8
V
IN =
V
IL
V
IN =
V
IH
I
O H
= –50µA
I
O H
= –8mA
I
O L
= 50µA
I
O L
= 8mA
4.4
3.94
4.5
–
0.1
0.36
± 0.1
±1.0
1.0
1.35
4.4
3.8
0.1
0.44
±1.0
± 10
10
1.50
mA
µA
Typ.
M ax.
T
A
= –40 to +85°C
M in.
2.0
0.8
V
M a x.
Units
V
IH
V
IL
V
O H
V
O L
I
IN
I
O F F
I
C C
I
C C T
4.5 - 5.5
4.5 - 5.5
4.5
4.5
0.0 - 5.5
0.0
5.5
5.5
V
IN
= 5.5V or GND
V
IN
or V
O UT
= 5.5V
V
IN
= 5.5V or GND
One input V
IN
= 3.4V
One input = V
CC
or GND
2
PS8655
02/12/03
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI74STX1GT04
SOTiny
™
Gate STX
Inverter
AC Electrical Characteristics
Symbol
Parame te r
V
CC
(V)
Conditions
C
L
= 15pF
C
L
= 50pF
Input Capacitance
Power Dissipation Capacitance
(3)
0
5.0
T
A
= +25°C
M in.
Typ.
2.4
2.8
3
25
M ax.
3.9
4.9
10
T
A
= –40°C to +85°C
M in.
1.0
1.0
M a x.
4.2
ns
5.4
10
pF
Units
Fig.
N o.
1,
3
t
PLH
,
t
PHL
C
IN
C
PD
Propagation Delay
5.0 ± 0.5
2
Notes:
3. C
PD
is defined as the value of the internal equivalent capacitance which is derived from dynamic operating current consumption
(I
CCD
) at no output loading and operating at 50% duty cycle (see Figure 2). C
PD
is related to I
CCD
dynamic operating current by
the expression: I
CCD
= (C
PD
)(V
CC
)(f
IN
) + (I
CC
static).
AC Loading and Waveforms
V
CC
t
r
= 3ns
Input
C
L
Output
t
f
= 3ns
90%
1.5V
10%
3V
90%
Input
1.5V
10%
t
W
t
PHL
GND
t
PLH
V
OH
C
L
includes load and stray capacitance
Input PRR = 1.0 MHz; t
W
= 500ns
Figure 1. AC Test Circuit
V
CC
A
Output
50% V
CC
50% V
CC
V
OL
Figure 3. AC Waveforms
Input
Input = AC Waveform
PRR
=10
MHz; Duty Cycle = 50%
Figure 2. I
CCD
Test Circuit
3
PS8655
02/12/03
Thermal Characteristics can be found on the web: http://www.pericom.com/packaging/mechanicals.php
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321
PI74STX1GT04
SOTiny
™
Gate STX
Inverter

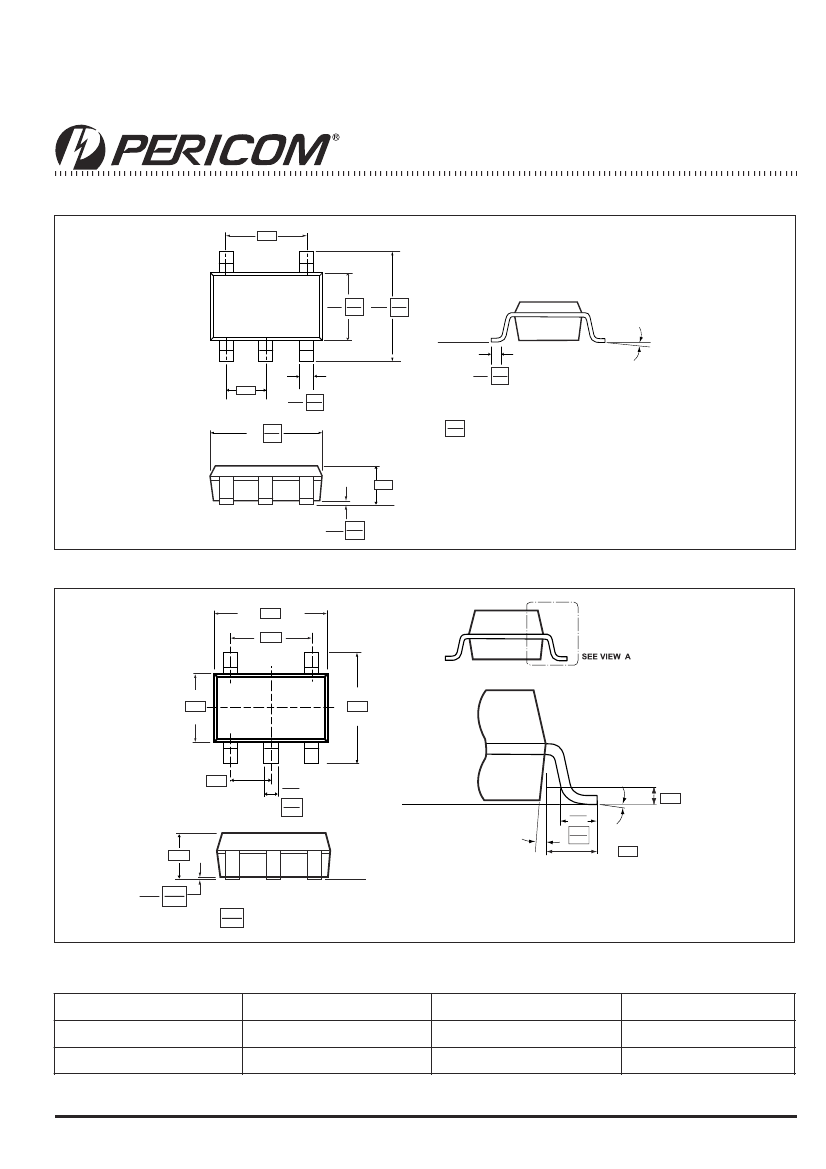

Packaging Mechanical: 5-Pin SOT-23 (T)
.075
1.90
BSC
5
4
.059 1.50
.068 1.75
.102 2.60
.118 3.00
0” - 10”
Datum "A"
1
2
3
.037
0.95
BSC
.110 2.80
.118 3.00
.004 0.10
.023 0.60
.014 0.35
.019 0.50
X.XX DENOTES DIMENSIONS
X.XX IN MILIMETERS
.057 1.45 MAX.
SEATING
PLANE
.000 0.00
.005 0.15
Packaging Mechanical: 5-Pin SC70 (C)
.079 2.00 BSC
.051
1.30
BSC
5
4
.049
1.25
BSC
.083
2.10
BSC
VIEW A
1
.026 0.65
BSC
2
3
.006
.011
0.15
0.30
GUAGE PLANE
SEATING PLANE
.010
.018
0.26
0.46
0
˚
-8
˚
.321
BSC
0.15
4
˚
-10
˚
1.10 MAX
SEATING PLANE
0
0
.004 0.10
XXX DENOTES DIMENSIONS
XXX IN MILLIMETERS
.017 0.42 REV
Notes:
1. Controlling dimensions in millimeters
2. Ref: JEDEC MO-203AA
Ordering Information
Part
PI74STX1GT04TX
PI74STX1GT04CX
Pin-Package
5- Pin - SOT- 23
5- Pin - SC70
Top M arking
N 04
N 04
Ope rating Range
–40ºC to 85ºC
–40ºC to 85ºC
