CD4521BEX98 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD4521BEX98

CD4521BEX98: DescriptionBinary Counter, Asynchronous, Up Direction, CMOS, PDIP16,; Categorylogic logic; File Size821KB，9 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4521BEX98 Overview

Binary Counter, Asynchronous, Up Direction, CMOS, PDIP16,

CD4521BEX98 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
method of packing	TAPE AND REEL
power supply	5/15 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

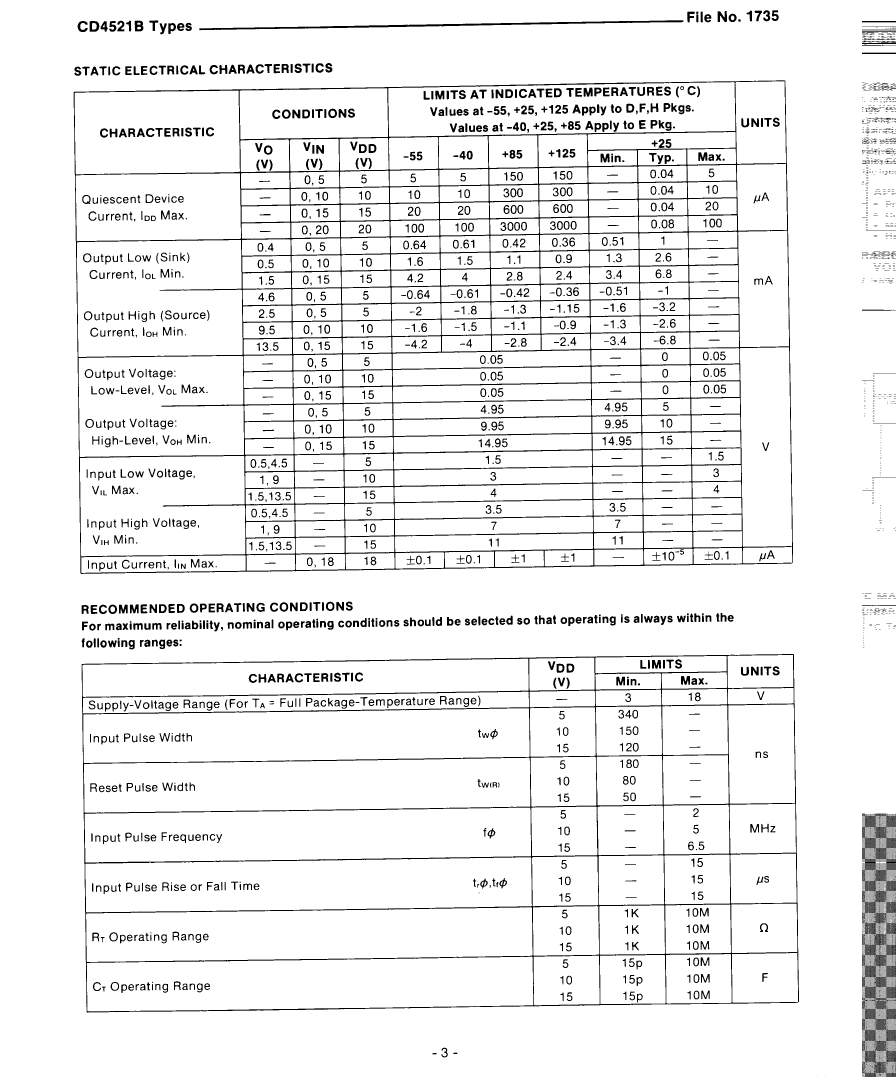

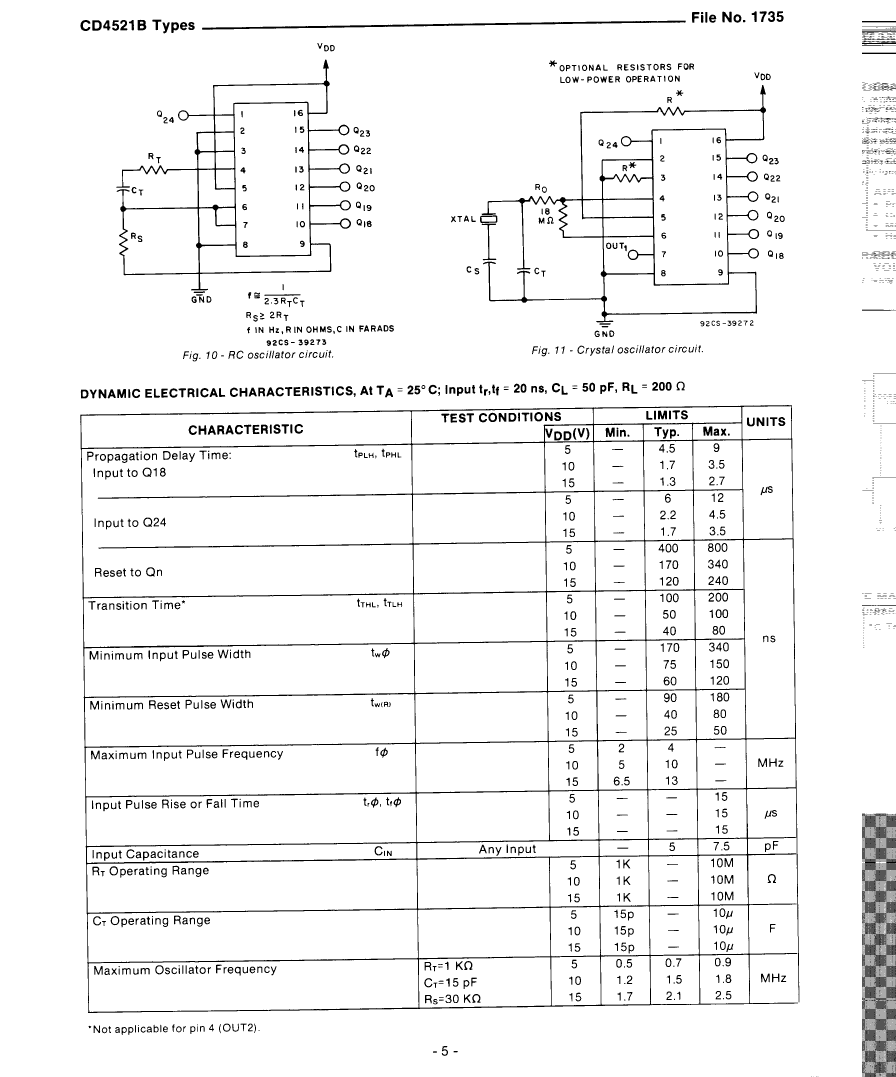

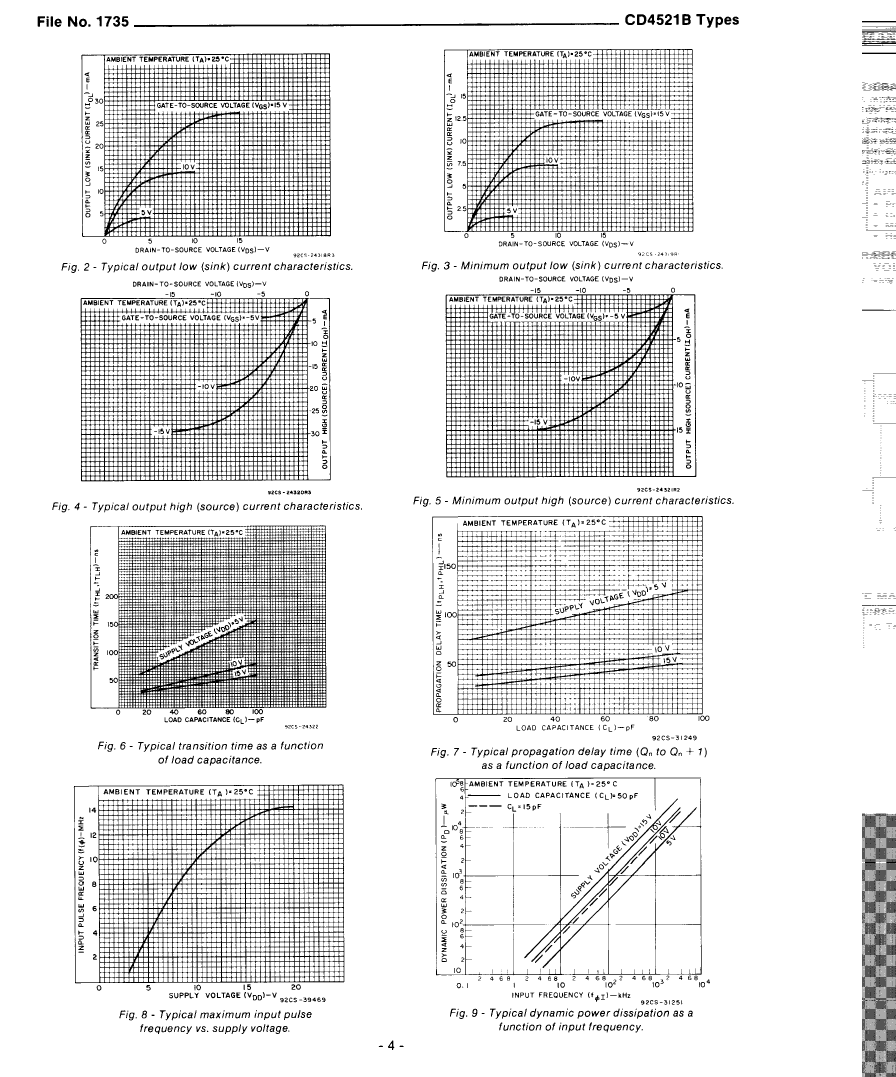

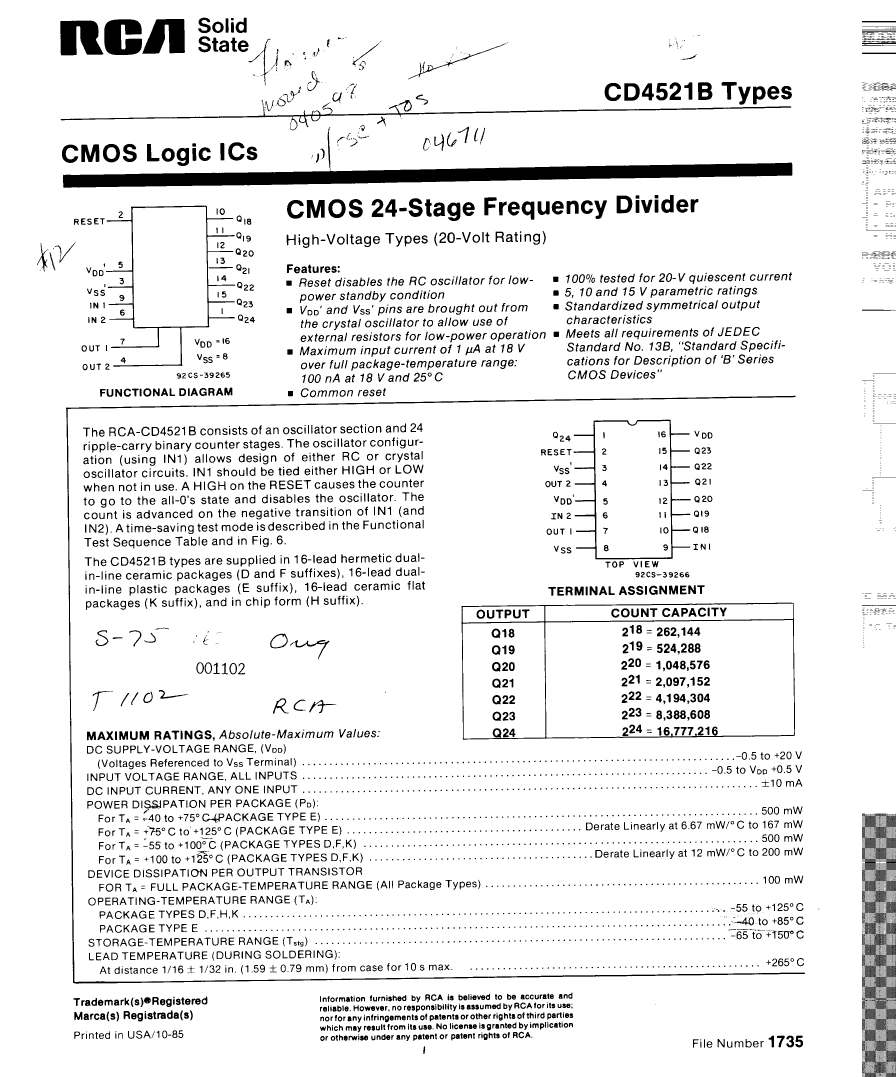

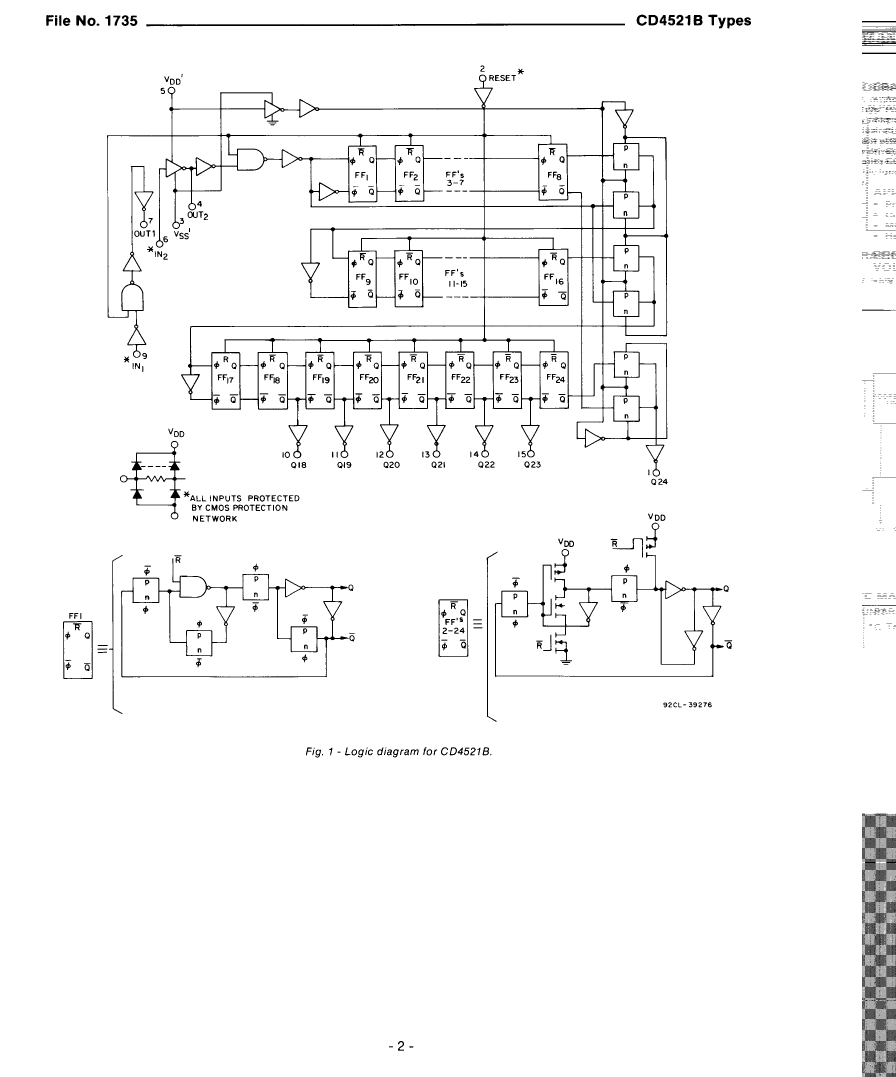

Preview

Download Datasheet

View All

CD4521BEX98 Related Products

	CD4521BEX98	CD4521BE98	CD4521BFX	CD4521BKX	CD4521BDX
Description	Binary Counter, Asynchronous, Up Direction, CMOS, PDIP16,	Binary Counter, Asynchronous, Up Direction, CMOS, PDIP16,	Binary Counter, Asynchronous, Up Direction, CMOS, CDIP16,	Binary Counter, Asynchronous, Up Direction, CMOS, CDFP16	Binary Counter, Asynchronous, Up Direction, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	RCA	RCA	RCA	RCA	RCA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1	1
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	-
Counting direction	UP	UP	UP	-	UP
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	-	R-XDIP-T16
JESD-609 code	e0	e0	e0	-	e0
Load/preset input	NO	NO	NO	-	NO
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	-	BINARY COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS
Number of functions	1	1	1	-	1
Number of terminals	16	16	16	-	16
Maximum operating temperature	85 °C	85 °C	125 °C	-	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	-	CERAMIC
encapsulated code	DIP	DIP	DIP	-	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	-	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE
power supply	5/15 V	5/15 V	5/15 V	-	5/15 V
surface mount	NO	NO	NO	-	NO
technology	CMOS	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL
