BA54.61.05.125M00000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> BA54.61.05.125M00000

BA54.61.05.125M00000: DescriptionOscillator, 1MHz Min, 125MHz Max, 125MHz Nom; CategoryPassive components oscillator; File Size35KB，2 Pages; ManufacturerCorning Frequency Control Inc

Download Datasheet Parametric Compare View All

BA54.61.05.125M00000 Overview

Oscillator, 1MHz Min, 125MHz Max, 125MHz Nom

BA54.61.05.125M00000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Corning Frequency Control Inc
Reach Compliance Code	unknown
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	125 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	125 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	DIP4/14,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	90 mA
Nominal supply voltage	5 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

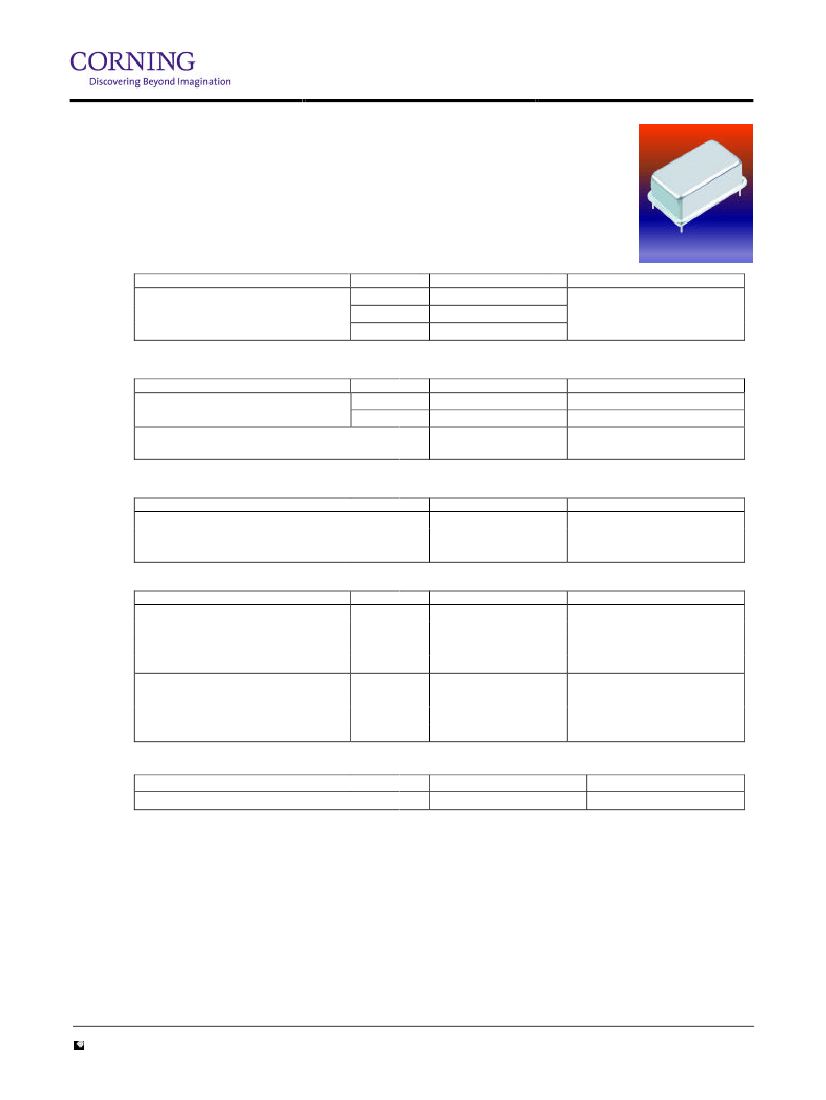

Preview

Download Datasheet

View All

Typical Applications

Telecommunication

Wireless Application

VCXO

Features

Standard 4-Pin DIP Package

Frequency range

Frequency stabilities

Parameter

Code I

1 MHz – 125 MHz

Frequency stability

Operating temp range

100 ppm

50 ppm

25 ppm

0....70 °C

Frequency tuning

Parameter

Code II

Value

Condition

Electrical frequency control

Voltage range

Pulling slope

> 50ppm

>100 ppm

0.5V to 4.5V

Positive

RF output

Parameter

Value

Condition

Signal

Load

Duty cycle

HCMOS

15pF

40/60%

Code III

Value

Note 1

@ Vs/2

Condition

Supply Voltage

Parameter

Supply voltage (Vs)

Power consumption steady state

Supply voltage (Vs)

Power consumption steady state

5V ± 5%

< 30 mA

< 40 mA

< 90 mA

3.3V ± 5%

< 30 mA

< 40 mA

< 50 mA

< 20 MHz

< 40 MHz

< 125 MHz

< 20 MHz

< 40 MHz

< 125 MHz

Additional parameters

Parameter

Frame Specification

Value

Condition

TQA 9000

Corning Frequency Control • Worldwide Data Book 2001

v1.0.2000-11-02

Corning Frequency Control Inc.

• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com

Tele Quarz GmbH & Co. KG

• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de

1/2

BA54.61.05.125M00000 Related Products

	BA54.61.05.125M00000	BA54.60.05.1M00000	BA54.60.33.1M00000
Description	Oscillator, 1MHz Min, 125MHz Max, 125MHz Nom	Oscillator, 1MHz Min, 125MHz Max, 1MHz Nom	Oscillator, 1MHz Min, 125MHz Max, 1MHz Nom
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Corning Frequency Control Inc	Corning Frequency Control Inc	Corning Frequency Control Inc
Reach Compliance Code	unknown	unknown	unknown
JESD-609 code	e0	e0	e0
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	4	4	4
Maximum operating frequency	125 MHz	125 MHz	125 MHz
Minimum operating frequency	1 MHz	1 MHz	1 MHz
Nominal operating frequency	125 MHz	1 MHz	1 MHz
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	METAL	METAL	METAL
Encapsulate equivalent code	DIP4/14,.3	DIP4/14,.3	DIP4/14,.3
power supply	5 V	5 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	90 mA	30 mA	30 mA
Nominal supply voltage	5 V	5 V	3.3 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
package instruction	-	DIP4/14,.3	DIP4/14,.3
