L-424HDT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-424HDT

L-424HDT: DescriptionT-1 SINGLE COLOR LED, GREEN, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size178KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-424HDT Overview

T-1 SINGLE COLOR LED, GREEN, 3 mm

L-424HDT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE, HIGH RELIABILITY
color	BRIGHT RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.5 V
Lens type	DIFFUSED RED
minimum luminous intensity	100 cd
Nominal luminous intensity	1.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6 mm
method of packing	TAPE AND REEL
peak wavelength	700 nm
Maximum reverse voltage	5 V
shape	CYLINDRICAL
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	100 deg

Preview

Download Datasheet

View All

T-1 (3mm) CYLINDRICAL LED LAMPS

L-424HDT BRIGHT RED

L-424IDT HIGH EFFICIENCY RED

L-424SRDT SUPER BRIGHT RED

L-424GDT GREEN

L-424EDT ORANGE

L-424YDT YELLOW

Features

CYLINDRICAL

LOW

I.C.

Description

TYPE, TOP DIFFUSED.

The Bright Red source color devices are made with Gallium

Phosphide Red Light Emitting Diode.

The High Efficiency Red and Orange source color devices are

made with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

POWER CONSUMPTION.

AND RUGGED.

ON TAPE AND REEL.

COMPATIBLE.

LIFE - SOLID STATE RELIABILITY.

RELIABLE

LONG

AVAILABLE

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: KDA0064

APPROVED : J. Lu

REV NO: V.1

CHECKED :

DATE: SEP/30/2001

DRAWN: X.M.Zhou

PAGE: 1 OF 6

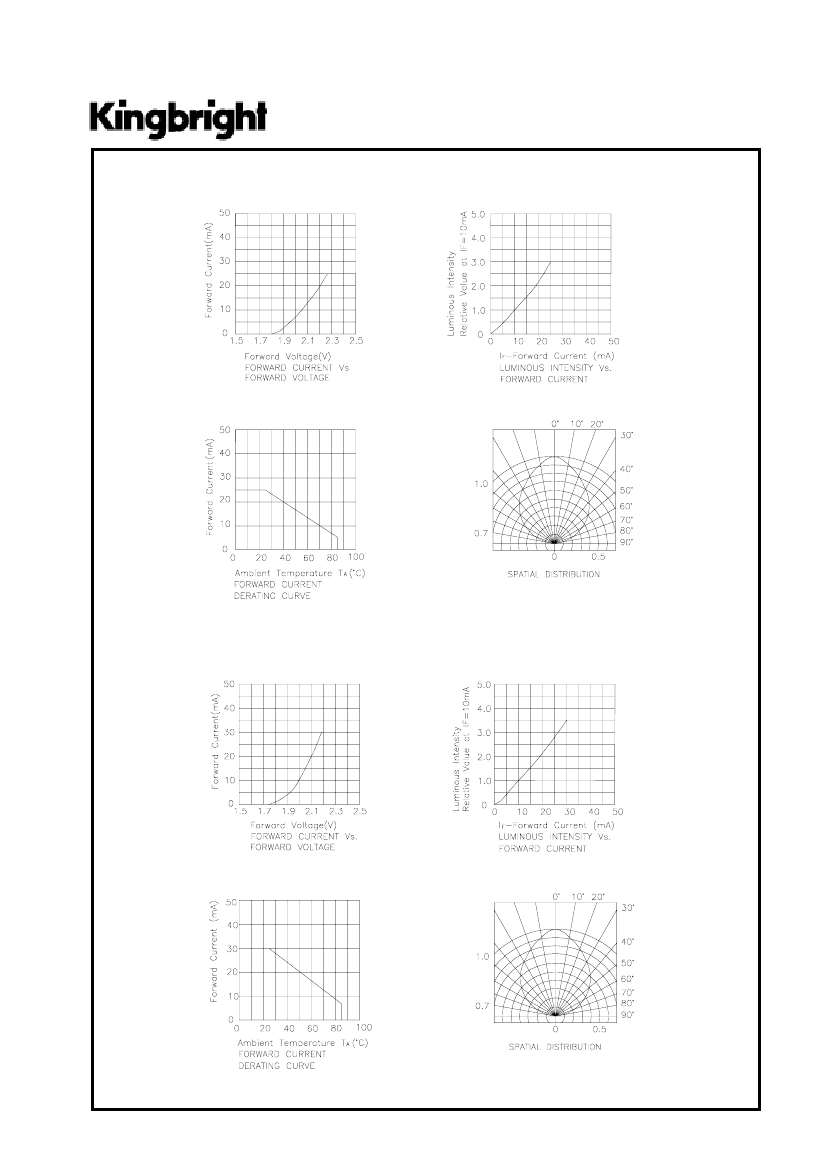

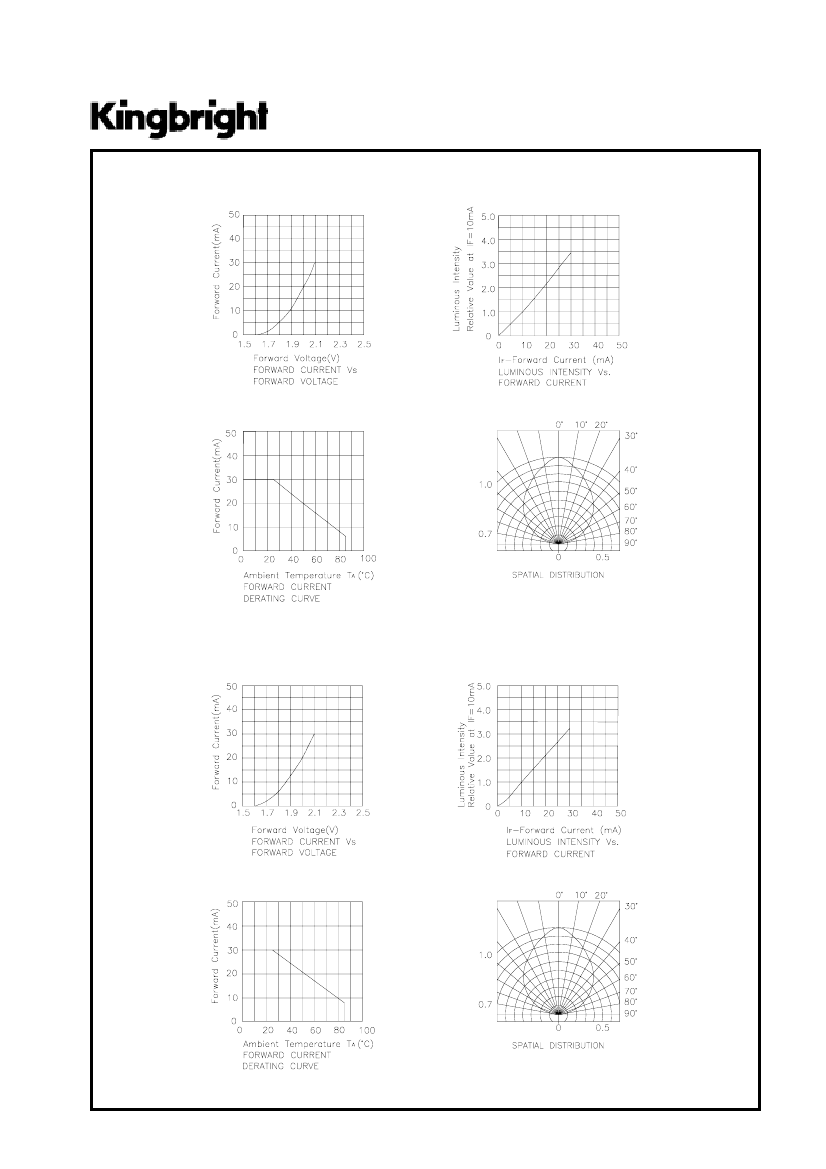

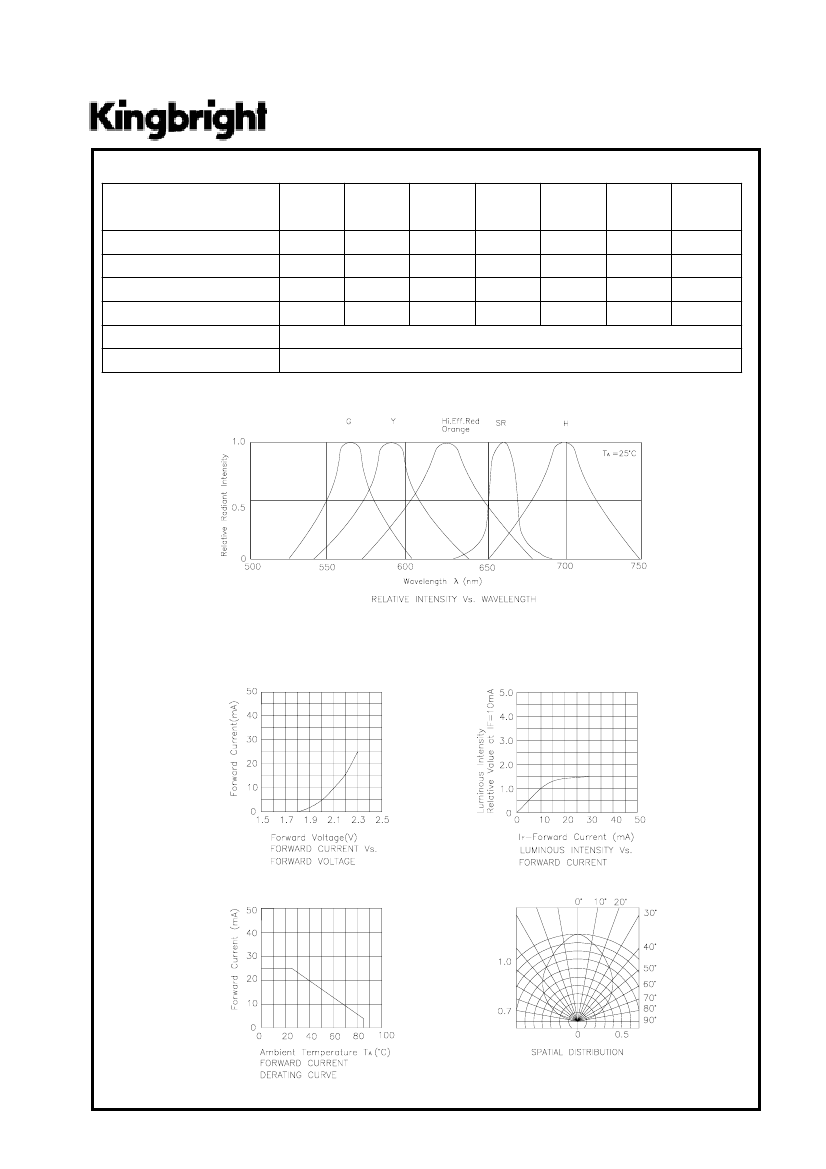

L-424HDT Related Products

	L-424HDT	L-424GDT	L-424IDT	L-424	L-424SRDT	L-424YDT	L-424EDT
Description	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, GREEN, 3 mm	T-1 SINGLE COLOR LED, SUPER BRIGHT RED, 3 mm	KINGBRIGHT - L-424YDT - LED; YELLOW; T-1 (3MM); 4MCD; 590NM	T-1 SINGLE COLOR LED, ORANGE, 3 mm
color	BRIGHT RED	GREEN	HIGH EFFICIENCY RED	GREEN	SUPER BRIGHT RED	YELLOW	ORANGE
Lens type	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 Cel	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C
peak wavelength	700 nm	565 nm	627 nm	565	660 nm	590 nm	627 nm
shape	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	Kingbright	-	Kingbright	-	-	Kingbright	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	-	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli	compli	compli	-	compli	compli	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	-
Other features	IC COMPATIBLE, HIGH RELIABILITY	HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	-	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY	IC COMPATIBLE, HIGH RELIABILITY
color@wavelength	Red	Gree	Orange	-	Red	Yellow	-
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.03 A	-	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.5 V	2.5 V	2.5 V	-	2.5 V	2.5 V	-
minimum luminous intensity	100 cd	100 cd	100 cd	-	-	100 cd	-
Nominal luminous intensity	1.0 mcd	4.0 mcd	5.0 mcd	-	100.0 mcd	4.0 mcd	5.0 mcd
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	6 mm	6 mm	6 mm	-	6 mm	6 mm	6 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Maximum reverse voltage	5 V	5 V	5 V	-	5 V	5 V	-
surface mount	NO	NO	NO	-	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
perspective	100 deg	100 deg	100 deg	-	100 deg	100 deg	100 deg
