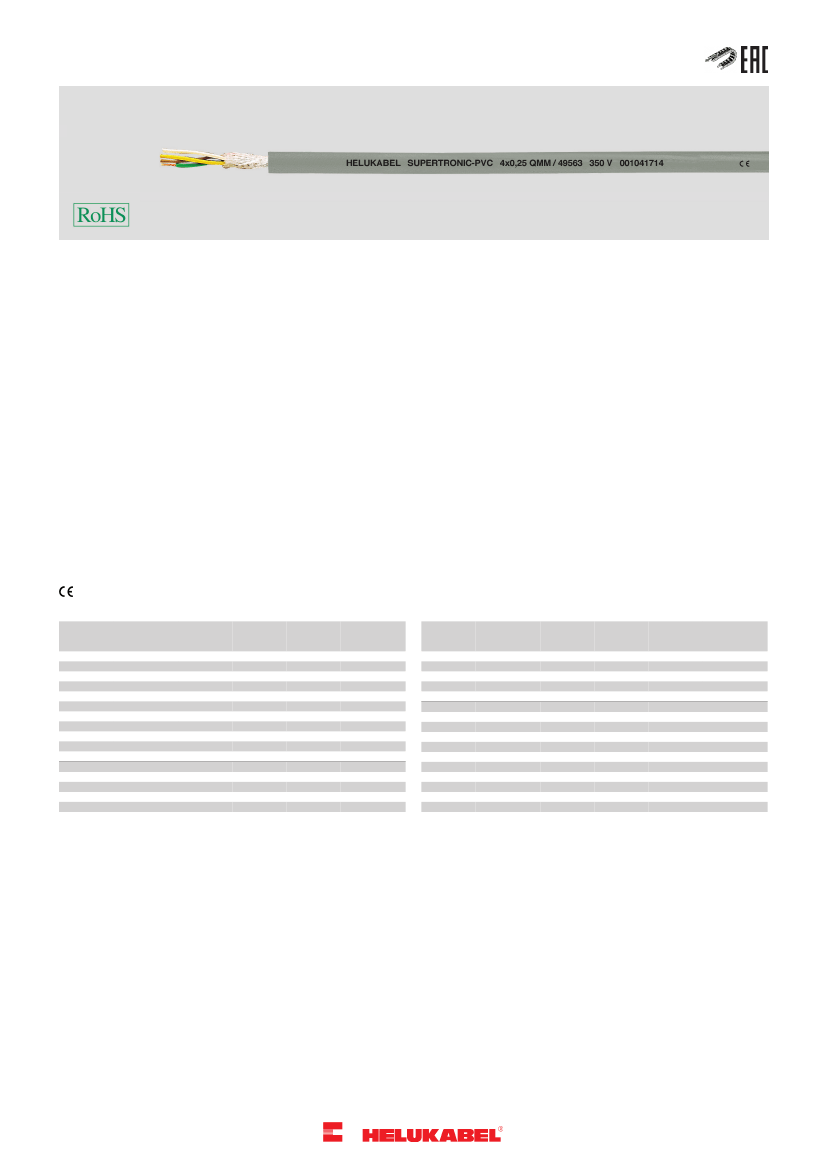

SUPERTRONIC
®
-PVC
special cable for drag chains, meter marking
Technical data
●
Special PVC cable for drag chains, adapted to
DIN VDE 0285-525-1 / DIN EN 50525-1
●
Very high flexible due to special construction
●
Temperature range
flexing -5°C to +70°C
fixed installation -40°C to +70°C
●
Nominal voltage 350 V
●
Test voltage 1500 V
●
Breakdown voltage min. 3000 V
●
Insulation resistance
min. 20 MOhm x km
●
Minimum bending radius
flexing 5x cable Ø
fixed installation 3x cable Ø
●
Radiation resistance
up to 80x10
6
cJ/kg (up to 80 Mrad)
Cable structure
●
Bare copper, extra fine wire conductors, to
DIN VDE 0295 cl.6
●
Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3
●
Cores colour coded to DIN 47100, see
Technical Informations
●
Cores stranded in layers with optimal selected
lay-length
●
Core wrapping with textile tape
●
Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1
●
Colour grey (RAL 7001)
●
with meter marking
Properties
●
Extensively oil resistant
Chemical Resistance - see table Technical
Informations
●
Adhesion-low
●
The materials used in manufacture are
cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
Tests
●
PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
Note
●
AWG sizes are approximate equivalent
values. The actual cross-section is in mm².
Application
The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries,
robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which
go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we
recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions.
Further technical details see selection table for drag chain cables, see lead text.
= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
Part no.
49550
49551
49552
49553
49554
49555
49556
49557
49558
49559
49560
49561
49562
49563
49564
49565
49566
Part no.
49567
49568
49569
49570
49571
49572
49573
49574
49575
49576
49577
49578
49579
49580
49581
49582
No.cores x
cross-sec.
mm²
2 x 0,14
3 x 0,14
4 x 0,14
5 x 0,14
7 x 0,14
10 x 0,14
12 x 0,14
14 x 0,14
18 x 0,14
24 x 0,14
25 x 0,14
2 x 0,25
3 x 0,25
4 x 0,25
5 x 0,25
7 x 0,25
10 x 0,25
Outer Ø
app. mm
3,5
3,7
3,9
4,2
4,8
6,2
6,3
6,6
7,2
8,5
8,6
4,2
4,4
4,7
5,6
6,1
7,2
Cop.
weight
kg / km
2,8
4,1
5,6
7,0
9,8
14,0
16,8
19,6
25,2
33,6
35,0
5,0
7,5
10,0
12,5
17,5
25,0
Weight
AWG-No.
app. kg / km
23,0
25,0
30,0
35,0
49,0
64,0
71,0
77,0
90,0
119,0
124,0
28,0
33,0
39,0
50,0
63,0
83,0
26
26
26
26
26
26
26
26
26
26
26
24
24
24
24
24
24
No.cores x
cross-sec.
mm²
12 x 0,25
14 x 0,25
18 x 0,25
24 x 0,25
25 x 0,25
2 x 0,34
3 x 0,34
4 x 0,34
5 x 0,34
7 x 0,34
10 x 0,34
12 x 0,34
14 x 0,34
18 x 0,34
24 x 0,34
25 x 0,34
Outer Ø
app. mm
7,5
7,9
8,9
10,4
10,5
4,6
4,8
5,2
6,1
7,0
8,4
8,5
9,0
10,1
12,0
12,2
Cop.
weight
kg / km
30,1
35,0
45,0
60,0
62,5
6,8
10,2
13,6
17,0
23,8
34,0
40,8
47,6
61,2
81,5
85,0
Weight
AWG-No.
app. kg / km
95,0
107,0
130,0
170,0
177,0
33,0
42,0
56,0
64,0
84,0
116,0
133,0
150,0
182,0
240,0
250,0
24
24
24
24
24
22
22
22
22
22
22
22
22
22
22
22
Dimensions and specifications may be changed without prior notice. (RC03)
16.04.2015 / Dimensions and specifications may be changed without prior
