PR23MF11NSZF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PR23MF11NSZF

PR23MF11NSZF: DescriptionTRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX; CategoryLED optoelectronic/LED photoelectric; File Size263KB，15 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/; Environmental Compliance

Download Datasheet Parametric Compare View All

PR23MF11NSZF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PR23MF11NSZF	-	-	View	Buy Now

PR23MF11NSZF Overview

TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX

PR23MF11NSZF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SHARP
package instruction	LEAD FREE, PLASTIC, DIP-8/7
Reach Compliance Code	compli
Other features	UL RECOGNIZED
Configuration	SINGLE
Maximum forward current	0.05 A
Maximum insulation voltage	4000 V
JESD-609 code	e2
Number of components	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	TRIGGER OUTPUT SSR
Terminal surface	Tin/Copper (Sn/Cu)

Preview

Download Datasheet

View All

PR23MF11NSZ Series

PR33MF11NSZ Series

PR23MF11NSZ Series

PR33MF11NSZ Series

(rms)≤0.3A, Non-Zero Cross type

DIP 8pin

Triac output SSR

■

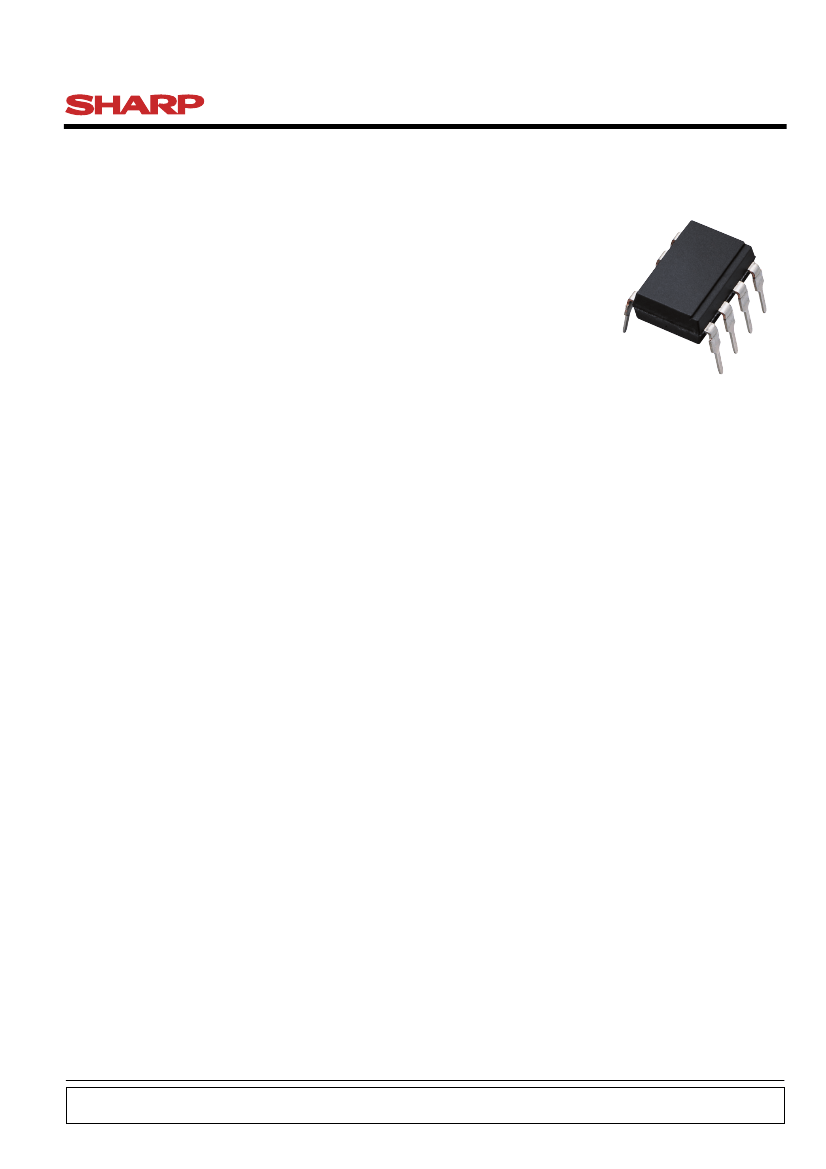

Description

PR23MF11NSZ Series

and

PR33MF11NSZ Series

Solid State Relays (SSR) are an integration of an

infrared emitting diode (IRED), a Phototriac Detector

and a main output Triac. These devices are ideally

suited for controlling high voltage AC loads with solid

state reliability while providing 4.0kV isolation

iso

(rms)) from input to output.

■

Agency approvals/Compliance

1. Recognized by UL508, file No. E94758 (as model No.

R23MF1/R33MF1)

2. Approved by CSA 22.2 No.14, file No. LR63705 (as

model No.

R23MF1/R33MF1)

3. Optionary available VDE approved

(∗)

(DIN EN 60747-5-

2), file No. 40008898 (only for

PR33MF11NSZ Series

as model No.

R33MF1)

4. Package resin : UL flammability grade (94V-0)

(∗)

■

Features

1. Output current, I

(rms)≤0.3A

2. Non-zero crossing functionary

3. 8 pin DIP package (SMT gullwing also available)

4. High repetitive peak off-state voltage

DRM

: 600V,

PR33MF11NSZ Series)

DRM

: 400V,

PR23MF11NSZ Series)

5. Superior noise immunity (dV/dt : MIN. 100V/µs)

6. Response time, t

: MAX. 100µs

7. Lead-free terminal components are also available

(see Model Line-up section in this datasheet)

8. High isolation voltage between input and output

iso

(rms) : 4.0kV)

DIN EN60747-5-2 : successor standard of DIN VDE0884.

Up to Date code "RD" (December 2003), approval of DIN

VDE0884.

From Date code "S1" (January 2004), approval of DIN

EN60747-5-2.

■

Applications

1. Isolated interface between high voltage AC devices

and lower voltage DC control circuitry.

2. Switching motors, fans, heaters, solenoids, and

valves.

3. Phase or power control in applications such as

lighting and temperature control equipment.

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

Sheet No.: D4-A00301EN

Date Mar. 31. 2004

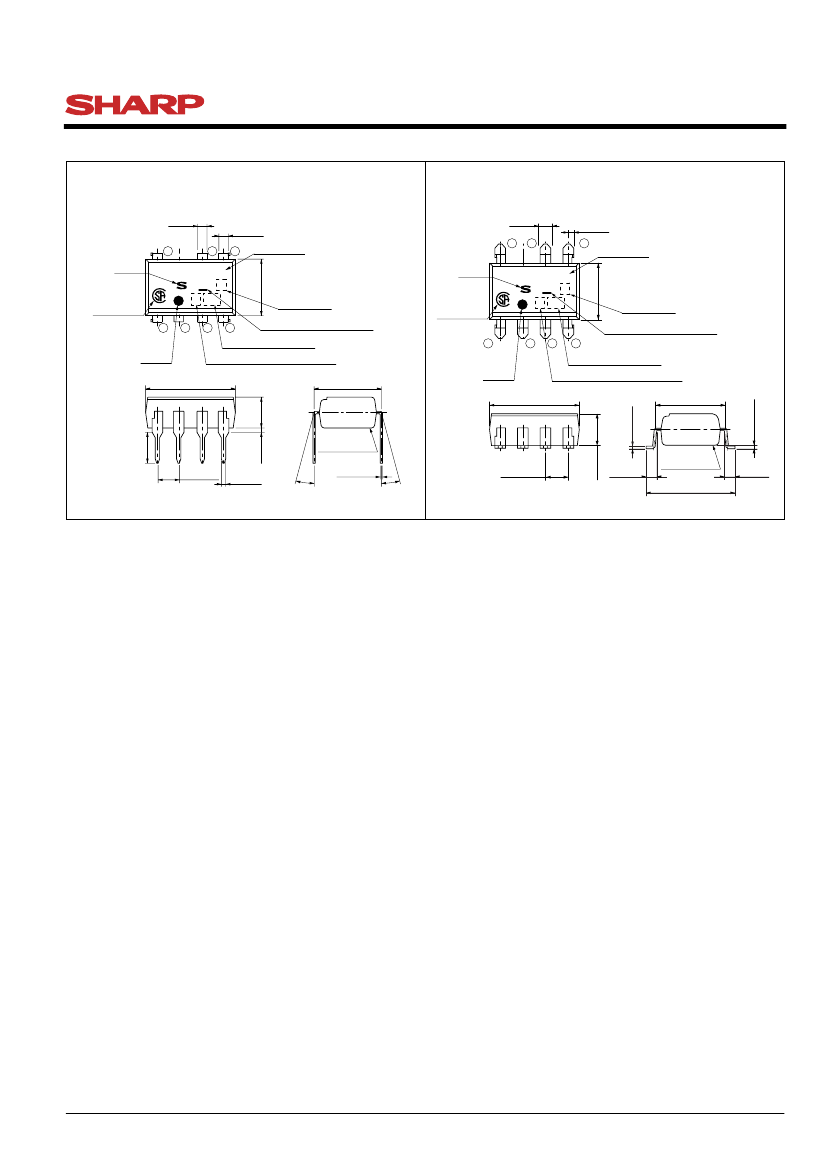

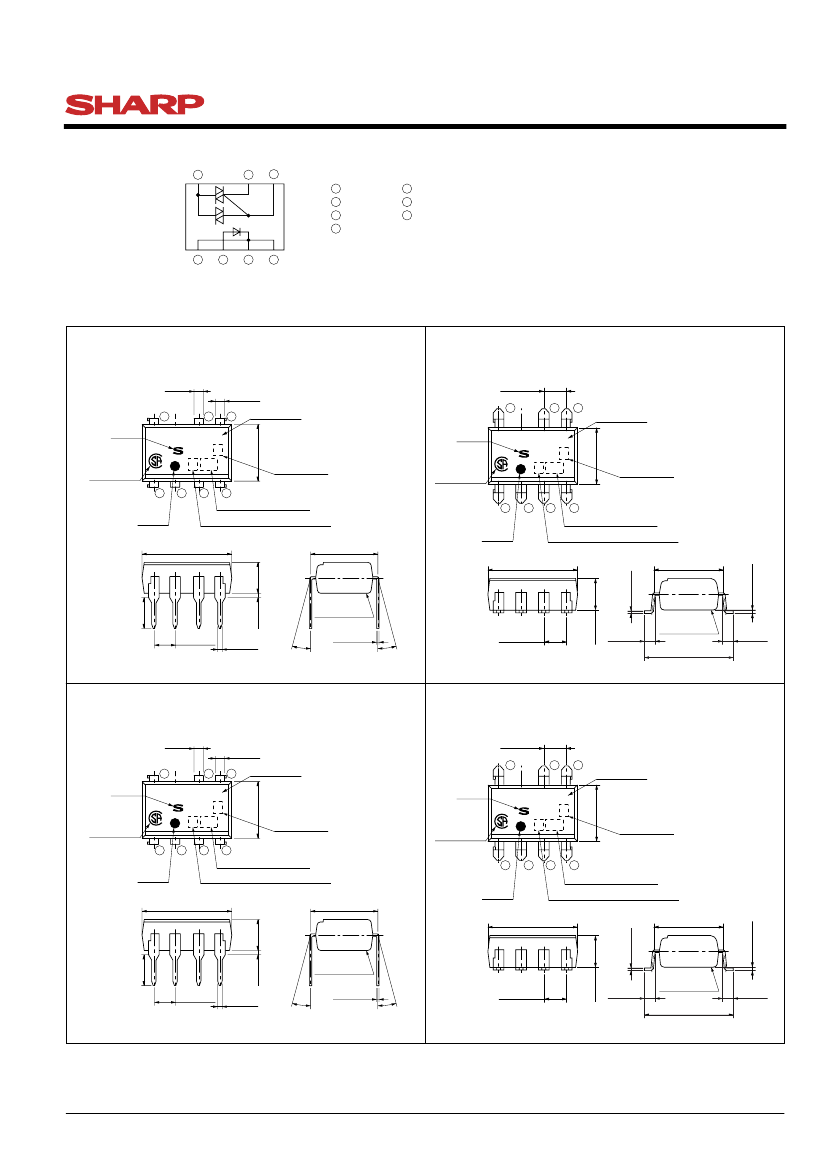

PR23MF11NSZF Related Products

	PR23MF11NSZF	PR23MF11NIPF	PR33MF11NSZ	PR23MF11NSZ	PR33MF11YSZF	PR33MF11YIPF	PR33MF11NIPF
Description	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX	TRIGGER OUTPUT SOLID STATE RELAY, 4000 V ISOLATION-MAX
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	LEAD FREE, PLASTIC, DIP-8/7	LEAD FREE, PLASTIC, SMT, 8/7 PIN	PLASTIC, DIP-8/7	PLASTIC, DIP-8/7	LEAD FREE, PLASTIC, DIP-8/7	LEAD FREE, PLASTIC, SMT, 8/7 PIN	LEAD FREE, PLASTIC, SMT, 8/7 PIN
Reach Compliance Code	compli	unknow	unknow	unknow	unknow	unknow	unknow
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V	4000 V
Number of components	1	1	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR	TRIGGER OUTPUT SSR
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	-	-	-
