HRB1
Relay
1.COIL DATA
1-1.Nominal Voltage
1-2.Coil Resistance
1-3.Operate Voltage
1-4.Release Voltage
1-5.Nominal Power Consumption
3 VDC to 24 VDC
Refer to Table 1
Refer to Table 1
Refer to Table 1
150 mW
2.CONTACT DATA
2-1.Contact Arrangement
2-2.Contact Material
2-3.Contact Rating
2-4.Max. Switching Voltage
2-5.Max. Switching Current

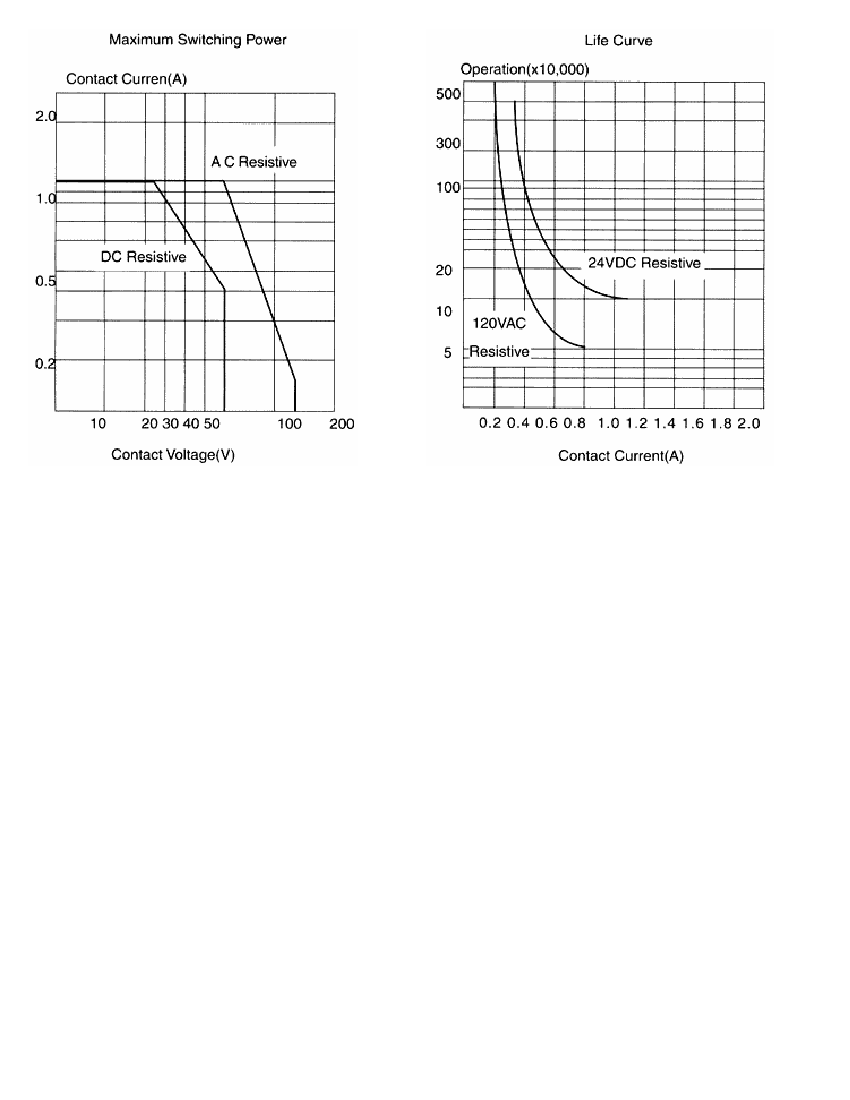

2-6.Max. Switching Power
2-7.Contact Resistance ( Initial )
Electrical
2-8.Life Expectancy
Mechanical
1 Form C
AuAg
1A 30 VDC / 0.5A 125 VAC
60 VDC / 125 VAC
2A
62.5 VA , 30W
100 m¦¸. at 6 VDC 1A
100,000 operations at nominal load
5,000,000 operations
3.GENERAL DATA
3-1.Insulation Resistance
3-2.Dielectric Strength
3-3.Surge Strength

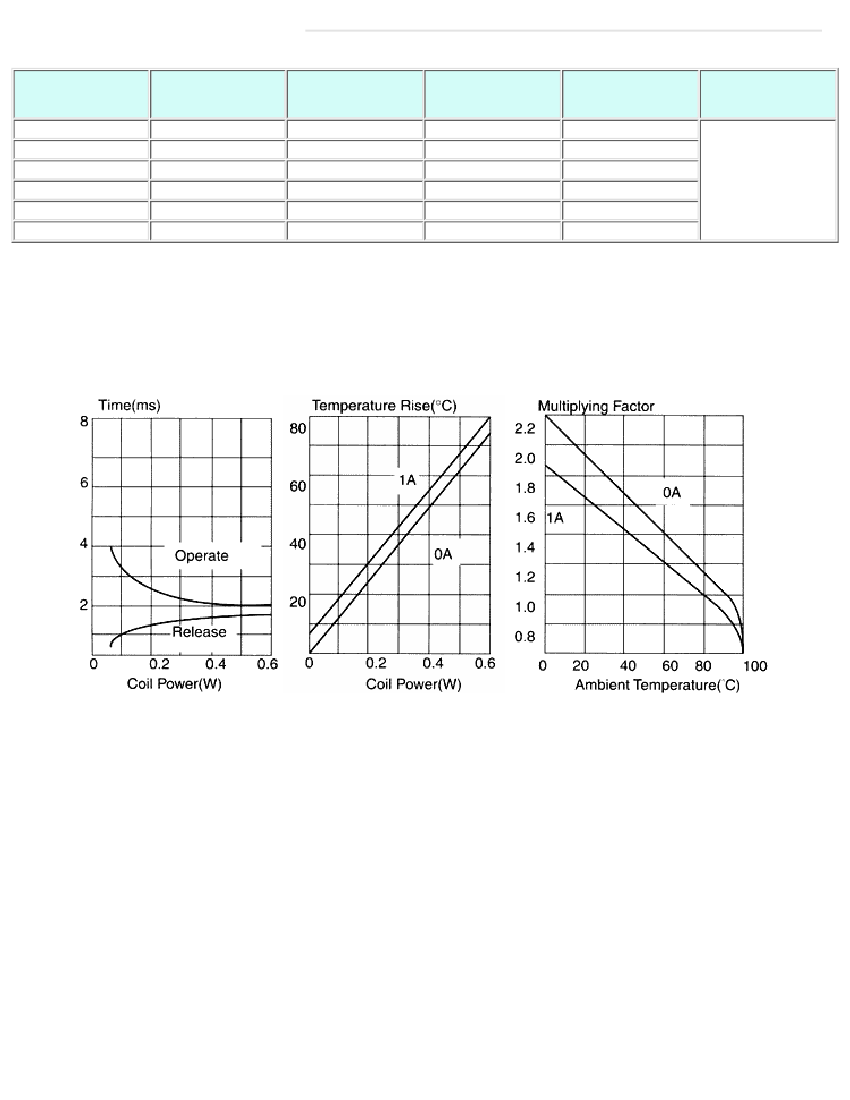

3-4.Operate Time
3-5.Release Time
3-6.Temperature Range
3-7.Shock Resistance
3-8.Vibration Resistance
3-9.Weight
3-10.Safety Standard
Min.100M¦¸ at 500 VDC
1,000VAC , 1min between open contacts
500VAC , 1min between contacts and coil
1,500 V ( Conform to FCC Part 68 )
Max. 5ms
Max. 5ms
-40 to +70
¡æ
10G
10 - 55 Hz , Amplitude 1.5mm
2.2 gr.

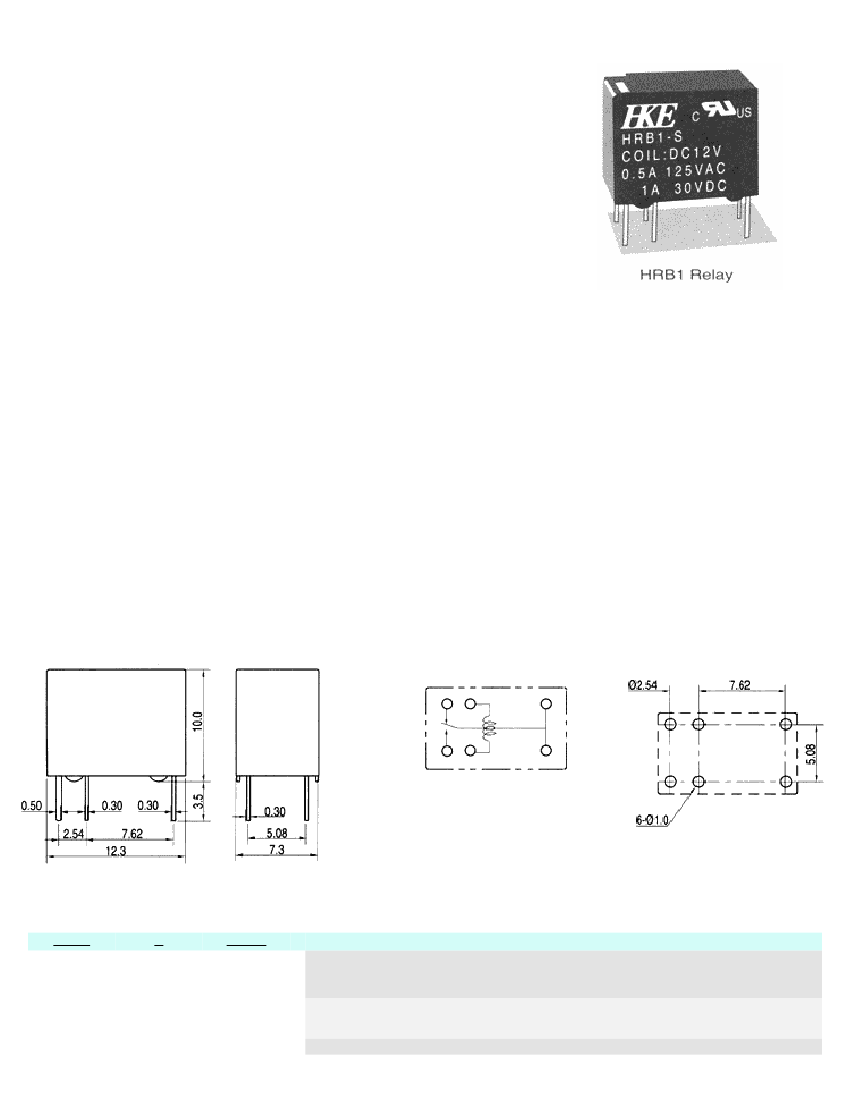

4.DIMENSIONS ( in mm )
¡¡
5.ORDERING CODE
HRB1
S
DC 5V
¡¡ ¡¡
|
|
NOMINAL VOLTAGE:
|
|_____
¡¡
DC3V , DC5V , DC6V , DC9V , DC12V , DC24V
|
|
|
|____
_________
|
¡¡
ENCLOSURE
S ---- WASHABLE
|
|_____
________
_________
¡¡
TYPE
