BQ3285LCSS datasheet, PDF - EEWORLD Datasheet

BQ3285LCSS: DescriptionReal Time Clock, Volatile, 1 Timer(s), CMOS, PDSO24,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size913KB，24 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

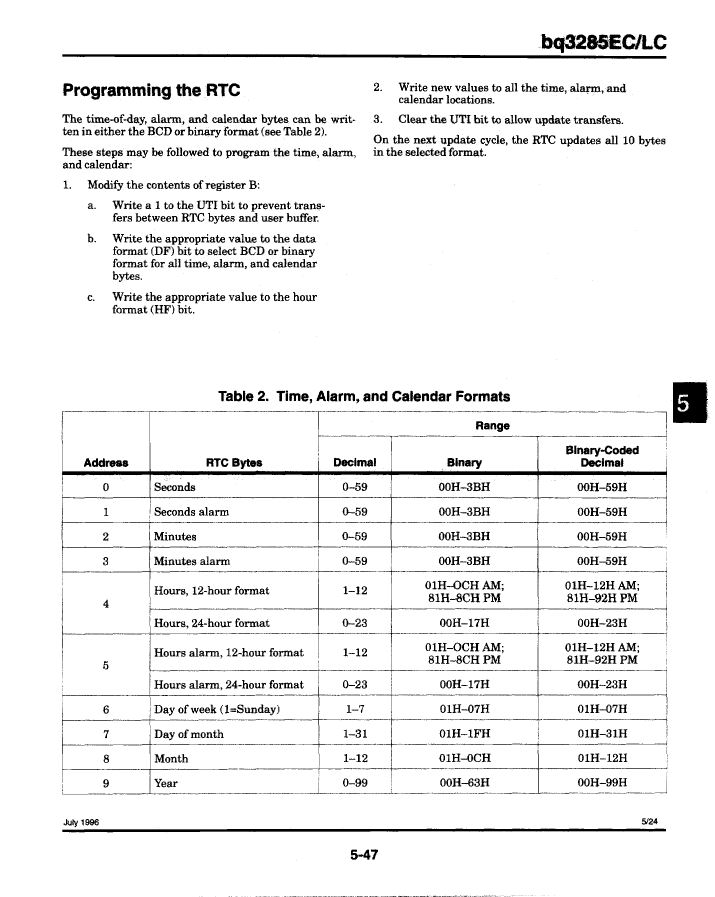

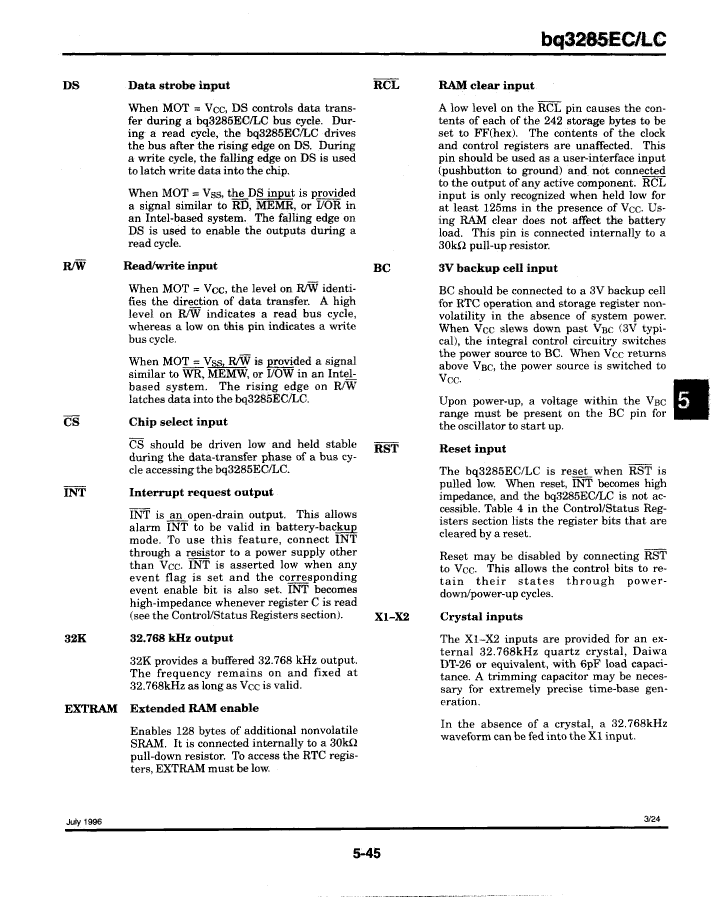

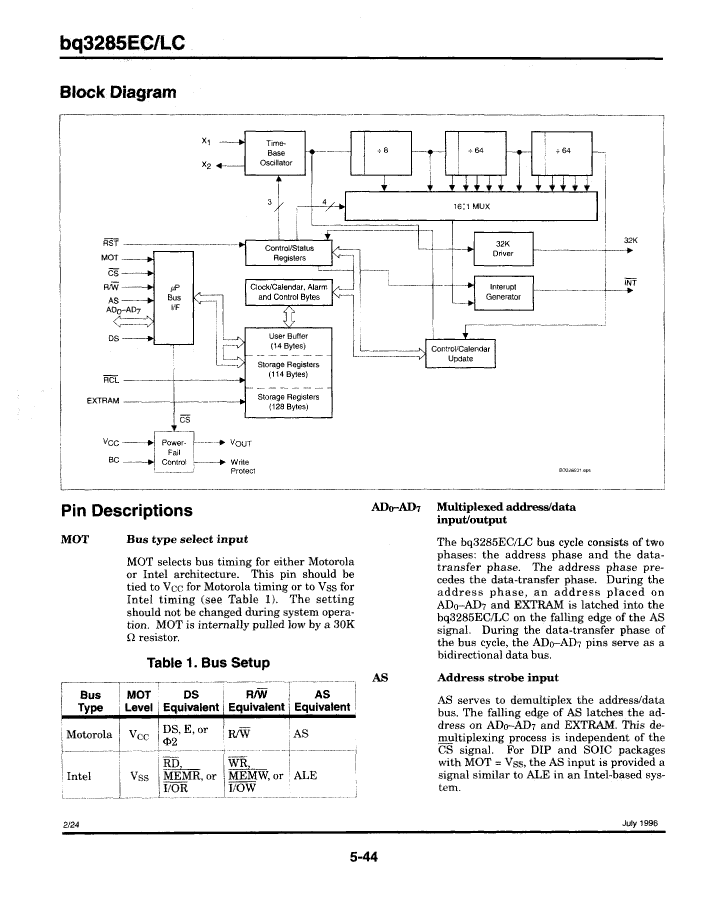

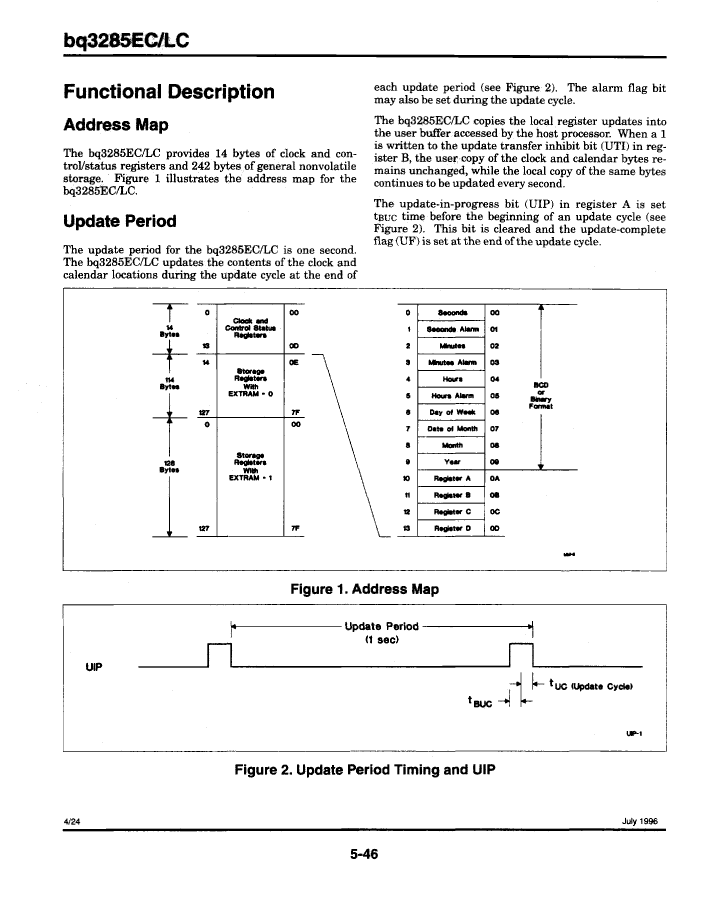

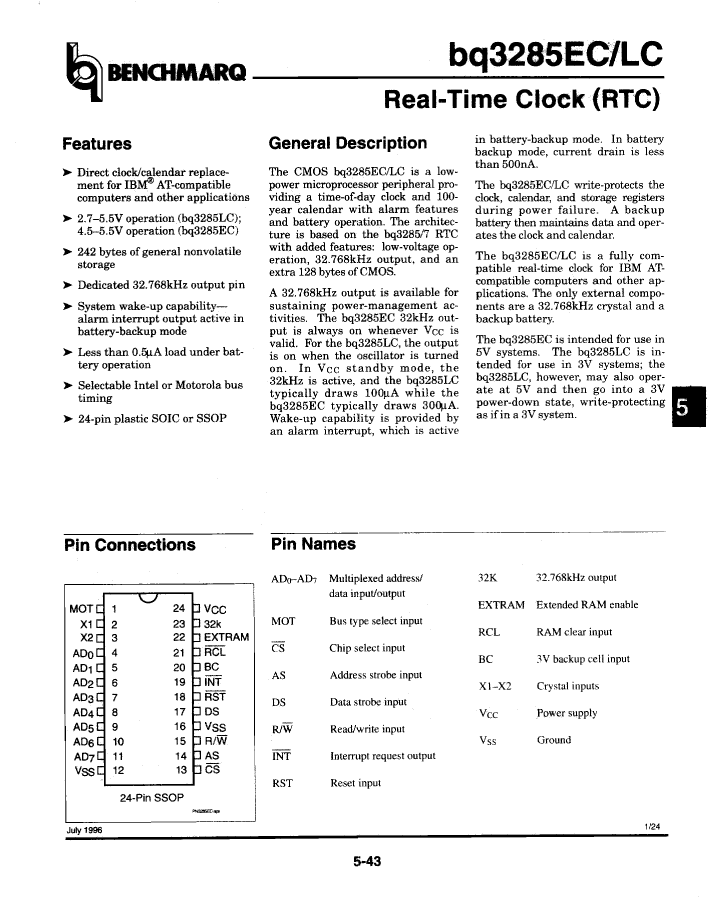

BQ3285LCSS Overview

Real Time Clock, Volatile, 1 Timer(s), CMOS, PDSO24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
interrupt capability	Y
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of terminals	24
Number of timers	1
On-chip data RAM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output clock frequency	0.032768 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.24
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (number of words)	242
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
shortest time	SECONDS
Maximum time at peak reflow temperature	NOT SPECIFIED
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
Base Number Matches	1

	BQ3285LCSS	BQ3285ECSS
Description	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDSO24,	Real Time Clock, 1 Timer(s), CMOS, PDSO24,
Maker	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown	unknown
External data bus width	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
JESD-30 code	R-PDSO-G24	R-PDSO-G24
Number of terminals	24	24
Number of timers	1	1
On-chip data RAM width	8	8
Maximum operating temperature	70 °C	70 °C
Maximum output clock frequency	0.032768 MHz	0.032768 MHz
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
RAM (number of words)	242	242
Maximum slew rate	9 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	2.7 V	4.5 V
Nominal supply voltage	3 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Base Number Matches	1	1
