3-6450830-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-6450830-4

3-6450830-4: DescriptionMBXL R/A HDR 8ACP + 16S + 4ACP; CategoryThe connector The connector; File Size5MB，42 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-6450830-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6450830-4	-	-	View	Buy Now

3-6450830-4 Overview

MBXL R/A HDR 8ACP + 16S + 4ACP

3-6450830-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Manufacturer's serial number	6450830
Base Number Matches	1

Preview

Download Datasheet

View All

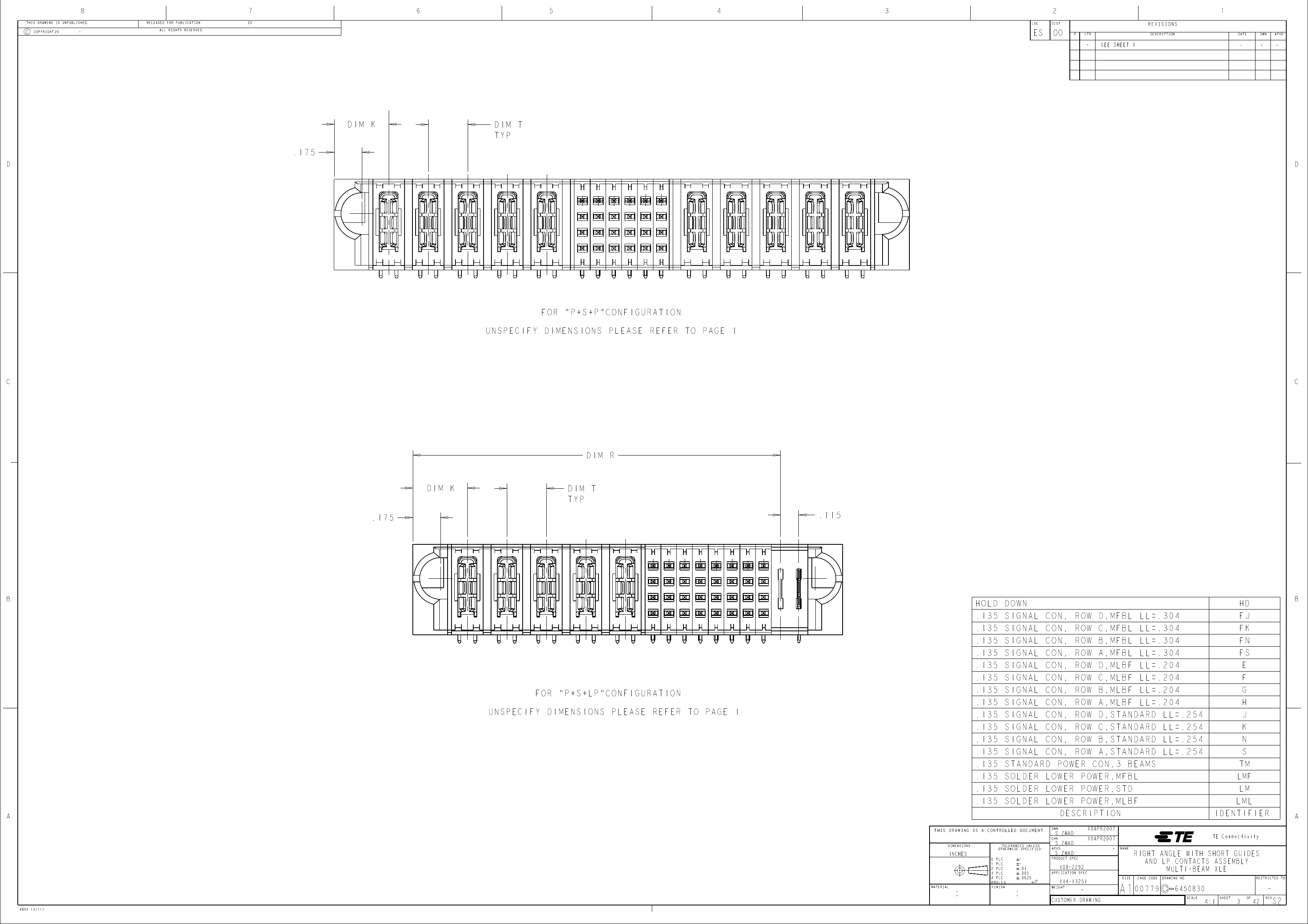

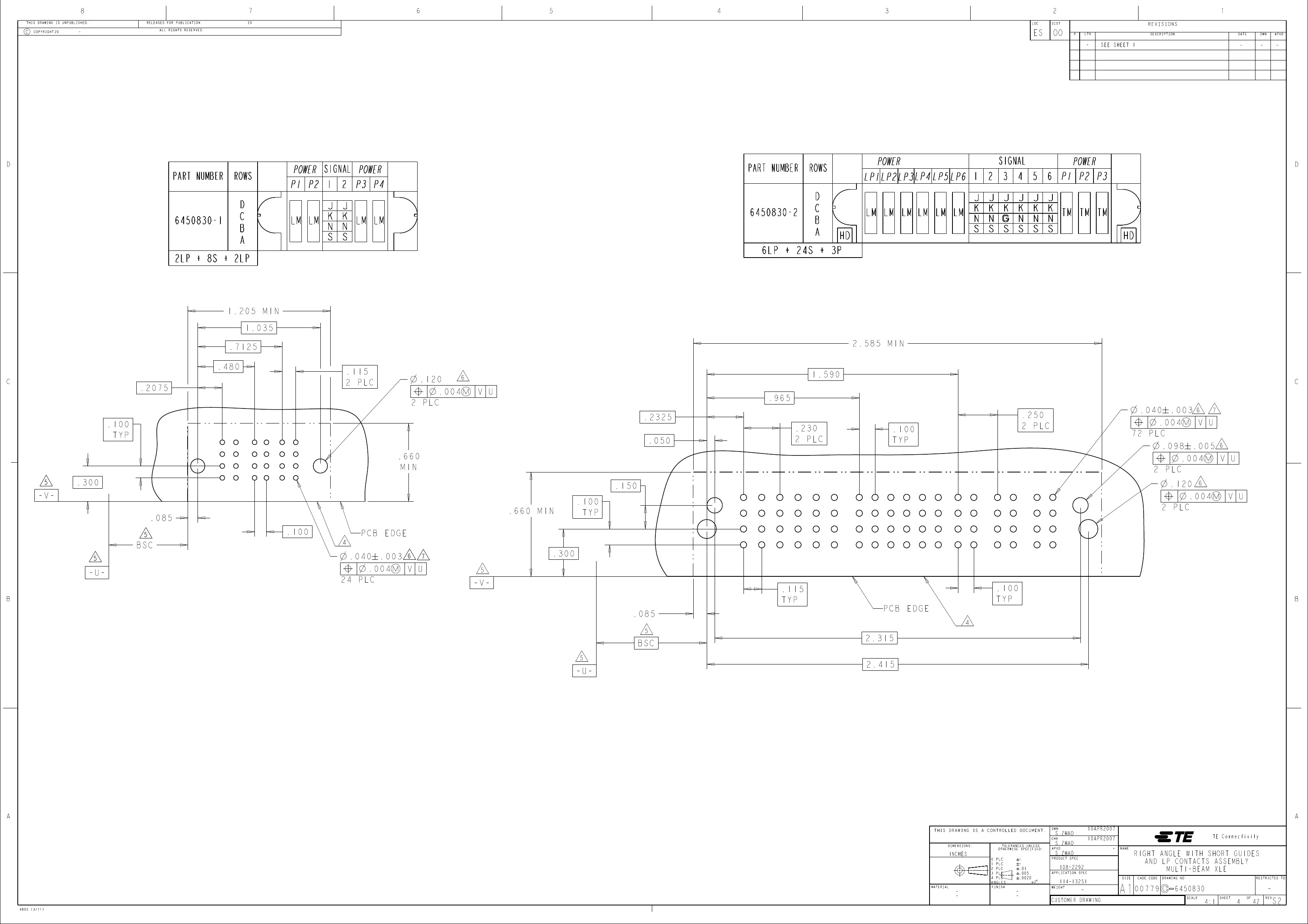

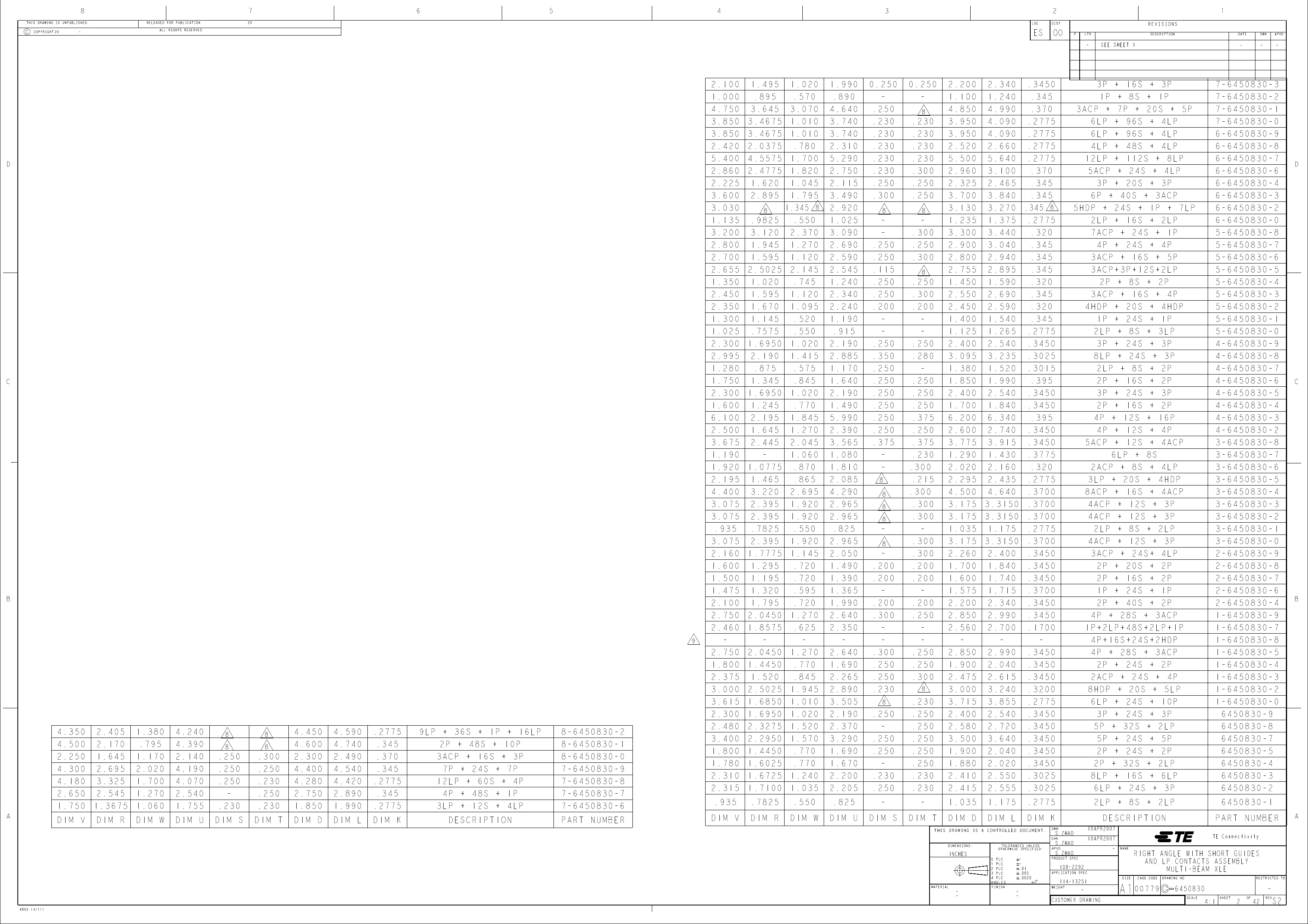

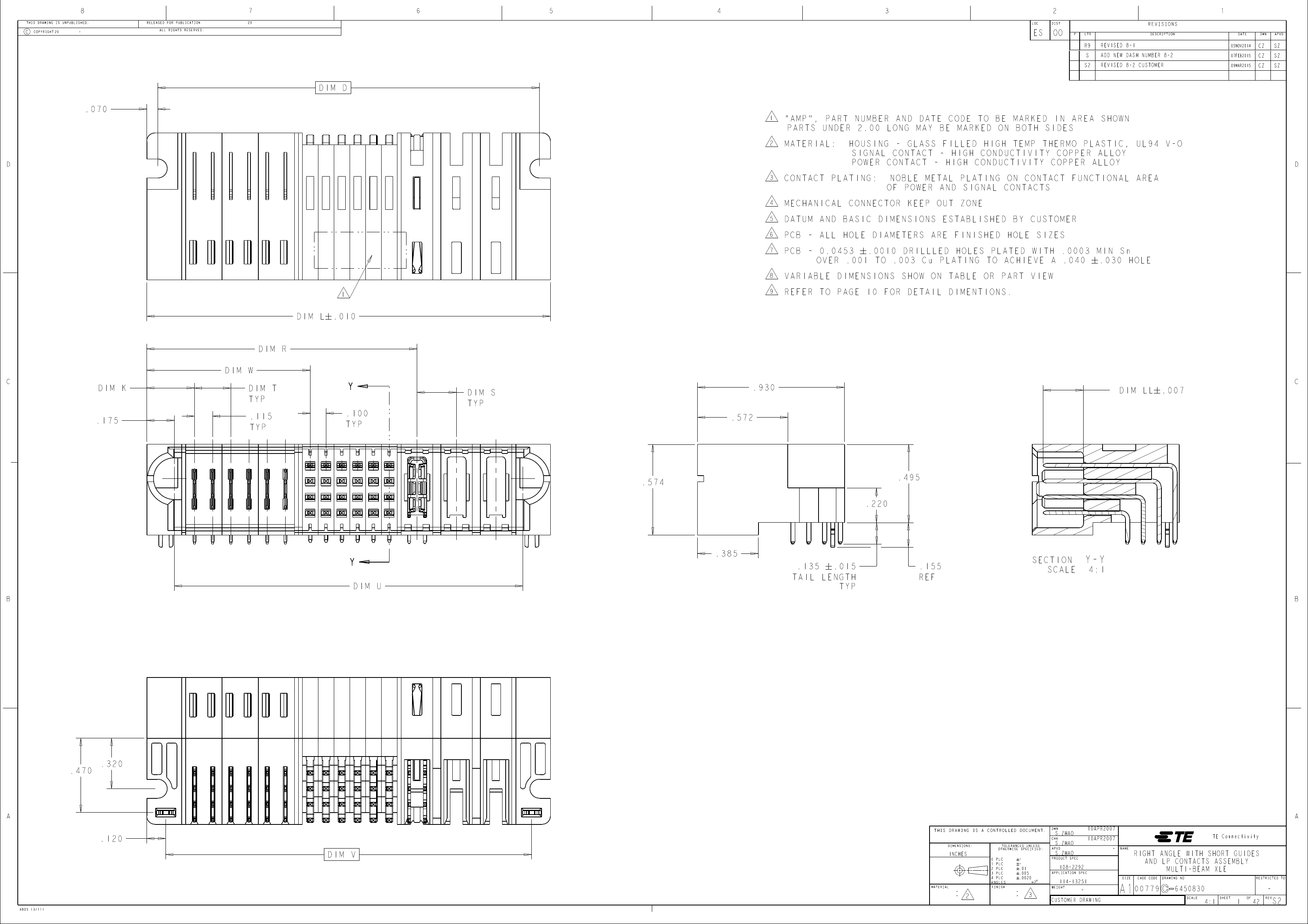

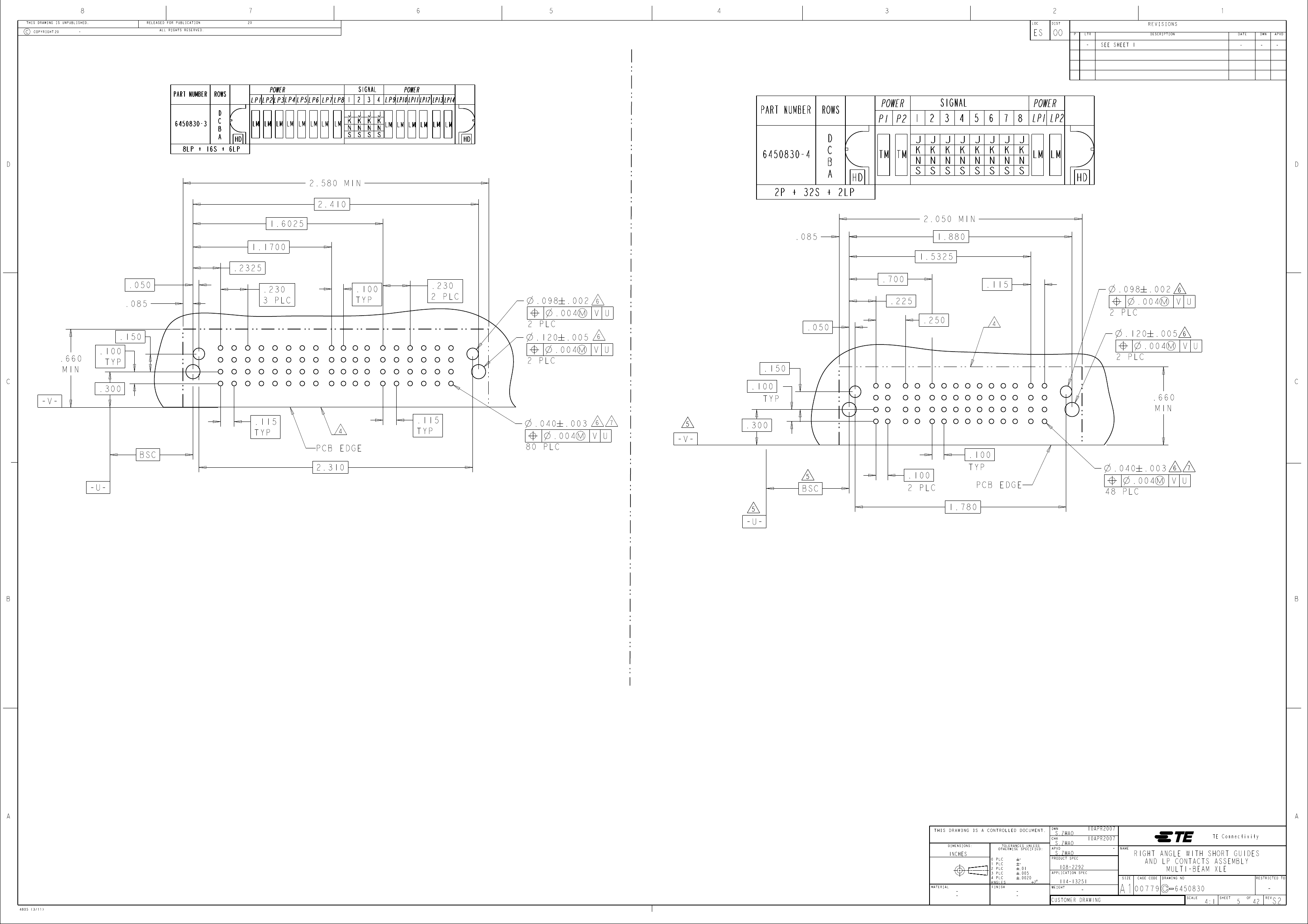

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED 8-1

ADD NEW DASH NUMBER 8-2

REVISED 8-2 CUSTOMER

05NOV2014

07FEB2015

09MAR2015

DIM D

.070

"AMP", PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - 0.0453 # .0010 DRILLLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 # .030 HOLE

VARIABLE DIMENSIONS SHOW ON TABLE OR PART VIEW

REFER TO PAGE 10 FOR DETAIL DIMENTIONS.

DIM L # .010

DIM R

DIM W

DIM K

.175

DIM T

TYP

.115

TYP

.100

TYP

DIM S

TYP

.572

.930

DIM LL # .007

.574

.220

.495

.385

DIM U

.135 # .015

TAIL LENGTH

TYP

.155

REF

SECTION

SCALE

Y-Y

4:1

.470

.320

.120

DIM V

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.ZHAO

10APR2007

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13251

CUSTOMER DRAWING

00779

SIZE

RIGHT ANGLE WITH SHORT GUIDES

AND LP CONTACTS ASSEMBLY

MULTI-BEAM XLE

CAGE CODE

DRAWING NO

RESTRICTED TO

6450830

SCALE

4805 (3/11)

4:1

SHEET

REV

3-6450830-4 Related Products

	3-6450830-4	3-6450830-6	3-6450830-8	3-6450830-7	4-6450830-3
Description	MBXL R/A HDR 8ACP + 16S + 4ACP	MBXL R/A HDR 2ACP + 8S + 4LP	Board Connector, 21 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Black Insulator, Plug	MBXL R/A HDR 6LP + 8S	MBXL R/A HDR 4P+12S+16P
Brand Name	AMP	AMP	-	AMP	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	-
Reach Compliance Code	unknown	compliant	compliant	compliant	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
Contact material	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
Objectid	-	8000816431	8000816433	8000816432	-
Samacsys Description	-	Configuration Features: Number of Power Positions 6 \| Number of Signal Positions 8 \| Number of Rows 4 \| Number of Positions 14 \| PCB Mount Orientation Right Angle \| Contact Features: Contact Mating Area Plating Material Thickness 3 MICIN \| Power Contact Base Material Tin \| Contact Retention Within Housing Without \| Contact Type Pin \| Contact Mating Area Plating Material Noble Metal \| Contact Type Blade \| Contact Current Rating (Max) 50 AMP \| Contact Underplating Material Thickness 3.18 MICM \| PCB Contact Te	Configuration Features: Number of Rows 4 \| Mating & Unmating Configuration Sequencing \| Number of Signal Positions 12 \| Number of Power Positions 9 \| PCB Mount Orientation Right Angle \| Number of Positions 21 \| Contact Features: Power Contact Base Material Tin \| Contact Current Rating (Max) 50 AMP \| Contact Underplating Material Nickel \| Contact Mating Area Plating Material Thickness 3 MICIN \| Contact Underplating Material Thickness 3.18 MICM \| Contact Mating Area Plating Material Thickness .076 MICM \| Cont	MBXL R/A HDR 6LP + 8S	-
Samacsys Manufacturer	-	TE Connectivity	TE Connectivity	TE Connectivity	-
Samacsys Modified On	-	2024-04-03 12:06:34	2024-04-03 12:06:34	2020-10-11 10:54:44	-
YTEOL	-	9.1	9.1	9.1	-
Body/casing type	-	PLUG	PLUG	PLUG	-
Contact arrangement	-	S8P6	S12P9	S8P6	-
Contact point gender	-	MALE	MALE	MALE	-
DIN compliance	-	NO	NO	NO	-
Electromagnetic interference shielding	-	NO	NO	NO	-
empty shell	-	YES	YES	YES	-
Filter function	-	NO	NO	NO	-
IEC compliance	-	NO	NO	NO	-
Insulator color	-	BLACK	BLACK	BLACK	-
insulator material	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
MIL compliance	-	NO	NO	NO	-
Power Connector Ratings	-	50A	50A	50A	-
Match contact row spacing	-	0.1 inch	0.1 inch	0.1 inch	-
Mixed contacts	-	YES	YES	YES	-
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	-	BOARD	BOARD	BOARD	-
Number of connectors	-	ONE	ONE	ONE	-
Number of ports	-	1	1	1	-
Number of rows loaded	-	4	4	4	-
Maximum operating temperature	-	125 °C	125 °C	125 °C	-
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Panel mounting	-	NO	NO	NO	-
Plating thickness	-	3u inch	3u inch	3u inch	-
Rated current (signal)	-	50 A	50 A	50 A	-
Rated voltage	-	60 V	60 V	60 V	-
Guideline	-	UL	UL	UL	-
Terminal length	-	0.125 inch	0.125 inch	0.125 inch	-
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	-
Termination type	-	SOLDER	SOLDER	SOLDER	-
Total number of contacts	-	14	21	14	-
UL Flammability Code	-	94V-0	94V-0	94V-0	-
