Alcatel 1902 OFA
Booster amplifier with integrated electronics
Erbium-Doped Fiber Amplifier
Description
The Alcatel 1902 OFA products belong to the
Alcatel 1900 OFA family of Optical Fiber
Amplifier (OFA) modules, designed for the third
telecommunica-tion window (1550 nm). Using
reliability proven high power 1480 nm lasers
and optimized Erbium-Doped Fiber, they
provide high gain, high output power and low
noise amplification. They incorporate a very
high degree of integration and are presented in
a compact package with connectorized pigtails.
The modules may be mounted directly into a PC
board and are, thus, ideal for optimization of
system size. The integrated electronics provide
an easy user digital interface, exempting the
designer from input & output signal controls.
The output power is kept constant through on
APC (Automatic Power Control) loop, and the
chip temperature is stabilized at + 25 ± 10 °C
with an ATC (Automatic Temperature Control)
loop.
Five alarms are generated by the modules: loss
of input signal, loss of output signal, output
power degradation, laser over down circuitries
are set up in the electronic's module : automatic
shut clown (the output power is switched off if
there is no input power or if the temperature is
out of range), and external shut down
command.
Features
•
•
•
•
•
•
•
•
•
•
•
Bit rate transparency
High output power
Wide wavelength range
Wide operating case temperature
Built in control electronics with digital interface
Automatic shut-down with enable
Built in input & output signal monitoring
Built in input & output optical isolation
Single 1480 nm pumped
High reliability
Small size
Optical characteristics
Parameter
Wavelength bandwidth
Output power 10 dBm module
Output power 13 dBm module
Output power 16 dBm module
Noise figure
Output power temp. sensitivity
Output power regulation stability
Polarization sensitivity
Input/output return loss
Time response to shut down
Time between SD command and Pout < - 40 dBm
(Case temperature = 0 to + 65 °C) otherwise specified
Pin > - 6 dBm
Pin > - 6 dBm
Pin > - 6 dBm
1550 nm - 6 dBm input
1550 nm - 6 dBm input (ref. = + 25 °C)
1550 nm , input from -6 to +4 dBm (ref. = + 25 °C)
Conditions
Symbol
BW
Pout
Pout
Pout
NF
ϑP/ϑT
ϑP/ϑPin
ϑP/ϑPol
R1
SDT
Min
1530
10
13
16
- 0.5
- 0.5
- 0.5
27
Typical
12
15
17
7
Max
1565
14
17
19
10
+ 0.5
+ 0.5
+ 0.5
Unit
nm
dBm
dBm
dBm
dB
dB
dB
dB
dB
mS
40
30
100
Electrical characteristics
Parameter
Positive power supply voltage
Negative power supply voltage
Positive power supply current
Temperature monitoring
Laser drive current monitoring
Alarms Active level
Alarms Non Active level
Shut down (external or automatic)
Typ. value at + 25 °C
Offset (+ 25 °C) = 1.2
±
0.3 V
Offset = 0 V
Isink < 3 mA for: LIS, LOS1, LOS2 Ibias, TOR
Iscr > - 0.1 mA for: LIS, LOS1, LOS2 Ibias, TOR
Command active
Negative power supply current Max. value at + 65 °C
Conditions
Symbol
Vcc
Vee
Icc
Iee
Temp
Ipump
Alarm
No alarm
ON
OFF
-6
0.9
0
4.25
3.7
0
Min
4.75
- 5.45
0.45
0.25
-5
1
Typical
Max
5.25
- 4.9
0.9
1
-4
1.1
0.7
5.25
5.25
1.35
Unit
V
V
A
A
°C/V
A/V
V
V
V
V
For SD and ASD
Command NON Active
(Case temperature = + 25 °C)
Absolute maximum ratings
Parameter
Symbol
Min
Max
+ 65
+70
+ 350
5
7
0
Unit
°C
°C
°C
N
mm
V
V
Operating temperature
Top
0
Storage temperature
Tstq
-40
Soldering temperature (3s)
Axial pull force on fiber (10s)
F
Fiber bend radius from package
r
40
Positive supply voltage
Vcc
0
Negative supply voltage
Vee
-7
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device.
Alarms and shut down definition
Alarms/commands
Loss of input signal
Loss of output signal
Output power degradation
Laser over drive
Temperature out of range
Shut down command
Automatic SD command
Symb
LIS
LOS 2
LOS 1
Ibias
TOR
SD
ASD
September 00
Copyright © 2000
Conditions
Alcatel Optronics
Pin < - 15 dBm
Pout < Pout min. - 9 dB
are available for
Customized versions
Pout < Pout min. - 1 dB
large quantities.
Max. laser drive current reached
Laser chip temperature >
contained in this
Performance figures
+ 35 °C
document must be specifically
Switches off the output power
confirmed in writing
Enables automatic SD (1)
by Alcatel

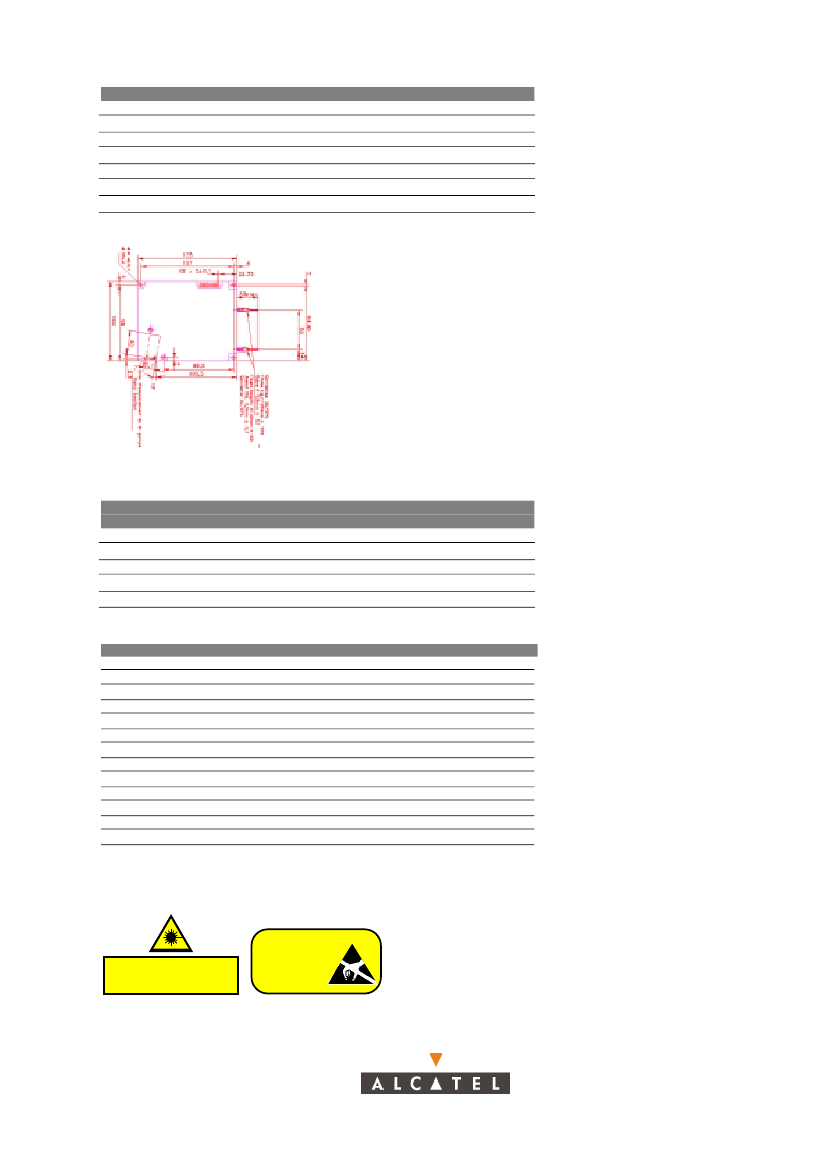

Mechanical details
(125 x 100 x 15.5 mm)
Optronics before they become
applicable to any particular order or
contract. Alcatel Optronics reserves the
right to make changes to the products
or information contained herein
without notice.
Ordering information
Alcatel 1902 OFA
Alcatel 1902 OFA model
Booster L2 10 dBm 1480 1P B FP
Booster L2 13 dBm 1480 1P B FP
Booster L2 10 dBm 1480 1P A SS
Booster L2 13 dBm 1480 1P A SS
Booster L2 16 dBm 1480 1P A SS
Part Number Mechanic
3CN 00003 AA
3CN 00003 AB
3CN 00075 AA
3CN 00076 AA
3CN 00355 AA
B
B
A
A
B
Connector
FC/PC
FC/PC
SC/SPC
SC/SPC
SC/SPC
Min output
power
+ 10 dBm
+ 13 dBm
+ 10 dBm
+ 13 dBm
+ 16 dBm
EUROPE
Route de Ville just
F-91625 NOZAY CEDEX
Tel : (+33) 1 64 49 49 10
Fax : (+33) 1 64 49 49 61
USA
12030 Sunrise Valley Drive
RESTON - VA 22091-3495
Tel : (+1) 703 715 3921
Fax : (+1) 703 860 1183
CANADA
45, De Villebois, suite 200
Gatineau (PQ)
Canada, J8T 8J7
Tel : (+1) 819 243 3755
Fax : (+1) 819 243 3354
JAPAN
Yebisu Garden Place Tower
PO Box 5024
20-3, Ebisu 4 - Chome
Shibuya - ku TOKYO 150 - 6028
Tel : (+81) 3 5424 85 65
Fax : (+81) 3 5424 85 81
Pin out
N°
1
2
3
4
5
6
7
8
9
10
11
12
13
Symb
Vcc
Vcc
Vee
Vcc
ASD
NC
NC
Vcc
Vcc
Vee
Ibias
SD
Ground
N°
14
15
16
17
18
19
20
21
22
23
24
25
26
Symb
DNC
Ground
Ground
Ground
Vee
Temp
Ipump
Ground
Vee
LOS2
LOS1
LIS
TOR
Standards
ITU-T G.652 optical fiber
ITU-T G.653 shifted dispersion fiber
IEC 68-2 and MIL STD 883 environment
ATTENTION
OBSERVE
PRECAUTIONS FOR
HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE DEVICES
LASER RADIATION
AVOID EXPOSURE TO BEAM
Class 3 B laser product
