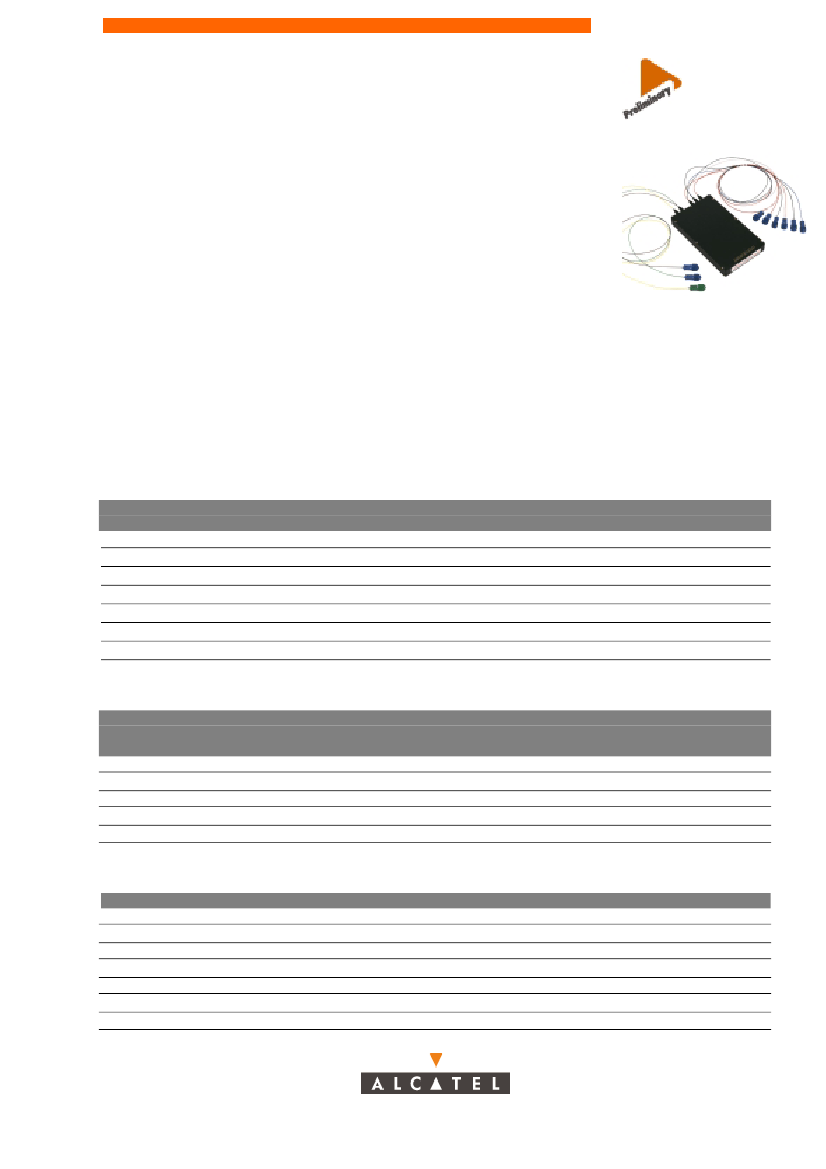

Alcatel 1936 OFA
D-WDM, Add Drop MUX, L-Band
Erbium-doped fiber amplifier
Description
The Alcatel 1936 OFA (Optical Fiber
Amplifier) is designed to offer excellent
performance characteristics for WDM
systems in the 1569 - 1604 nm wavelength
range.
The standard, double-stage 17 dBm unit
can be supplemented using external pump
modules to achieve outputs of 20 dBm or
23 dBm.
A 9 dB mid-amplifier loss port has been
designed in to allow for A/DMUX functions
or dispersion compensation. Tap couplers
at each signal port offer full monitoring
capability.
The Alcatel 1936 OFA achieves very flat
gain in excess of 28 dB, while limiting gain
excursion to < 1 Db (typical) over the
entire 35 nm wavelength range @ 25°C.
Optimization of the architecture yields very
low typical noise figures; < 5 dB for the
17 dBm configuration.
Features
•
Optimized for D-WDM transmission
•
Dual-stage 17 dBm basic unit can be to
offer 20 or 23 dBm.
•
Low noise figure for optimal SNR
•
Flat gain across wide bandwidth range
•
Integrated 9 dB mid-amplifier loss port
allows ADM functional customization
•
Polarization independent & bit-rate
transparent
•
Optical isolators at input, monitor taps,
and outputs minimize system
susceptibility to reflection
•
Compact, rugged low profile package
Applications
•
Power booster for L-band D-WDM
systems
•
Optical Add / Drop multiplexer
•
Low-noise in-line amplifier for transport
systems
Optical characteristics
Parameter
Configuration
Operating wavelength
Output power
External pump power, 1480 nm
Input power
Noise figure
Polarization mode dispersion
Gain flatness
Symb
λ
Pout
Pext
Pin
NF
PMD
∆G
Min Typical Max
+ 17 dBm
1569
1604
17
NA
- 11
< 5.5
0.5
<1
Min Typical Max
+ 20 dBm
1569
1604
20
180
-8
< 5.5
0.5
<1
Min Typical Max
+ 23 dBm
1569
1604
23
500
-5
≤
6.5
0.5
<1
Unit
nm
dBm
mW
dBm
dB
ps
dB
All parameters are specified within the overall relevant operating temperature range. The typical values are referenced to + 25 °C.
Electrical characteristics
17 dBm basic unit
Parameter
Laser pump drive current
Laser voltage
Photodetector monitor
TEC drive (70°)
TEC voltage
Symb
I drive
V drive
I mon
I TEC
V TEC
Min
Pump 1
980 nm
Max
330
2.5
2500
1.4
3.8
Pump 2 & 3
1480 nm
Min
Max
875
2.5
100
2500
1.3
4.2
Unit
mA
V
µA
A
V
100
All parameters are specified within the overall temperature range.
Maximum ratings
Parameter
Operating temperature
Storage temperature
1
st
stage pumps 1 & 2 bias current
2
st
stage pump bias current
Soldering temperature (3s)
Axial pull force on fiber (10s)
Fiber bend radius from package
Symbol
θ
Oper
θ
Stor
I Drive 1 max
I Drive 2 max
θ
Sold
/
/
Min
-5
- 40
Max
+70
+85
400
1000
350
10
400
Unit
°C
°C
mA
mA
°C
N
mm
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only.

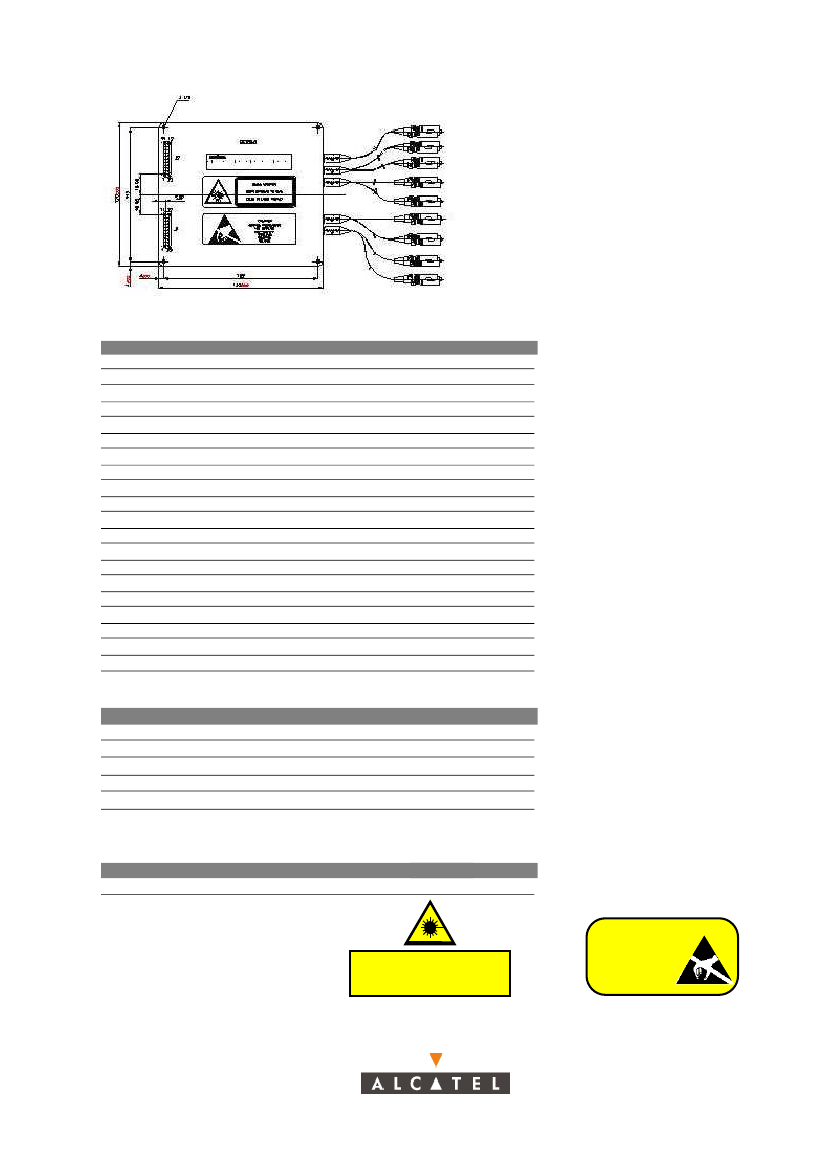

Mechanical details (TBC)
(170 x 100 19 mm)
September 00
Copyright © 2000
Alcatel Optronics
Customized versions are available for
large quantities.
Performance figures contained in this
document must be specifically
confirmed in writing by Alcatel
Optronics before they become
applicable to any particular order or
contract. Alcatel Optronics reserves the
right to make changes to the products
or information contained herein
without notice.
Pin out (TBC)
N°
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Description
Ground pumps
Ground diodes
TEC - / B1
TEC - / B1
TEC + / B1
TEC + / B1
Laser cathode B1
Thermistor B1
Laser Anode / B1
Thermistor B1
Monitor Cathode B1
Monitor Anode B1
D4 / Cathode
D4 / Anode D
D3 / Cathode
D3 / Anode
TEC - / B2
TEC - / B2
TEC + / B2
TEC + / B2
N°
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Description
Laser cathode B2
Thermistor B2
Laser Anode / B2
Thermistor / B2
Monitor Cathode / B2
Monitor Anode / B2
D2 / Cathode
D2 / Anode
D1 / Cathode
D1 / Anode
TEC - / B3
TEC - / B3
TEC + / B3
TEC + / B3
Laser cathode / B3
Thermistor / B3
Laser Anode / B3
Thermistor / B3
Monitor Cathode / B3
Monitor Anode / B3
EUROPE
Route de Ville just
F-91625 NOZAY CEDEX
Tel : (+33) 1 64 49 49 10
Fax : (+33) 1 64 49 49 61
USA
12030 Sunrise Valley Drive
RESTON - VA 22091-3495
Tel : (+1) 703 715 3921
Fax : (+1) 703 860 1183
CANADA
45, De Villebois, suite 200
Gatineau (PQ)
Canada, J8T 8J7
Tel : (+1) 819 243 3755
Fax : (+1) 819 243 3354
JAPAN
Yebisu Garden Place Tower
PO Box 5024
20-3, Ebisu 4 - Chome
Shibuya - ku TOKYO 150 - 6028
Tel : (+81) 3 5424 85 65
Fax : (+81) 3 5424 85 81
Pigtails
N°
1
2
3
7
8
Description
N° Description
4
5
6
9
Black, SC/PC; stage 1 input tap
Grey, SC/PC; stage 1 output tap
Orange, SC/PC; stage 1 output
Yellow, SC/APC, External pump input
Red, SC/PC; 2nd stage output
White, SC/PC; stage 2 output tap
Blue, SC/PC; stage 1 input
Green, SC/PC; 2nd stage input
Brown, SC/PC; stage 2 input tap
Ordering information
Alcatel 1936 OFA
Description
17 dBm basic unit
Ordering Code
3CN 00402 AAAA
Connector type
(see pigtail chart)
Standards
ITU-T G.652 optical fiber
ITU-T G.653 shifted dispersion fiber
IEC 68-2 and MIL STD 883 environment
LASER RADIATION
AVOID EXPOSURE TO BEAM
Class 3 B laser product
ATTENTION
OBSERVE
PRECAUTIONS FOR
HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE DEVICES
