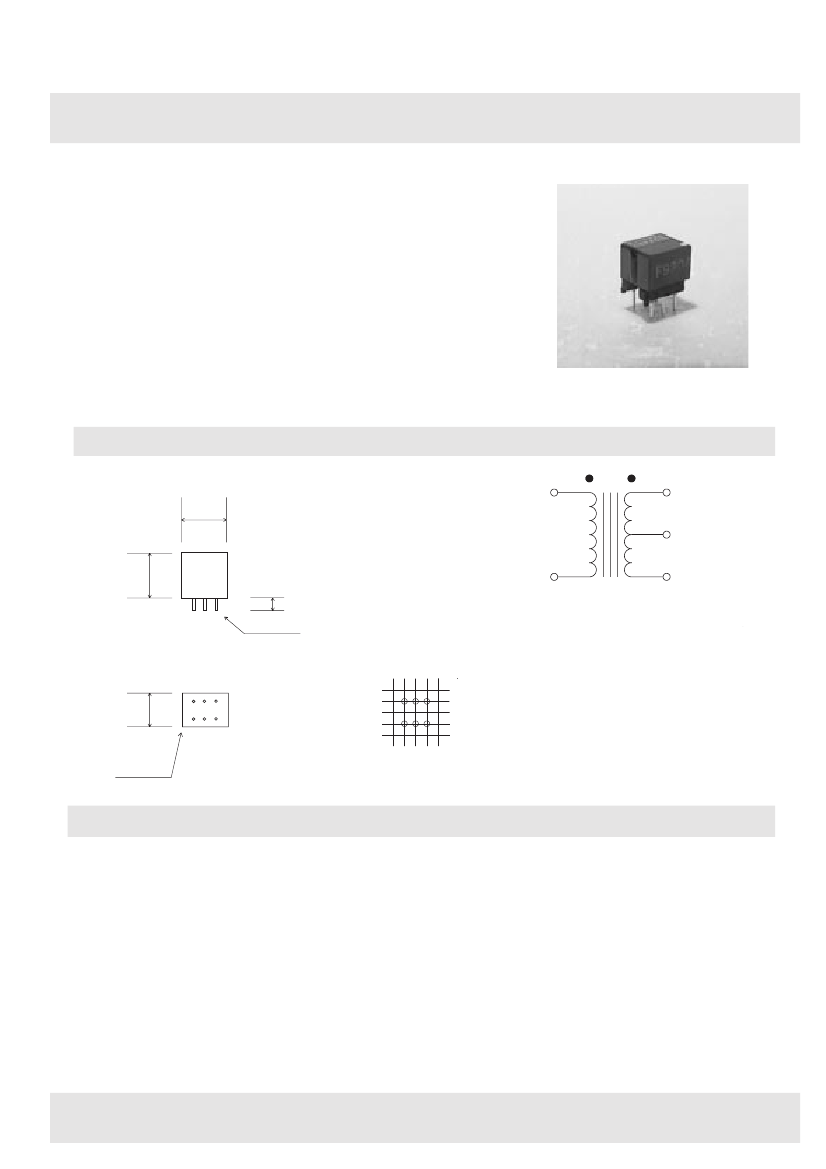

T3/DS3/E3/STS-1
TEW5746 is designed to be
used as a transmit transformer
in the following applications
on75
Ω
coaxial lines.
•
•
•
–
T3/DS3
E3
STS-1
44.736 MBPS
34.368 MBPS
51.84MBPS
Output Transformer
TEW5746
Approved for use with:
SSI
78P2362
Exceeds the requirements of
CCITT G.703.
MECHANICAL
4
0.40
3
2 Device
Line
0.40
ALL DIMENSIONS
ARE IN INCHES
6
1
0.10
DIA O.025
6 5 4
0.30
1 2 3
WHITE DOT
GRID 0.10 x 0.10
DRILL O.O40
6 PLACES
5549.chp
ELECTRICAL SPECIFICATION
TEW5746
95/02/17
Line Impedance (Ohms)
Turns ratio
Inductance (µH)
Pulse Mask
Dielectric Strength (Vrms)
(4 - 6)
(4 - 6) : (3 - 1)
(4 - 6)
75
1 : 2 CT
> 18
G.703
1500
ISSUE: A
Filtran Limited
229 Colonnade Road, Nepean, Ontario, Canada. K2E 7K3,
Tel : (613) 226 -1626 Fax : (613) 226 -7124
5-11
