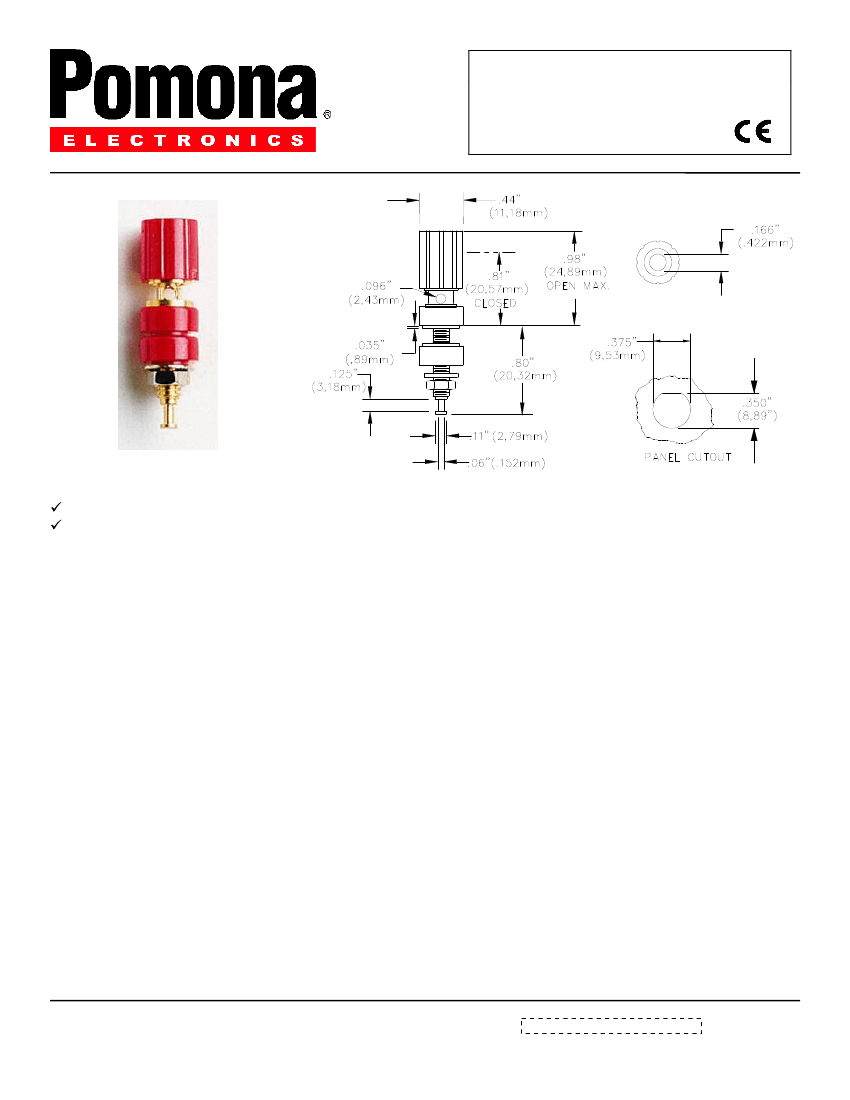

Model 3750, 3760 & 3770
Standard Binding Post
FEATURES:
Accepts standard banana plug, wire or spade lug.
Mounts in panels from .070” to .250” (1.77mm to 6.35mm) thick.
MATERIALS:
Insulated Captive Thumb Nut: Brass
Insulation: Polycarbonate
Mounting Base: Polycarbonate
Insulator: Polycarbonate
Lockwasher: Nickel Plated Steel
Hex Nut: ¼” #8-32 Nickel Plated Brass
Binding Post:
Finish: 3750 – Gold plated brass
3760 – Bright tin plated brass
3770 – Gold plated Tellurium Copper
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 2500 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltage above 33 Vrms/70 Vdc.
Operating Temperature: +239ºF (+115ºC) Max.
Current: 15 Amperes
ORDERING INFORMATION:
Model: 3750-Color (Gold plated brass)
Ordering Example: 3770-2 (Red, Gold Plated Tellurium Copper)
Model: 3760-Color (Bright tin plated brass)
Model: 3770-Color (Gold Plated Tellurium Copper)
Color
=: Color, 0 (Black), 1 (Brown), 2 (Red), 3 (Orange), 4 (Yellow), 5 (Green), 6 (Blue), 7 (Violet), 8 (Gray), 9 (White)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1093975, D1093981, D1093927
Page 1 of 1
