VeraPhase
®
6300Antenna
High Precision Triple Band GNSS Antenna
The patented
VeraPhase
®
technology rivals, and in some
aspects, surpasses the performance of choke ring technology but
is lighter, smaller, and more economical.
The VP6300 antenna is capable of receiving GPS L1/L2/L5,
GLONASS G1/G2/G3, BeiDou B1/B2, and Galileo E1/E5a+b
(1164 – 1254MHz plus 1559-1610MHz). It has consistent
performance (gain, axial ratio, PCV, and PCO) across the full
bandwidth of the antenna. It provides the lowest axial ratios
(horizon to horizon, over all azimuths) across all GNSS
frequencies (<0.5dB at zenith, <2 dB typ. at horizon). It has an
exceptional front to back ratios, high efficiency (>70%), a tight
PCV, and near constant PCO for all azimuth and elevation
angles, over all in-band frequencies.
The VP6300 provides high receive gain over the full GNSS
spectrum. It has a
robust pre-filtering to minimize de-sensing
from high-level out-of-band signals such 700MHz LTE and
other cellular band signals,
while still providing a noise figure
of less than 2.5dB.
An uncommitted PCB is available within the base of the antenna
for integration of a custom system board such as a PPP or RTK
GNSS receiver or other applications.

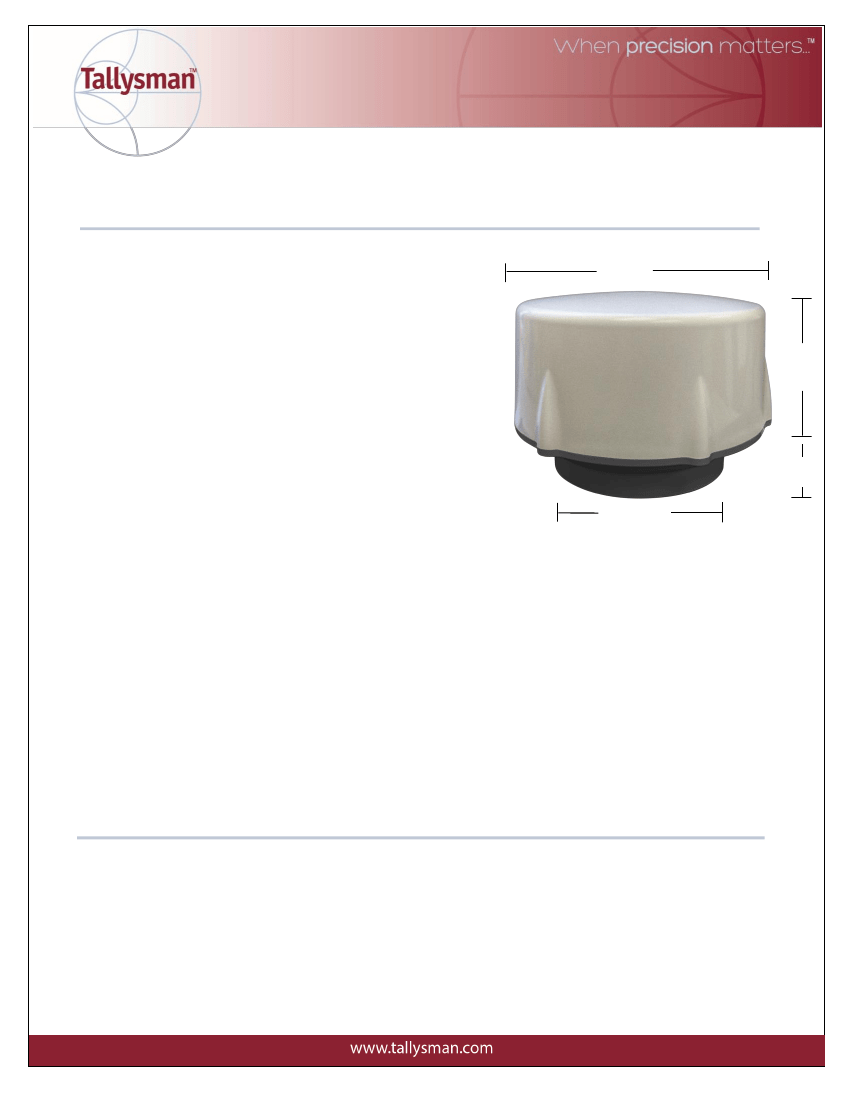

167 mm
109.6
mm
14.9 mm
109.9
mm
VeraPhase
6300 Dimensions (mm)
Conical Radome also available
Applications
•
•
•
Survey
High Precision GNSS systems
Custom OEM Products
•
RTK / PPP systems
Features
•
•
•
•
Low axial ratio from horizon to horizon
Very Tight Phase Center Variation (<1.5mm)
Invariant performance from: +2.7 to 24 VDC
Space in housing for integrated PPP, RTK
receiver or other OEM system.
Benefits
•
•
•
•
•
•
Consistent performance across all
frequencies
Broadest tracking elevation (0° - 180°)
Extreme precision
Excellent multipath rejection
IP67, REACH, and RoHS compliant
Reduced time to market
VeraPhase
®
6300 – High Precision Triple Band GNSS Antenna
Specifications
(Measured @ Vcc = 3V, and Temperature=25°C)
Antenna
Antenna Gain
Efficiency
Axial Ratio, over full bandwidth
Phase Centre Variation
Phase Centre Offset (RMS)
5 dBic to 7 dBic (all Frequency Bands)
>70%
< 0.5 dB at zenith, (refer to table below for other elevations)
± 1.5 mm across all frequencies
± 0.2 mm across all frequencies
35 dB, 50dB, or 15dB OEM
3dB max over operational temperature range
1.5 dB over frequency range (typ)
+12 dBm
1164
–
1254 MHz plus 1559
–
1610 MHz
2.5dB typ. at 25°C
<1.5:1 max.
+2.7 to 24VDC nominal
<35mA (35dB), <45mA (50dB)
<800MHz
> 60dB
<950MHz
60dB
<1100MHz
60dB
>1450MHz
60dB
<1536MHz
50dB
>1650MHz
50dB
>1800MHz
> 60dB
1164MHz - 1300MHz
7ns (max)
1559MHz
–
1610MHz
15ns (max)
Electrical
Available LNA Configurations
Gain Variation with Temperature.
LNA Gain Flatness
P1dB Output
Bandwidth
LNA Noise Figure
VSWR (at LNA output)
Supply Voltage Range
Supply Current
Out of Band Rejection (min
Group Delay variation
Mechanicals & Environmental
Mechanical Size
Antenna Reference Plane (ARP)
North Orientation Indicator
Operating Temperature Range
Weight
Mounting Thread
Environmental
Shock
Vibration
See drawing on page 1
Bottom of 5/8” thread
Mark on radome above connector
-40°C to +85°C
<800g (flat radome), 820g (conical radome)
5/8”x
11 TPI female
IP67, RoHS and REACH compliant
Vertical axis: 50 G, other axes: 30 G
MIL STD 810D
Elevation
90°
30°
10°
Elevation
90°
30°
10°
L5 - E5a
0.5
1.5
2
L5 - E5a
0.5
1.8
2.2
Axial ratio (dB) (typical) - Flat Radome
E5b - B2 - G3
L2 - G2
B3
E6
0.3
0.2
0.3
0.3
1.5
1.3
1
1.5
1.8
1.4
1.8
2.2
Axial ratio (dB) (typical) - Conical Radome
E5b - B2 - G3
L2 - G2
B3
E6
0.4
0.2
0.3
0.3
1.7
1.3
1.2
1.5
1.8
1.5
2
2.5
L1 - E1 - B1
0.3
1.2
2
L1 - E1 - B1
0.3
1.5
2.5
G1
0.4
1.2
2.2
G1
0.4
1.5
2.8
Ordering Information:
VeraPhase 6300 with 35 dB LNA, flat white radome
VeraPhase 6300 with 35dB LNA, conical white radome
VeraPhase 6300 with 50dB LNA, flat white radome
VeraPhase 6300 with 50dB LNA, conical white radome
Where xx = 01 for TNC or 14 for N-Type
33-633500-xx-11
33-633500-xx-01
33-635000-xx-11
33-635000-xx-01
Tallysman Wireless Inc
36 Steacie Drive, Ottawa, ON K2K 2A9 Canada
Tel +1 613 591 3131
Fax +1 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be
regarded as a guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind.
© 2016 Tallysman Wireless Inc. All rights reserved
Rev 1.6
