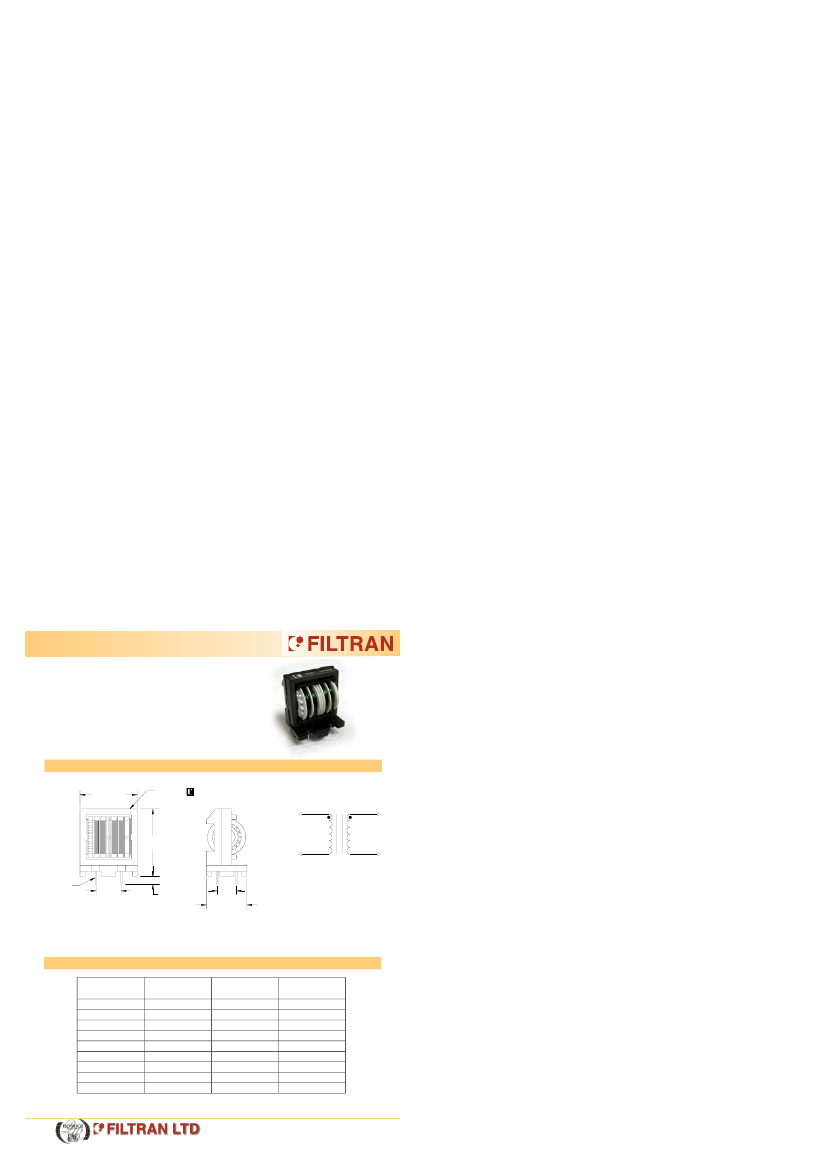

Common Mode Chokes
• Compact size, large inductance
• Excellent frequency characteristic
• Low magnetic flux leakage
• Complies with UL, VDE safety requirements
Applications:
• Switching power supplies
• Video and audio equipment
• Office equipment
8061-8069
• Communications equipment and other
electronic devices
MECHANICAL AND SCHEMATIC
(All dimensions in inches)
1.18 Max
Marking:
8061, FD/C
SCHEMATIC
2
3
1.39 Max
1
4
Ø.030±.002
1
4
2
1
.510
.177±.020
.390
.87 Max
UNLESS OTHERWISE SPECIFIED, ALL TOLERANCES ARE ±0.010
ELECTRICAL SPECIFICATION @ 25˚C
Part
Number
8061-69
Inductance
(mH Min.)
5
8
10
15.5
25
36
66
92
120
Current Rating
(Amps AC)
3.00
2.50
2.00
1.50
1.00
0.90
0.70
0.60
0.50
DCR
(Ω Max.)
0.10
0.19
0.25
0.32
0.60
0.80
1.50
2.00
2.60
8061
8062
8063
8064
8065
8066
8067
8068
8069
ISSUE: A
31/04/03
229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3
Tel: (613) 226-1626 Fax: (613) 226-7124
www.filtran.com
An ISO 9001 Registered Company
