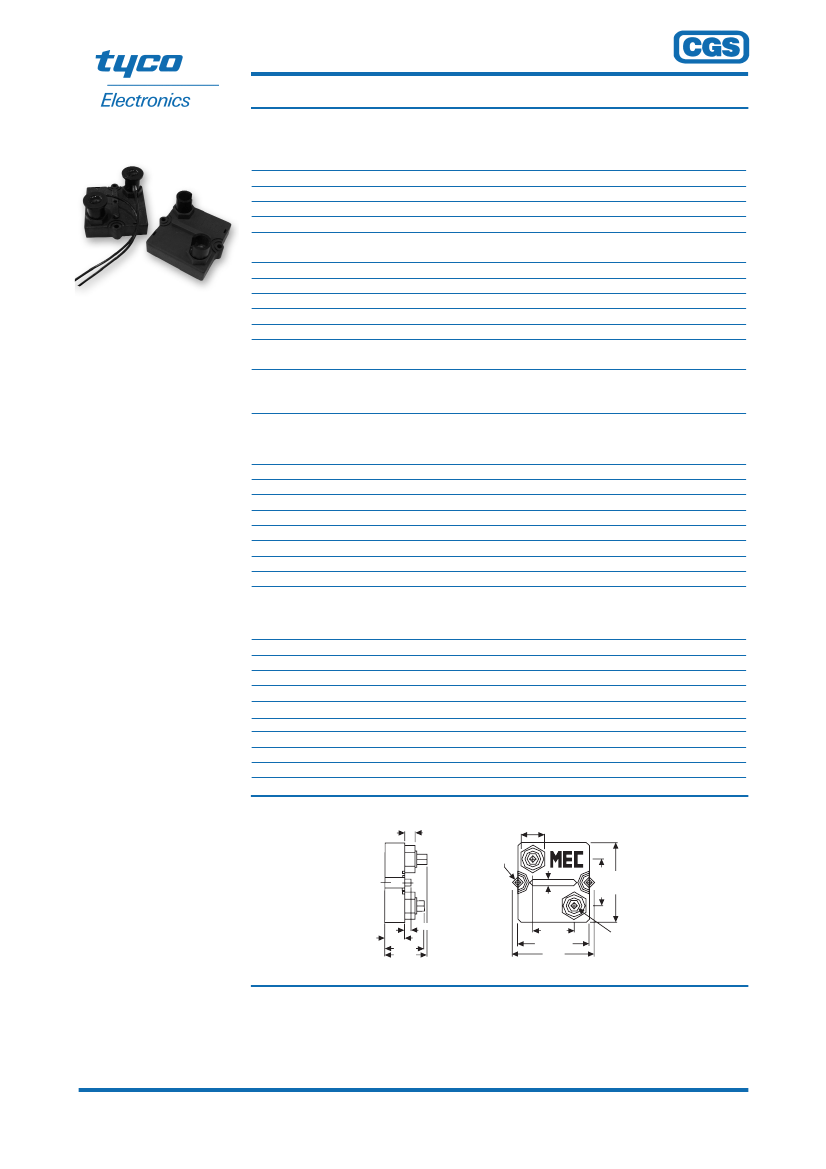

Thick Film Power Resistors
Type BDS600 Series
Type BDS600 Series
Characteristics -
Electrical
Resistance Range:
Resistance Tolerance:
TCR:
Rated Power:
Capacitance:
Series Inductance:
Limiting Element Voltage:
Isolating Voltage:
Single Shot Voltage:
Insulation Resistance:
Partial Discharge:
Heat Dissipation:
0R5 – 100K
± 10%, 5% (Tighter by discussion)
± 150ppm/°C
Heatsink: 60°C
600W
Parallel
40pF
To Earth
110pF
<80nH (Maximum)
5kV dc/ac rms
(Terminal to Heatsink)
10kV ac rms
1.5/50ms
12kV
(at 500V dc)
>1000MΩ
at 7kV
<500pC
at 5kV
<5pC
Although the use of proprietary heat sinks with lower thermal resistance is
acceptable, up rating is not recommended. The use of proprietary heat sink
compound to improve thermal conductivity is essential.
With a maximum inductance of 80nH
and a rated power of 600W (60°C
Heatsink) in a 57mm x 60mm casing,
the BDS600 offers high power
density over a wide range of ohmic
values (0R5 – 100K).
This high power density resistor is
made from quality materials for
optimum reliability and stability with
very low partial discharge.
Tyco can test resistors to conform
to relevant international, MIL or
customer specifications, and will
advise on the use of resistors for
pulse applications (special pulse
duty options available) and high
voltage usage (high voltage designs
available). The BDS600 offers a
limiting element voltage of 5kVac
rms, and 10kV isolation voltage
(terminal to heatsink).
Resistors with 1% tolerance, alterna-
tive terminations or flying leads are
available, and custom designs are
welcome.
This product is available via
distribution.
Characteristics -
Environmental
Endurance (Rated Power):
Humidity Load Life:
Temperature Cycling:
Storage Temp:
Operating Temp:
Short Term Overload:
Vibration:
Bump:
Full Load, 1000h, 25°C
56 Days, 40°C, 95% RH
-55°C to +125°C, 5cycles
-55°C to +155°C
-55°C to +140°C (200°C on req.)
1000W, 10s
2-5000Hz/10g
40g 4000 bumps
∆R
0.4% Typ
∆R
0.25% Typ
∆R
0.2% Typ
∆R
0.4% Typ
∆R
0.25% Typ
∆R
0.25% Typ
Characteristics -
Mechanical
Terminal Size:
Terminal Torque (max.):
Creepage Distance:
Air Gap:
Heatsink Surface Finish:
Heatsink Flatness:
Thermal Grease:
Weight:
Max. Mounting Torque:
M5
2Nm
48mm
14mm
< 6µm
0.05mm
Required
160g
1.8Nm
Key Features
I
600W in a 34.2cm
2
footprint
•
Gives an impressive
power density of
17.5W/cm
2
Inductance < 80nH
•
Virtually inductance-free
Wide resistance range:
0.5Ω to 100kΩ
•
Coupled with 1%
tolerance gives ultimate
design flexibility
Multiple terminal
configurations
•
For demanding creep
and clearance
requirements
Partial discharge
<5pC at 5kV
•
Guaranteeing quality,
reliability and long life
To Heatsink
R
a
(0.05°C/Wmm)
I
I
Dimensions
7.0
18.0
ø4.1 ±
0.2
0.05
36.0±0.3
5.0 ±0.5
I
15.0
30.0 ±0.5
32.0 ±0.5
34.0 ±0.2
57.0 ±0.2
65.0
øM5
I
Applications
I
I
I
Snubbing (Low inductance)
Filter (Low inductance)
High Voltage
I
I
High Frequency
Balancing
Literature No. 1773314
Issued: 02-06
Dimensions are shown for
reference purposes only.
Dimensions are in millimetres
unless otherwise specified.
Specifications subject to
change.
60.0
www.tycoelectronics.com
passives.tycoelectronics.com
