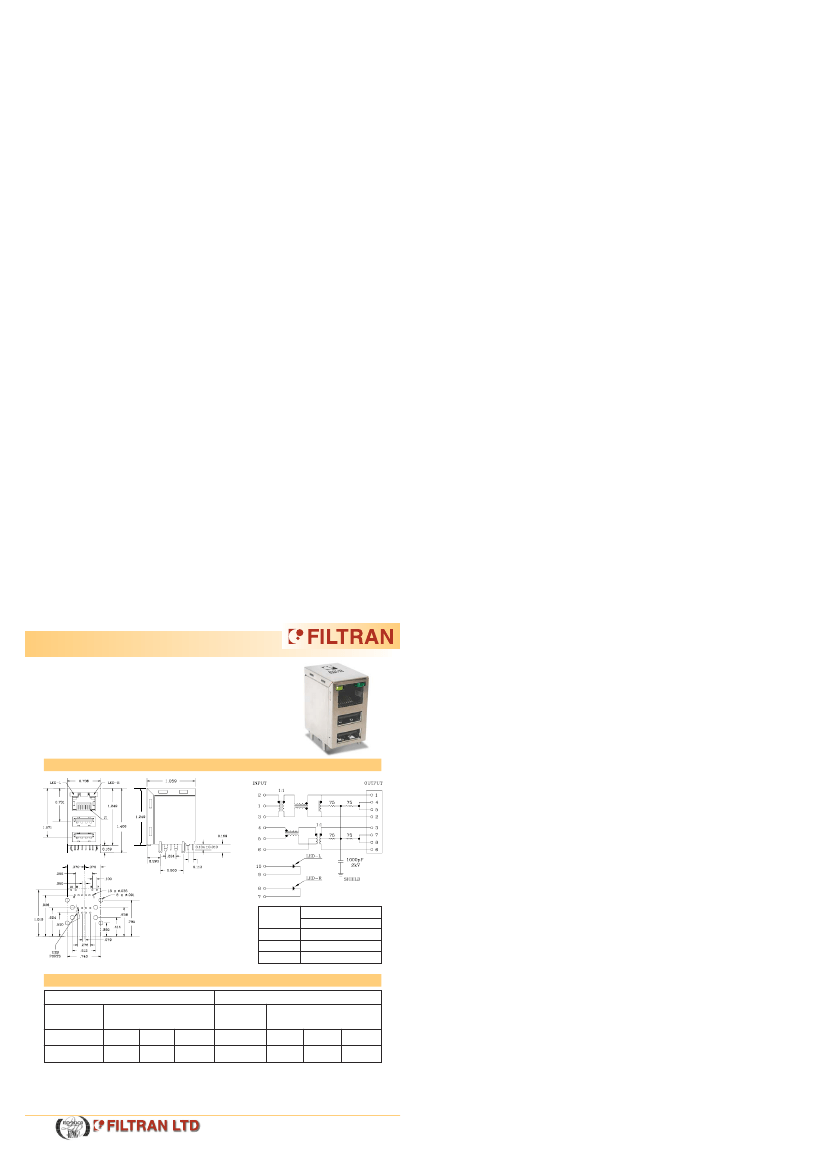

RJ-45/USB

10/100 BASE-T Module

with Dual USB

8321-8323

• Complies with IEEE standards and all 10/100 Ethernet specifications

including 350µH with 8mA DC bias

• Various turns ratio options available

• Integrated Mag-modular design provides higher reliability and conserves

minimizing PCB space

• Various LED options available

• Single port shield RJ-45 with dual USB

• Operating temperature: -40°C to +85°C

Mechanical and Schematic

(All dimensions in inches)

SCHEMATIC

PCB LAYOUT

(component side view)

Part

Number

8321

8322

8323

Description

LED-L

Yellow

Green

LED-R

Green

Yellow

Green

ELECTRICAL SPECIFICATION @ 25˚C

Transmitter Filter

8321-8323

Receiver Filter

Insertion Loss

dB MAX

1-100 MHz

-1.0

Insertion Loss

dB MAX

1-100 MHz

-1.0

•

Return Loss

dB MIN (load 100

Ω)

1-30 MHz

-20

30-60 MHz

-15

60-80 MHz

-11

Return Loss

dB MIN (load 100

Ω)

1-30 MHz

-20

30-60 MHz

-17

60-80 MHz

-15

ISSUE:D

03/06/03

Common Mode Rejection @1-100 MHz : -30dB MIN

Crosstalk @1-100 MHz : -30dB MIN

Primary Inductance @100kHz, 0.1Vrms, 8mA DC Bias (2-3), (4-5): 350µH MIN

Hipot:

Input(2-3) to Output(1-2): 1500Vrms, 1.0mA, 1sec

Input(4-5) to Output(3-6): 1500Vrms, 1.0mA, 1sec

229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124

www.filtran.com

An ISO 9001 Registered Company
