1-1532176-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-1532176-9

1-1532176-9: DescriptionM83513/04-F03C, MCKS-C2-B-37S6G9-18.0; CategoryThe connector; File Size385KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-1532176-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1532176-9	-	-	View	Buy Now

1-1532176-9 Overview

M83513/04-F03C, MCKS-C2-B-37S6G9-18.0

1-1532176-9 Parametric

Parameter Name	Attribute value
Connector type	female end
Connectors and terminals terminate to	Wires and cables
Wire type	Stranded wire
Number of Positions	37
Pre-installed	yes
Insulation color	black
Lead length	457.2 mm [ 18 in ]
Shell plating material	electroless nickel plating
Terminal base material	beryllium copper alloy, beryllium copper alloy, beryllium copper alloy
Terminal contact plating material	gold
Terminal type	socket

Preview

Download Datasheet

View All

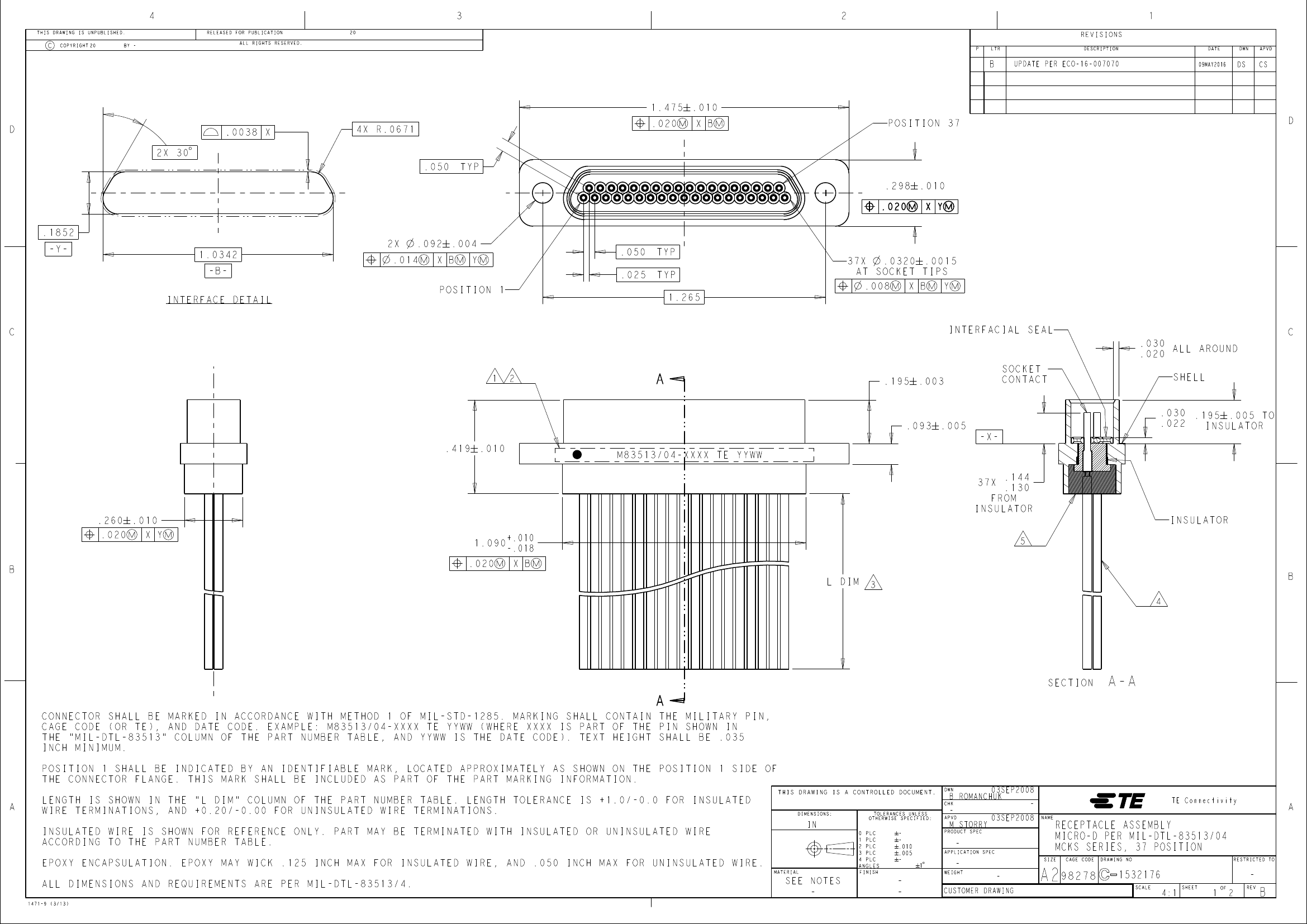

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

UPDATE PER ECO-16-007070

09MAY2016

1.475

2X 30 $

.0038

4X R.0671

.050

TYP

.020 m

.010

X B m

POSITION 37

.298

.020 m

.1852

-Y-

1.0342

-B-

INTERFACE DETAIL

n .092

.004

.010

X Y m

X B m Y m

POSITION 1

.050

.025

TYP

1.265

37X

n .0320 # .0015

AT SOCKET TIPS

X B m Y m

INTERFACIAL SEAL

.195

.003

SOCKET

CONTACT

.030

.020

ALL AROUND

SHELL

.093

.419

.010

M83513/04-XXXX TE YYWW

.005

-X-

.030

.022

.195 .005 TO

INSULATOR

.260

.020 m

.010

.144

.130

FROM

INSULATOR

37X

1.090

.020 m

+.010

-.018

X Y m

INSULATOR

X B m

L DIM

SECTION

CONNECTOR SHALL BE MARKED IN ACCORDANCE WITH METHOD 1 OF MIL-STD-1285. MARKING

CAGE CODE (OR TE), AND DATE CODE. EXAMPLE: M83513/04-XXXX TE YYWW (WHERE XXXX

THE "MIL-DTL-83513" COLUMN OF THE PART NUMBER TABLE, AND YYWW IS THE DATE

INCH MINIMUM.

POSITION 1 SHALL BE INDICATED BY AN IDENTIFIABLE MARK, LOCATED APPROXIMATELY AS

THE CONNECTOR FLANGE. THIS MARK SHALL BE INCLUDED AS PART OF THE PART MARKING

LENGTH IS SHOWN IN THE "L DIM" COLUMN OF THE PART NUMBER TABLE. LENGTH

WIRE TERMINATIONS, AND +0.20/-0.00 FOR UNINSULATED WIRE TERMINATIONS.

INSULATED WIRE IS SHOWN FOR REFERENCE ONLY. PART MAY BE TERMINATED WITH

ACCORDING TO THE PART NUMBER TABLE.

EPOXY ENCAPSULATION. EPOXY MAY WICK .125 INCH MAX FOR INSULATED WIRE, AND .050

ALL DIMENSIONS AND REQUIREMENTS ARE PER MIL-DTL-83513/4.

1471-9 (3/13)

A-A

SHALL CONTAIN THE MILITARY PIN,

IS PART OF THE PIN SHOWN IN

CODE). TEXT HEIGHT SHALL BE .035

SHOWN ON THE POSITION 1 SIDE OF

INFORMATION.

TOLERANCE IS +1.0/-0.0 FOR INSULATED

INSULATED OR UNINSULATED WIRE

INCH MAX FOR UNINSULATED WIRE.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

03SEP2008

B ROMANCHUK

03SEP2008

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.010

.005

PRODUCT SPEC

M STORRY

APPLICATION SPEC

1 $

SEE NOTES

WEIGHT

CUSTOMER DRAWING

98278

SIZE

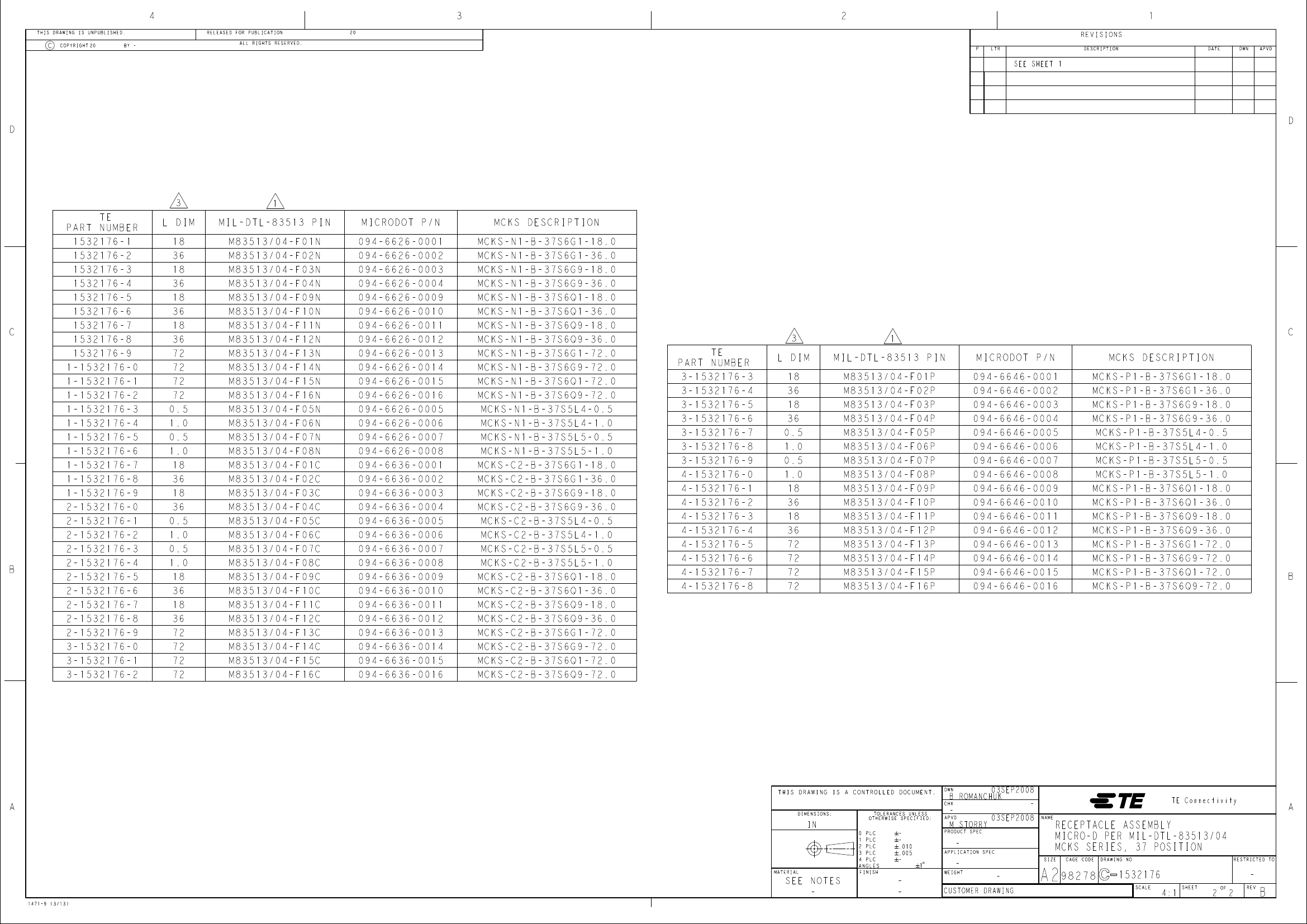

RECEPTACLE ASSEMBLY

MICRO-D PER MIL-DTL-83513/04

MCKS SERIES, 37 POSITION

CAGE CODE

DRAWING NO

RESTRICTED TO

1532176

SCALE

4:1

SHEET

REV
