324-AG10DC: DescriptionIC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,; CategoryThe connector socket; File Size51KB，2 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric View All

324-AG10DC Overview

IC Socket, DIP24, 24 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,

324-AG10DC Parametric

Parameter Name	Attribute value
Maker	ABB
Reach Compliance Code	unknown
Other features	WITH STANDOFFS
body width	0.4 inch
subject depth	0.21 inch
body length	1.2 inch
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
current rating	2 A
Device slot type	IC SOCKET
Type of equipment used	DIP24
Dielectric withstand voltage	1000VAC V
Shell material	POLYESTER
Insulation resistance	5000000000 Ω
Manufacturer's serial number	300C
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	24
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

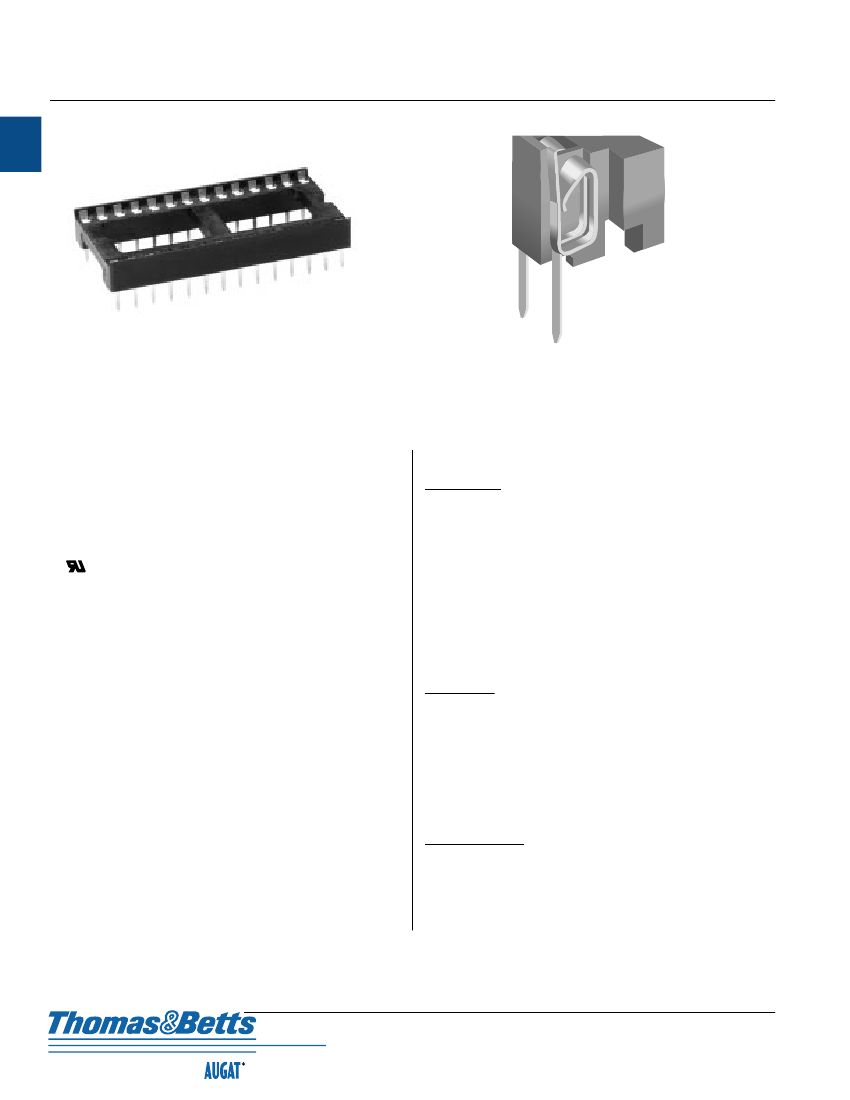

300C Series

Stamped Dual Wipe Contact DIP Sockets

328-AG19DC

FEATURES:

The Augat 300C Series dual wipe contact adds a new family of

product to Augat's low cost DIP socket line.

• Closed bottom prevents solder wicking

• Standoff's facilitate board cleaning

• Low profile design

•

Recognized under the Component Program of Underwriters

Laboratories, Inc. File No. E111362

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition III, 15 G’s

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition G, 100 G’s

Durability ...................... Passed MIL-STD-1344, Method 2016

Normal Force ................ 170 Grams (6.0 oz.) with .009" x .015"

(0,23 x 0,38) IC lead typ.

Contact Retention .......... 340 Grams (12.0 oz.) minimum

Solderability .................. Passed MIL-STD-202, Method 208

Insertion Force .............. 169 Grams (6.0 oz.) average with a .013"x .020"

(0,33 x 0,51) dia. polished steel pin

Withdrawal Force .......... 43 Grams (1.5 oz.) average with a .009" x .015"

(0,23 x 0,38) dia. polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms

Contact Rating .............. 2 Amps

Capacitance .................... .5 pF per MIL-STD-202, Method 305

(Adjacent contacts max.)

Insulation Resistance .... 5,000 Megohms @ 500 VDC per MIL-STD-1344,

Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1

Temperature Cycling .... Passed MIL-STD-1344, Method 1003.1

Operation Temperature .. Gold -55°C to +125°C

Tin -55°C to +105°C

Salt Spray ...................... Passed MIL-STD-1344, Method 1001.1

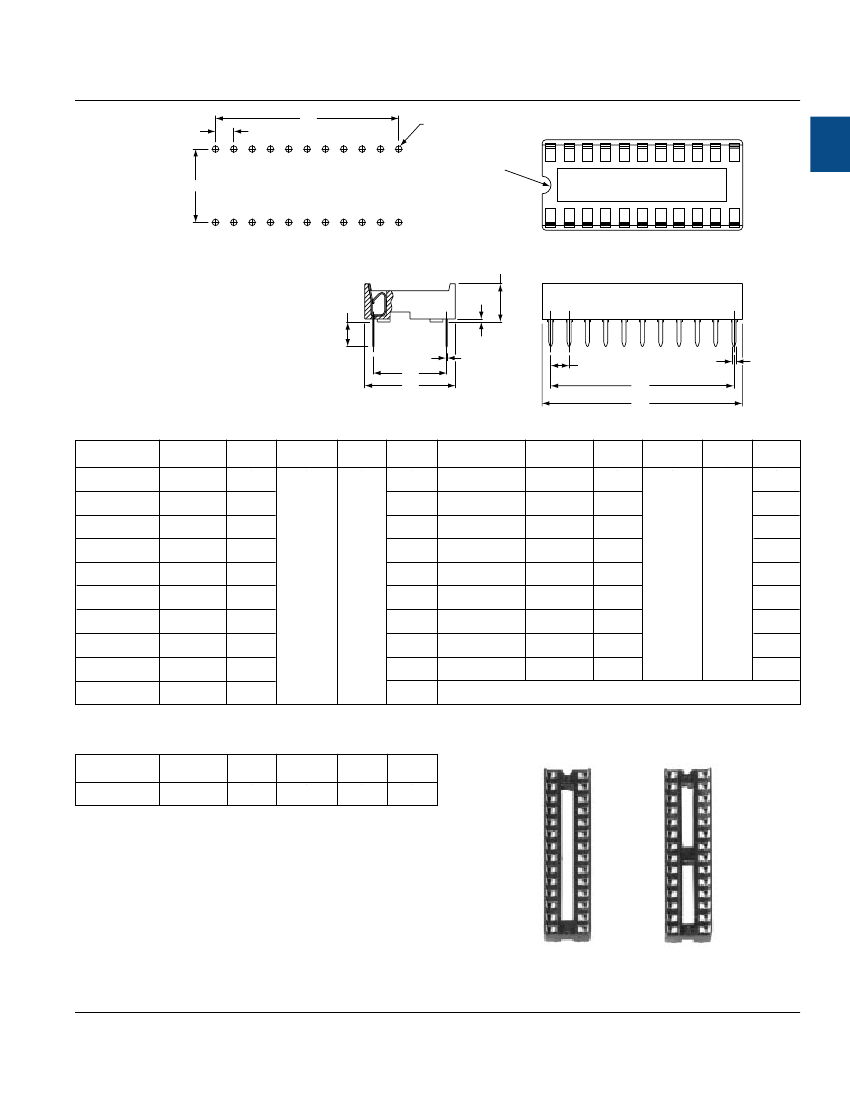

APPLICATION DIMENSIONS:

• PCB Thickness Range: Standard .062" and .092" (1,57 and 2,34))

• PCB Hole Size Range: .035"

.003" (0,89

0,08) standard tail

• IC Pin Dimension Range: .008" x .015" ( 0,20 x 0,38) through

.013" x .020" (0,33 x 0,51), .100" (2,54) min. length

MATERIAL SPECIFICATIONS:

Insulator ........................ Thermoplastic polyester, UL rated 94V-0

Contacts .......................... Phosphor bronze

Plating ............................ Tin/lead

Quality & Innovation From The

Product Group

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805
