352115-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 352115-1

352115-1: DescriptionZ-PACK/C F-HDR 55P; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

352115-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	352115-1	-	-	View	Buy Now

352115-1 Overview

Z-PACK/C F-HDR 55P

352115-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Objectid	1504390063
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	14 weeks 6 days
Samacsys Description	TE Connectivity Z-PACK HM Series 2mm Pitch Hard Metric Type C Backplane Connector, Female, Right Angle, 11 Column
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	8.7
Other features	ACTION PIN, Z-PACK, 5 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
body width	0.482 inch
subject depth	0.826 inch
body length	0.982 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Electromagnetic interference shielding	YES
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e0
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	B,A,E,C,D
Number of connectors	ONE
PCB row number	5
Number of ports	1
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.15012 N

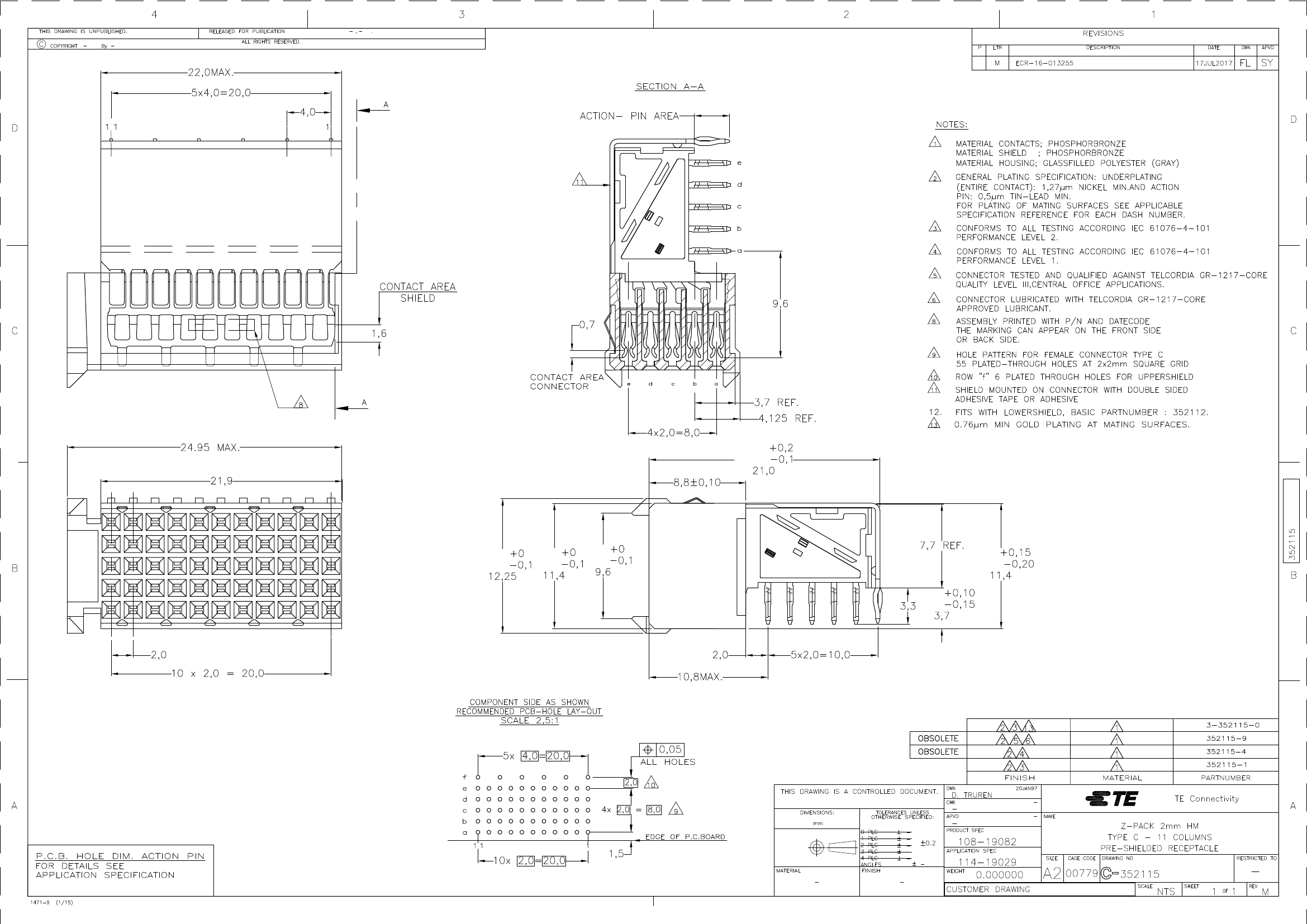

Preview

Download Datasheet

View All
