LAN 10/100 PC Card LAN Magnetics

Preview

Download Datasheet

View All

LAN

10/100 PC Card LAN Magnetics

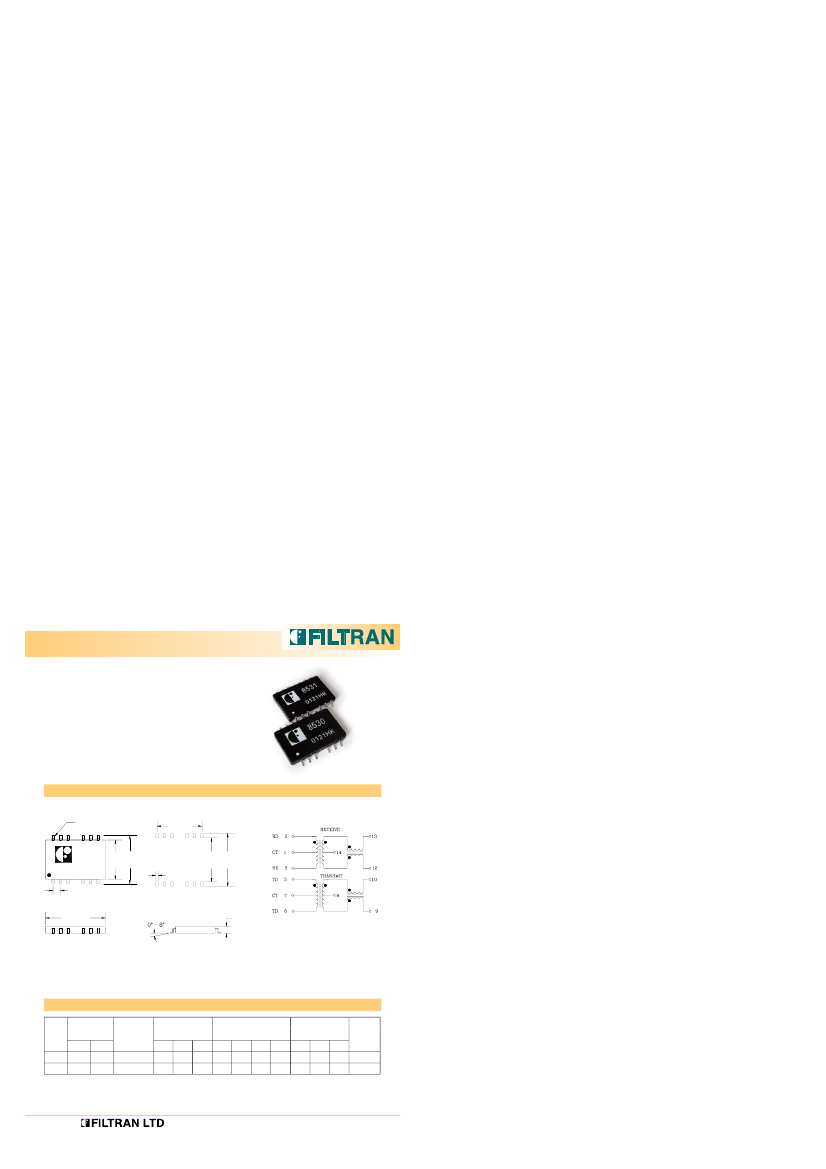

8530-8531

• Low profile packages

• Ideal for PC Card and Cardbus applications

• Compatible with Intel, TDK, QSI, and ICS transceivers

Mechanical and Schematic

(All dimensions in inches)

SUGGESTED PAD LAYOUT

.010 x .020

.600

SCHEMATIC

853X

F/DC

.100

.540 .680

12 x .030

.585

.705

.870 MAX

.090

NOTE: Transmit and receive channels are interchangeable on 8530.

06/07/01 8530 - 8531

ELECTRICAL SPECIFICATION @ 25˚C

Turns Ratio

(±5%)

Transmit

8530

1:1

2:1

Receive

1:1

-1.3

-2.0

Return Loss

(dB MIN)

MHz

-18

MHz

-13

-12

MHz

-11

-10

MHz

-40

-30

Differential to Common

Mode Rejection

(dB MIN)

MHz

-35

-30

100

MHz

-30

150

MHz

-20

MHz

-40

Crosstalk

(dB MIN)

MHz

-40

100

MHz

-35

1500

Part

Number

Insertion Loss

100 kHz-100MHz

(dB MAX)

Hipot

(Vrms MIN)

ISSUE: B

8531

An ISO 9001 Registered Company

229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124 www.filtran.com
