CII Low Signal Relays
Double Pole, Electrically Held, 2 Amps and Less
(Continued)

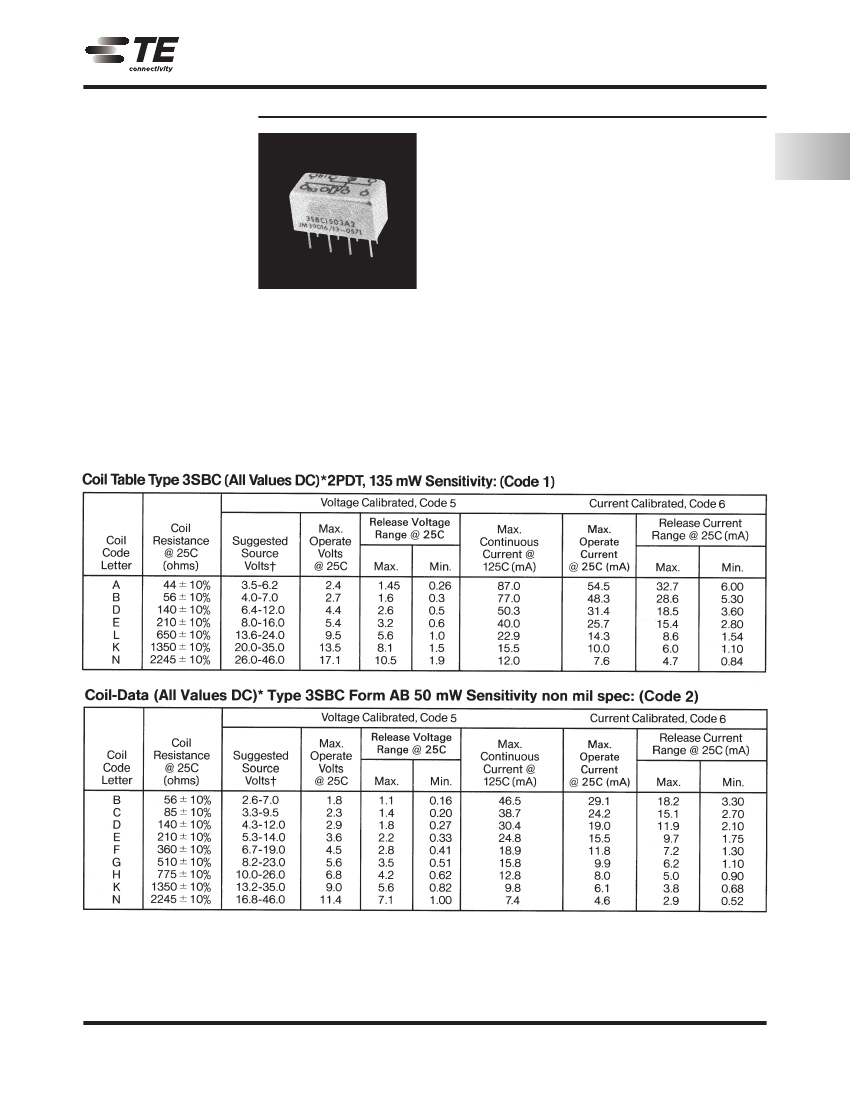

.150 Grid-space Relays
Type 3SBC (2PDT) Standard
135 mW 2PDT
50 mW (Form AB)
1 PNC–1 PNO
Electrical Characteristics
Contact Ratings
—
DC resistive — 2 amps at 28 volts
(50,000 operations)
1 Amp @ 28 V (100,000 operations)
DC inductive — 0.5 amps at 28 volts,
200 mH
AC resistive — 0.5 amps at 115 volts
AC — 0.125 amps at 115 volts (case
grounded)
Low-level — 50 µA at 50 mV
Peak AC or DC
Contact Resistance
—
0.050 ohms max.; 0.150 ohms after life
test
Life
— 100,000 operations at rated
loads listed; 1,000,000 operations at
low-level loads
Operating Characteristics
Operate Time
— 4 ms max.
Release Time
— 4 ms max.
Contact Bounce
— 1.5 ms
Dielectric Strength
—
500 volts rms at sea level;
350 volts rms at 70,000 feet and above
Insulation Resistance
— 1,000
megohm min. over temperature range
1
CII Low Signal Relays
Product Facts
n
n
Low profile… only
0.32 inches high
Internal diode for coil
transient suppression and
transistor driven models
available
Qualified to MIL-R-39016/13
RF designs available
The .150 Grid-space relay
— only 0.32 inches high —
saves space in electronic
packaging. The pin spacing
allows you to insert the relay
with no intermediate pin
spreaders as well as
meet applicable military
specifications.
Environmental Characteristics
Vibration
— 30G, to 3000 Hz
Shock
— 100 G at 11 ms
Temperature
— -65°C to +125°C
See page 1-44 for Mounting Forms,
Terminals and Circuit Diagrams.
n
n
*Values listed are factory test and inspection data. User should allow for meter variations.
†At nominal resistance plus 10%.
‡Applicable over the operating temperature range in circulating air.
See Page 1-42 for ordering instructions.
*
The part number example shown on this page is for catalog items. For a list of specific QPL part numbers, please see the index in Section 15.
1-41
Catalog 5-1773450-5
Revised 3-13
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in millimeters
unless otherwise specified.
USA: +1 800 522 6752
Asia Pacific: +86 0 400 820 6015
UK: +44 800 267 666
For additional support numbers
please visit www.te.com
CII Low Signal Relays
Double Pole, Electrically Held, 2 Amps and Less
(Continued)

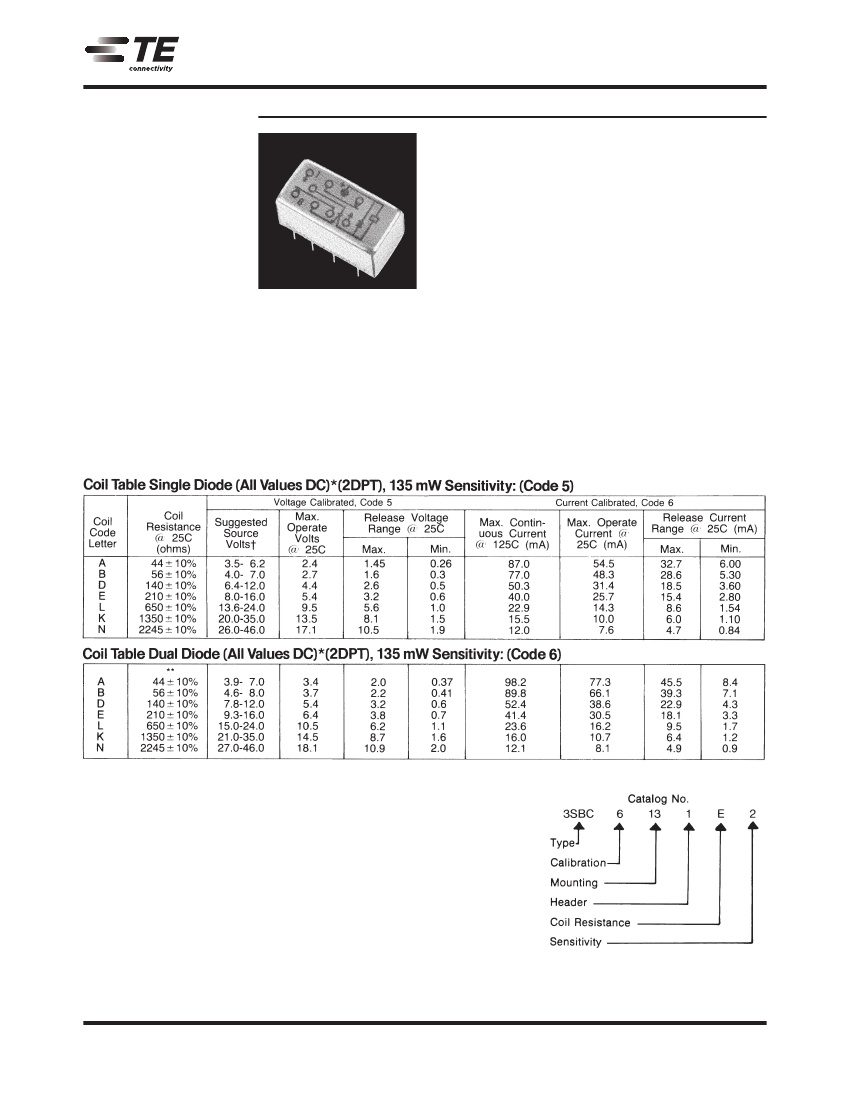

.150 Grid-space
Hybrid Relays
Single Diode, Dual Diode
Type 3SBC (2PDT)
135 mW
Electrical Characteristics
Contact Ratings
—
DC resistive — 2 amps at 28 volts
(50,000 operations)
1 Amp @ 28 V (100,000 operations)
DC inductive — 0.5 amps at 28 volts,
200 mH
AC resistive — 0.5 amps at 115 volts
AC — 0.125 amps at 115 volts (case
grounded)
Low-level — 50 µA at 50 mV
Peak AC or DC
Contact Resistance
—
0.050 ohms max.; 0.150 ohms after life
test
Life
— 100,000 operations at rated
loads listed; 1,000,000 operations at
low-level loads
Operating Characteristics
Operate Time
— 4 ms max.
Release Time
— 6 ms max.
Contact Bounce
— 1.5 ms
Dielectric Strength (Note 1)
—
500 volts rms at sea level;
350 volts rms at 70,000 feet and above
Insulation Resistance (Note 1)
—
1,000 megohm min. over temperature
range
Product Facts
n
n
n
n
n
Low profile… only
0.32 inches high
50 milliwatt forms available
Qualified to MIL-R-39016/37
Qualified to MIL-R-39016/38
RF designs available
The hybrid .150 Grid-space
relay — only 0.32 inches
high — saves space in
electronic packaging. The
pin spacing allows you to
insert the relay with no inter-
mediate pin spreader.
Environmental Characteristics
Vibration
— 30G, to 3000 Hz
Shock
— 100 G at 11 ms
Temperature
— -65°C to +125°C
Semiconductor Characteristics
at 25°C
Diode
—
Max. Negative Transient — 1.0 volt
Breakdown Voltage — 100 VDC @ 10 µA
Max. Leakage Current — 1 µA @ 50 VDC
See page 1-44 for Mounting Forms,
Terminals and Circuit Diagrams.
Ordering Instructions
Example:
The relay selected in the
example is a FORM AB .150-grid
relay, current calibrated, end
bracket mounting with 0.13-inch
solder hook header, 210 ohms coil
resistance, and 50 mW sensitivity.
By choosing the proper code for
each of these relay characteristics,
the catalog number is
3SBC6131E2. The letter R following
sensitivity code indicates relay
received 5000 operation miss-test.
Ex. 3SBC6131E2R.
1-42
Catalog 5-1773450-5
Revised 3-13
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Note:
Relays specified by catalog
numbers (per above directions) are
general use items controlled by cat-
alog specifications. Relays to be
controlled by customer drawings —
or relays having requirements not
covered in this publication — will
be assigned special catalog num-
bers upon request.
*
The part number example shown on this page is for catalog items. For a list of specific QPL part numbers, please see the index in Section 15.
Dimensions are in millimeters
unless otherwise specified.
USA: +1 800 522 6752
Asia Pacific: +86 0 400 820 6015
UK: +44 800 267 666
For additional support numbers
please visit www.te.com
